BMR400
Xeriwell or Others
| Product Name: | Hydraulic Orbital Motors | Displacement: | 400CC |
|---|---|---|---|
| Applications: | Sweepers, Augers,trenchers,bale Wrappers | Replacement: | Xeriwell BMR = OMR, Eaton S,T Series , M+S MR Etc |
| Ports Size: | G1/2 | Shaft: | 25mm Key Shaft |
| Highlight: | 25mm Straight Key danfoss orbital motor,omr 400 danfoss orbital motor,Standard omr 400 hydraulic motor | ||

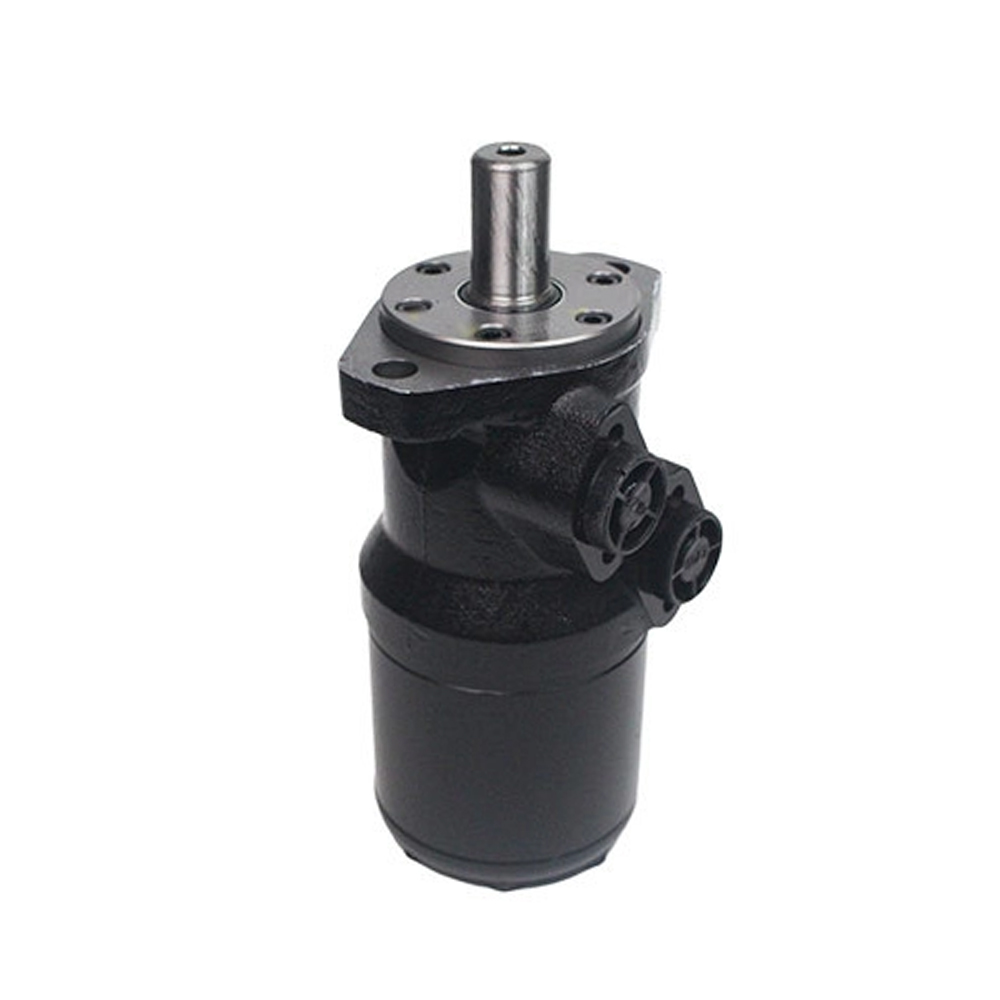

DANFOSS OMR400 Orbital motor, 25mm straight key shaft, standard type hydraulic motor
Product details:
| product type | BMR 400 spool valve motor |
| displacement | 400cc |
| flange | 2-φ13.5 Rhomb-flange pilot φ82.5x8 |
| shaft | 25mm key shaft |
| oil ports | G1/2 manifold mount 4-M8,G1/4 |
Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| Geometric displacement (cm3/rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
Replace DANFOSS No
| 151F-0500 | 151F-0522 | 151F-2206 | 151F-2242 | 151F-2305 | 151F-2327 | 151F-2354 |
| 151F-0501 | 151F-0523 | 151F-2207 | 151F-2243 | 151F-2306 | 151F-2328 | 151F-2355 |
| 151F-0502 | 151F-0524 | 151F-2208 | 151F-2244 | 151F-2307 | 151F-2329 | 151F-2356 |
| 151F-0503 | 151F-0525 | 151F-2209 | 151F-2245 | 151F-2308 | 151F-2330 | 151F-2357 |
| 151F-0504 | 151F-0526 | 151F-2210 | 151F-2246 | 151F-2309 | 151F-2331 | 151F-2358 |
Replace Eaton/Char-Lynn
| 104-1001 | 104-1032 | 104-1066 | 104-1198 | 104-1376 | 104-1421 | 105-1060 |
| 104-1002 | 104-1033 | 104-1067 | 104-1199 | 104-1377 | 104-1422 | 105-1071 |
| 104-1003 | 104-1034 | 104-1068 | 104-1200 | 104-1378 | 104-1423 | 105-1072 |
| 104-1004 | 104-1035 | 104-1087 | 104-1201 | 104-1379 | 105-1001 | 105-1073 |
| 104-1005 | 104-1037 | 104-1088 | 104-1202 | 104-1380 | 105-1002 | 105-1074 |
Replace M+S Hydraulic
| MS 80 | MS 100 | MS 125 | MS 160 | MS 200 | MS 250 | MS 315 | MS 400 | MS 475 |
| MSS 80 | MSS100 | MSS 125 | MSS 160 | MSS 200 | MSS250 | MSS315 | MSS 400 | MSS 475 |
| MLHS 80 | MLHS100 | MLHS125 | MLHS160 | MLHS200 | MLHS250 | MLHS315 | MLHS 400 | MLHS475 |
| MLHSS80 | MLHSS100 | MLHSS125 | MLHSS160 | MLHSS200 | MLHSS250 | MLHSS315 | MLHSS400 | MLHSS475 |
| MLHSW80 | MLHSW100 | MLHSW125 | MLHSW160 | MLHSW200 | MLHSW250 | MLHSW315 | MLHSW400 | MLHSW475 |
