H1B
Xeriwell or Others

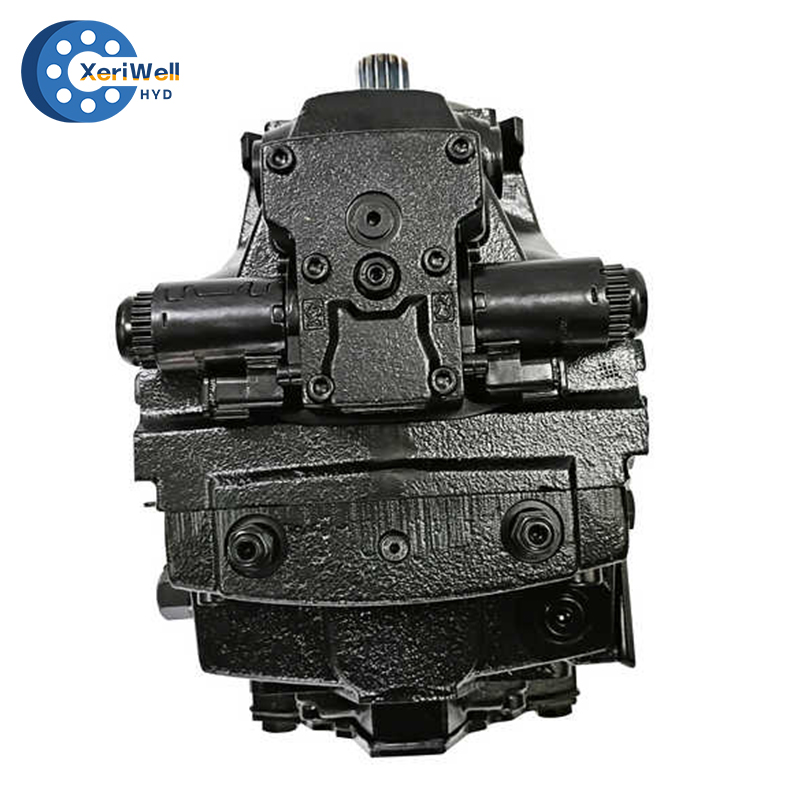

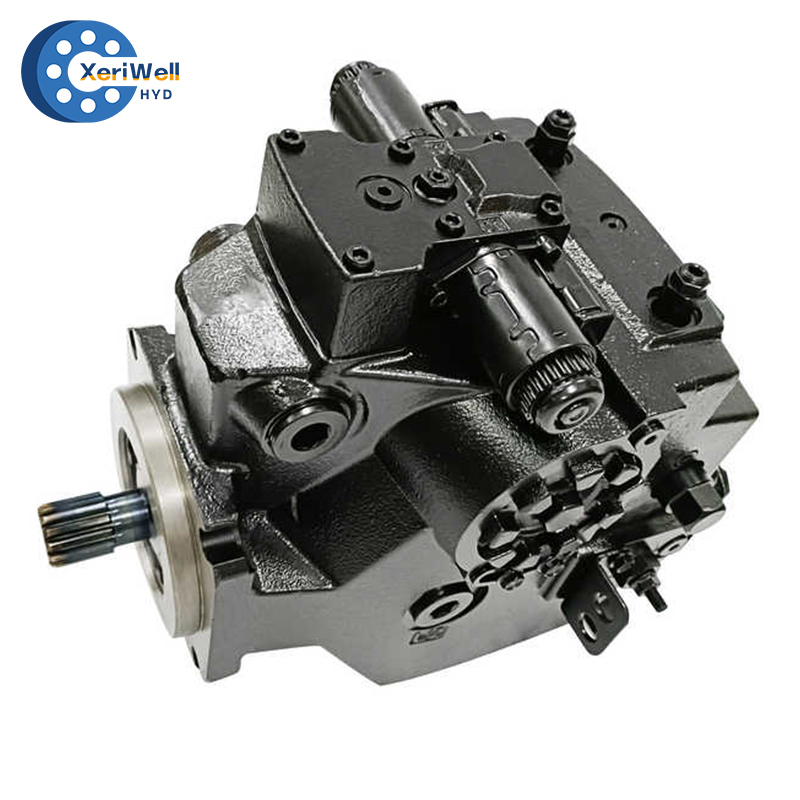

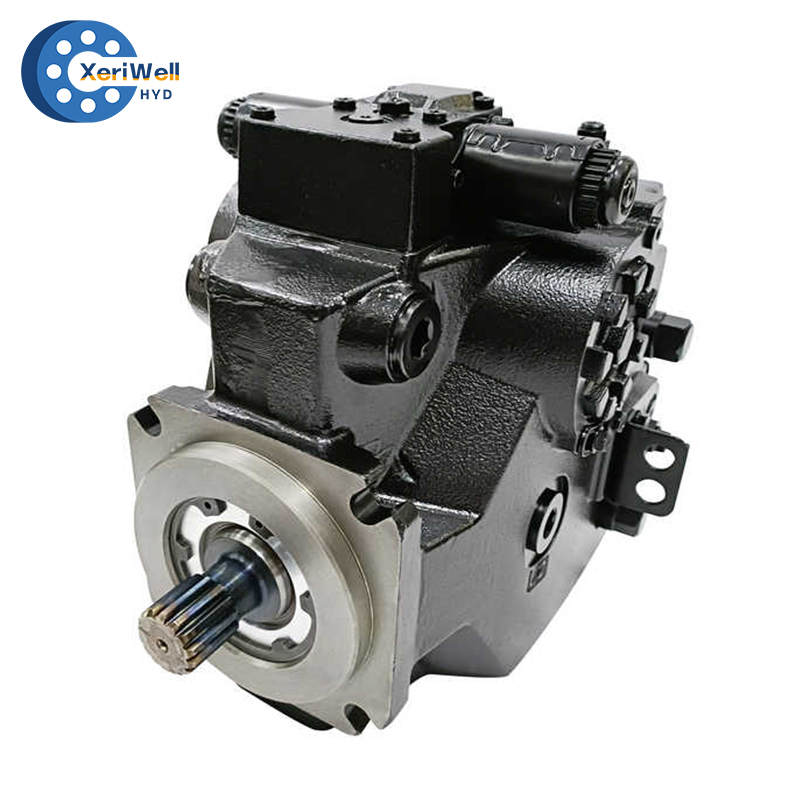

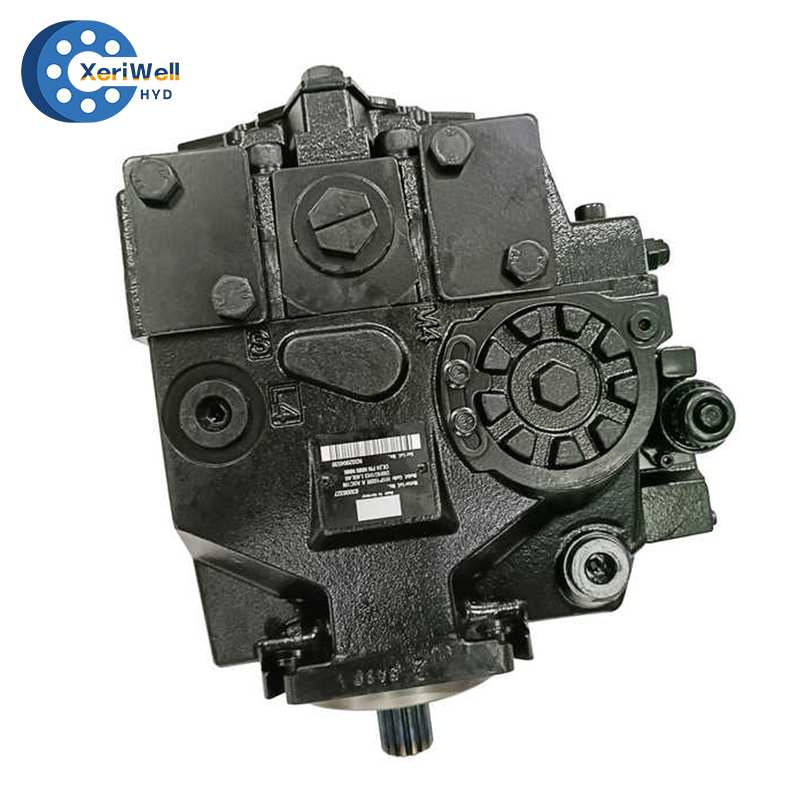

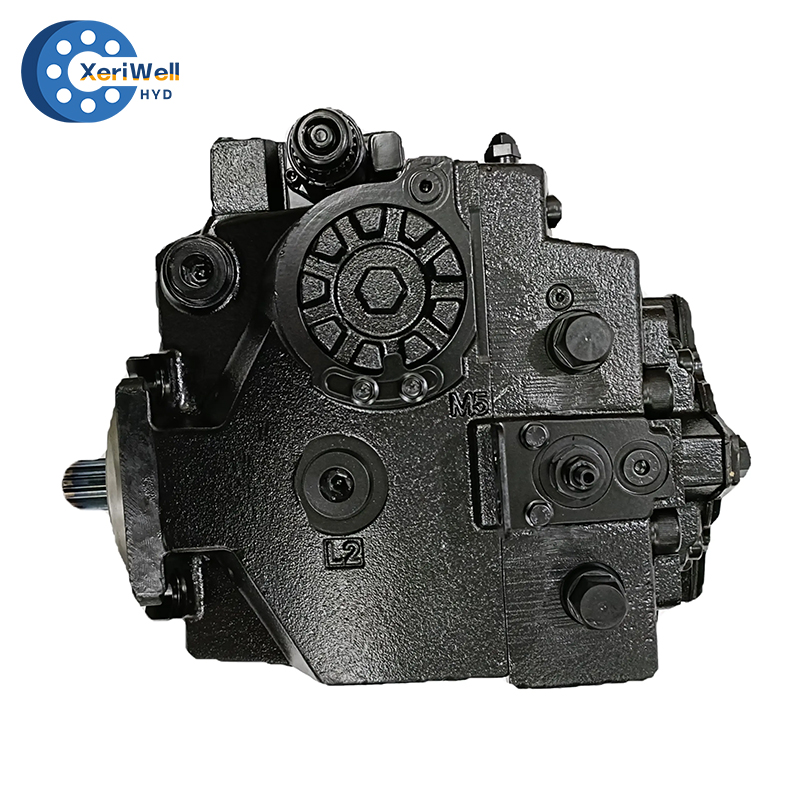

Danfoss H1B motor belong to series H1 variable displacement motors. which are bent axis design, incorporating spherical pistons.
These motors are designed primarily to be combined with other products in closed circuit systems to transfer and control hydraulic power. Series H1 motors have a large maximum/minimum displacement ratio of 5:1 and high output speed capabilities.
The expanded function of zero degree capability, coupled with a high performance 32 degree maximum angle, creates opportunities to easily improve the machine performance for:
• Wheel assist on the steering axle of high inertia machines (i.e. combines) and could include Anti Slip Control
• Off-highway machines requiring Anti Slip Control (i.e. Ag. sprayer)
• Multi-motor applications requiring optimized work and transport modes (i.e. wheel loader, Ag sprayer) utilizing the zero degree position for maximum transport speed
• Improved machine (i.e. single drum roller) gradeability through precise Anti Slip Control.
Type: H1B060, H1B080, H1B110, H1B160, H1B210, H1B260
DANFOSS H1B Hydraulic Motor catalogue pdf manual diagram

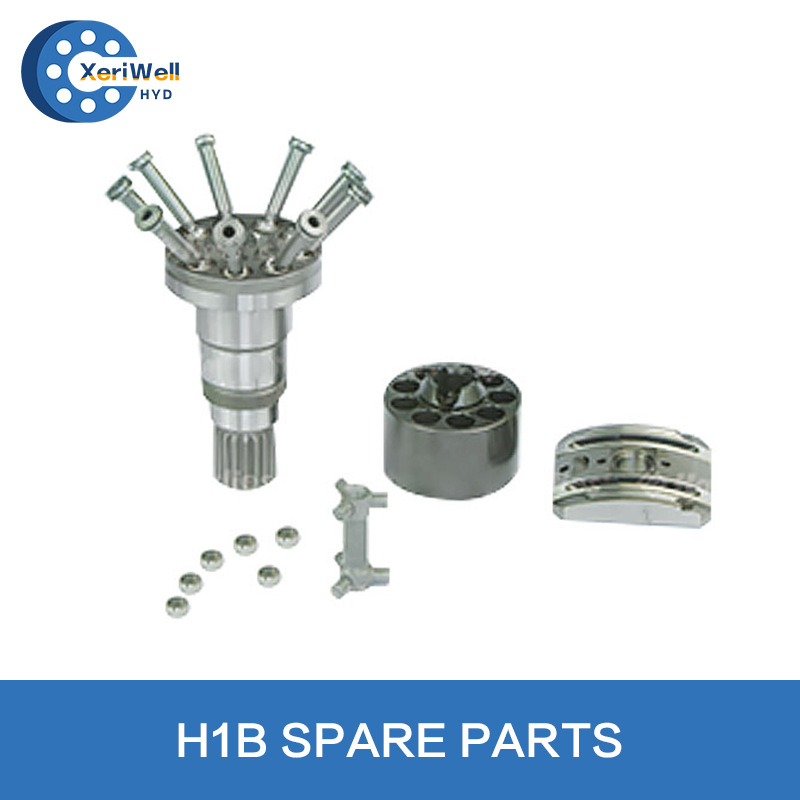

DANFOSS H1B 060/080/110/160/210/250 Hydraulic Motor spare parts list:

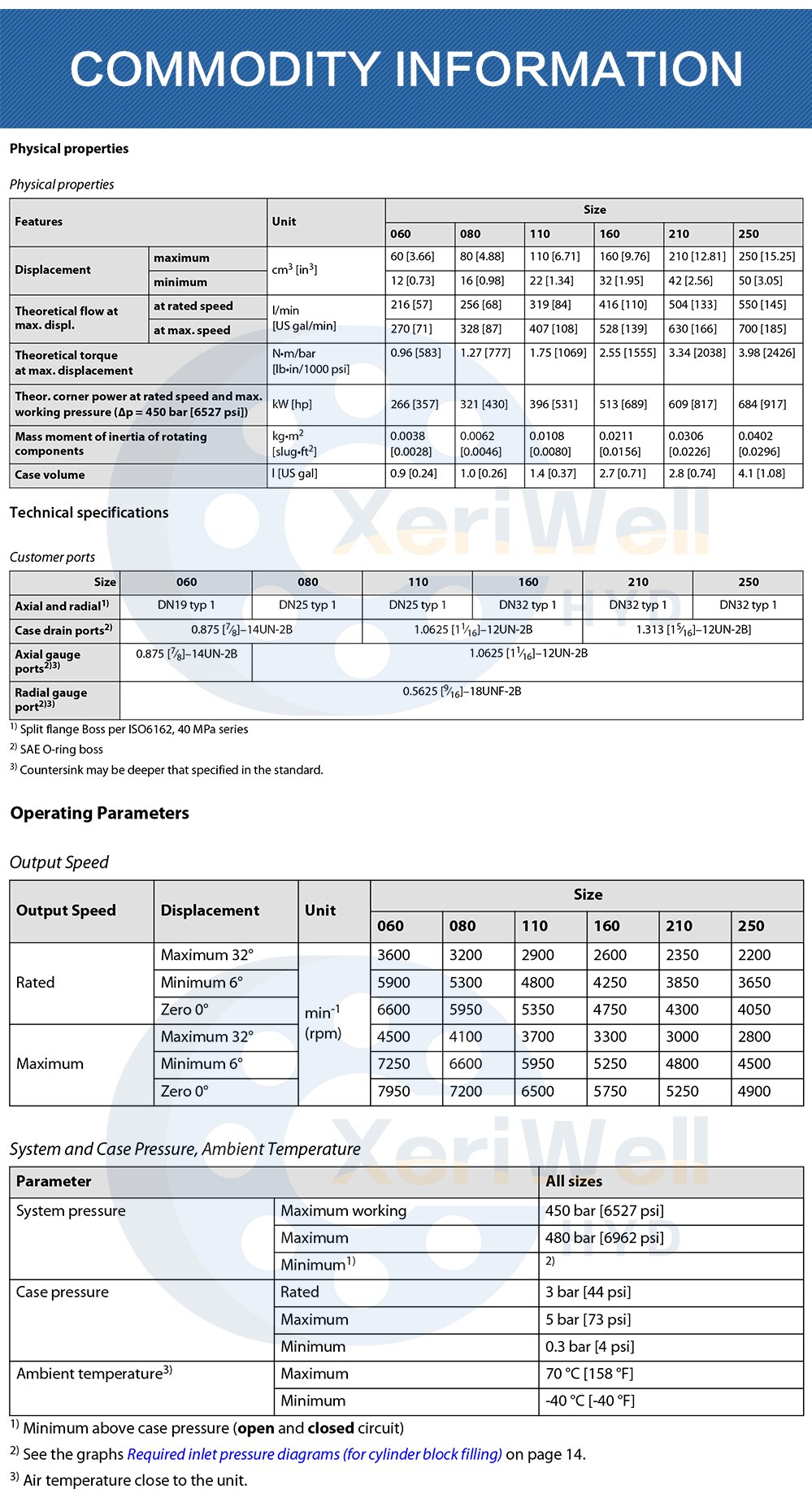

| Physical properties | ||||||||
| Features | Unit | Size | ||||||
| 60 | 80 | 110 | 160 | 210 | 250 | |||
| Displacement | maximum | cm3[in3] | 60 [3.66] | 80 [4.88] | 110 [6.71] | 160 [9.76] | 210 [12.81] | 250 [15.25] |
| minimum | 12 [0.73] | 16 [0.98] | 22 [1.34] | 32 [1.95] | 42 [2.56] | 50 [3.05] | ||
| Theoretical flow at max. displ. | at rated speed | l/min | 216 [57] | 256 [68] | 319 [84] | 416 [110] | 504 [133] | 550 [145] |
| at max. speed | [US gal/min] | 270 [71] | 328 [87] | 407 [108] | 528 [139] | 630 [166] | 700 [185] | |
| Theoretical torque at max. displacement | N·m/bar [lb/in/1000 psi] | 0.96 [583] | 1.27 [777] | 1.75 [1069] | 2.55 [1555] | 3.34 [2038] | 3.98 [2426] | |
| Theor. corner power at rated speed and max. working pressure (Δp = 450 bar [6527 psi]) | kW [hp] | 266 [357] | 321 [430] | 396 [531] | 513 [689] | 609 [817] | 684 [917] | |
| Mass moment of inertia of rotating components | kg·m2 [slug·ft2] | 0.0038 [0.0028] | 0.0062 [0.0046] | 0.0108 [0.0080] | 0.0211 [0.0156] | 0.0306 [0.0226] | 0.0402 [0.0296] | |
| Case volume | l [US gal] | 0.9 [0.24] | 1.0 [0.26] | 1.4 [0.37] | 2.7 [0.71] | 2.8 [0.74] | 4.1 [1.08] | |
| Customer ports | ||||||
| Size | 60 | 80 | 110 | 160 | 210 | 250 |
| Axial and radial1) | DN19 typ 1 | DN25 typ 1 | DN25 typ 1 | DN32 typ 1 | DN32 typ 1 | DN32 typ 1 |
| Case drain ports2) | 0.875 [7/16]–14UN-2B | 1.0625 [11/16]–12UN-2B | 1.313 [15/16]–12UN-2B | |||
| Axial gauge ports2)(3) | 0.875 [7/16]–14UN-2B | 1.0625 [11/16]–12UN-2B | ||||
| Radial gauge port2)(3) | 0.5625 [5/16]–18UNF-2B | |||||
| 1)Split flange Boss per ISO6162,40 MPa series 2)SAE O-ring boss 3)Countersink may be deeper that specified in the standard. | ||||||
| Output Speed | ||||||||
| Output Speed | Displacement | Unit | Size | |||||
| 60 | 80 | 110 | 160 | 210 | 250 | |||
| Rated | Maximum 32° | min-1(rpm) | 3600 | 3200 | 2900 | 2600 | 2350 | 2200 |
| Minimum 6° | 5900 | 5300 | 4800 | 4250 | 3850 | 3650 | ||
| Zero 0° | 6600 | 5950 | 5350 | 4750 | 4300 | 4050 | ||
| Maximum | Maximum 32° | 4500 | 4100 | 3700 | 3300 | 3000 | 2800 | |
| Minimum 6° | 7250 | 6600 | 5950 | 5250 | 4800 | 4500 | ||
| Zero 0° | 7950 | 7200 | 6500 | 5750 | 5250 | 4900 | ||
| System and Case Pressure,Ambient Temperature | |||
| Parameter | All sizes | ||
| System pressure | Maximum working | 450 bar [6527 psi] | |
| Maximum | 480 bar [6962 psi] | ||
| Minimum1) | 2) | ||
| Case pressure | Rated | 3 bar [44 psi] | |
| Maximum | 5 bar [73 psi] | ||
| Minimum | 0.3 bar [4 psi] | ||
| Ambient temperature3) | Maximum | 70 °C [158 °F] | |
| Minimum | -40 °C [-40 °F] | ||
| 1)Minimum above case pressure (open and closed circuit) 2)See the graphs Required inlet pressure diagrams (for cylinder block filling) on page 14. 3)Air temperature close to the unit. | |||
