| Quantity: | |
|---|---|

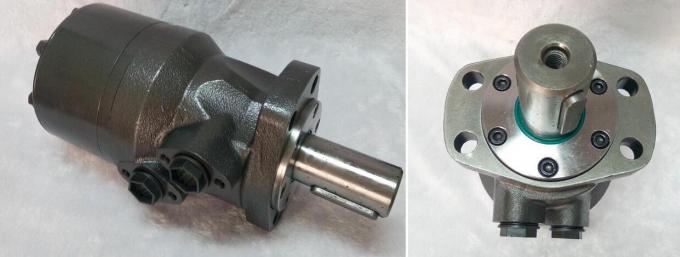

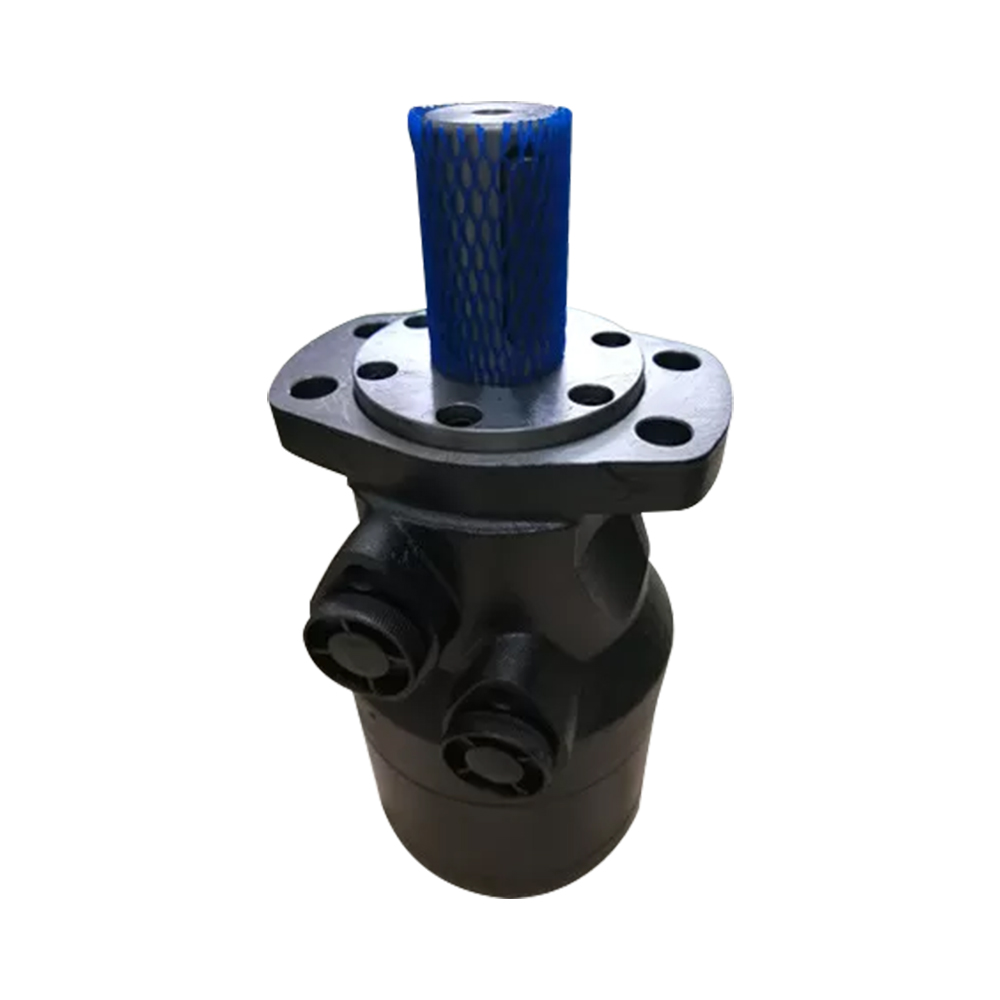

BMH 500
Xeriwell or Others
| Type: | Hydraulic Geroler Motor | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | BMH | Displacement: | 500ml/r |
| Feature: | Replace OMH, M+S MH, | More Size: | 200ml/r, 250ml/r, 315ml/r, 400ml/r, 750ml/r |
| Appilications: | Construction Equipment. Concrete Pump, Truck Mixer | Weight: | 15kgs |
| Highlight: | slow speed high torque motor,omt hydraulic motor | ||
Concrete Pump parts for Putzmeister, Mercedes-Benz
Xeriwell, strong at replacement motor supply.
BMH-500 is a replacement motor of Putzmeister OEM part
BMH-500 is a replacement motor of Mercedes-Benz OEM part
BMH-500 is a replacement motor of OMH 151H1016 OMH
Specifications:
BMH-500-4MD = 151H1016
displacement = 500cc
4×Ø13.5 Rhomb×flange

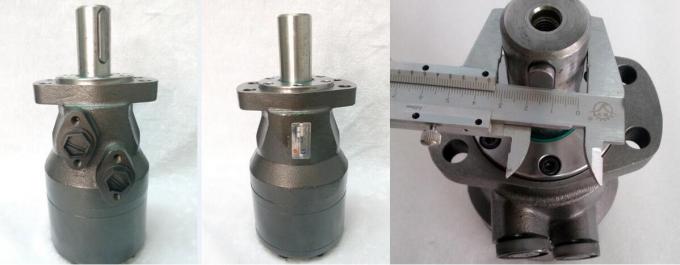

Shaft Ø35 , parallel key 10×8×45
G1/2 Manifold mount 4×M8, G1/4
Applications:
concrete pump of
Putzmeister,
Schwing,
Sebhsa,
Sermac,
Daf,
Man,
Mercedes-Benz,...
M+S
Technical data sheet:
| Type | BMH 200 | BMH 250 | BMH 315 | BMH 400 | BMH 500 | |
Displacement (cc/rev) | 203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
Max torque (n.m) | cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max pressure (mpa) | cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
Max speed rate (rpm) | cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max flow (L/min) | cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
Weight(kg) | 10.5 | 11 | 11.5 | 12.3 | 13.0 | |
Characteristic Features:
Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up,provide smooth, reliable operation and high efficiency.
Shaft seal can bear high pressure of back and the motor can be used in parallel or series.
Special design in the driver-linker and prolong operating life.
Special design for distribution system can meet the requirement of low noise of unit.
Compact volume and easy installation
