BMK10
Xeriwell or Others
| Type: | Hydraulic Lifting Motor | Model No.: | BMK10-940 |
|---|---|---|---|
| Max.torque(N.m): | Cont.710N.m/int.1080N.m | Max.speed(rpm): | Cont.610rpm/int.830rpm |
| Max Pressure Drop: | Cont.20Mpa/int.30Mpa | Max Flow: | Cont.150l/min/int.170l/min |
| Highlight: | 940cc geroler motor,170l/min geroler motor,hydraulic geroler disc valve motor | ||

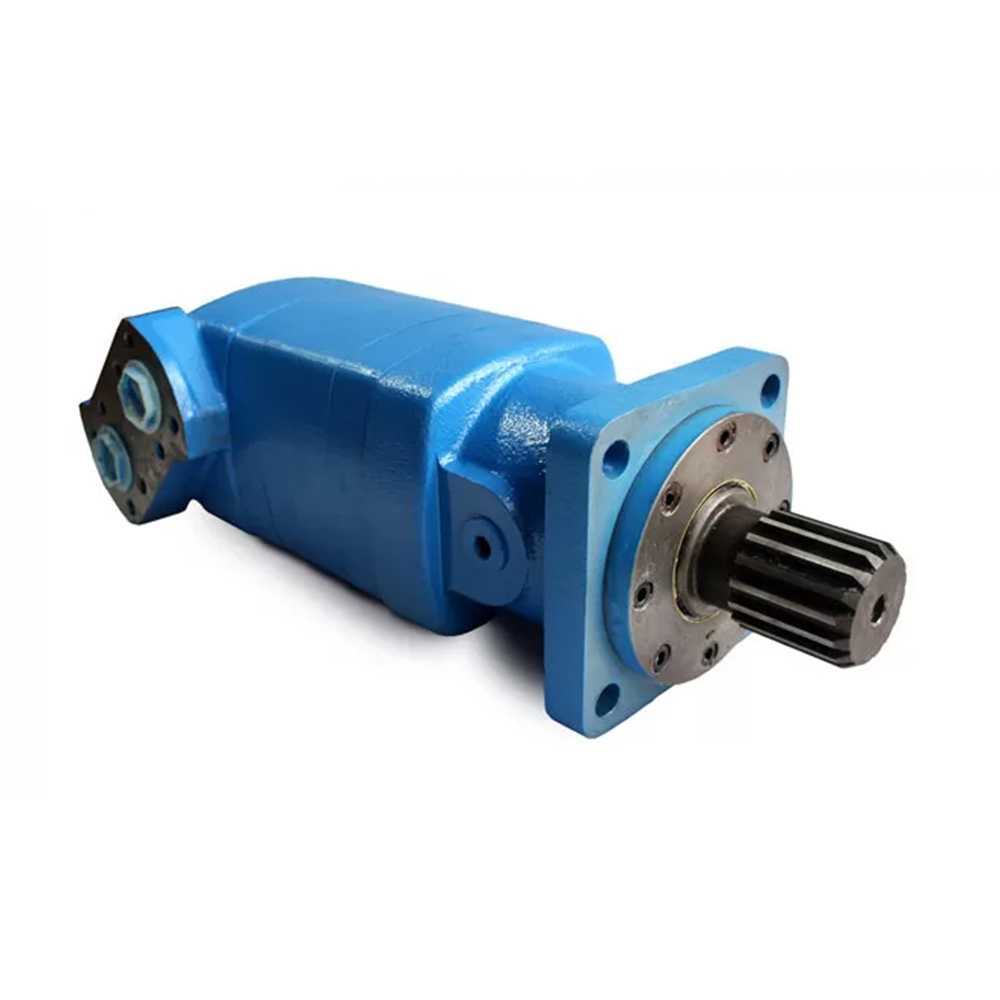

Char-Lynn (Eaton) 119-1035 940cc Hydraulic Geroler Disc Valve Motor -10000 series
Xeriwell BMK10 = EATON CHAR-LYNN 10000 = EATON CHAR-LYNN 10K
Model number: BMK10-6940
| Main Specification | ||||||
| Type | BMK10 | BMK10 | BMK10 | BMK10 | ||
| 345 | 480 | 665 | 940 | |||
| Geometric displacement | 345 | 480 | 665 | 940 | ||
| (cm3 /rev.) | ||||||
| Main speed(rpm) | cont. | 501 | 354 | 254 | 179 | |
| int. | 784 | 552 | 396 | 279 | ||
| Max torque N.M | cont. | 1040 | 1475 | 2085 | 2700 | |
| int. | 1390 | 1965 | 2610 | 3440 | ||
| Max pressure drop (Mpa) | cont. | 20 | 20 | 20 | 20 | |
| int. | 27.5 | 27.5 | 27.5 | 27.5 | ||
| Weight (kg) | 26.3 | 26.8 | 27.3 | 28 | ||
Features
• High torque and flow
• Many options like 2 speed and speed sensors make this motor “smart”
• Low pressure loss even in higher flows
Benefits
• High power density for demanding mobile and industrial applications
• Many options to draw from
Eaton similar type motors are available we belows:
J (129-)
H (101-)
S (103-)
T (158-)
W (162-)
2000 (104-, 105-, 106-, 193-)
4000 (109-, 110-, 111-)
6000 (112-, 113-, 114-)
10000 (119-)
Please do not hesitate to contact us for further information, inquiries or orders.
Thank you for choosing 'Xeriwell' Hydraulics.
we will do our best to serve you!
