| Quantity: | |
|---|---|
BMK2
Xeriwell or Others
| Type: | John Deere Harvester Components | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | BMK2 | Feature: | Similar With Eaton Char-lynn 104 - Xxxxxx |
| Application: | John Deere Harvester 3520 | Shaft: | Splined |
| Flange: | 2 Bolt | Port: | Side Port |
| Highlight: | Side Port Gerotor Hydraulic Motor,2 Bolt Gerotor Hydraulic Motor,John Deere Harvester 3520 Motor | ||
Hydraulic Motor Char-Lynn (2000) 104- John Deere Sugarcane Harvester 3520, similar type
This Hydraulic motor is applied to the John Deere SugarCrane Combine Harvester 3520
This hydraulic motor applied from tough sugarcane surrenders to tougher hydraulic harvester
This motor is also similar with Eaton Char-lynn 104-xxxxxx
No matter what model you need, what size, what installation method, I can provide
And has a price performance leading position
Type
John Deere Harvester Components
Brand
Xeriwell
Model No.
BMK2
Feature
Similar with Eaton Char-lynn 104 - xxxxxx
Application
John Deere Harvester 3520
Shaft
Splined
Flange
2 Bolt
Port
Side Port
Xeriwell BMK2 = CHAR-LYNN 2000
BMK2 Series is a durable hydraulic motor with superior side load capacity, high pressure shaft seal and smooth low speed operation. Ideal for medium duty applications such as vehicle propulsion, augers, chain drives, winches and boom rotate. Intermittent pressures go to 4000 psi. Max dynamic side load capability is 3600 lb. at the key. This rugged Low Speed High Torque (LSHT) orbital motor features robust construction with continuous oil flow across splines for longer life, superior side load capacity, and smooth extra low speed operation. A high pressure shaft seal is standard. Its innovative design eliminates the need for a drain. Dependability is based on high quality design and manufacturing.
| Main Specifications: | |||||||||||
| Type | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Geometric displacement (cm3 /rev.) | 65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max. speed (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max. torque (N·m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max. flow (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure :Max. value of operating motor continuously. | |||||||||||
| * Intermittent pressure :Max. value of operating motor in 6 seconds per minute. | |||||||||||
| * Peak pressure:Max. value of operating motor in 0.6 second per minute. | |||||||||||

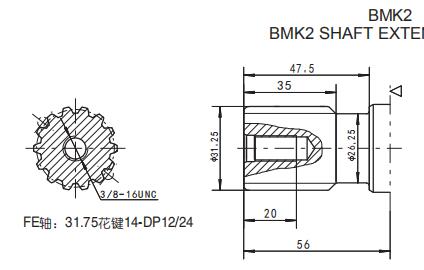

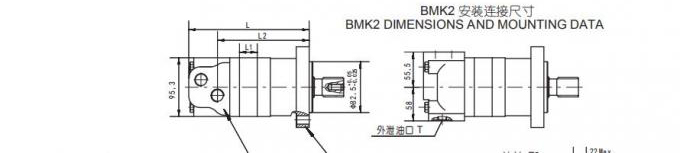

Drawing:
