  • Orbit Motor BMS

  • Xeriwell or Others


Features: Small Size, Compact Structure, High Torque, Clockwise & Counterclockwise, Long Life Product Name: Hydraulic Gear Motors
Displacement: 50cc,80cc,100cc,125cc,160cc......500cc Applications: Agricultural Machine, Transportation, Construction Equipment, Metallurgical, Marine, Etc.
Replacement: , Eaton , M+S Flange: 2 Bolt Flange , 4 Bolt Flange
Highlight:

cycloid hydraulic motor

,

hydraulic rotary motor

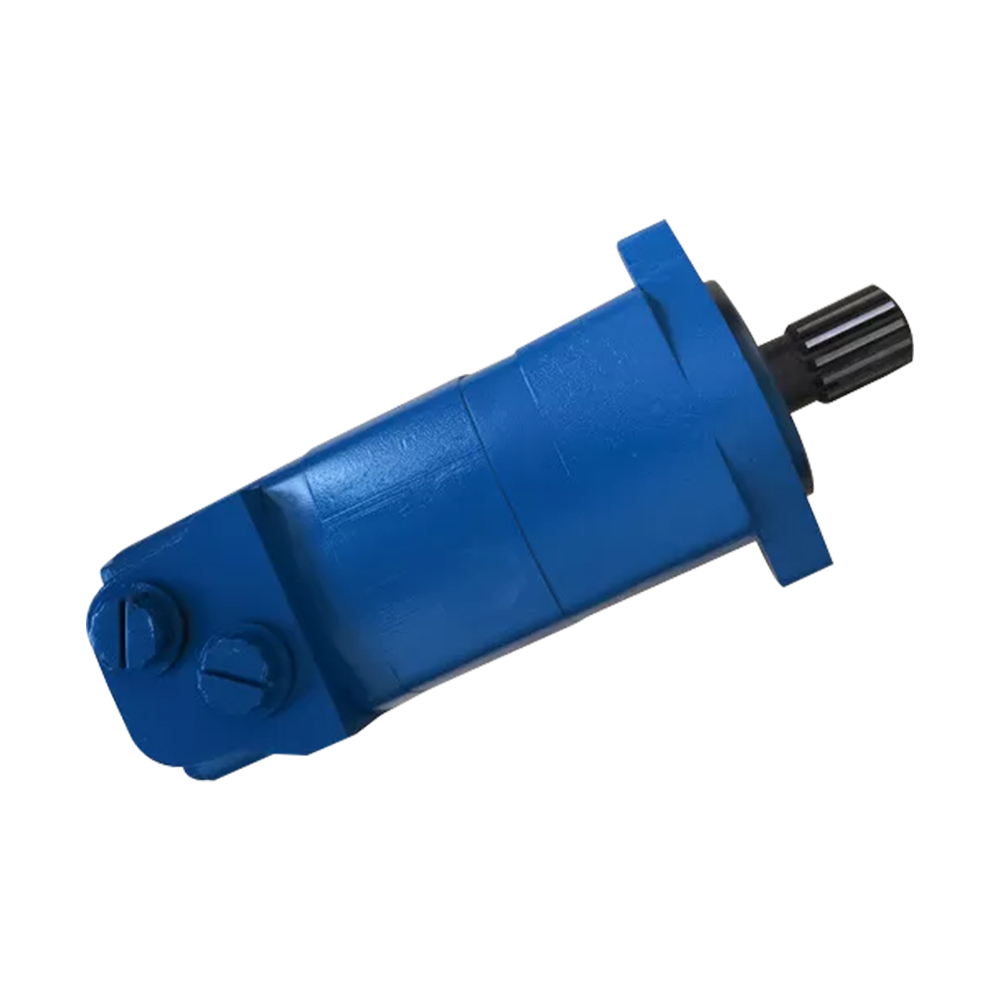

Low Speed High Torque Char Lynn 104 Splined Shaft Key Hydraulic Motor BMS315


Our BMS series can replace Char Lynn,We specialize in the production of hydraulic products, which can replace imported brands, quality and cheap.


FEATURES

  1. Xeriwell BMP/BM1= OMP = EATON H = M+S MP

  2. Xeriwell BMR/BM2= OMR = EATON S = M+S MR

  3. Xeriwell BMH/BM4= OMH = M+S MH

  4. Xeriwell BMS/BM5= OMS = EATON 2000 = M+S MS

  5. Xeriwell BMT/BM6= OMT = EATON 6000 = M+S MT


► Specification

Type BMS
80
BMS
100
BMS
125
BMS
160
BMS
200
BMS
250
BMS
315
BMS
375
Geometric displacement
(cm3 /rev.)
80.6 100.8 125 157.2 200 252 314.5 370
Max. speed (rpm) cont. 800 748 600 470 375 300 240 200
int. 988 900 720 560 450 360 280 240
Max. torque (N·m) cont. 190 240 310 316 400 450 560 536
int. 240 300 370 430 466 540 658 645
peak 260 320 400 472 650 690 740 751
Max. output (kW) cont. 15.9 18.8 19.5 15.6 15.7 14.1 14.1 11.8
int. 20.1 23.5 23.2 21.2 18.3 17 18.9 17
Max. pressure drop (MPa) cont. 17.5 17.5 17.5 15 14 12.5 12 10
int. 21 21 21 21 16 16 14 12
peak 22.5 22.5 22.5 22.5 22.5 20 18.5 14
Max. flow (L/min) cont. 65 75 75 75 75 75 75 75
int. 80 90 90 90 90 90 90 90
Max. inlet pressure (MPa) cont. 25 25 25 25 25 25 25 25
int. 30 30 30 30 30 30 30 30
Weight (kg) 9.8 10 10.3 10.7 11.1 11.6 12.3 12.6

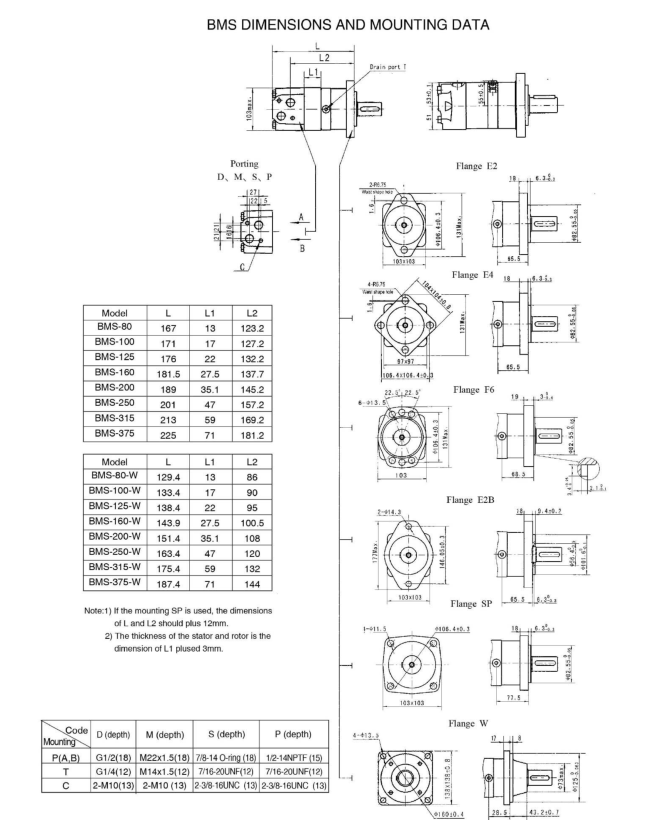

Flange
E2 2-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×6.3 BMS
E4 4-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×6.3
F6 6-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×2.6
W 4-Ø13.5 Wheel-flange Ø160,pilot Ø125×8
E2B 2-Ø14.3 Rhomb-flange Ø146.05,pilot Ø101.6×9.4
SP 4-Ø11.5 Square-flange Ø106.4,pilot Ø82.5×6.3

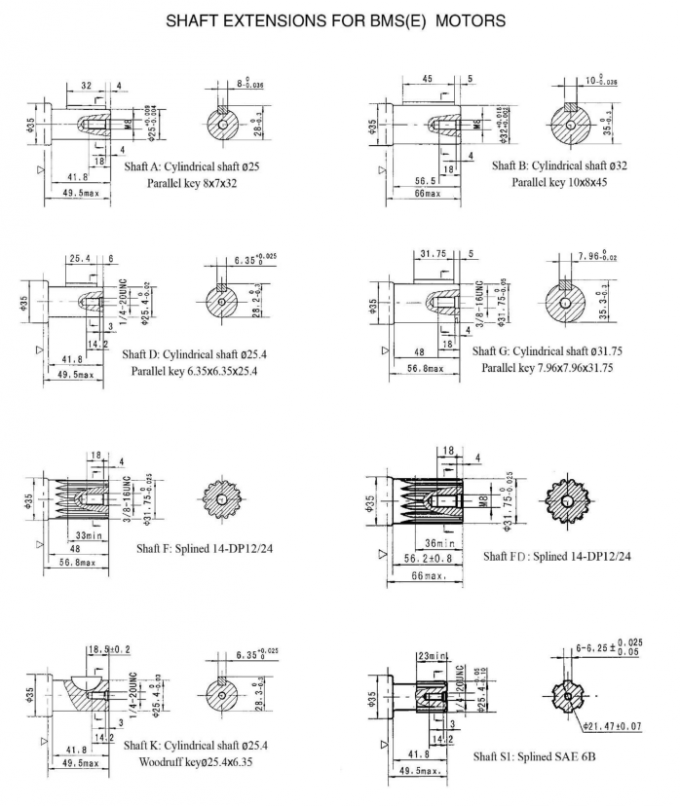

Output Shaft
A Shaft Ø25 , parallel key 8×7×32 BMS
B Shaft Ø32 , parallel key 10×8×45
D Shaft Ø25.4 , parallel key6.35×6.35×25.4
G Shaft Ø31.75,parallel key 7.96×7.96×31.75
F Shaft Ø31.75,splined tooth 14-DP12/24
FD Long Shaft Ø31.75,splined tooth 14-DP12/24
SL shaft Ø34.85,Splined key 6-34.85×28.14×8.64
T1 Cone-shaft Ø35 ,parallel key B6×6×20
T3 Cone-shaftØ31.75,parallel key 7.96×7.96×31.75
S1 Shaft Ø25.4 ,splined tooth SAE 6B
I Sub-shaft Ø22,splined tooth 13-DP16/32
