| Quantity: | |
|---|---|
BMK2-200-E6-G-SU
Xeriwell or Others
| Type: | Orbital Motor, Hydraulic Motor | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | BMK2-200-E6-G-SU | Displacement: | 200ml/r |
| Flange: | 4 Bolts,oval Flange | Shaft: | 31.75mm Key Shaft |
| Port Size: | 7/8-14UNF O-RING | Drain Line: | 7/16-20UNF |
| Highlight: | bmk2 eaton char lynn hydraulic motor,2k eaton char lynn hydraulic motor,2k eaton char lynn motor | ||

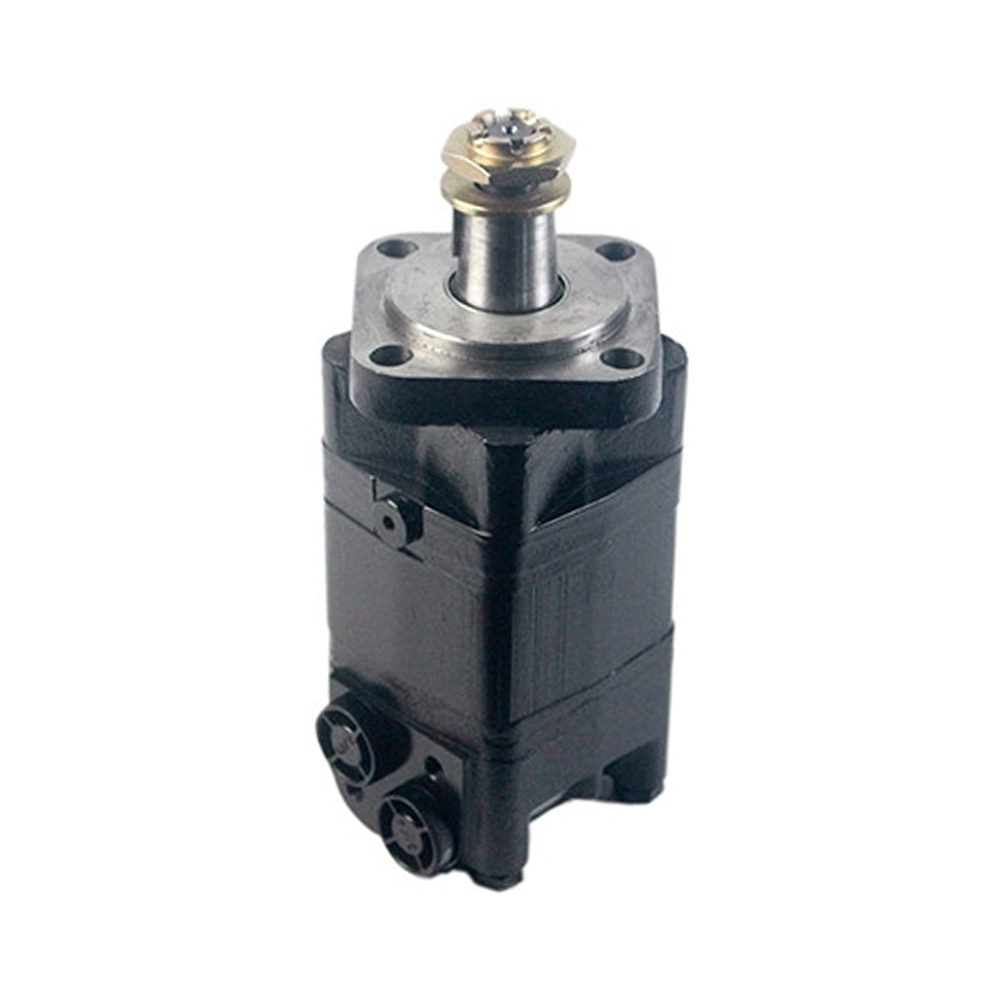

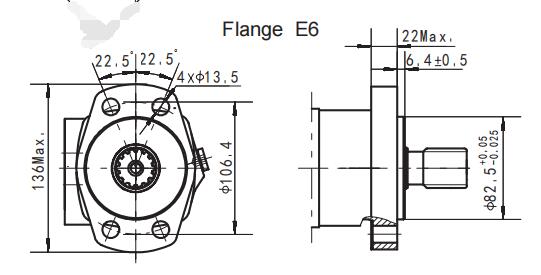

BMK2 Hydraulic Motor Char-Lynn eaton 2K motors,200cc 106.4mm oval flange,31.75mm key shaft
Quick review:
| order code:BMK2-200-E6-G-SU |
| Output volume (cc/rev): 200cc |
| Shaft Ø (mm): 31.75mm,key shaft |
| max r.p.m.: 577 |
| Torque max. (Nm): 665 |
| Pressure difference (bar): 310 |
| Volume flow max. (l/min): 115 |
| Shaft seal version: Standard |
| Ports threads: 7/8-14UNF O-RING |
| Leakage oil connection: 7/16-20UNF |
| Main Specifications: | |||||||||||
| Type | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Geometric displacement (cm3 /rev.) | 65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max. speed (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max. torque (N·m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max. flow (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure :Max. value of operating motor continuously. | |||||||||||
| * Intermittent pressure :Max. value of operating motor in 6 seconds per minute. | |||||||||||
| * Peak pressure:Max. value of operating motor in 0.6 second per minute. | |||||||||||

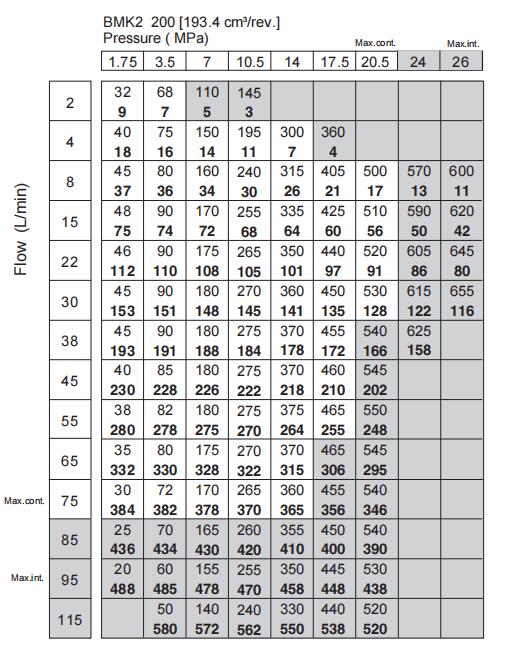

Measurement:
| BMK2 200 [193.4 cm3/rev.] Pressure ( MPa) | Max.cont. | Max.int. | |||||||
| 1.75 | 3.5 | 7 | 10.5 | 14 | 17.5 | 20.5 | 24 | 26 | |
| 2 | 32 9 | 68 7 | 110 5 | 145 3 | |||||
| 4 | 40 18 | 75 16 | 150 14 | 195 11 | 300 7 | 360 4 | |||
| 8 | 45 37 | 80 36 | 160 34 | 240 30 | 315 26 | 405 21 | 500 17 | 570 13 | 600 11 |
| 15 | 48 75 | 90 74 | 170 72 | 255 68 | 335 64 | 425 60 | 510 56 | 590 50 | 620 42 |
| 22 | 46 112 | 90 110 | 175 108 | 265 105 | 350 101 | 440 97 | 520 91 | 605 86 | 645 80 |
| 30 | 45 153 | 90 151 | 180 148 | 270 145 | 360 141 | 450 135 | 530 128 | 615 122 | 655 116 |
| 38 | 45 193 | 90 191 | 180 188 | 275 184 | 370 178 | 455 172 | 540 166 | 625 158 | |
| 45 | 40 230 | 85 228 | 180 226 | 275 222 | 370 218 | 460 210 | 545 202 | ||
| 55 | 38 280 | 82 278 | 180 275 | 275 270 | 375 264 | 465 255 | 550 248 | ||
| 65 | 35 332 | 80 330 | 175 328 | 270 322 | 370 315 | 465 306 | 545 295 | ||
| 75 | 30 384 | 72 382 | 170 378 | 265 370 | 360 365 | 455 356 | 540 346 | ||
| 85 | 25 436 | 70 434 | 165 430 | 260 420 | 355 410 | 450 400 | 540 390 | ||
| 95 | 20 488 | 60 485 | 155 478 | 255 470 | 350 458 | 445 448 | 530 438 | ||
| 115 | 50 580 | 140 572 | 240 562 | 330 550 | 440 538 | 520 520 | |||
| Mounting Code | DB (Depth) | DU (Depth) | SU (Depth) | SB (Depth) | M4 (Depth) | MU | MM |
| P(A,B) | G1/2 (15) | G1/2 (15) | 7/8-14 O-ring (17) | 7/8-14 O-ring (17) | M22 x 1.5 (15) | φ12.7、φ15.8 | φ12.7、φ15.8 |
| T | G1/4 (12) | 7/16-20UNF(12) | 7/16-20UNF(12) | G1/4 (12) | M14 x 1.5 (12) | 7/16-20UNF(12) | G1/4 (12) |
| C | -- | 3/8-16UNC(15) | M10(15) | ||||
