BMSY
Xeriwell or Others

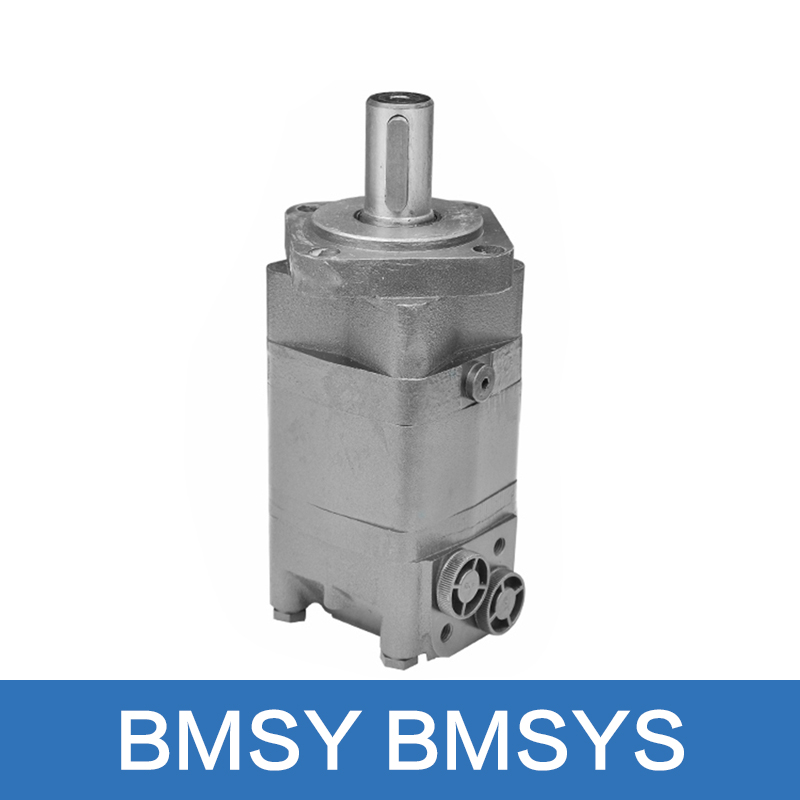

BMSY OMSY Orbital Hydraulic Motor adapt the advanced Geroler gear set designed with disc distribution flow and high pressure. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
Characteristic features:
1, Advanced manufacturing devices for the Geroler gear set, which use low pressure of start- up. provide smooth and reliable operation and high efficiency
2, The output shaft adapts in tapered roller bearings that permit high axial and radial forces. The case can offers capacities of high pressure and high torque in the wide of applications.
3, Advanced design in disc distribution flow, which can automatically compensate in operating with high volume efficiency and long life, provide smooth and reliable operation.
4, The new series motor is suitable for vehicles with greater loads and pressure drop.
Type:
BMS(Y)80, BMS(Y)100, BMS(Y)125, BMS(Y)160, BMS(Y)200, BMS(Y)250, BMS(Y)315, BMS(Y)400, BMS(Y)475
OMS80, OMS100, OMS125, OMS160, OMS200, OMS250, OMS315, OMS400, OMS475
| BMS Technical Data | ||||||||||
| Type | BMSY BMSYS 80 | BMSY BMSYS 100 | BMSY BMSYS 125 | BMSY BMSYS 160 | BMSY BMSYS 200 | BMSY BMSYS 250 | BMSY BMSYS 315 | BMSY BMSYS 400 | BMSY BMSYS 475 | |
| Geometric displacement (cm3/rev.) | 80.6 | 100.8 | 125 | 154 | 194 | 243 | 311 | 394 | 475 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 185 | 155 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 225 | 185 | |
| Max. torque (N*m) | cont. | 225 | 290 | 365 | 485 | 586 | 708 | 880 | 880 | 910 |
| int. | 305 | 390 | 480 | 590 | 705 | 860 | 1000 | 980 | 990 | |
| Max. output (kW) | cont. | 16 | 18 | 18 | 18.1 | 18.1 | 18 | 17 | 11 | 9 |
| int. | 20 | 22 | 23 | 25 | 24 | 23.8 | 20.2 | 12 | 11 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 21 | 21 | 20 | 20 | 16 | 14 |
| int. | 27.5 | 27.5 | 27.5 | 26 | 25 | 25 | 24 | 19 | 15 | |
| peak | 29.5 | 29.5 | 29.5 | 28 | 27 | 27 | 26 | 21 | 17.5 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 13.2 | 14.3 | |
| * Continuous pressure:Max. value of operating motor continuously. * Intermittent pressure:Max. value of operating motor in 6 seconds per minute. * Peak pressure:Max. value of operating motor in 0.6 second per minute. | ||||||||||
