| Quantity: | |
|---|---|
BMPH
Xeriwell or Others
| Model No.: | BMPH80 | Displacement: | 80cc |
|---|---|---|---|
| Speed: | 770/960rpm | Torque: | 55/76 Nm |
| Max Power: | 10/12KW | Max Flow: | 60/75LPM |
| Highlight: | BMPH-80-H4-K-S Motor,LSHT gerotor hydraulic motor,80cc gerotor hydraulic motor | ||

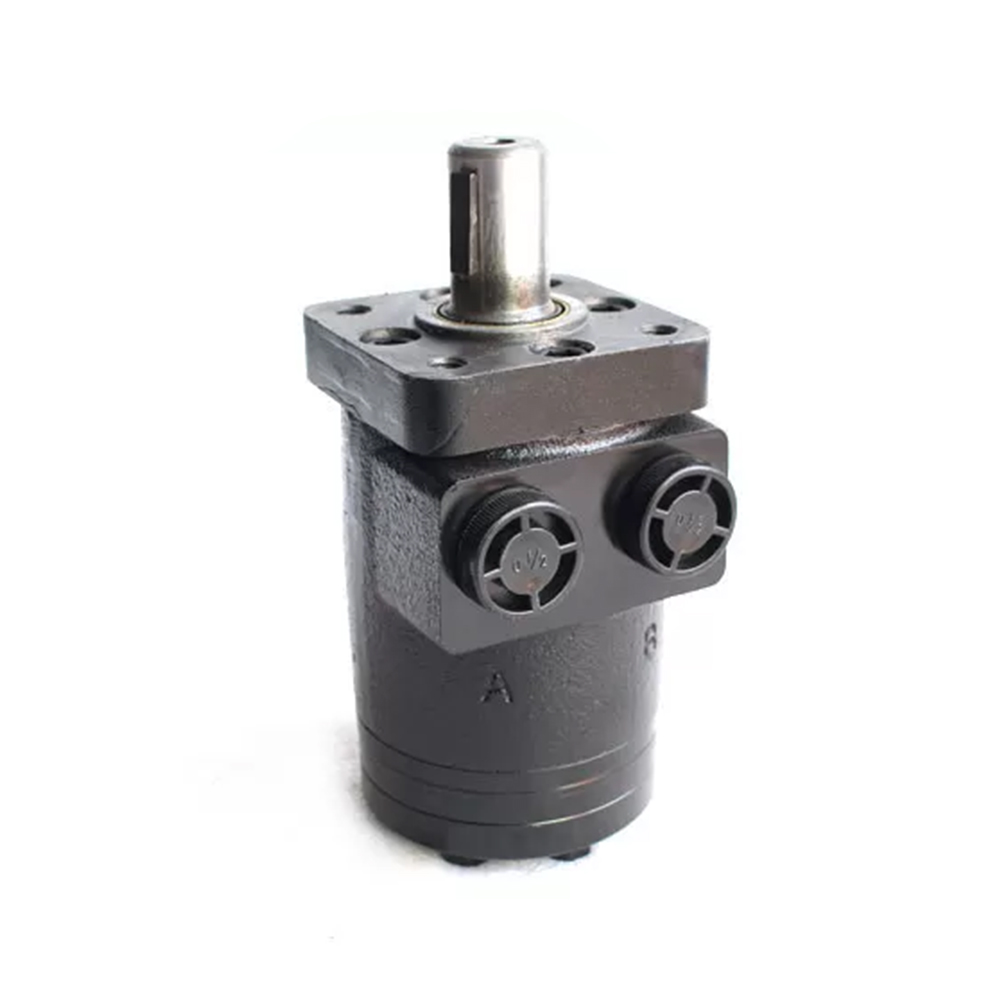

BMPH-80-H4-K-S : Dynamic LSHT Gerotor Motor,80cc, SAE A 4-Bolt Mount, 1" Bore x 1/4" Key Shaft, Side Ported
The BMPH Rotortorc gear set, shaft distribution fl ow, hydraulic motor is a compact, highly efficient, low speed-high torque design which can be used in either parallel or series systems. These low weight advanced construction design motors are manufactured in accordance with the requirements of the ISO 9000-2000 quality system
HYDRAULIC MEDIUM SPEED MOTOR
- Displacement: 77.7cc

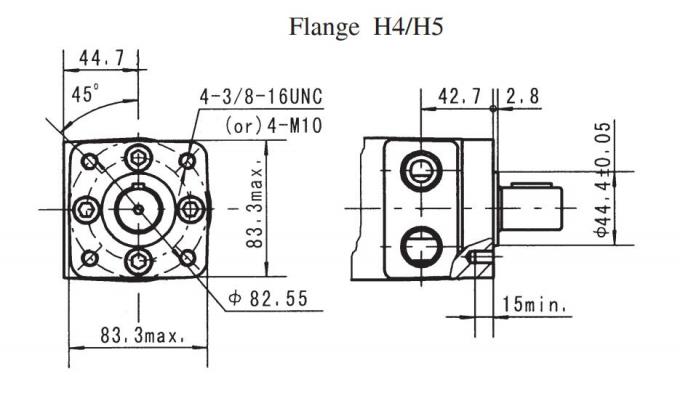

- Flange H4 Ø82.55mm
- Shaft: Ø25.4mm,woodruff key φ25.4X6.35
- Ports: 1/2 BSP" (A & B), 1/4" BSP (T)
Hydraulic Motors differ from hydraulic pumps in that instead of converting the mechanical energy into pressure and flow, they convert pressure and flow into mechanical energy. The motors are commonly used in applications where the power source is a hydraulic system and it is not viable, or cost effective for there to be electrical present. Hydraulic motors are useful in the fact they can handle extremely high loads for their size.
When you need to repair the hydraulic motors,here is some advice
| Replacement of Bearings |
| Inspection, repair and replacement of sealing components such as gaskets, o-rings, and seals |
| Inspection and replacement of faulty hardware such as screws, bolts, washers and other fasteners |
| Gears Inspected for wear, backlash or broken teeth and repaired or replaced |
| Oil Seals on shaft ends replaced |
| Unit is operated at a known RPM and for proper torque and pressure requirements |
| Model No.: | BMPH80 | Displacement: | 80cc |
|---|---|---|---|
| Speed: | 770/960rpm | Torque: | 55/76 Nm |
| Max Power: | 10/12KW | Max Flow: | 60/75LPM |
| Highlight: | BMPH-80-H4-K-S Motor,LSHT gerotor hydraulic motor,80cc gerotor hydraulic motor | ||
BMPH-80-H4-K-S : Dynamic LSHT Gerotor Motor,80cc, SAE A 4-Bolt Mount, 1" Bore x 1/4" Key Shaft, Side Ported
The BMPH Rotortorc gear set, shaft distribution fl ow, hydraulic motor is a compact, highly efficient, low speed-high torque design which can be used in either parallel or series systems. These low weight advanced construction design motors are manufactured in accordance with the requirements of the ISO 9000-2000 quality system
HYDRAULIC MEDIUM SPEED MOTOR
- Displacement: 77.7cc
- Flange H4 Ø82.55mm
- Shaft: Ø25.4mm,woodruff key φ25.4X6.35
- Ports: 1/2 BSP" (A & B), 1/4" BSP (T)
Hydraulic Motors differ from hydraulic pumps in that instead of converting the mechanical energy into pressure and flow, they convert pressure and flow into mechanical energy. The motors are commonly used in applications where the power source is a hydraulic system and it is not viable, or cost effective for there to be electrical present. Hydraulic motors are useful in the fact they can handle extremely high loads for their size.
When you need to repair the hydraulic motors,here is some advice
| Replacement of Bearings |
| Inspection, repair and replacement of sealing components such as gaskets, o-rings, and seals |
| Inspection and replacement of faulty hardware such as screws, bolts, washers and other fasteners |
| Gears Inspected for wear, backlash or broken teeth and repaired or replaced |
| Oil Seals on shaft ends replaced |
| Unit is operated at a known RPM and for proper torque and pressure requirements |
