BMK2-315-E2-G-SU
Xeriwell or Others
| Product: | Hydraulic Motors | Model No.: | BMK2-315-E2-G-SU |
|---|---|---|---|
| Manufacturer: | Xeriwell | Origion: | China |
| Highlight: | Char-Lynn 104-1028-006 aftermarket motor,DANFOSS aftermarket motor,PARKER aftermarket motor | ||

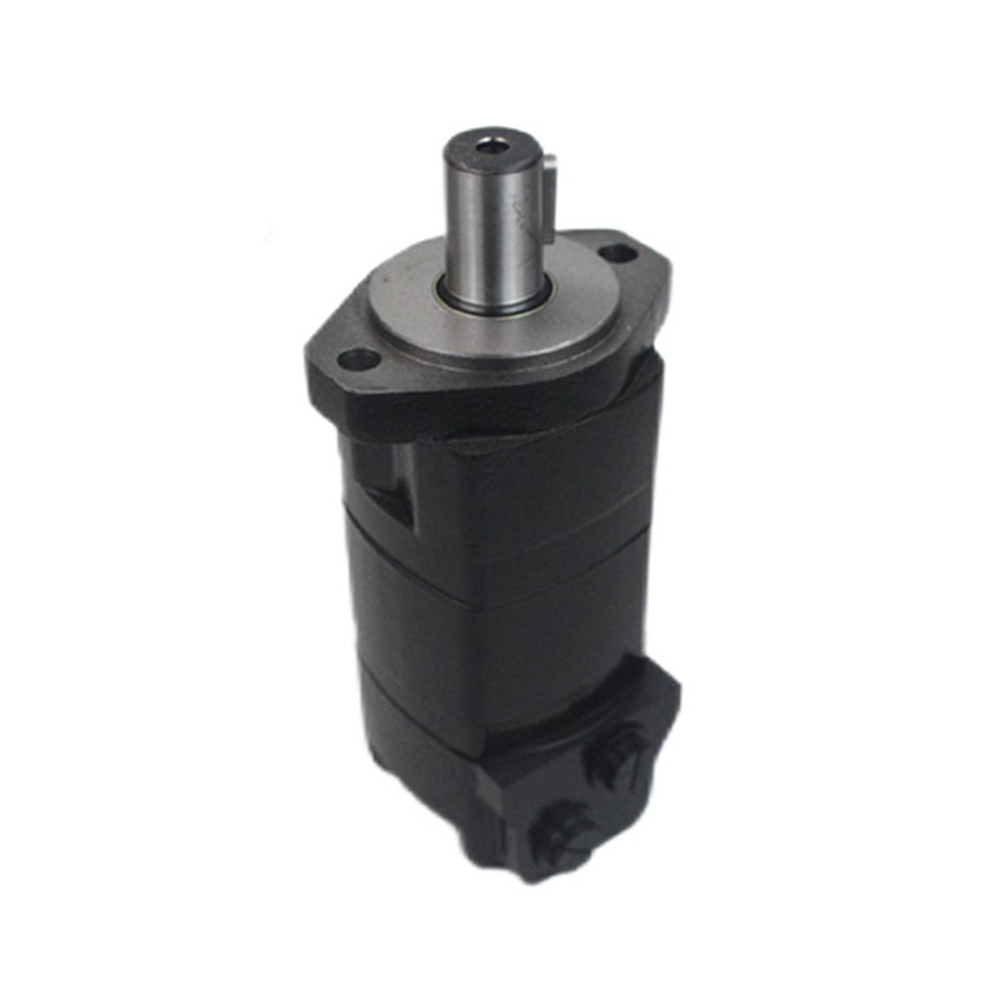

BMK2-315-E2-G-SU Aftermarket replacement for CHAR-LYNN H Char-Lynn 104-1028-006, DANFOSS DH, WHITE RS, PARKER - ROSS MG
Model No.:
BMK2-315-E2-G-SU
Quick review:
About this product
1. Brand new BMK2 series hydraulic motors
2. Gerotor power element
3. Aftermarket replacement for following motor lines: CHAR-LYNN H Char-Lynn 104-1028-006, DANFOSS DH, WHITE RS, PARKER - ROSS MG/TB
Description：
Disp. 18.57 cu. in. / rev.
Motor Type Gerotor
Rotation Reversible
Pressure:
3045 PSI cont.
4495 PSI int.
Torque:
765N.m cont.
885N.m int.
Speed:
246RPM cont.
365 RPM int.
Flow:
19.81 GPM cont.
30.38 GPM int.

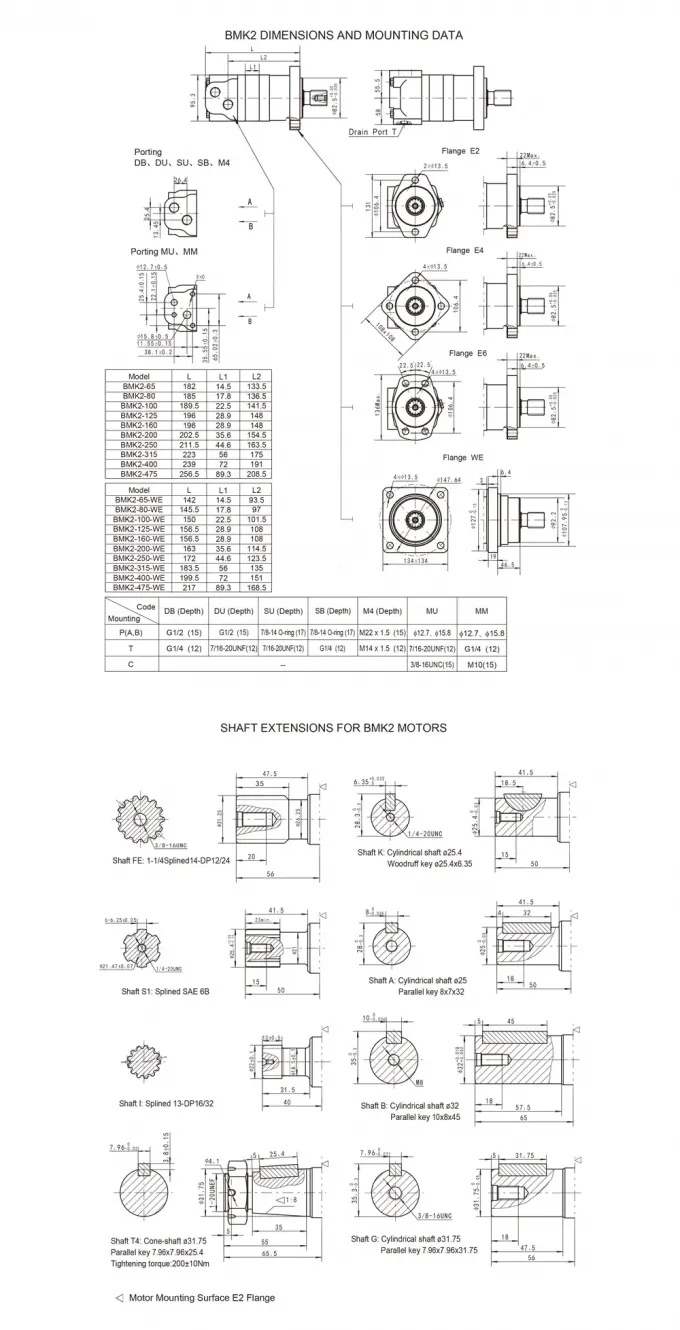

Mount 2-Φ0.531"bolt,Oval flange 4.19",Pilot Φ3.25"x 0.252"
Shaft 1.25" dia cylindrical shaft, parallel key 0.31" x 0.31" x 1.25"
Ports 7/8-14UNF O-ring,7/16-20 UNF
Features:
Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and reliable
operation and high efficiency.
The output shaft adapts in tapered roller bearings that permit high axial and radial forces. The case can offer capacities
of high pressure and high torque in the wide of applications.
Advanced design in disc distribution flow, which can automatically compensate in operating with high volume efficiency
and long life, provide smooth and reliable operation.
The new series motor is suitable for vehicles with greater loads and pressure drop.
Specification:
| Main Specifications: | |||||||||||
| Type | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Geometric displacement (cm3 /rev.) | 65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max. speed (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max. torque (N·m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max. flow (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure :Max. value of operating motor continuously. | |||||||||||
| * Intermittent pressure :Max. value of operating motor in 6 seconds per minute. | |||||||||||
| * Peak pressure:Max. value of operating motor in 0.6 second per minute. | |||||||||||
