| Quantity: | |
|---|---|
10000 series
Xeriwell or Others
| Item: | LSHT Motors | Model: | 119-1034-003 |
|---|---|---|---|
| Displacement: | 665.3 CM3/R | Flange: | STANDARD, 4 BOLT |
| Shaft: | 53.98 DIA. 16 TOOTH | Port: | 1.3125-12 UN-2B SAE O-RING |
| Highlight: | 10000 series char lynn motor,motor charlyn serie 10000,square mount char lynn motor | ||
Char-lynn motor cross reference 10000 Series 4 bolt square mount 16 tooth splined shaft 119-1034-003
Quick view:
Product Specifications
| Feature | Code | Description |
|---|---|---|
| PRODUCT | M | MOTOR |
| SERIES | 10 | 10,000 SERIES |
| DISPLACEMENT | 406 | 665.3 CM3/R [40.60 IN3/R] |
| MOUNTING TYPE | AA | STANDARD, 4 BOLT; 127.0 [5.00] PILOT DIA. 16.76 [.660] DIA. HOLES ON 161.92 [6.375] DIA. BOLT CIRCLE. |
| OUTPUT SHAFT | 03 | 53.98 [2.125] DIA. FLAT ROOT,MAJOR DIA. FIT,16 TOOTH, 8/16 DP, 30 DEGREE INVOLUTE SPLINE WITH .500-20 UNF-2B THREAD IN END. 52.07 [2.050] MINIMUM FULL SPLINE LENGTH |
| PORTS | AA | 1.3125-12 UN-2B SAE O-RING STAGGERED PORTS |
| FLOW OPTIONS | 01 | .5625-18 UNF-2B DRAIN SAE O-RING PORT |
This is a Char-lynn motor cross reference 119-1034-003
Features & Benefits
• High torque and flow
• Many options like flange, shaft, displacement, ports type
• Low pressure loss even in higher flows
• High power density for demanding mobile and industrial applications
• Many options to draw from
• Form, fit, and function the same, at a substantial savings.
• All units are TESTED prior to shipment, and come complete with a 1 year warranty.
• Item is not in stock, delivery time according to your needed quantity, but generally within 45 days.
| Displacement | cc/rev | 345 | 480 | 665 | 940 |
| Max. Speed* | rpm | 501 | 354 | 254 | 179 |
| Flow | lpm | 170 | 170 | 170 | 170 |
| Torque* | Nm | 1040 | 1475 | 2085 | 2700 |
| Press. ∆bar** | bar | 205 | 205 | 205 | 190 |
* @ max continuous flow and max. continuous pressure.
*Max intermittent pressure @ motor inlet port of 275 bar without regard to ∆bar and/or back
pressure ratings.
To assure optimum motor life, run motor for approximately one hour at 30% of rated pressure before application of full load.
Maximum pressure - without drain - 20 bar.
∆bar - true pressure difference between inlet and outlet port.
Questions? Give us a call 24hrs a day or email.

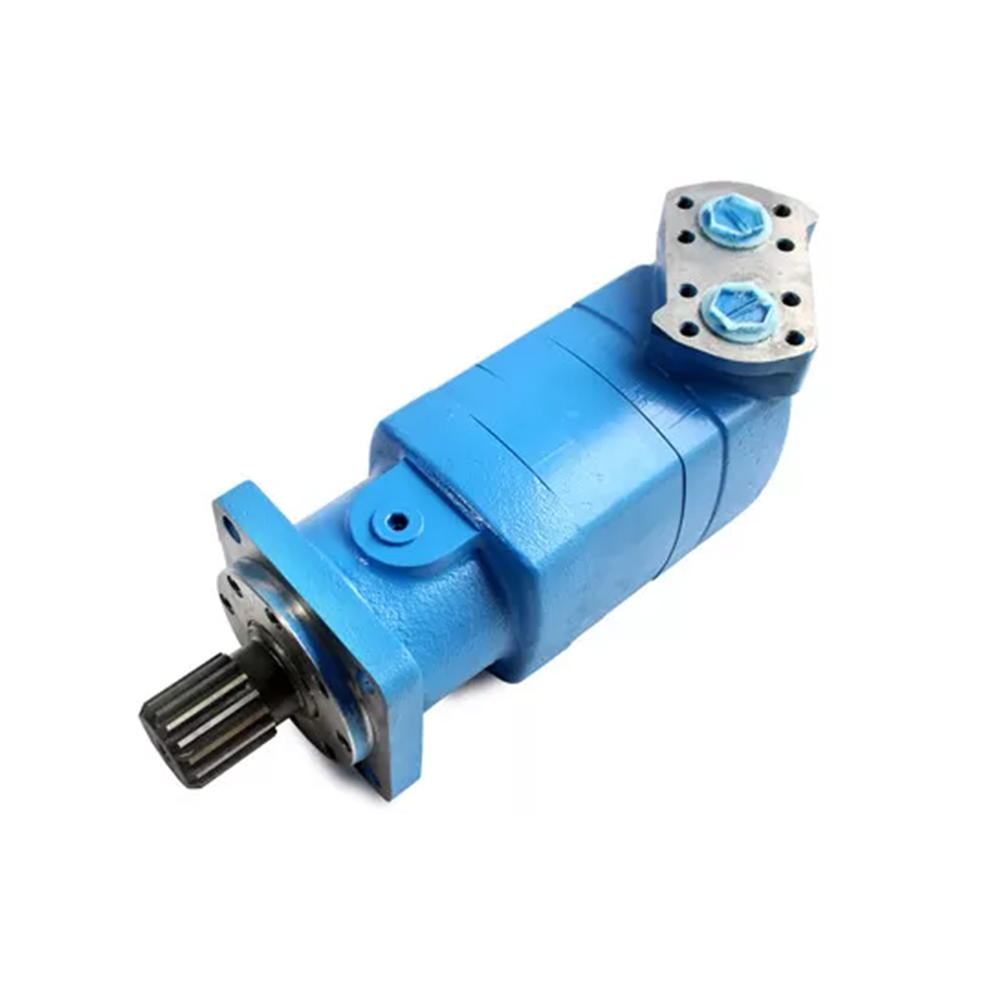

Below is reference photo of Char-lynn motor cross reference 119-1034-003, and also more aftermarket notors of Eaton
