danfoss MCV Series pressure control pilot Valve

Pictures are for display only, please contact us to choose the right product for you.
Type:
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

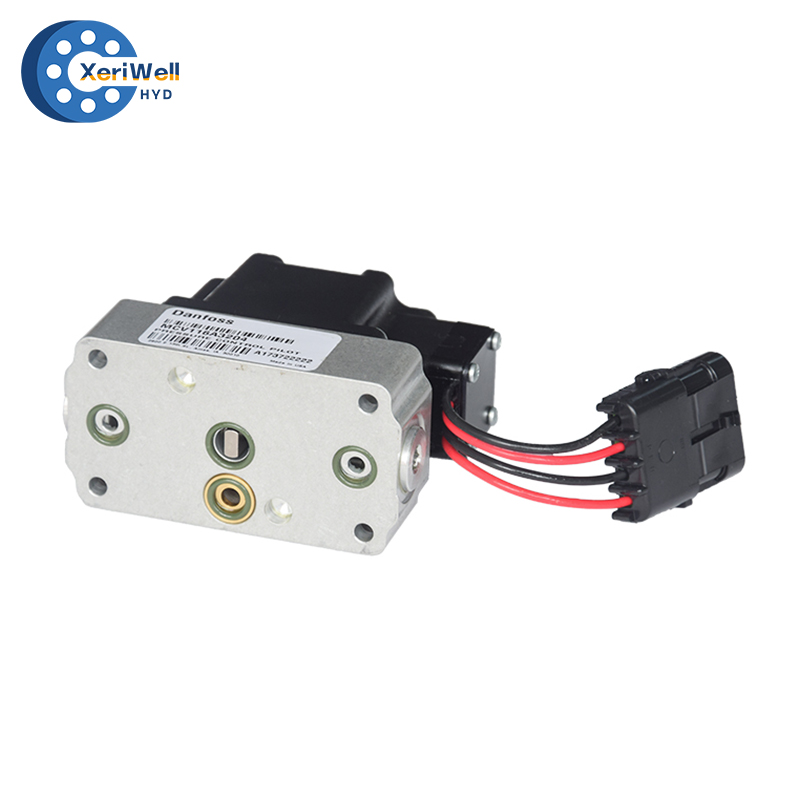

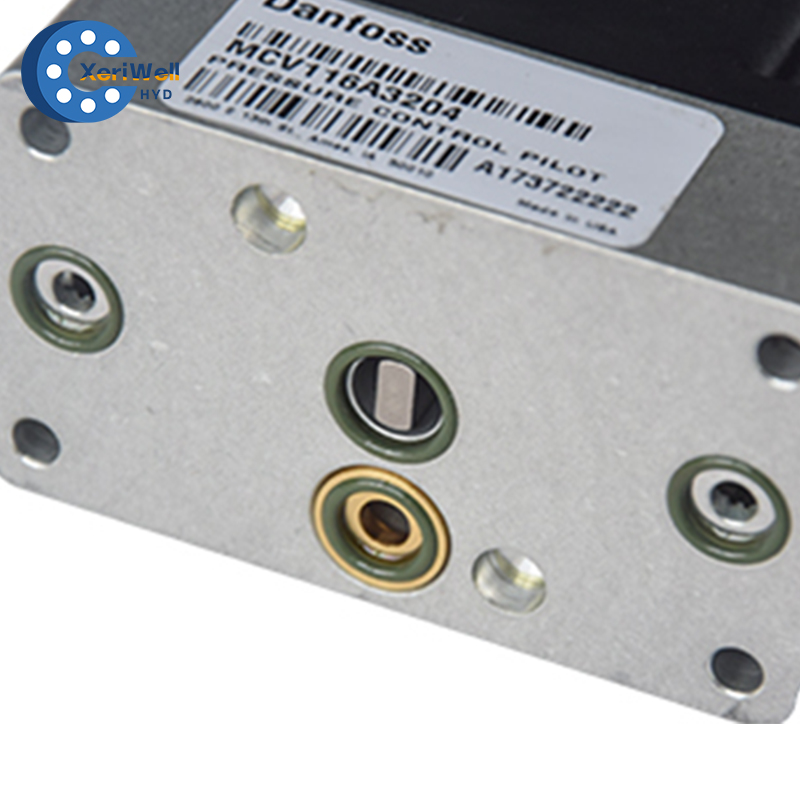

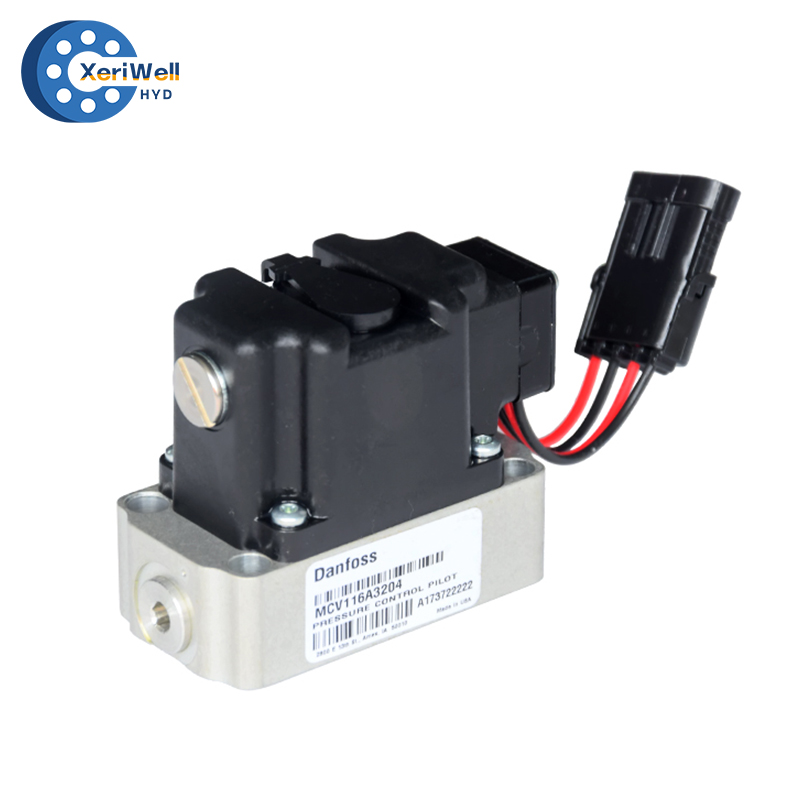

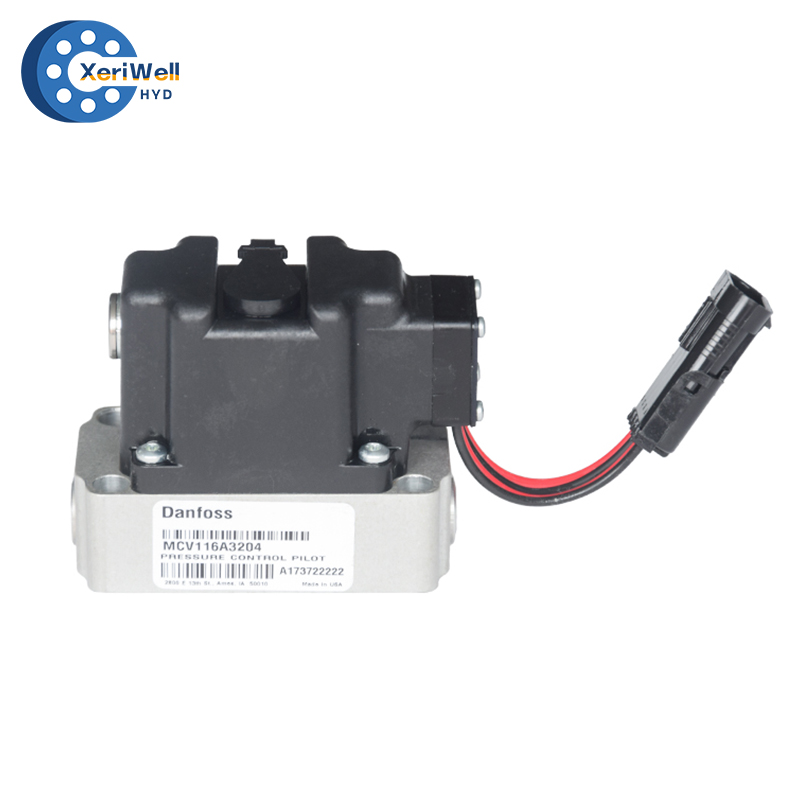

 Danfoss MCV Series Pressure Control Pilot Valve is an inexpensive control valve which provides a control signal for Danfoss variable displacement Series 90 pumps.



The pressure control pilot valve is a torque-motor actuated, double-nozzle flapper valve that produces a differential output pressure proportional to the applied electrical input signal. It is a single-stage, stand-alone closed loop pressure control valve which uses internal hydraulic pressure reactions to achieve its closed loop control characteristics

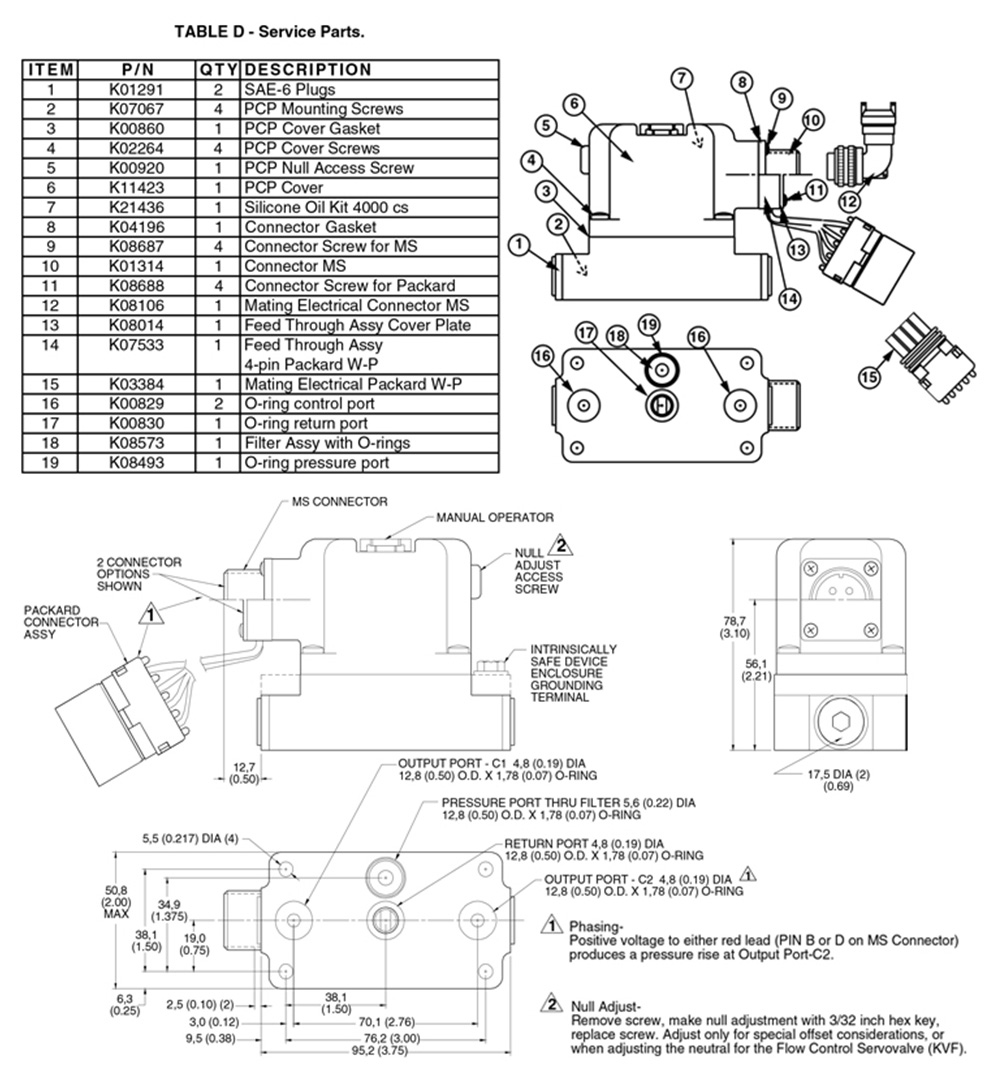

pressure control pilothydraulic valve body


More Type:

M46-2773 KVME11201 KVME11204 KVEBA1007 KVEBA1407 KVEBS0799

KVEBB0502 KVEBB0504 KVEBB0702 KVEBB0704 KVEBB1002 KVEBB1004

KVEBB1304 KVEBB1404 KVEBB1802 KVEBB1802 MCV104A5922  MCV105C3022

 MCV115A0509 MCV115EH0709 MCV116A3101 MCV116A3102 MCV116A3203

 MCV116A3204 MCV116A3501 MCV116B2102D MCV116B2102D MCV116G4204

 MCV116G4204 MCV104A5926E MCV104A7922 MCV104A7940 MCV104A9026E

 MCV104A9032E MCV105C3023 MCV105C3026 MCV105C3046 MCV108C3011

 MCV108C3011 MCV110A1058 MCV110A1090 MCV111BB0502 MCV111BB1002

 MCV111BB1004 MCV115EA0703 MCV115EA1003 MCV115EA1303 MCV115EA1803

MCV115EC1309 MCV115EF1809 MCV115EH1809 MCV116A1101  MCV116A1501

MCV116A3201 MCV116B1102 MCV116C1401 11101116 MCV116C3201




Hydraulic
