| Product: | TORQMOTOR | Model Number: | TG Series MOTOR |
| Applications: | Loader Attachment, Boom Sweepers | Rotary: | Counter-clockwise |
| Flange: | Wheel Mounting | Shaft: | Heavy Duty 1 1/4” SAE 1:8 Taper |
| Highlight: | TG0785US080AAAA Parker Motores,Hydraulic Industries Parker Motores,TG0785US080AAAA Torqmotor Parts |

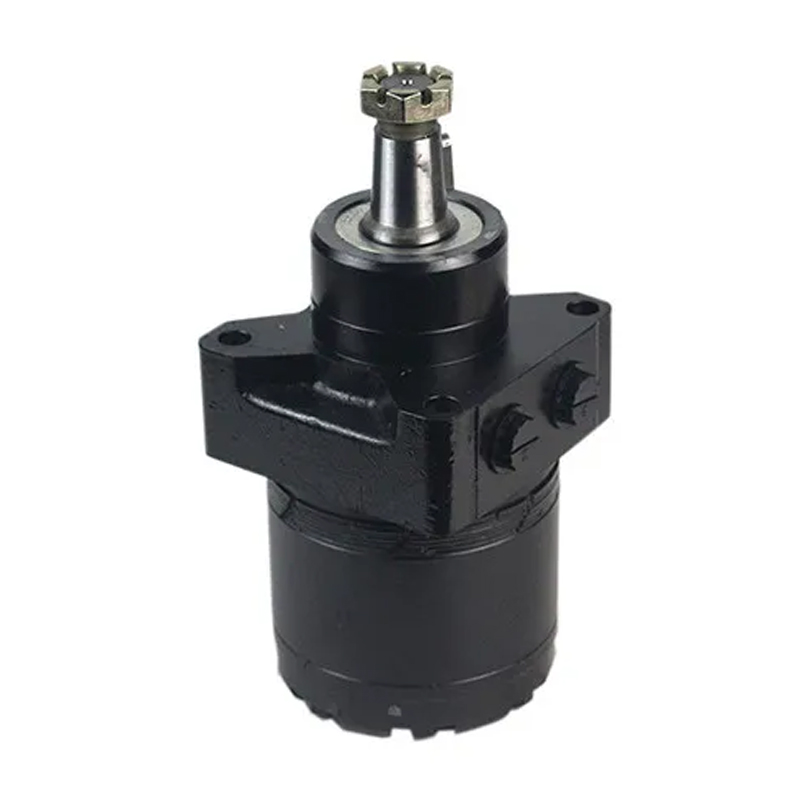

Parker Motores Torqmotor Parts TE,TF,TG,TGK ,TG0785US080AAAA hydraulic industries
Part Number:
TG0785US080AAAA
BMER-2-750-TS-t4-R-B LSHT Hydraulic Motor
4 bolt wheel Mount
Displacement (750cc)
Heavy Duty 1 1/4” SAE 1:8 Taper
7/8” - 14 UNF O Ring Side Ports
Specification:
| Type | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER |
| 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 |
| Geometric displacement (cm3/rev.) |
| 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 |
| Max. output (kW) | cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 |
TG0785MS030
HYDRAULIC MOTOR
TG0785MS010
HYDRAULIC ENGINE
TG0785US080
MOTOR HIDRAULICO
Hydraulic motors serve as core vital components for diverse machinery and equipment across construction, agricultural and manufacturing sectors. Boasting outstanding comprehensive performance, they stand as the top power solution for heavy-duty working scenarios. Below are their core strengths in detail:
-
Outstanding Power Density
Hydraulic motors feature an exceptional power-to-weight ratio, perfectly fitting working conditions demanding compact dimensions alongside powerful output. They generate substantial torque at low rotational speeds, supporting stable and efficient running of heavy machinery.
-
Broad Adjustable Speed & Torque Range
These motors support wide regulation of rotational speed and torque, enabling precise operational control of equipment. Such great versatility allows them to handle diverse working demands, ranging from low-speed accurate manipulation to high-speed continuous operation.
-
Steady Constant Torque Output
Hydraulic motors maintain stable torque output regardless of operating speed, delivering consistent, dependable performance under full heavy loads. This characteristic brings prominent advantages to equipment requiring sustained pulling/lifting force, including lifting devices and excavators.
-
Superior Energy Efficiency
Hydraulic motors achieve impressive overall efficiency, converting most input hydraulic energy into effective mechanical power. Excellent energy conversion greatly cuts energy loss and lowers long-term operational costs for industrial facilities.
-
Excellent Durability & Stable Reliability
Engineered to endure severe harsh working environments, including high ambient temperatures, intense vibration and extreme hydraulic pressure. Adopting rugged raw materials and precision machining, they deliver extended service life and greatly reduce maintenance downtime & repair frequency.
-
Strong Integration & Application Flexibility
Hydraulic motors can be seamlessly matched with existing hydraulic circuits with great adaptability. They are readily combined with hydraulic pumps, control valves and other hydraulic parts to build customized complete power transmission systems tailored to unique working requirements.
-
Enhanced Operational Safety
Compared with electric drive motors, hydraulic motors possess superior safety performance. They can function safely in high-risk hazardous environments such as explosive atmospheres, free from spark generation or electrical fault hazards. Furthermore, hydraulic systems can be equipped with fail-safe protection structures to avoid malfunctions and fully safeguard operators.
To sum up, hydraulic motors possess a full spectrum of superior merits, establishing them as the prime power source for heavy machinery and industrial equipment. Their high power density, wide speed-torque adjustment range, constant torque output and high energy efficiency effectively boost equipment performance and production efficiency. Coupled with robust durability, flexible installation compatibility and reliable safety mechanisms, they are applicable to nearly all industrial hydraulic working conditions. Thanks to these irreplaceable strengths, hydraulic motors remain an indispensable core part facilitating efficient production and technological advancement in modern industries.
