BMRS Hydraulic motor
Xeriwell or Others
| Product Name: | Hydraulic Orbital Motors | Displacement: | 200CC |
|---|---|---|---|
| Applications: | Agricultural Machine, Lifting Equipment | Replacement: | Xeriwell BMRS = DS, Eaton S,T Series , M+S MR Etc |
| Oil Temperature: | Normal-35℃-80℃ | Shaft: | Cylindrical Shaft φ25.4mm,woodruff Key |
| Highlight: | Lifting equipment Lsht Hydraulic Motor,Lsht Hydraulic Motor Npt Ports,Antirust Lsht Motor | ||

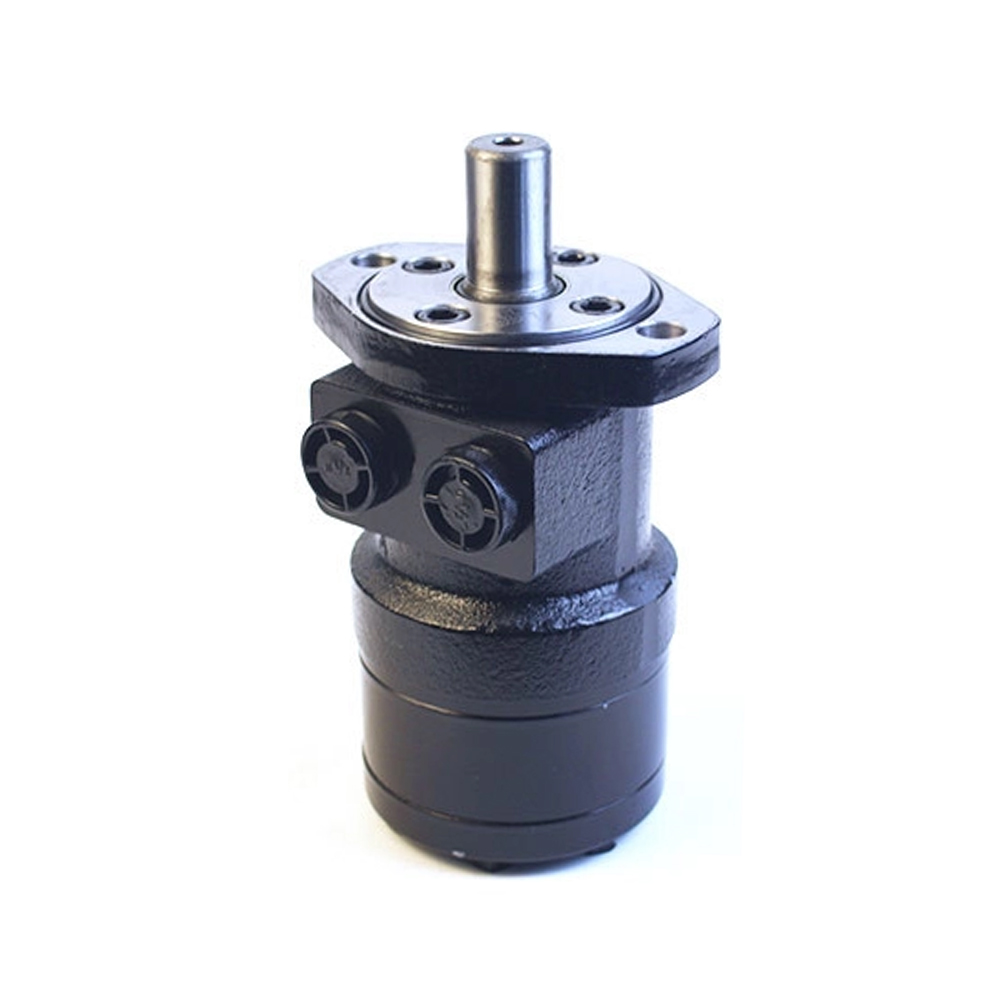

LSHT HYDRAULIC MOTOR - 11.87 IN⊃3;/REV - SAE "A" 2-BOLT - 1" WOODRUFF - NPT PORTS - BMRS-200-H2-K-P
Features:
Shaft: 1" Woodruff Key
Flange: SAE "A" 2-Bolt Mount
Ports: 1/2" NPTF
Drain: 7/16 - 20 SAE
Corrosion-resistant Black Paint
Technical Specifications for BMRS-200 H2-K-P:
Displacement: 11.87 in⊃3;/rev (194.5 cm³/rev)
Max Speed: 310 rpm (cont) / 385 rpm (int)
Max Torque: 3186 in•lbf (cont) / 3894 in•lbf (int)
Max Differential: 1885 psi (cont) / 2538 psi (int)
Max Flow: 15.85 gpm (cont) / 19.81 gpm (int)
Drop-In Replacement for:
Char-Lynn 103-1029
Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
If you have an existing hydraulic system and need a hydraulic motor, Xeriwell Technology's hydraulic orbital motor is an ideal product. Xeriwell Hydraulics regards honest service and product quality as the lifeline of the enterprise. We sell well at home and abroad, the markets include Southeast Asia, the Middle East, South America, North America, Northern Europe, Africa, India and other countries and regions. We are happy to be your hydraulic products partner, try us once, you will not regret it
