agricultural machines gerotor hydraulic motor straight key shaft 4bolts flange orbital gear motor

agricultural machines gerotor hydraulic motor straight key shaft 4bolts flange orbital gear motor

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Availability:





Inquire Add to Basket

Model:
BMPH
Brand:
Xeriwell or Others

Product Description

Model No.:	BMPH8400	Warranty:	12month
Speed:	155/190rpm	Torque:	360/525Nm
Max Power:	6.0/7.0KW	Pressure:	7.0/10.5mpa
Highlight:	BMPH8400 gerotor hydraulic motor , 190rpm gerotor hydraulic motor , 525Nm gerotor hydraulic motor

agricultural machines hydraulic gerolor motor straight key shaft 4bolts flange orbital gear motor

BMP series motor are small volume, economical type, which is designed with shaft distribution flow,

which adapt the Gerotor gear set design and provide compact volume, high power and low weight.

* Advanced manufacturing devices for the Gerotor gear set, which provide small volume, high efficiency and long life.

* Shaft seal can bear high pressure of motor of which can be used in parallel or in series.

* Advanced construction design, high power and low weight.

production details：
- Displacement: 400c

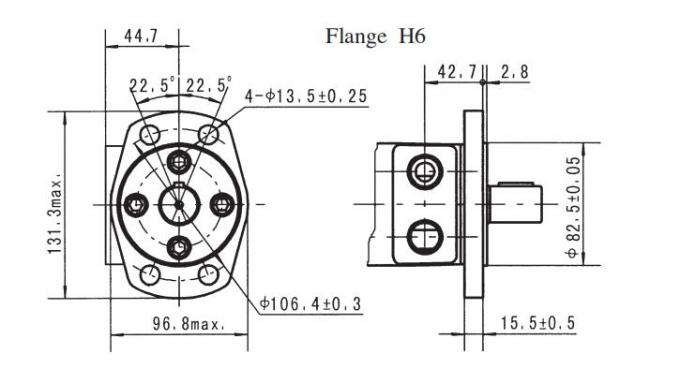

- Flange H6 Ø82106.4mm
- Shaft: Ø25.4mm,woodruff key φ25.4X6.35
- Ports: 1/2 BSP" (A & B), 1/4" BSP (T)

SHAFT SIZS

K	Shaft Ø25.4, woodruff key
K	Ø25.4×6.35
S	Shaft Ø25.4 , splined tooth SEA 6B
A	Shaft Ø25 , parallel key 8×7×32
R	Shaft Ø25.4, parallel key
R	6.35×6.35×31.75
H	Shaft Ø25.4 , pin hole Ø10.3
H1	Shaft Ø25.4 , pin hole Ø8
D	Shaft Ø22.22, parallel key
D	6.35×6.35×25.4
I	Shaft Ø22.22, splined tooth
I	13-DP16/32
T2	Cone shaft Ø25.4 , woodruff key
T2	Ø25.4×6.35
P	Shaft Ø25 , parallel key 8×7×28
J	Shaft Ø25 , parallel key 7×7×32
