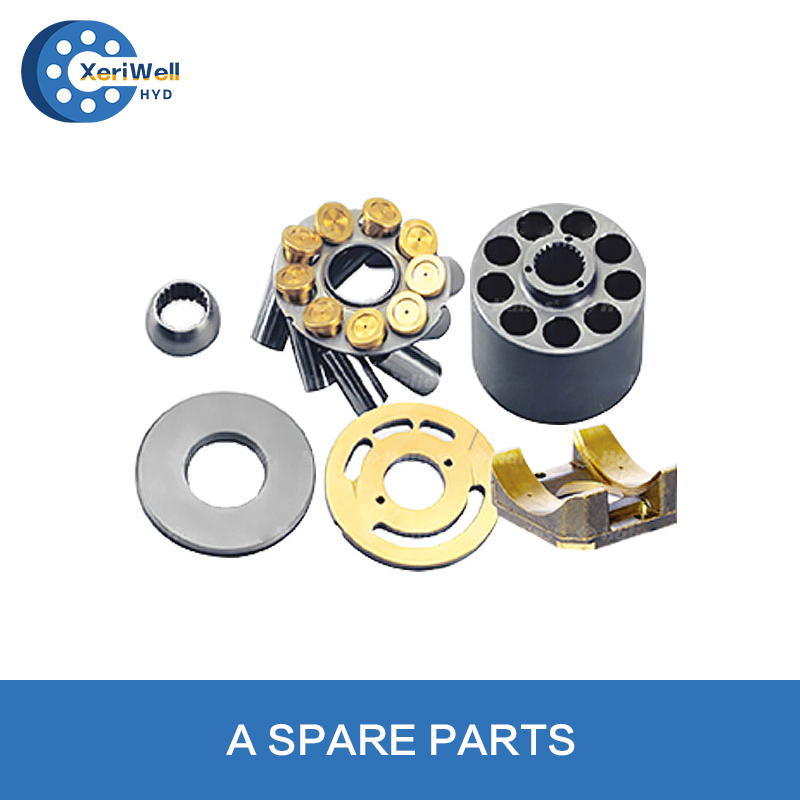

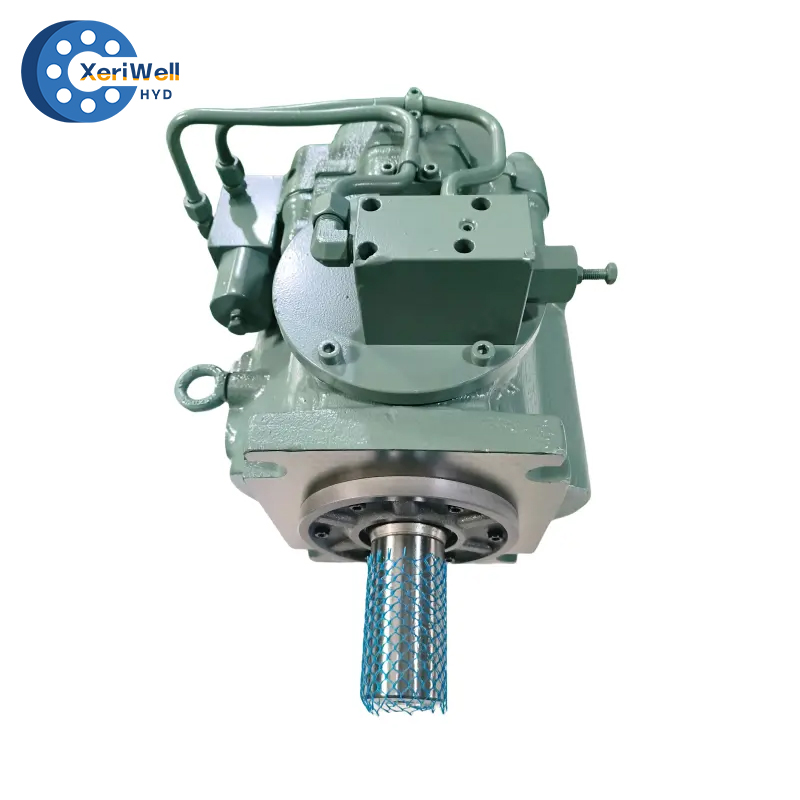

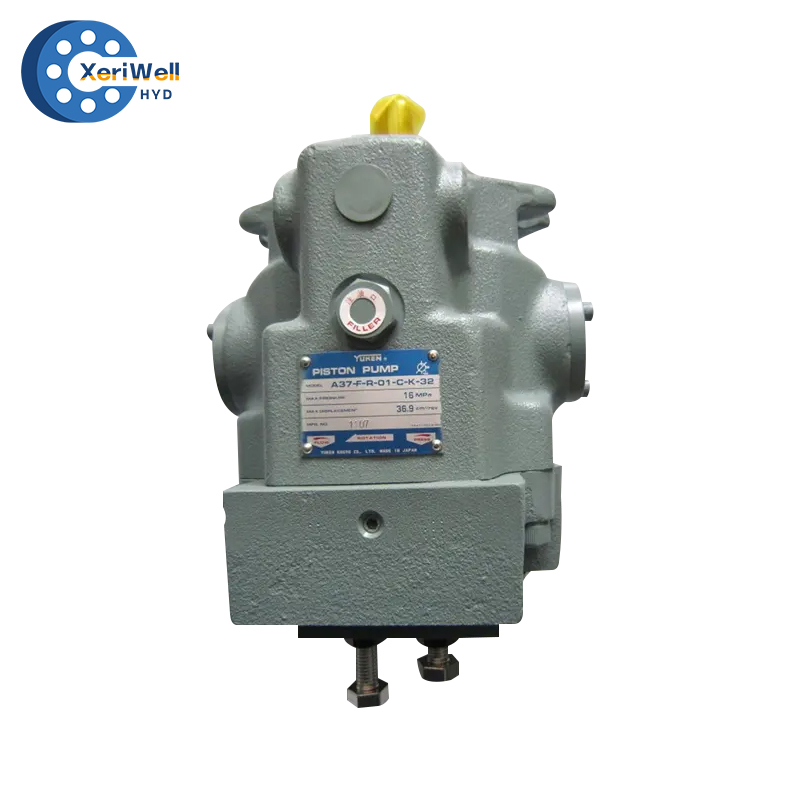

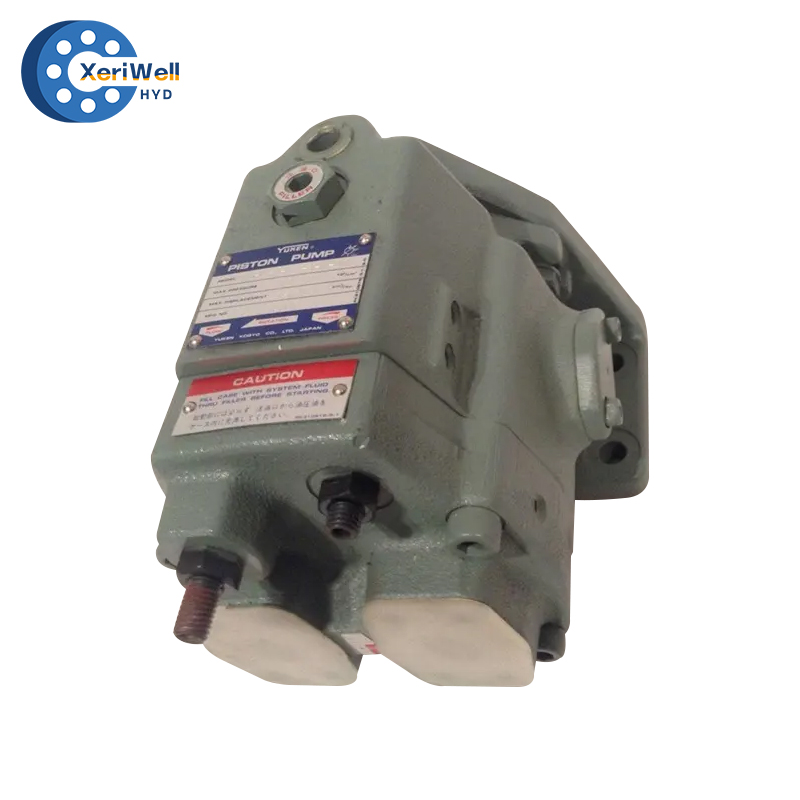

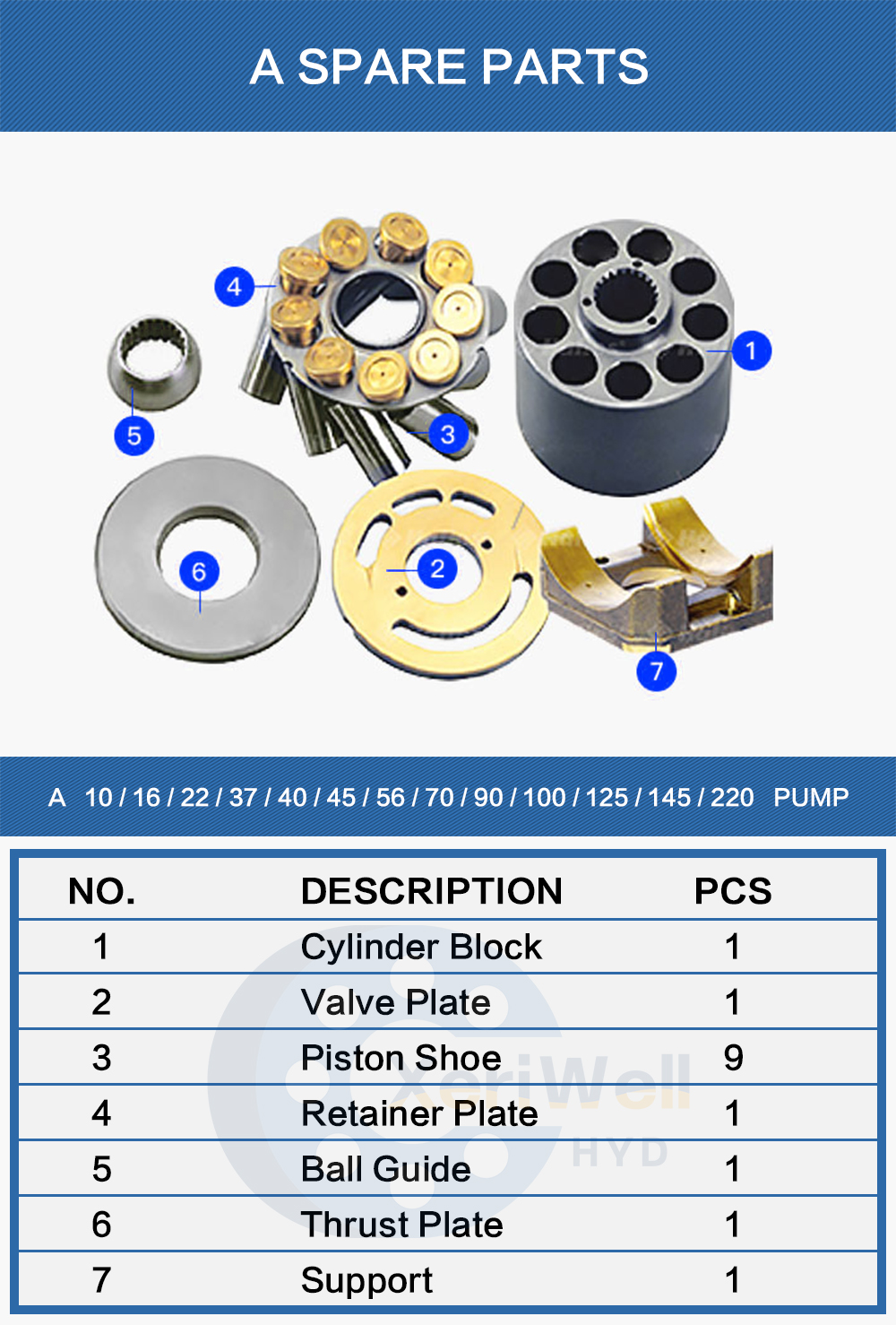

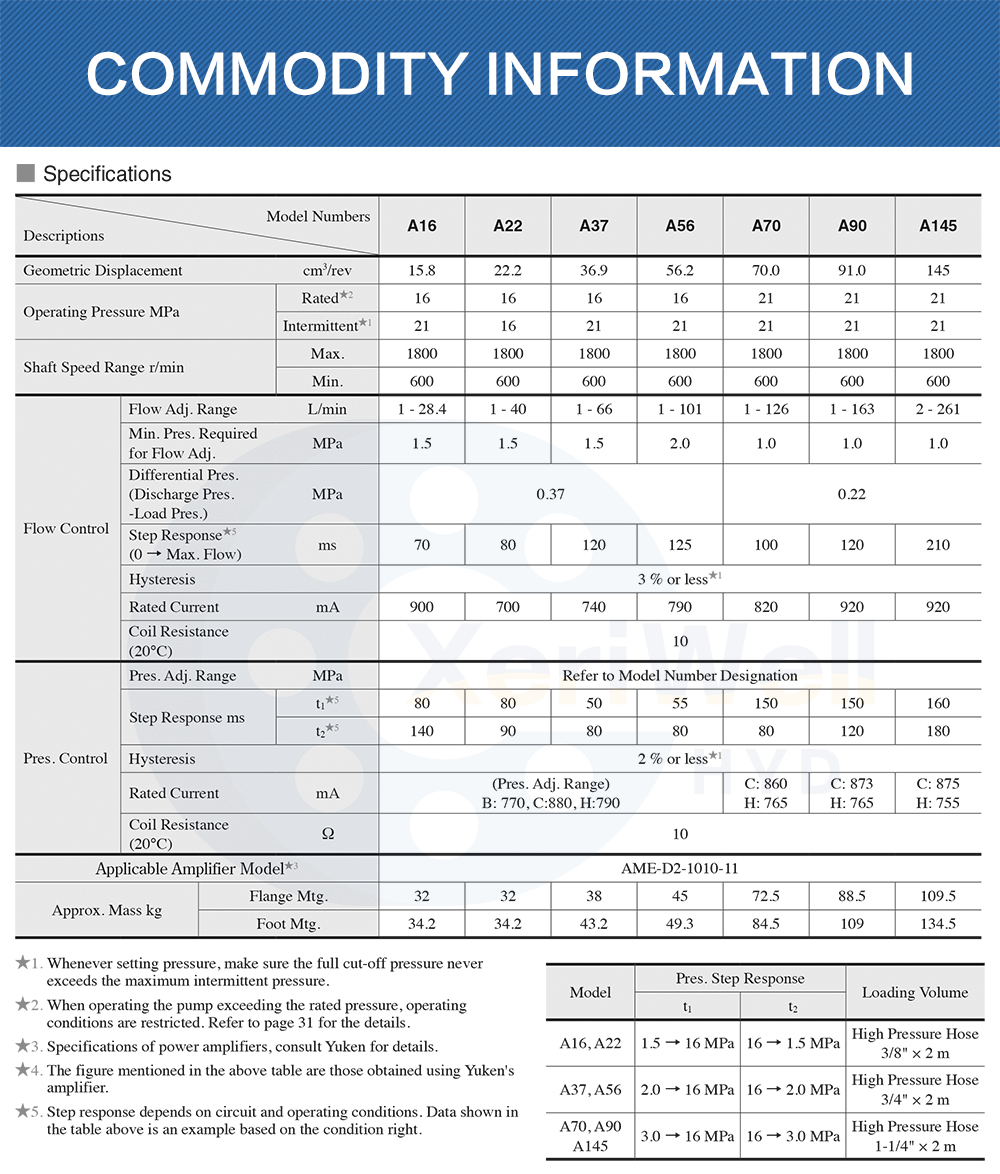

| Specifications | ||||||||||
| Descriptions Model Numbers | A16 | A22 | A37 | A56 | A70 | A90 | A145 | |||
| Geometric Displacement cm3/rev | 15.8 | 22.2 | 36.9 | 56.2 | 70 | 91 | 145 | |||
| Operating Pressure MPa | Rated*2 | 16 | 16 | 16 | 16 | 21 | 21 | 21 | ||
| Intermittent*1 | 21 | 16 | 21 | 21 | 21 | 21 | 21 | |||
| Shaft Speed Range r/min | Max. | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | ||
| Min. | 600 | 600 | 600 | 600 | 600 | 600 | 600 | |||
| Flow Control | Flow Adj. Range | L/min | 1 - 28.4 | 1 - 40 | 1 - 66 | 1 - 101 | 1 - 126 | 1 - 163 | 2 - 261 | |
| Min. Pres. Required for Flow Adj. | MPa | 1.5 | 1.5 | 1.5 | 2 | 1 | 1 | 1 | ||
| Differential Pres. (Discharge Pres. -Load Pres.) | MPa | 0.37 | 0.22 | |||||||
| Step Response*3(0 → Max. Flow) | ms | 70 | 80 | 120 | 125 | 100 | 120 | 210 | ||
| Hysteresis | 3 % or less*1 | |||||||||
| Rated Current | mA | 900 | 700 | 740 | 790 | 820 | 920 | 920 | ||
| Coil Resistance (20°C) | 10 | |||||||||
| Pres. Control | Pres. Adj. Range | MPa | Refer to Model Number Designation | |||||||
| Step Response ms | t1*5 | 80 | 80 | 50 | 55 | 150 | 150 | 160 | ||
| t2*5 | 140 | 90 | 80 | 80 | 80 | 120 | 180 | |||
| Hysteresis | 2 % or less*1 | |||||||||
| Rated Current | mA | (Pres. Adj. Range) B:770,C:880,H:790 | C:860 H:765 | C:873 H:765 | C:875 H:755 | |||||
| Coil Resistance (20°C) | Ω | 10 | ||||||||
| Applicable Amplifier Model*3 | AME-D2-1010-11 | |||||||||
| Approx. Mass kg | Flange Mtg. | 32 | 32 | 38 | 45 | 72.5 | 88.5 | 109.5 | ||
| Foot Mtg. | 34.2 | 34.2 | 43.2 | 49.3 | 84.5 | 109 | 134.5 | |||
★1. Whenever setting pressure,make sure the full cut-off pressure never exceeds the maximum intermittent pressure.
★2. When operating the pump exceeding the rated pressure,operating conditions are restricted. Refer to page 31 for the details.
★3. Specifications of power amplifiers,consult Yuken for details.
★4. The figure mentioned in the above table are those obtained using Yuken's amplifier.
★5. Step response depends on circuit and operating conditions. Data shown in the table above is an example based on the condition right.
| Model | Pres. Step Response | Loading Volume | |
| t1 | t2 | ||
| A16,A22 | 1.5 → 16 MPa | 16 → 1.5 MPa | High Pressure Hose 3/8" × 2 m |
| A37,A56 | 2.0 → 16 MPa | 16 → 2.0 MPa | High Pressure Hose 3/4" × 2 m |
| A70,A90 A145 | 3.0 → 16 MPa | 16 → 3.0 MPa | High Pressure Hose 1-1/4" × 2 m |
