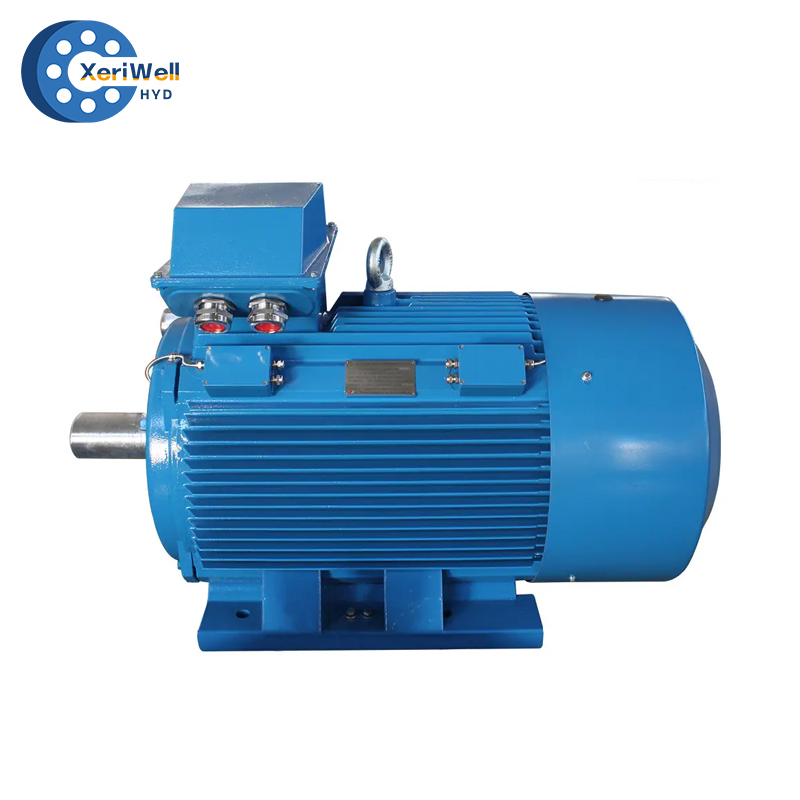

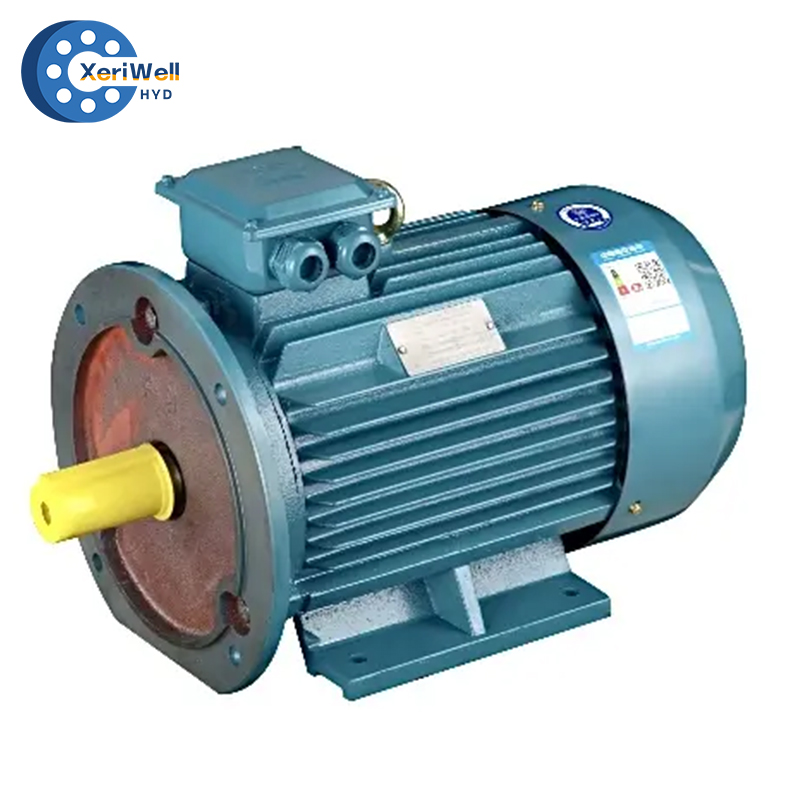

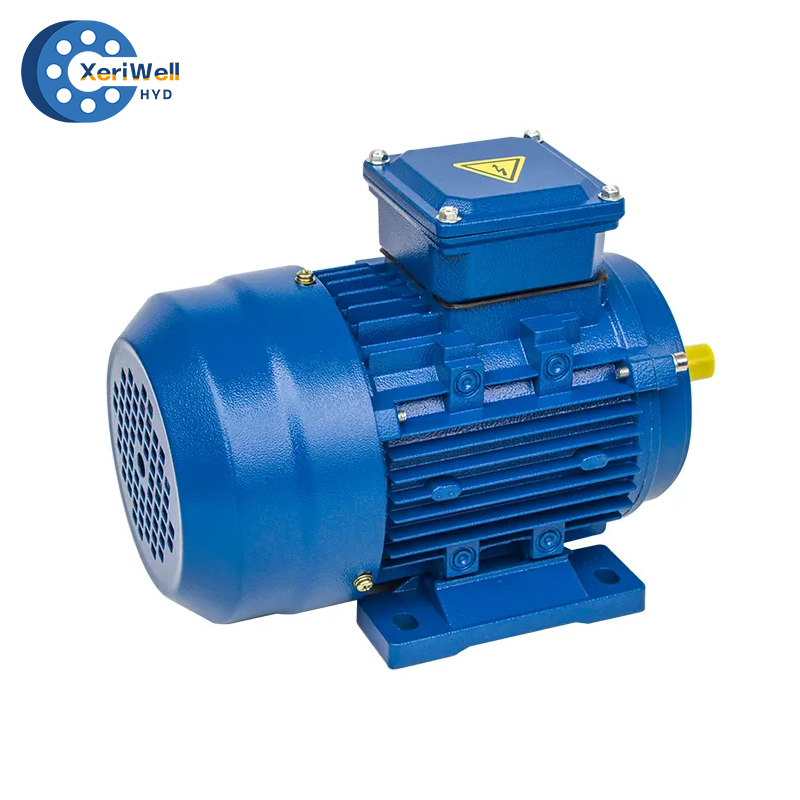

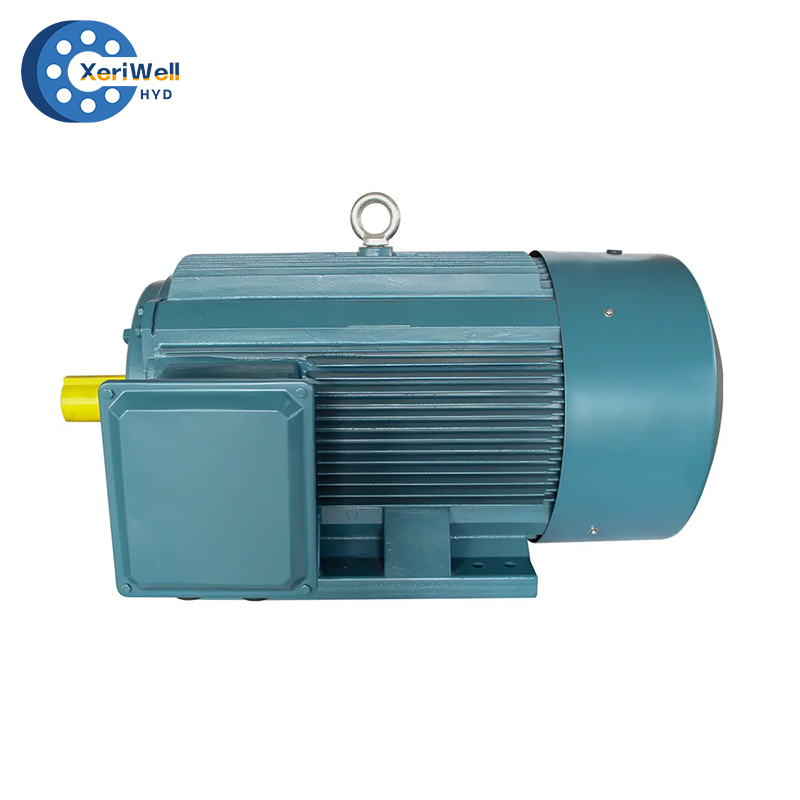

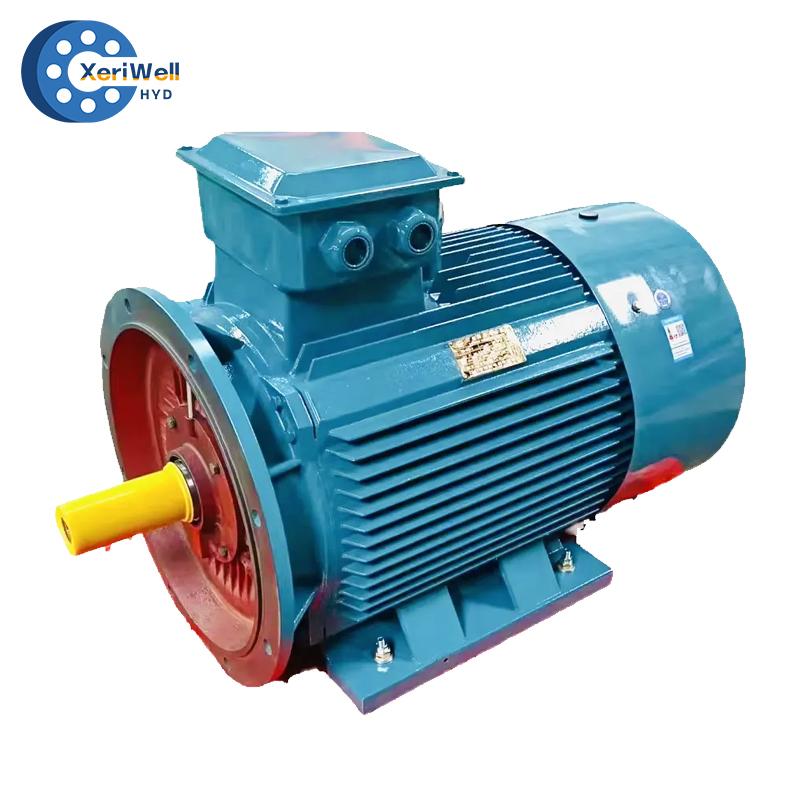

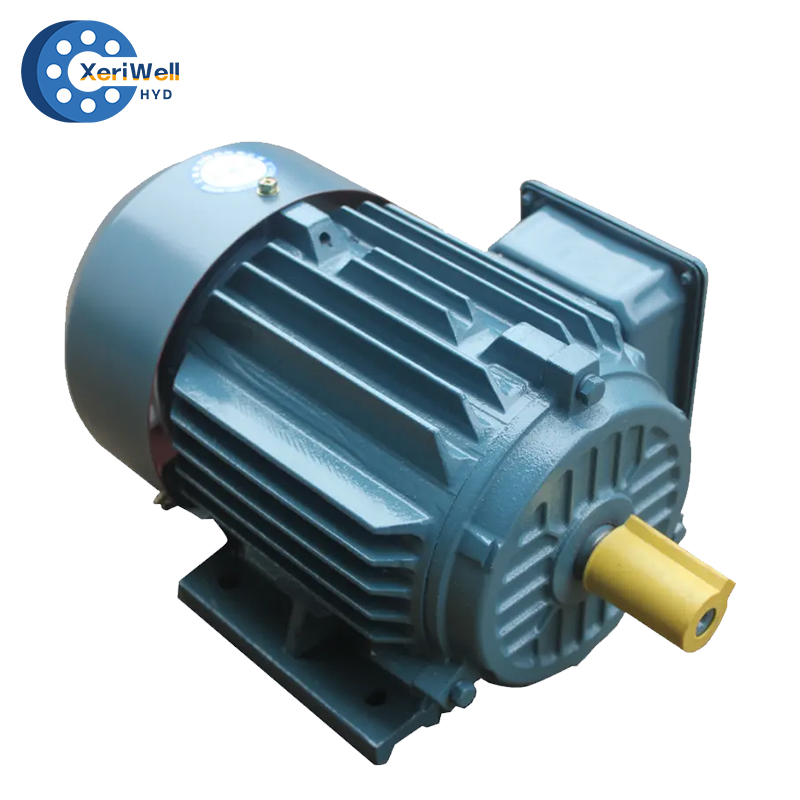

YE3 Series High Efficiency Three Phase Asynchronous Motor

YE3 Series High Efficiency Three Phase Asynchronous Motor

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Availability:





Inquire Add to Basket

YE3 series high efficiency three phase asynchronous motor is touse the new material, new process and optimize the design andmanufacture of fully enclosed, since the fan cold squirrel-cage three-phase asynchronous motor. ls a new generation of energy-saving motor.

YE3 center high H80-355 series motor, power from 0.75-375 kw,the number of 2,4,6.

YE3 series motor protection grade is IP55, cooling way for IC411, installation dimensions conform to the lEC standard. Rated voltage of 380v, 400v, rated frequency 50 Hz. Working environment temperature15 ℃ to 40 ℃, no more than 1000 meters above sea level. Work style: continuous S1.

YE3 series high efficiency three phase asynchronous motor has high efficiency, large starting torque, low noise, structure more reasonable. Cooling heat dissipation is good, this series motor is a general-purpose three-phase asynchronous motor, can be used to drive all kinds of general machinery equipment, mechanical equipment, such as compressor, fan, water pump, can also be used in petroleum, chemical, pharmaceutical, mining and other(such as specialenvironmental conditions of use, please contact the designer).

This series of motor efficiency indicators shall be not less thanthe lE3 lEC60034-30 standard value and efficiency of GB18613-2020 grade 3 values

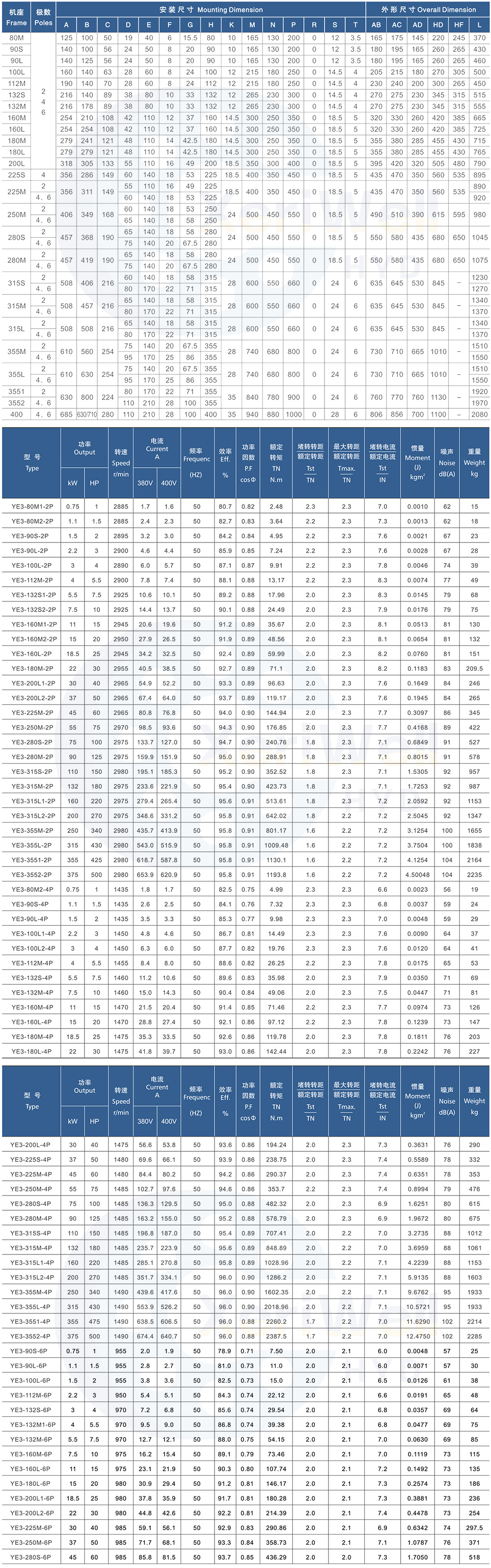

ac motor replacement cost

型号 Type	功率 Output		转速 Speed r/min	电流 Current A		频率 Frequenc (HZ)	效率 Eff. %	功率因数 PF cosΦ	额定转矩 TN N.m	堵转转距额定转距 Tst TN	最大转距额定转距 Tmax. TN	堵转电流额定电流 Tst IN	惯量 Moment (J) kgm2	噪声 Noise dB(A)	重量 Weight kg


	kW	HP		380V	400V
YE3-80M1-2P	0.75	1	2885	1.7	1.6	50	80.7	0.82	2.48	2.3	2.3	7	0.001	62	15
YE3-80M2-2P	1.1	1.5	2885	2.4	2.3	50	82.7	0.83	3.64	2.2	2.3	7.3	0.0013	62	18
YE3-90S-2P	1.5	2	2895	3.2	3	50	84.2	0.84	4.95	2.2	2.3	7.6	0.0021	67	23
YE3-90L-2P	2.2	3	2900	4.6	4.4	50	85.9	0.85	7.24	2.2	2.3	7.6	0.0028	67	28
YE3-100L-2P	3	4	2890	6	5.7	50	87.1	0.87	9.91	2.2	2.3	7.8	0.0046	74	38
YE3-112M-2P	4	5.5	2900	7.8	7.4	50	88.1	0.88	13.17	2.2	2.3	8.3	0.0074	77	49
YE3-132S1-2P	5.5	7.5	2925	10.6	10.1	50	89.2	0.88	17.96	2	2.3	8.3	0.0145	79	68
YE3-132S2-2P	7.5	10	2925	14.4	13.7	50	90.1	0.88	24.49	2	2.3	7.9	0.0176	79	75
YE3-160M1-2P	11	15	2945	20.6	19.6	50	91.2	0.88	35.67	2	2.3	8.1	0.0513	81	130
YE3-160M2-2P	15	20	2950	27.9	26.5	50	91.9	0.89	48.56	2	2.3	8.1	0.0654	81	132
YE3-160L-2P	18.5	25	2945	34.2	32.5	50	92.4	0.89	59.99	2	2.3	8.2	0.076	81	151
YE3-180M-2P	22	30	2955	40.5	38.5	50	92.7	0.89	71.1	2	2.3	8.2	0.1183	83	209.5
YE3-200L1-2P	30	40	2965	54.9	52.2	50	93.3	0.89	96.63	2	2.3	7.6	0.1649	84	246
YE3-200L2-2P	37	50	2965	67.4	64	50	93.7	0.89	119.17	2	2.3	7.6	0.1945	84	265
YE3-225M-2P	45	60	2985	80.8	76.8	50	94	0.9	144.94	2	2.3	7.7	0.3097	86	345
YE3-250M-2P	55	75	2970	98.5	93.6	50	94.3	0.9	176.85	2	2.3	7.7	0.4168	89	422
YE3-280S-2P	75	100	2975	133.7	127	50	94.7	0.9	240.76	1.8	2.3	7.1	0.6849	91	527
YE3-280M-2P	90	125	2975	159.9	151.9	50	95	0.9	288.91	1.8	2.3	7.1	0.8015	91	578
YE3-315S-2P	110	150	2980	195.1	185.3	50	95.2	0.9	352.52	1.8	2.3	7.1	1.5305	92	957
YE3-315M-2P	132	180	2975	233.6	221.9	50	95.4	0.9	423.73	1.8	2.3	7.1	1.7253	92	987
YE3-315L1-2P	160	220	2975	279.4	265.4	50	95.6	0.91	513.61	1.8	2.3	7.2	2.0592	92	1153
YE3-315L2-2P	200	270	2975	348.6	331.2	50	95.8	0.91	642.02	1.8	2.2	7.2	2.5045	92	1347
YE3-355M-2P	250	340	2980	435.7	413.9	50	95.8	0.91	801.17	1.6	2.2	7.2	3.1254	100	1655
YE3-355L-2P	315	430	2980	543	515.9	50	95.8	0.91	1009.48	1.6	2.2	7.2	3.7504	100	1838
YE3-355I-2P	355	425	2980	618.7	587.8	50	95.8	0.91	1130.1	1.6	2.2	7.2	4.1254	104	2164
YE3-355Z-2P	375	500	2980	653.9	620.9	50	95.8	0.91	1193.8	1.6	2.2	7.2	4.50048	104	2235
YE3-80M2-4P	0.75	1	1435	1.8	1.7	50	82.5	0.75	4.99	2.3	2.3	6.6	0.0023	56	19
YE3-80S-4P	1.1	1.5	1435	2.6	2.5	50	84.1	0.76	7.32	2.3	2.3	6.8	0.0037	59	24
YE3-90L-4P	1.5	2	1435	3.5	3.3	50	85.3	0.77	9.98	2.3	2.3	7	0.0048	59	29
YE3-100L1-4P	2.2	3	1450	4.8	4.6	50	86.7	0.81	14.49	2.3	2.3	7.6	0.009	64	37
YE3-100L2-4P	3	4	1450	6.3	6	50	87.7	0.82	19.76	2.3	2.3	7.6	0.012	64	41
YE3-112M-4P	4	5.5	1455	8.4	8	50	88.6	0.82	26.25	2.2	2.3	7.8	0.0175	65	53
YE3-132S-4P	5.5	7.5	1480	11.2	10.6	50	89.6	0.83	35.98	2	2.3	7.9	0.035	71	69
YE3-132M-4P	7.5	10	1480	15	14.3	50	90.4	0.84	49.06	2	2.3	7.5	0.0447	71	81
YE3-160M-4P	11	15	1470	21.5	20.4	50	91.4	0.85	71.46	2.2	2.3	7.7	0.0974	73	126
YE3-160L-4P	15	20	1470	28.8	27.4	50	92.1	0.86	97.12	2.2	2.3	7.8	0.1239	73	147
YE3-180M-4P	18.5	25	1475	35.3	33.5	50	92.6	0.86	119.78	2	2.3	7.8	0.1811	76	203
YE3-180L-4P	22	30	1475	41.8	39.7	50	93	0.86	142.44	2	2.3	7.8	0.2242	76	227

型号 Type	功率		转速 Speed r/min	电流		频率 Frequenc (HZ)	效率 Eff. %	功率因数 P.F cosΦ	额定转矩 TN N.m	堵转转距额定转距 Tst TN	最大转距额定转距 Tmax. TN	堵转电流额定电流 Tst IN	惯量 Moment (J) kgm2	噪声 Noise dB(A)	重量 Weight kg
	Output			Current A
	kW	HP		380V	400V
YE3-200L-4P	30	40	1475	56.6	53.8	50	93.6	0.86	194.24	2	2.3	7.3	0.3631	76	290
YE3-225S-4P	37	50	1480	69.6	66.1	50	93.9	0.86	238.75	2	2.3	7.4	0.5589	78	332
YE3-225M-4P	45	60	1480	84.4	80.2	50	94.2	0.86	290.37	2	2.3	7.4	0.6351	78	353
YE3-250M-4P	55	75	1485	102.7	97.6	50	94.6	0.86	353.7	2.2	2.3	7.4	0.8994	79	476
YE3-280S-4P	75	100	1485	136.3	129.5	50	95	0.88	482.32	2	2.3	6.9	1.6251	80	615
YE3-280M-4P	90	125	1485	163.2	155	50	95.2	0.88	578.79	2	2.3	6.9	1.9672	80	675
YE3-315S-4P	110	150	1485	196.8	187	50	95.4	0.89	707.41	2	2.2	7	3.2735	88	1012
YE3-315M-4P	132	180	1485	235.7	223.9	50	95.6	0.89	848.89	2	2.2	7	3.6959	88	1061
YE3-315L1-4P	160	220	1485	285.1	270.8	50	95.8	0.89	1028.96	2	2.2	7.1	4.2239	88	1153
YE3-315L2-4P	200	270	1485	351.7	334.1	50	96	0.9	1286.2	2	2.2	7.1	5.9135	88	1603
YE3-355M-4P	250	340	1490	439.6	417.6	50	96	0.9	1602.35	2	2.2	7.1	9.6762	95	1933
YE3-355L-4P	315	430	1490	553.9	526.2	50	96	0.9	2018.96	2	2.2	7.1	10.5721	95	1933
YE3-3551-4P	355	475	1490	638.5	606.5	50	96	0.88	2260.2	1.7	2.2	7	11.629	102	2214
YE3-3552-4P	375	500	1490	674.4	640.7	50	96	0.88	2387.5	1.7	2.2	7	12.475	102	2285
YE3-90S-6P	0.75	1	955	2	1.9	50	78.9	0.71	7.5	2	2.1	6	0.0048	57	25
YE3-90L-6P	1.1	1.5	955	2.8	2.7	50	81	0.73	11	2	2.1	6	0.0071	57	30
YE3-100L-6P	1.5	2	955	3.8	3.6	50	82.5	0.73	15	2	2.1	6.5	0.0126	61	38
YE3-112M-6P	2.2	3	950	5.4	5.1	50	84.3	0.74	22.12	2	2.1	6.6	0.0191	65	48
YE3-132S-6P	3	4	970	7.2	6.8	50	85.6	0.74	29.54	2	2.1	6.8	0.0357	69	64
YE3-132M1-6P	4	5.5	970	9.5	9	50	86.8	0.74	39.38	2	2.1	6.8	0.0477	69	75
YE3-132M-6P	5.5	7.5	970	12.7	12.1	50	88	0.75	54.15	2	2.1	7	0.063	69	85
YE3-160M-6P	7.5	10	975	16.2	15.4	50	89.1	0.79	73.46	2	2.1	7	0.1119	73	115
YE3-160L-6P	11	15	975	23.1	21.9	50	90.3	0.8	107.74	2	2.1	7.2	0.1492	73	135
YE3-180L-6P	15	20	980	30.9	29.4	50	91.2	0.81	146.17	2	2.1	7.3	0.2574	73	186
YE3-200L1-6P	18.5	25	980	37.8	35.9	50	91.7	0.81	180.28	2	2.1	7.3	0.3881	73	236
YE3-200L2-6P	22	30	980	44.8	42.6	50	92.2	0.81	214.39	2	2.1	7.4	0.4478	73	254
YE3-225M-6P	30	40	985	59.1	56.1	50	92.9	0.83	290.86	2	2.1	6.9	0.6342	74	297.5
YE3-250M-6P	37	50	985	71.7	68.1	50	93.3	0.84	358.73	2	2.1	7.1	1.0787	76	371
YE3-280S-6P	45	60	985	85.8	81.5	50	93.7	0.85	436.29	2	2	7.3	1.705	78	518
