| Quantity: | |
|---|---|
101S
Xeriwell or Others
| Product: | Hydraulic Steering Unit | Brand: | Xeriwell |
|---|---|---|---|
| Displacement: | 125cc (50cc, 80cc, 100cc, 125cc, 160cc, 200cc, 250cc, 315cc, 400cc, 500cc Can Provide) | CN: | CN (Close Center Non Reaction) |
| Valves: | 5 Valves Built Inside | Feature: | Replace AL41631 125CN |
| Highlight: | power steering valve,hydraulic steering gear | ||

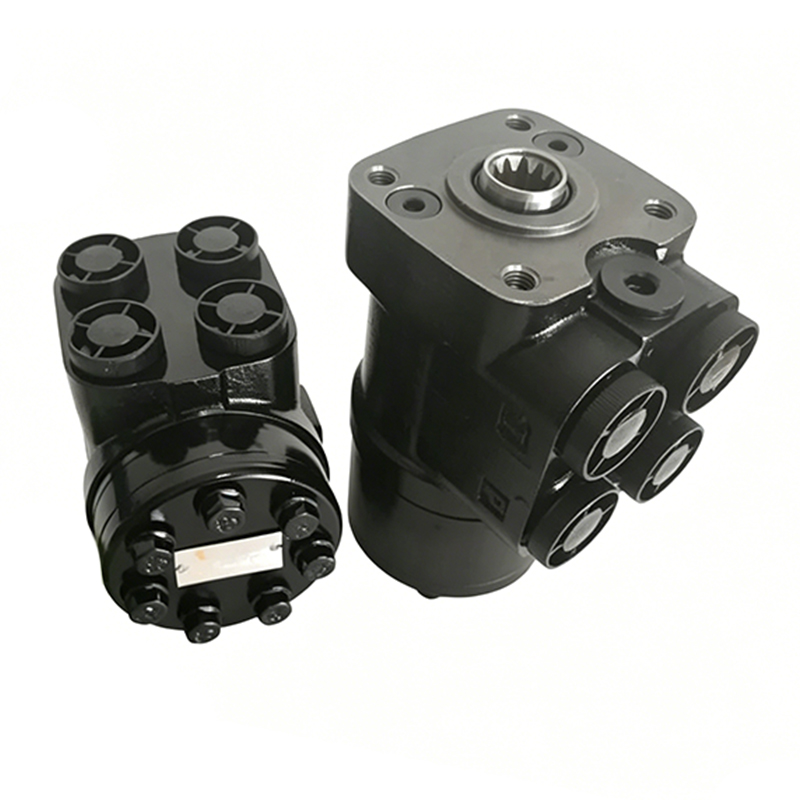

Hydraulic Power Steering AL41631 125CN Replace 101S Series
101S series orbital steering valve is with relief valve ,suction valve, inlet check valve intergrated,and different valve can be assembled freely, compact, more convenient, fitting for European and American standards. Widely applied to low speed and heavy vehicles , construction machinery, tractor, forklift, digger, loader, helm control.
| OEM NUMBER | ALTERNATIVE NUMBERS | Xeriwell ALTERNATIVE NUMBERS |
| AL41631 | OSPC 125 CN | 101S 125 CN |
Application Model
Serie 40: 1640 1840 1840F 2040 2040S
Serie 41: 2141 2541 2941 3141 3641
Serie 50: 1550 1750 1850 1950 2250 2250F 2450 2450F 2650 2650F 2650N 2850 3050 3350
Serie 51: 2251 2351 2651 2951 3351 3651
Serie 55: 2755TS
Best Quality Guaranteed, Best Price Guaranteed
Orbital steering valve for Tractor, Forklift OSPC OSPB HKU HKUS
101S series hydraulic control unit 's shape ,internal structure ,performance are same as OSPC**ON, M+S HKUS***/4 , Eaton 401-1***, Sinjin N/Y***E.
| Product Name | 101S series hydraulic orbital steering valve |
| Displacement (ml/r) | 50, 80, 100, 125, 160, 200, 250, 315, 400ml |
| Max, input pressure (MPa) | 17.5 |
| Max.manual steering torque (N.m) | 130 |
| Relief valve pressure settings (MPa) | 6-----17.5 |
| Shock valve pressure settings | 12---23.5 |
| Max. Cont.pressure in line T (MPa) | 2.5 |
| Power steering torque (N.m) | 1.6---204 |
| Parameters | Series 101S-*-***-**-* | ||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 16 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
