| Quantity: | |
|---|---|
OMPX160
Xeriwell or Others
| Type: | Geroler And Gerotor Motor | Warranty: | 12months |
|---|---|---|---|
| Model No.: | BMP200 | Feature: | Replace OMP, M+S MP, EATON H Series |
| Application: | Plastic, Agricultural, Forestry, Industrial, Etc. | Port: | Rear Port |
| Highlight: | rear port danfoss omp motor,shaft 25mm danfoss omp motor,rear port omp 160 hydraulic motor | ||

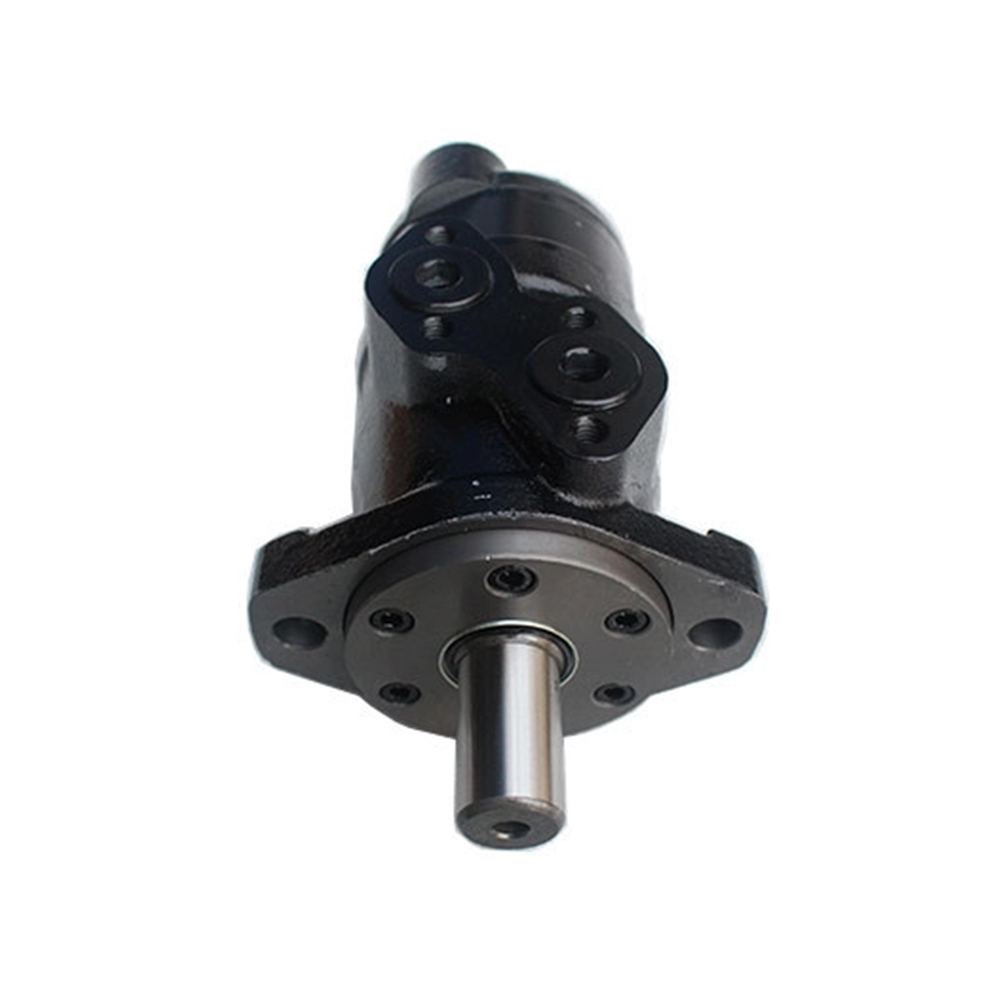

OMP MOTOR X 160 SHAFT Ø25MM Rear Port Cylindrical Shaft A2 2 Bolt flange
| Type | BMPX |
| Displacement | 160CC |
| Shaft | 25MM Cylindrical |
| Flange | A2 (2 Bolt 106.1 pcd) |
| Port Position | End |
| Shaft Seal | High Pressure |
| Drain | Yes |
Xeriwell offers range of geroler and gerotor motors that are compatible with Danfoss on form, fit and function.
We are experts when it comes to all Danfoss Orbital Motors, including the below BMP motors with SAE A 2 Bolt
Cylindrical Shaft 1/2" BSP Ports.
| Type | BMP 36 | BMP 50 | BMP 80 | BMP 100 | BMP 125 | BMP 160 | BMP 200 | BMP 250 | BMP 315 | BMP 400 | BMP 500 | |
| displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
| Type: | Geroler And Gerotor Motor | Warranty: | 12months |
|---|---|---|---|
| Model No.: | BMP200 | Feature: | Replace OMP, M+S MP, EATON H Series |
| Application: | Plastic, Agricultural, Forestry, Industrial, Etc. | Port: | Rear Port |
| Highlight: | rear port danfoss omp motor,shaft 25mm danfoss omp motor,rear port omp 160 hydraulic motor | ||
OMP MOTOR X 160 SHAFT Ø25MM Rear Port Cylindrical Shaft A2 2 Bolt flange
| Type | BMPX |
| Displacement | 160CC |
| Shaft | 25MM Cylindrical |
| Flange | A2 (2 Bolt 106.1 pcd) |
| Port Position | End |
| Shaft Seal | High Pressure |
| Drain | Yes |
Xeriwell offers range of geroler and gerotor motors that are compatible with Danfoss on form, fit and function.
We are experts when it comes to all Danfoss Orbital Motors, including the below BMP motors with SAE A 2 Bolt
Cylindrical Shaft 1/2" BSP Ports.
| Type | BMP 36 | BMP 50 | BMP 80 | BMP 100 | BMP 125 | BMP 160 | BMP 200 | BMP 250 | BMP 315 | BMP 400 | BMP 500 | |
| displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
