| Quantity: | |
|---|---|
BMRS-375
Xeriwell or Others
| Product: | Low Speed, High Torque (LSHT) Motor | Model No.: | BMRS-375 |
|---|---|---|---|
| Displacement: | 375cc | Flange: | 4 Bolt Square |
| Shaft: | 25.4mm Shaft SAE 6B | Port: | 7/8-14 O-ring |
| Rotation: | Standard | Color: | Black |
| Manufacturer: | Xeriwell | Brand: | Xeriwell |
| Highlight: | Hydraulic Motor 375ml/R,Needle Bearing Hydraulic Motor,4 Bolt Flange Hydraulic Motor | ||

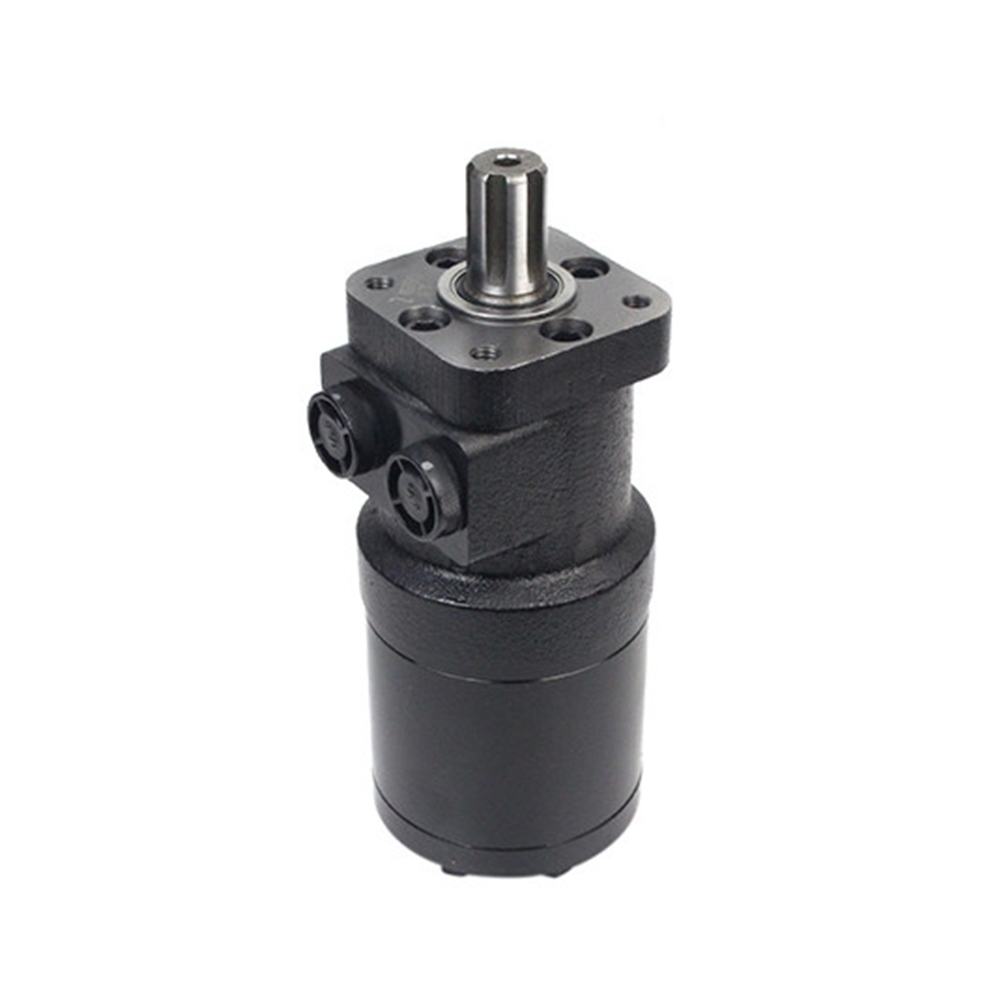

white 255 series Hydraulic Motor 375ml/r, 4 bolt flange, 25.4mm shaft SAE 6B, needle bearing, high pressure seal kit
Quick review:
Xeriwell BMRS series = White Drive Hydrualic Motor 255 series
| Product | Low Speed, High Torque (LSHT) Motor |
| Model No. | BMRS-375 |
| Displacement | 375cc |
| Flange | 4 bolt square |

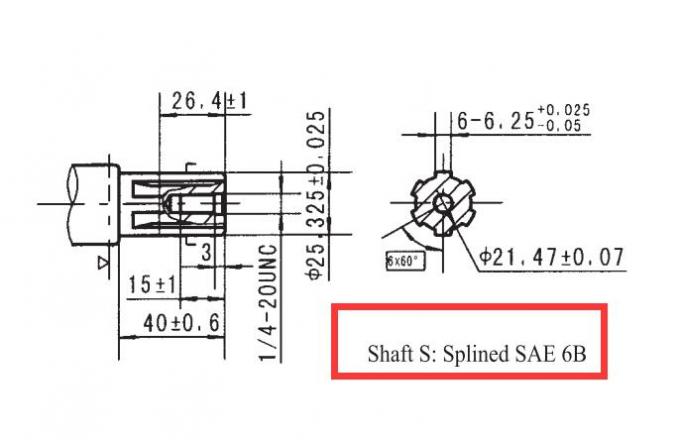

| Shaft | 25.4mm shaft SAE 6B, |
| Port | 7/8-14 O-ring |
| Rotation | Standard |
| Color | Black |
| Brand | Xeriwell |
Specification:
| Main Specifications: |
| Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft: |
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |

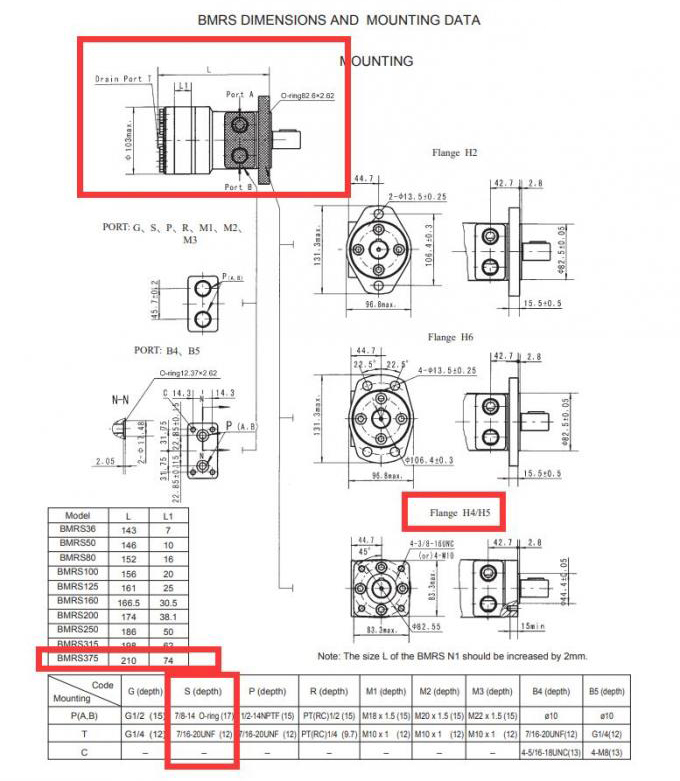

Dimentions:
WM (125/126 Series)
WD (145/146 Series)
WP (155/156 Series)
RS (200/201 Series)
WR (255/256 Series)
WG (277/278 Series)
WG (280/281 Series)
WS (350/351 Series)
WS (355/356 Series)
WS (357/358 Series)
CE (420/421 Series)
CE (430/431 Series)
RE (500/501 Series)
RE (520/521 Series)
RE (530/531 Series)
