| Quantity: | |
|---|---|
BMER-2-750
Xeriwell or Others

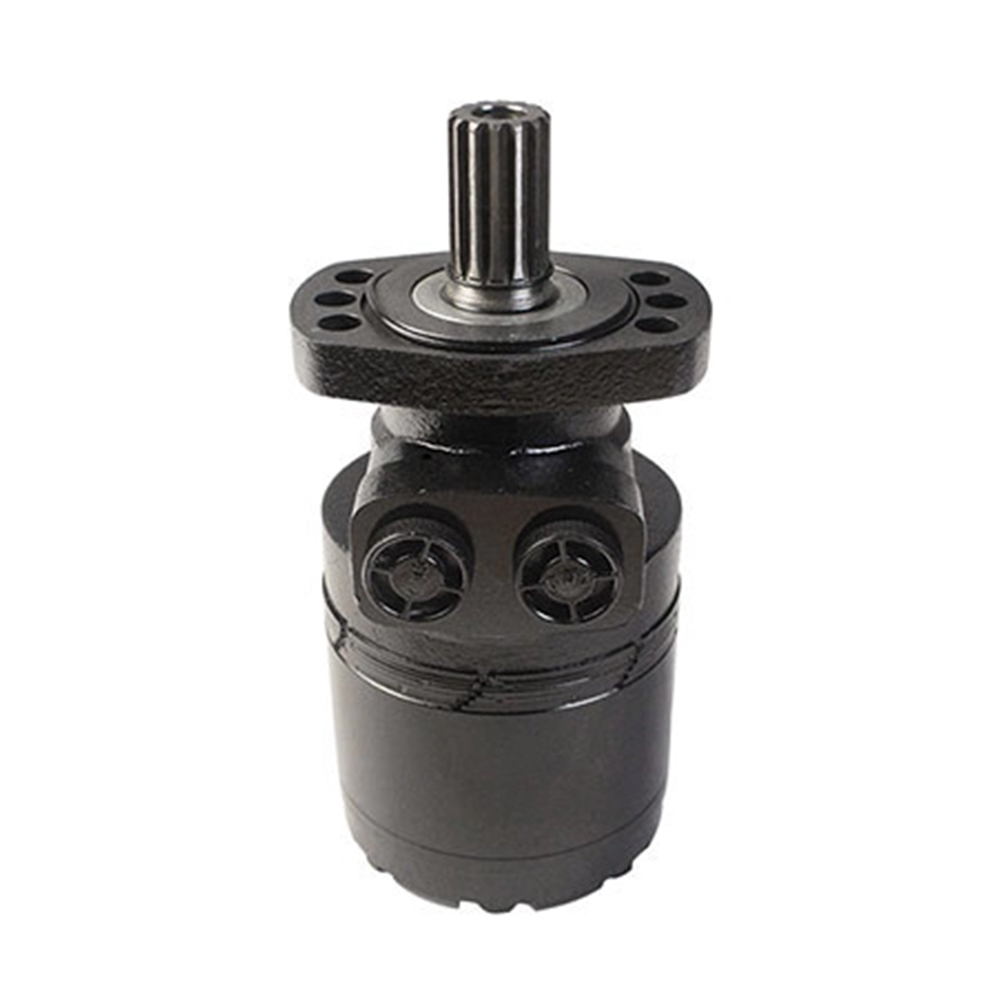

| Item: | Torqmotor | OEM #: | 500750A5823CAAAA |
|---|---|---|---|
| Manufacturer: | Xeriwell | Displacement: | 750 Ml/r |
| Mounting Flange: | 6-Hole Front Aligned Ports 1/2” BSP.F | Shaft Type: | 31.75mm,14 Teeth Shaft |
| Highlight: | Danfoss Hydraulic Motor 14 Tooth,14 Tooth Spline Shaft motor,Danfoss Hydraulic Motor 500750A5823CAAAA | ||
Xeriwell supply the high Torqmotors BMER Series orbit motors matching white/danfoss/cross series motors, the same function,same specification, 100% interchangeable.
Details specifications
| Series: | RE500/501 |
| Shaft: | 31.75mm,14 Tooth Spline shaft |
| Rotation: | Reverse Time |
| Displacement (cm3/rev): | 0750 |
| Mounting: | 6-Hole Front Aligned Ports 1/2” BSP.F |
| Geometric Displacement: | 750cm3/rev (45.6 in3/rev) |
| Maximum Speed: | 320 rev/min |
| Maximum Oil Flow (continuous / intermittent): | 100 lpm /130 lpm |
| Max. Differential Pressure (continuous / intermittent): | 1500 PSI / 2000 PSI |
| Maximum Supply Pressure: | 2000 PSI |
| Maximum Torque - Continuous / Intermittent: | 9400 lb-in / 10950 lb-in |
| Maximum Performance: | 33 KW (45HP) |
| Type | BMER-2 125 | BMER-2 160 | BMER-2 200 | BMER-2 230 | BMER-2 250 | BMER-2 300 | BMER-2 350 | BMER-2 375 | BMER-2 475 | BMER-2 540 | BMER-2 750 | |
Geometric displacement (cm3 /rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N*m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
