BMER-2-160-WD-FD1
Xeriwell or Others
| Product: | Low Speed, High Torque (LSHT) Motor | Model No.: | BMER-2-160-WD-FD1 |
|---|---|---|---|

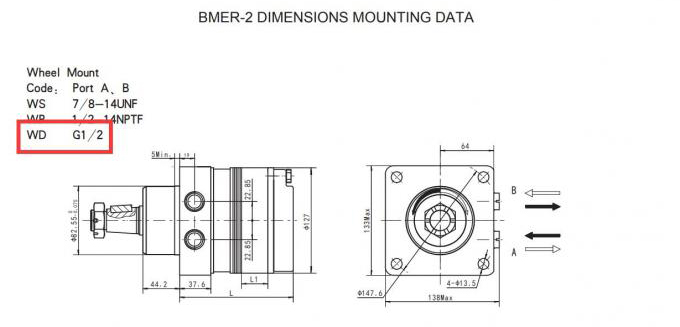

| Displacement: | 160cc | Flange: | 4 Bolt Wheel Mount |

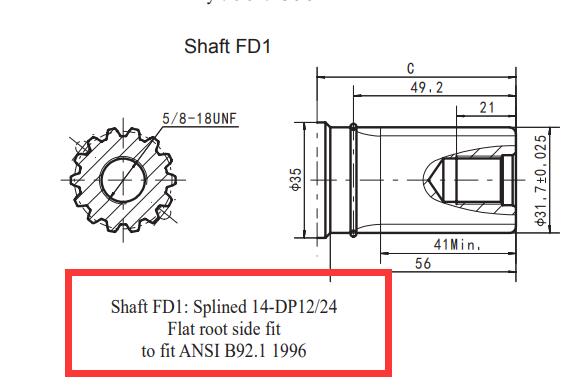

| Shaft: | 31.75mm Shaft 14T | Port: | G 1/2 |
| Rotation: | Standard | Color: | Black |
| Manufacturer: | Xeriwell | Brand: | Xeriwell |
| Highlight: | 160ml/R Hydraulic Motor,160ml/R Wheel Mount Hydraulic Motor,31.75mm Shaft 14T Hydraulic Motor | ||

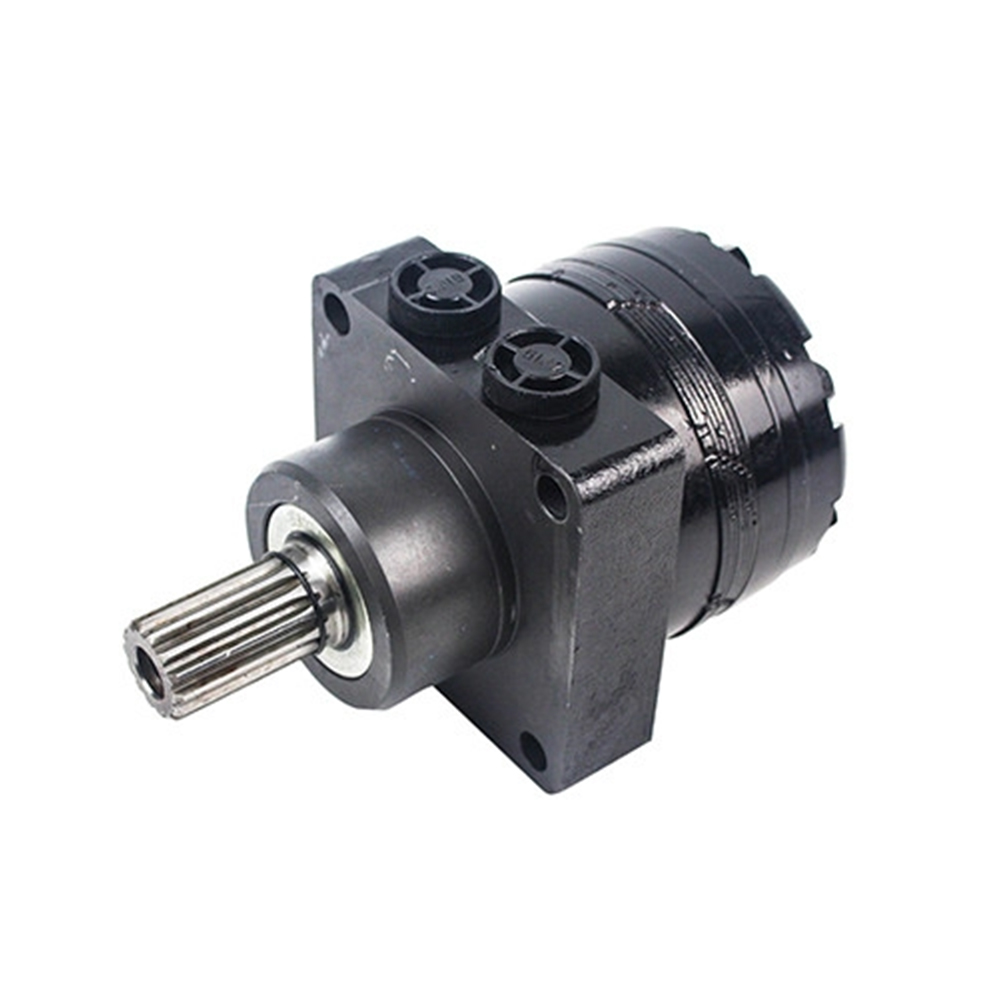

White RE 500 Hydraulic Motor replacement, 160ml/r, wheel mount, port G1/2, 31.75mm shaft 14T
Quick review:
Xeriwell BMER series = White Drive Hydrualic Motor RE 500 series
| Product | Low Speed, High Torque (LSHT) Motor |
| Model No. | BMER-2-160-WD-FD1 |
| Displacement | 160cc |
| Flange | 4 bolt wheel |
| Shaft | 31.75mm shaft 14T |
| Port | G 1/2 |
| Rotation | Standard |
| Color | Black |
| Brand | Xeriwell |
Specification:
| Type | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | |
| 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 | ||
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
More BMER series available to match and replace White Drive Hydraulic Motors:
WM (125/126 Series)
WD (145/146 Series)
WP (155/156 Series)
RS (200/201 Series)
WR (255/256 Series)
WG (277/278 Series)
WG (280/281 Series)
WS (350/351 Series)
WS (355/356 Series)
WS (357/358 Series)
CE (420/421 Series)
CE (430/431 Series)
RE (500/501 Series)
RE (520/521 Series)
RE (530/531 Series)
Xeriwell technology is the biggest hydraulic motors, orbit motors, low speed high torque motors, torquemotors manufacturer in China, we have the most completely range of them, matching Danfoss/ M+S/ Charlynn/ White/ Parker... with fast leading time, excellent price and best service. Our aim is to make your hydraulic system is easy and affordable!
