| Product Name: | Hydraulic Steering Control Pumps | Oil Port: | G1/2 |
|---|---|---|---|
| Quality: | Grade AAA | Function: | Close Center No Loading |
| Displacement: | 125cc | Applications: | Used For , MF, , Fiat, Class, MTZ Etc. |
| Highlight: | hydraulic steering control unit,hydraulic steering pump | ||

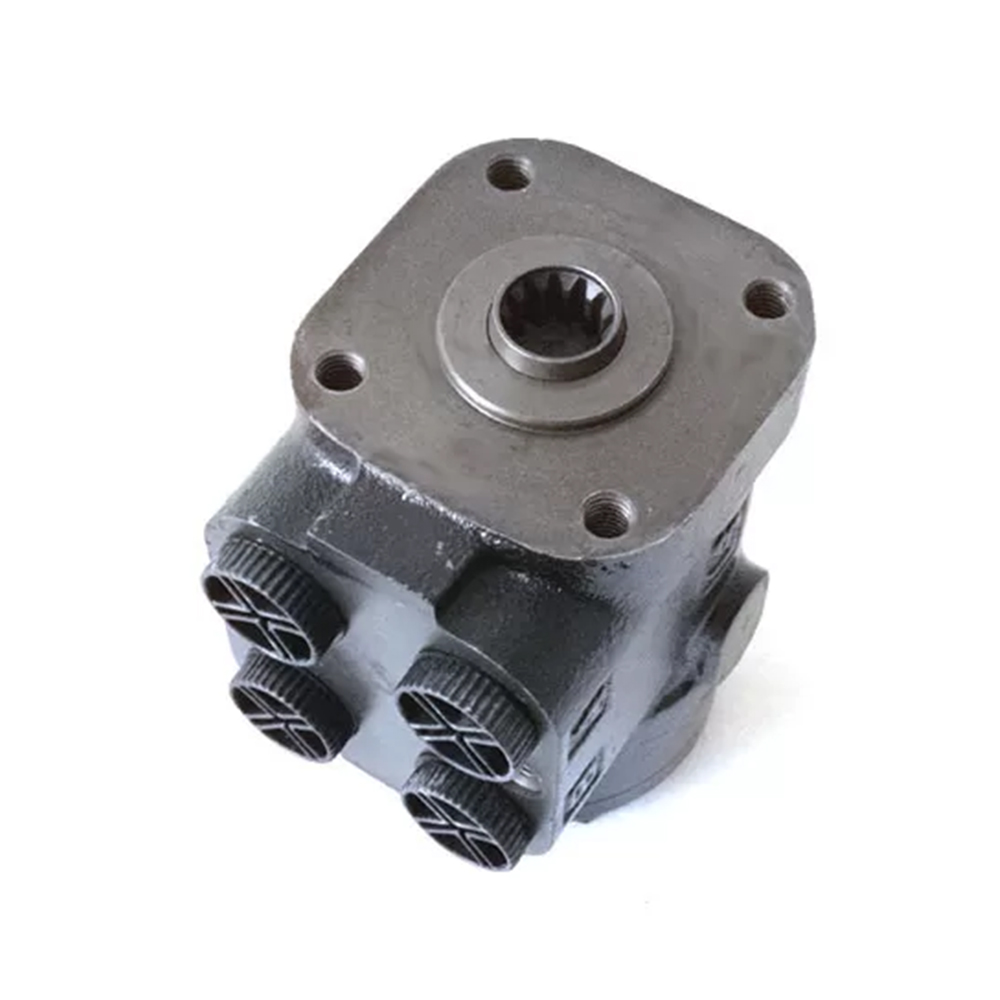

wheel loader Hydraulic Steering Unit Orbitrol Power 101 eaton charlynn
hydraulic steering pump ND-KS-D
Xeriwell hydraulic steering units -----8 types,such as BZZ / 101 / 101S / 101S-5T / 102/103/060/109 series,
match the brand :OSPB,OSPC,OSPM series
M+S:HKU/HKUS
Charlynn/eaton:40/45 series,3,6,10series
Product details
| Type | 101series |
| displacement | 125cc |
| function | close center non loading |
| ports | G1/2 |
| shaft | 12teeth spline shaft |
Characters:
Hydraulic Steering Unit 10 Series is integral steering unit, the valve body of rotary valve is integral structure, then the steering unit can integrate with cartridge valve, such as the steering control valve of the integral system. This 101 type steering unit without relief valve and shock valve, 101 series can 100% replace OSPB.
Specification:
| Parameters | Series 101*-***-**-* | ||||||||||
| Function code | 1,2,3 | 1,3 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 31.5 | 40 |
| Max.input pressure(Mpa) | 17.5 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.7 | 5.76 | 5.84 | 5.91 | 6.05 | 6.25 | 6.45 | 6.68 | 6.86 | 7.06 | 7.45 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
Function Code:
101 series steering units are one of our most popular type, founction available ON (open center non-reaction), CN (close center non-reaction), OR (open center reaction) and LS (load sensing).
| 油口螺纹 Ports Threads | |||
| 代码 Code | P、T、A、B油口 Ports P、T、A、B | 连接螺纹C Column Mounting C | 连接螺纹V Valve Mounting V |
| A | M20×1.5 | M10 | M12 |
| B | M20×1.5 O-ring | ||
| C | M18×1.5 | ||
| D | M18×1.5 O-ring | ||
| E | G1/2 | M10×1 | |
| U | G1/2 O-ring | ||
| G | M22×1.5 | M12 | |
| Q | M22×1.5 O-ring | ||
| M | 3/4-16UNF O-ring | ||
| F | 3/8-16 UNC | 3/8-24 UNF | |
| I | M10 | M10 | |
| N | M10×1.25 | ||
| 注1：油口P、T、A、B的深度14 mm。连接螺纹C、V的深度16 mm。 Note 1:Ports P,T,A,B Depth:14 mm;Column Mounting C &V Depth:16 mm. 注2：其他油口连接方式协议确定代号。 Note 2:The code of other ports dimensions will be listed in an agreement. | |||
