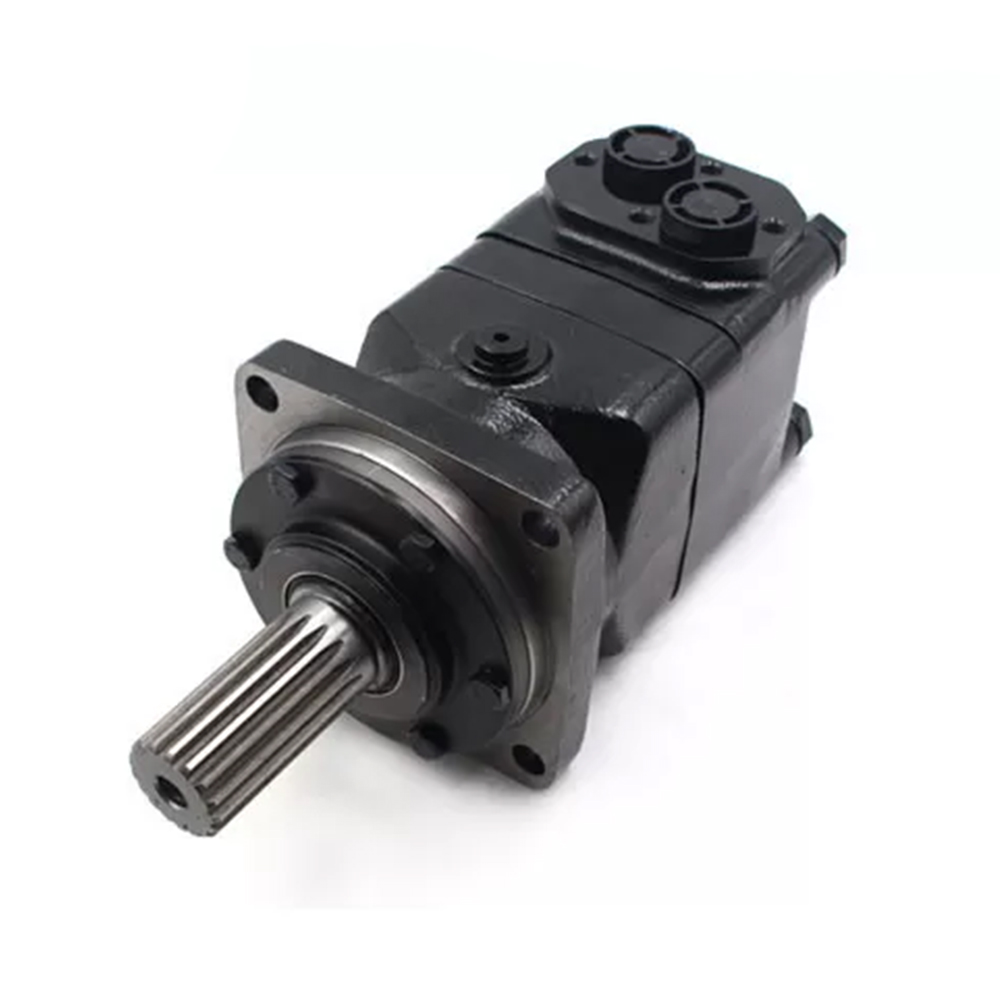

BMT DRIVE MOTOR
Xeriwell or Others
| Material: | Cast Iron /Steel | Application: | Construction Machines, Mine Machines,forestry Equipments |
|---|---|---|---|
| Displacement: | 400cc | Max.speed(rpm): | Cont.320rpm/int.380rpm |
| Max.torque(N.m): | Cont.1660N.m/int.1940N.m | Max.pressure Drop: | Cont.18mpa/int.21Mpa |
| Oil Temperature: | Normal-35℃-80℃ | Viscosity: | 42-74mm2/s |
| Highlight: | Waratah 620 sauer danfoss motor,Waratah 622 sauer danfoss hydraulic motor,Waratah 622 sauer hydraulic motor | ||
Waratah 620 - 622 - 622B Heads Drive Motor Heavy Equipment Parts Sauer Danfoss 11022237
Timberjack; Waratah;John Deere
151B0308
151B0309
151B0310
151B3510
151B3511
151B0369
151B3030
Main Specification:
| Type | BMT 315 | BMT 400 | BMT500 | BMT 630 | BMT 800 | BMT 1000 | |
| Geometric displacement (cm3 /rev.) | 326.3 | 410.9 | 523.6 | 629 | 801 | 990 | |
| Max. speed (rpm) | cont. | 510 | 500 | 400 | 320 | 250 | 200 |
| int. | 630 | 600 | 480 | 380 | 300 | 240 | |
| Max. torque (N·m) | cont. | 920 | 1180 | 1460 | 1660 | 1880 | 2015 |
| int. | 1110 | 1410 | 1760 | 1940 | 2110 | 2280 | |
| peak | 1290 | 1640 | 2050 | 2210 | 2470 | 2400 | |
| Max. output (kW) | cont. | 38 | 47 | 47 | 40 | 33 | 28.6 |
| int. | 46 | 56 | 56 | 56 | 44 | 40 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 18 | 16 | 14 |
| int. | 24 | 24 | 24 | 21 | 18 | 16 | |
| peak | 28 | 28 | 28 | 24 | 21 | 18 | |
| Max. flow (L/min) | cont. | 160 | 200 | 200 | 200 | 200 | 200 |
| int. | 200 | 240 | 240 | 240 | 240 | 240 | |
| Weight (kg) | 31.8 | 32.6 | 33.5 | 34.9 | 36.5 | 38.6 | |
How do I know if my hydraulic motor is bad?
Unusual Sounds. Hydraulic pumps are designed to work quietly, but as parts wear down and seals deteriorate, you may begin to notice unusual noises. ...
Interior & Exterior Leaks. Many hydraulic leaks occur inside the machine, with no exterior signs of a malfunction. ...
Failing Seals.
| Material: | Cast Iron /Steel | Application: | Construction Machines, Mine Machines,forestry Equipments |
|---|---|---|---|
| Displacement: | 400cc | Max.speed(rpm): | Cont.320rpm/int.380rpm |
| Max.torque(N.m): | Cont.1660N.m/int.1940N.m | Max.pressure Drop: | Cont.18mpa/int.21Mpa |
| Oil Temperature: | Normal-35℃-80℃ | Viscosity: | 42-74mm2/s |
| Highlight: | Waratah 620 sauer danfoss motor,Waratah 622 sauer danfoss hydraulic motor,Waratah 622 sauer hydraulic motor | ||
Waratah 620 - 622 - 622B Heads Drive Motor Heavy Equipment Parts Sauer Danfoss 11022237
Timberjack; Waratah;John Deere
151B0308
151B0309
151B0310
151B3510
151B3511
151B0369
151B3030
Main Specification:
| Type | BMT 315 | BMT 400 | BMT500 | BMT 630 | BMT 800 | BMT 1000 | |
| Geometric displacement (cm3 /rev.) | 326.3 | 410.9 | 523.6 | 629 | 801 | 990 | |
| Max. speed (rpm) | cont. | 510 | 500 | 400 | 320 | 250 | 200 |
| int. | 630 | 600 | 480 | 380 | 300 | 240 | |
| Max. torque (N·m) | cont. | 920 | 1180 | 1460 | 1660 | 1880 | 2015 |
| int. | 1110 | 1410 | 1760 | 1940 | 2110 | 2280 | |
| peak | 1290 | 1640 | 2050 | 2210 | 2470 | 2400 | |
| Max. output (kW) | cont. | 38 | 47 | 47 | 40 | 33 | 28.6 |
| int. | 46 | 56 | 56 | 56 | 44 | 40 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 18 | 16 | 14 |
| int. | 24 | 24 | 24 | 21 | 18 | 16 | |
| peak | 28 | 28 | 28 | 24 | 21 | 18 | |
| Max. flow (L/min) | cont. | 160 | 200 | 200 | 200 | 200 | 200 |
| int. | 200 | 240 | 240 | 240 | 240 | 240 | |
| Weight (kg) | 31.8 | 32.6 | 33.5 | 34.9 | 36.5 | 38.6 | |
How do I know if my hydraulic motor is bad?
Unusual Sounds. Hydraulic pumps are designed to work quietly, but as parts wear down and seals deteriorate, you may begin to notice unusual noises. ...
Interior & Exterior Leaks. Many hydraulic leaks occur inside the machine, with no exterior signs of a malfunction. ...
Failing Seals.
