| Quantity: | |
|---|---|
3525VQ
Xeriwell or Others
| Product Name: | High Efficiency Hydraulic Vane Pump | Standard: | Sandard |
|---|---|---|---|
| Instalation Type: | Foot Mounting | Rotation: | Right Hand Or Clockwise |
| Flow Shaft End Pump: | 35cc | Flow Cover End Pump: | 25cc |
| Highlight: | high pressure gear pump,small gear pump |
||

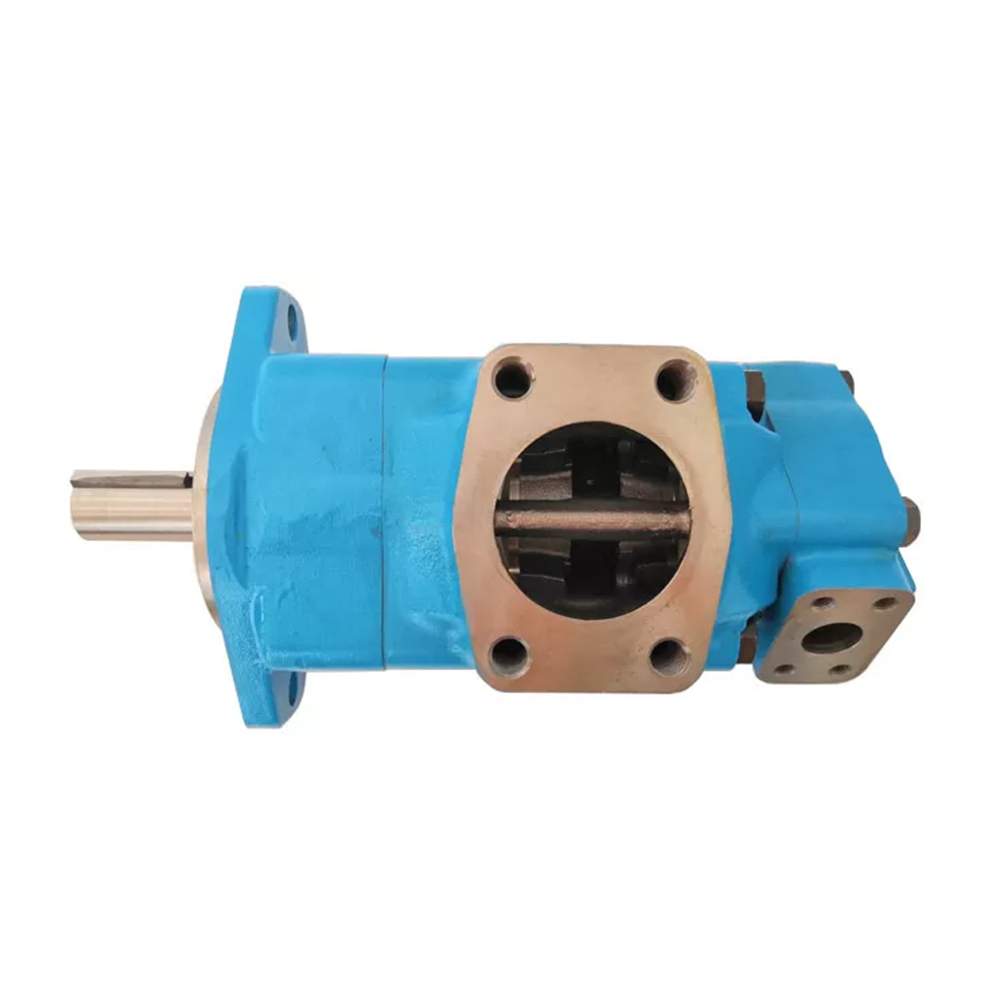

Vickers hydraulic products vane pump VQ series cast iron double pumps rotary vane pumps
Xeriwell is engaged in the design, development and sales of hydraulic machinery products for many years. The products include all orbital motors, gear pumps, vane pumps, orbitrol steering units,directional control valves, hydraulic spare parts and many other areas.
This product is suitable for excavators, pavers, injection molding machines, road rollers, cement pump trucks, concrete mixers, pistons, cranes, ceramic machinery, steel, machinery.
| NO. | Parts | Qty. |
| 1 | straight key | 1 |
| 2 | shaft | 1 |
| 3 | front cover | 1 |
| 4 | shaft seal | 1 |
| 5 | gasket | 1 |
| 6 | ball bearing | 1 |
| 7 | cir clip for shaft | 1 |
| 8 | pile type retainer | 1 |
| 9 | O ring | 1 |
| 10 | front cartridge | 1 |
| 11 | body | 1 |
| 12 | hexagon headed bolt | 4 |
| 13 | rear cartridge | 1 |
| 14 | O ring | 1 |
| 15 | rear cartridge | 1 |
| 16 | hexagon headed bolt | 4 |
| Series | Flow code
(US.gpm)
|
Geometric
displacement
|
Max.operating
pressure
Mpa
|
Max.Speed
r/min
|
Min.Speed
r/min
|
|
20VQ
|
2
|
7(0.43)
|
21
|
2700
|
600
|
|
3
|
10(0.61)
|
||||
|
4
|
13(0.79)
|
||||
|
5
|
16.5(1.01)
|
||||
|
6
|
19(1.16)
|
||||
|
7
|
22(1.40)
|
||||
|
8
|
27(1.67)
|
||||
|
9
|
30(1.85)
|
||||
|
10
|
31.5(1.92)
|
||||
|
11
|
35(2.14)
|
||||
|
12
|
40(2.44)
|
16
|
|||
|
14
|
45(2.78)
|
14
|
|||
|
25VQ
|
10
|
32(1.95)
|
21
|
2700
|
600
|
|
12
|
38(2.32)
|
||||
|
14
|
43.5(2.65)
|
||||
|
15
|
47(2.89)
|
2500
|
|||
|
17
|
54(3.30)
|
||||
|
19
|
60(3.66)
|
||||
|
21
|
67(4.13)
|
||||
|
25
|
79.2(4.83)
|
||||
|
35VQ
|
21
|
67(4.13)
|
21
|
2500
|
600
|
|
25
|
81(4.94)
|
||||
|
30
|
95(5.80)
|
||||
|
32
|
101(6.16)
|
||||
|
35
|
109(6.65)
|
2400
|
|||
|
38
|
119(7.26)
|
||||
|
45
|
143(8.72)
|
14
|
|||
|
45VQ
|
42
|
134(8.17)
|
17.5
|
2400
|
600
|
|
45
|
143(8.72)
|
2200
|
|||
|
50
|
159(9.70)
|
||||
|
57
|
181(11.05)
|
||||
|
60
|
189(11.53
|
||||
|
66
|
210(12.81)
|
||||
|
75
|
237(14.46)
|
14
|
1. High performance, low noise and long life
2. Completely interchangeable with Vickers original
3. Very competitive price
4. 1 year of warranty
5. For industrial machinery and agricultural machinery etc.
6. Short delivery time
| 型号说明 Model Designation | |||||||||
| (F3-) | 3525VQ | 38 | A | 17 | (F) | -1 | AB | 20 | R |
| 备注 Note |
系列号 Series |
▲轴端泵排量代号 Flow-shaft end Pump |
油口连接 Port connections |
▲盖端泵排量代号 Flow-cover end Pump |
安装形式 Installation type |
轴伸形式 shaft type |
出油口位置 Outlet Positions |
设计号 Design number |
旋转方向 Rotation |
| 无标记： No-marking 石油系油 Petroleum series oil 乳化液 emulsification fluid 水-乙二醇 water glycol-fluid F3：磷酸酯液压油 phosphate ester fluid |
2520VQ | 10、12、14、15、17、19、21、25 | A-SAE 4螺栓法兰 A-SAE 4-bolt flange |
2、3、4、5、6、7、8、9、10、11、12、14 | 无标记 No-marking -法兰安装型 Flange Mounting F-脚座安装型 F-Foot Mountion |
1-平键轴Str key 86-重型平键轴HD str key 11-花键轴Spine |
见下表 See below |
20 | (从泵的轴端看) (Viewes from shaft end of pump) R-顺时针旋转 right hand for clockwise L-逆时针旋转 left hand for counter- clockwise |
| 3520VQ | 21、25、30、32、35、38、45 | 2、3、4、5、6、7、8、9、10、11、12、14 | |||||||
| 3525VQ | 21、25、30、32、35、38、45 | 10、12、14、15、17、19、21、25 | |||||||
| 4520VQ | 42、45、50、57、60、66、75 | 2、3、4、5、6、7、8、9、10、11、12、14 | |||||||
| 4525VQ | 42、45、50、57、60、66、75 | 10、12、14、15、17、19、21、25 | |||||||
| 4535VQ | 42、45、50、57、60、66、75 | 21、25、30、32、35、38、45 | |||||||
| 注：在1200r/min和0.69MPa(100psi)下的额定排量/ USgpm Flow (USgpm) at 1200r/min and 0.69MPa | |||||||||
| 出油口位置（从泵的盖端看） Outlet Positions(Viewed from cover end of pump) | |||
| 出油口位置 Outlet positions |
除4535VQ外的所有系列 | 4535VQ | |
| All series except 4535VQ | |||
| 第一出油口在进油口对面 NO.1 outlet opposite inlet |
AA | 第二出油口在进油口逆时针转135° NO.2 outlet 135° CCW from inlet |
第二出油口在进油口对面 NO.2 outlet opposite inlet |
| AB | 第二出油口在进油口逆时针转45° NO.2 outlet 45° CCW from inlet |
第二出油口在进油口逆时针转90° NO.2 outlet 90° CCW from inlet |
|
| AC | 第二出油口在进油口顺时针转45° NO.2 outlet 45° CW from inlet |
第二出油口在进油口同侧 NO.2 outlet inline with inlet |
|
| AD | 第二出油口在进油口顺时针转135° NO.2 outlet 135° CW from inlet |
第二出油口在进油口顺时针转90° NO.2 outlet 90° CW from inlet |
|
| 第一出油口从进油口逆时针转90° NO.1 outlet 90° CCW from inlet |
BA | 第二出油口在进油口逆时针转135° NO.2 outlet 135° CCW from inlet |
第二出油口在进油口对面 NO.2 outlet opposite inlet |
| BB | 第二出油口在进油口逆时针转45° NO.2 outlet 45° CCW from inlet |
第二出油口在进油口逆时针转90° NO.2 outlet 90° CCW from inlet |
|
| BC | 第二出油口在进油口顺时针转45° NO.2 outlet 45° CW from inlet |
第二出油口在进油口同侧 NO.2 outlet inline with inlet |
|
| BD | 第二出油口在进油口顺时针转135° NO.2 outlet 135° CW from inlet |
第二出油口在进油口顺时针转90° NO.2 outlet 90° CW from inlet |
|
Buy from professional who has specialized in hydraulic products for agricultural and industrial applications for over 10 years. Free technical support, and we service overseas customers, and all products are covered with one year warranty
