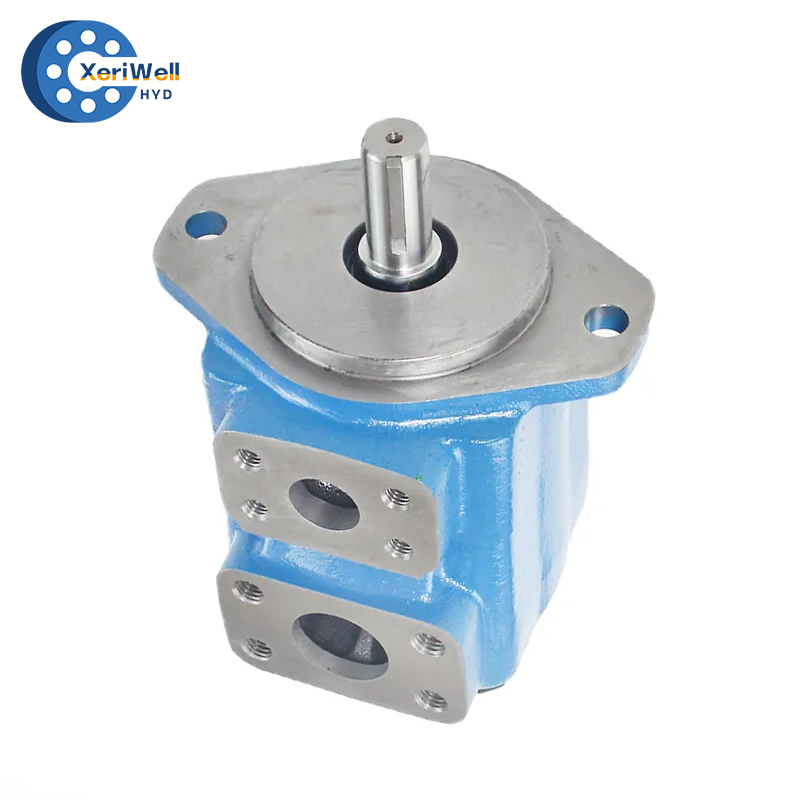

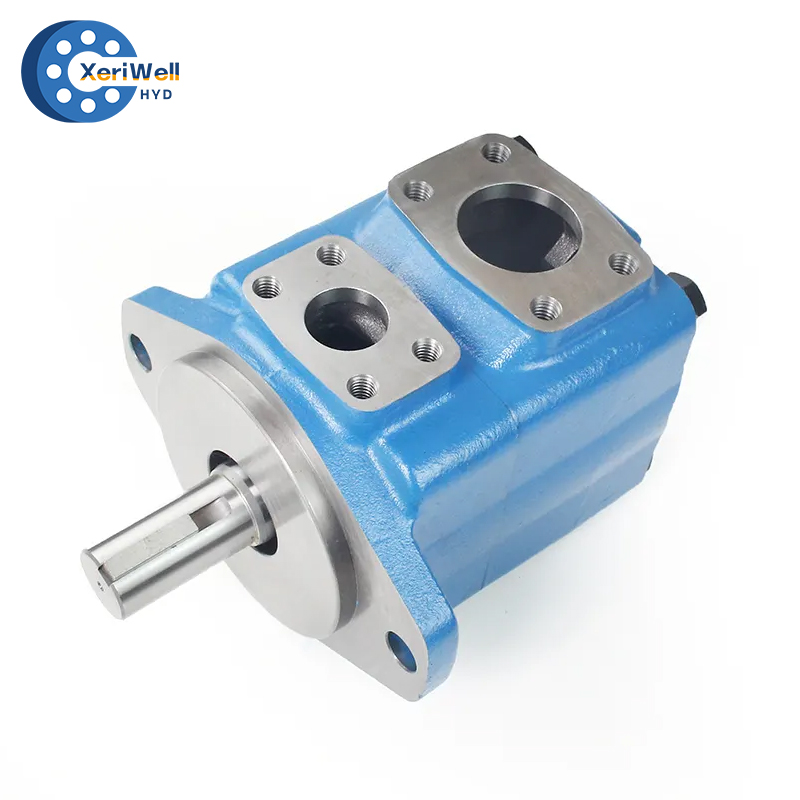

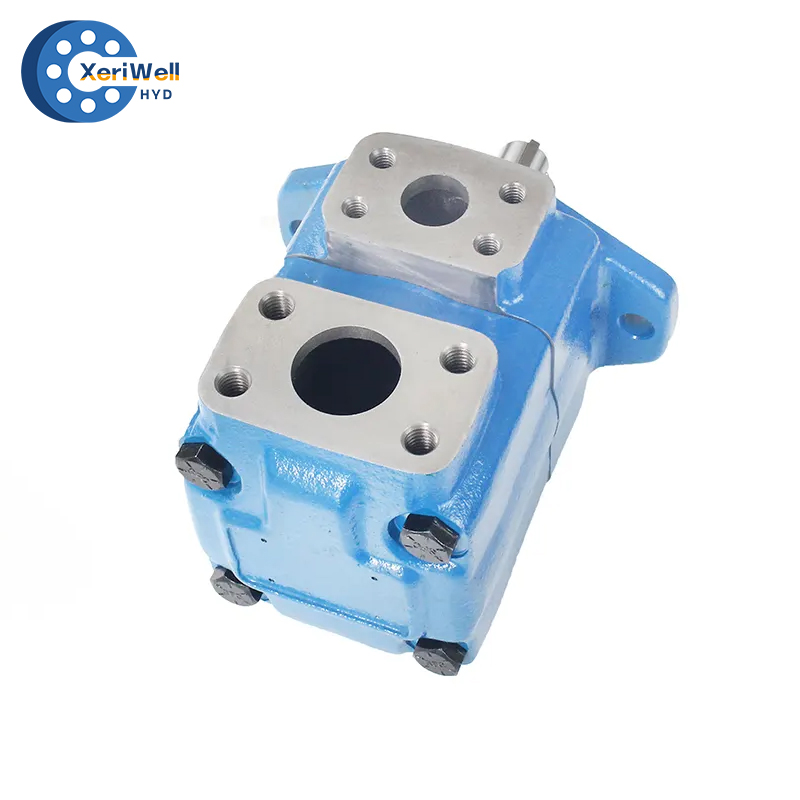

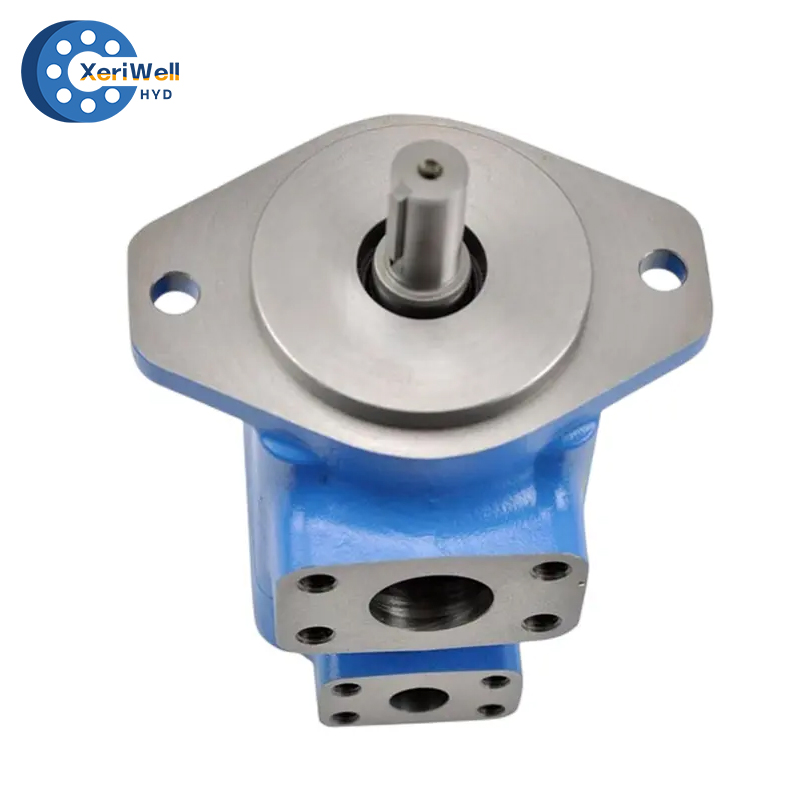

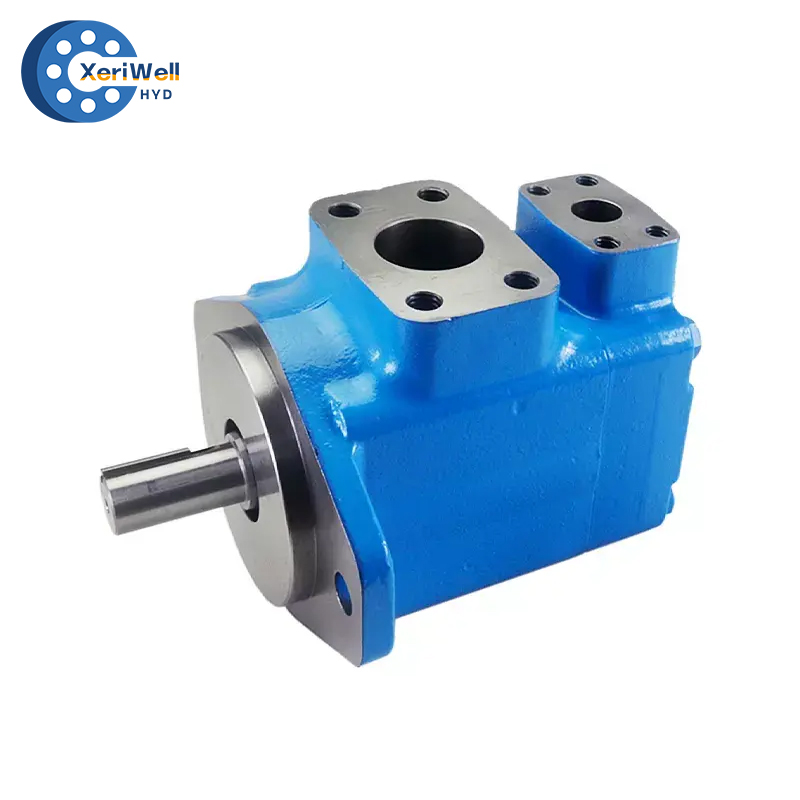

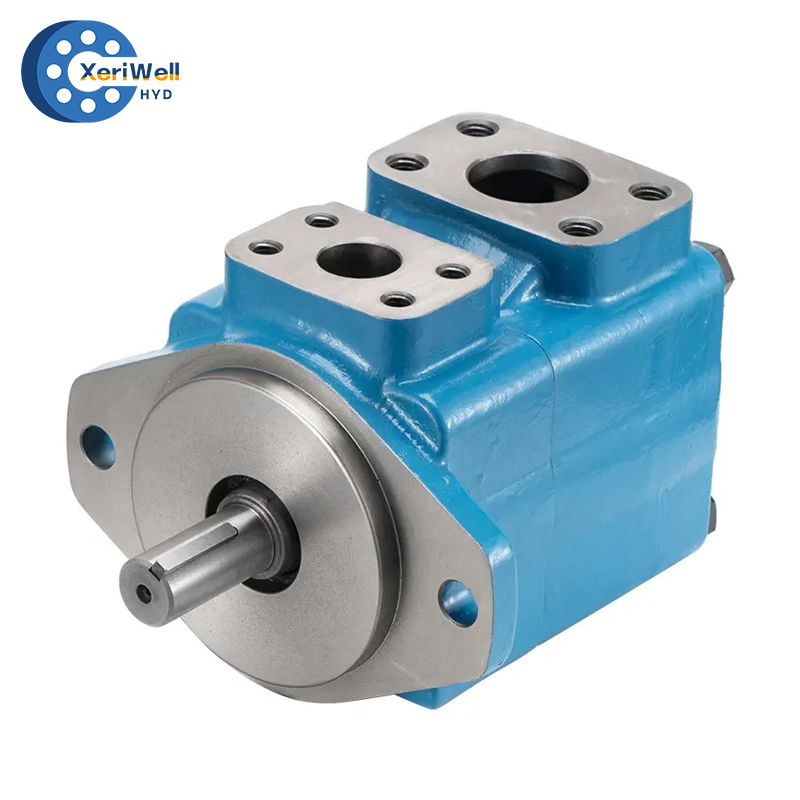

VQ series Single pump
Xeriwell or Others
The Vickers VQ Series single pump is a high-performance hydraulic pump renowned for its durability, reliability, and efficiency. Specifically designed for demanding applications, this pump features advanced engineering to deliver consistent fluid flow while withstanding high-speed and high-pressure conditions. Its robust design makes it an ideal choice for industrial machinery and mobile equipment such as earth-moving machinery.
Key Features:
1) Cartridge Design: The pump incorporates a unique cartridge assembly with a cam ring, rotor, ten vanes, flexible side plates, and support plates. This design ensures efficient flow generation and simplifies maintenance.
2) Durable Construction: Engineered for high-speed, high-pressure applications, the VQ Series single pump has proven reliability, even in the most rigorous environments like heavy-duty earth-moving equipment.
3) Hydrostatically Balanced Side Plates: Flexible, bimetallic side plates with bronze and steel layers maintain optimal clearance with the rotor, enhancing durability and operational stability.
4) Cold-Start Capability: Optimized axial and radial clearances, combined with excellent lubrication on the rotor and vanes, provide smooth operation and reliable performance even in low-temperature conditions.
5) Efficient Operation: The pump’s design minimizes wear and energy loss, ensuring long service life and consistent performance over the entire pressure range.
The Vickers VQ Series single pump offers superior durability, reliability, and maintenance efficiency, making it an excellent solution for high-demand hydraulic systems in both industrial and mobile applications.
Type: 20VQ, 25VQ, 35VQ, 45VQ

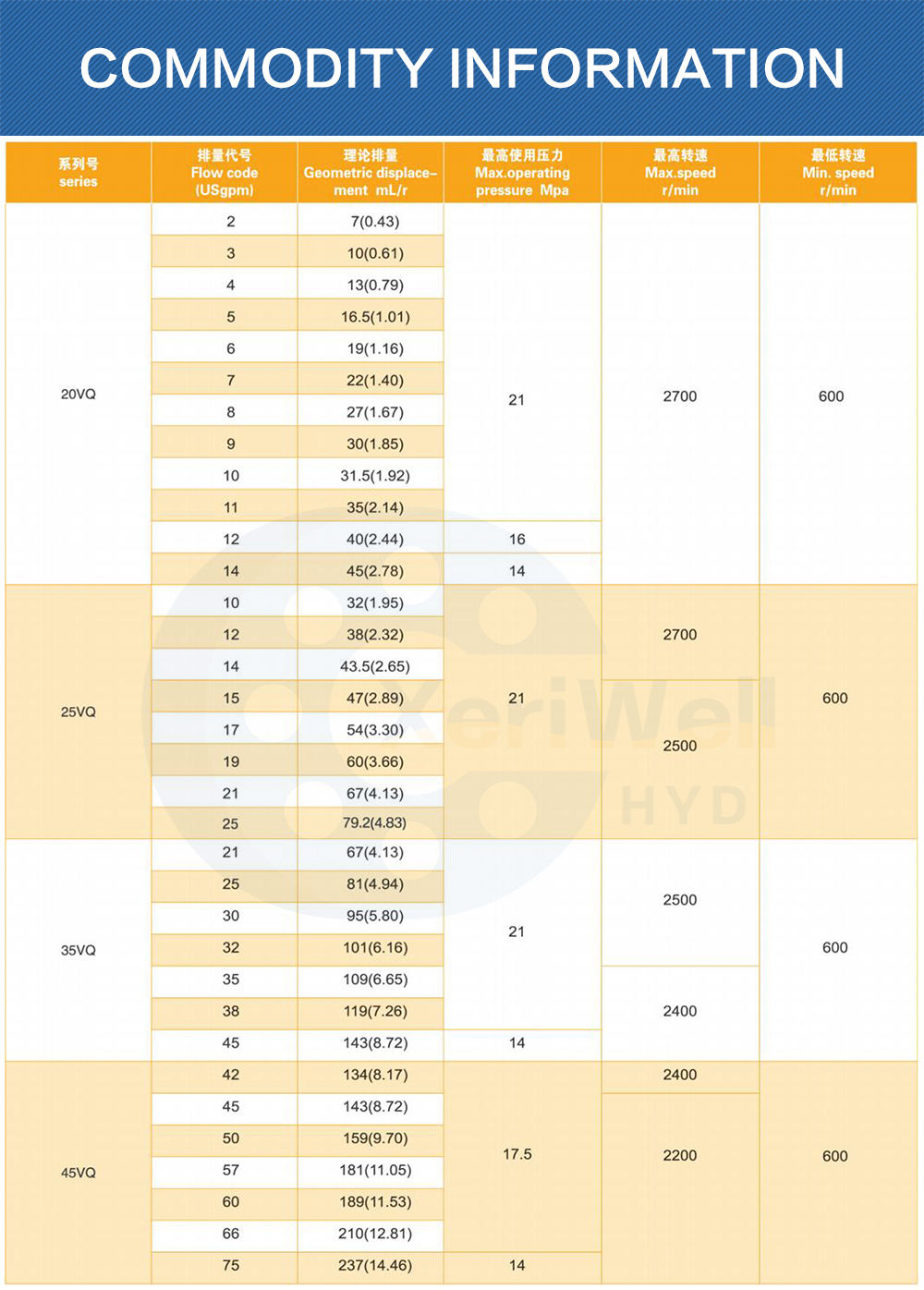

| 系列号 series | 排量代号 Flow code (USgpm) | 理论排量 Geometric displacement mL/r | 最高使用压力 Max.operating pressure Mpa | 最高转速 Max.speed r/min | 最低转速 Min. speed r/min |
| 20VQ | 2 | 7(0.43) | 21 | 2700 | 600 |
| 3 | 10(0.61) | ||||
| 4 | 13(0.79) | ||||
| 5 | 16.5(1.01) | ||||
| 6 | 19(1.16) | ||||
| 7 | 22(1.40) | ||||
| 8 | 27(1.67) | ||||
| 9 | 30(1.85) | ||||
| 10 | 31.5(1.92) | ||||
| 11 | 35(2.14) | ||||
| 12 | 40(2.44) | 16 | |||
| 14 | 45(2.78) | 14 | |||
| 25VQ | 10 | 32(1.95) | 21 | 2700 | 600 |
| 12 | 38(2.32) | ||||
| 14 | 43.5(2.65) | ||||
| 15 | 47(2.89) | 2500 | |||
| 17 | 54(3.30) | ||||
| 19 | 60(3.66) | ||||
| 21 | 67(4.13) | ||||
| 25 | 79.2(4.83) | ||||
| 35VQ | 21 | 67(4.13) | 21 | 2500 | 600 |
| 25 | 81(4.94) | ||||
| 30 | 95(5.80) | ||||
| 32 | 101(6.16) | ||||
| 35 | 109(6.65) | 2400 | |||
| 38 | 119(7.26) | ||||
| 45 | 143(8.72) | 14 | |||
| 45VQ | 42 | 134(8.17) | 17.5 | 2400 | 600 |
| 45 | 143(8.72) | 2200 | |||
| 50 | 159(9.70) | ||||
| 57 | 181(11.05) | ||||
| 60 | 189(11.53) | ||||
| 66 | 210(12.81) | ||||
| 75 | 237(14.46) | 14 |
