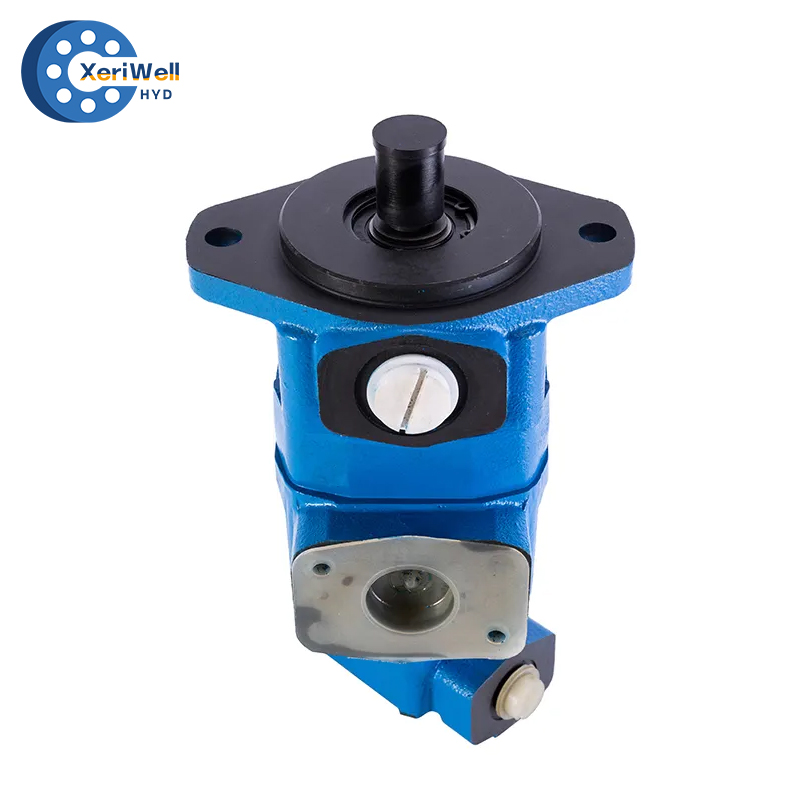

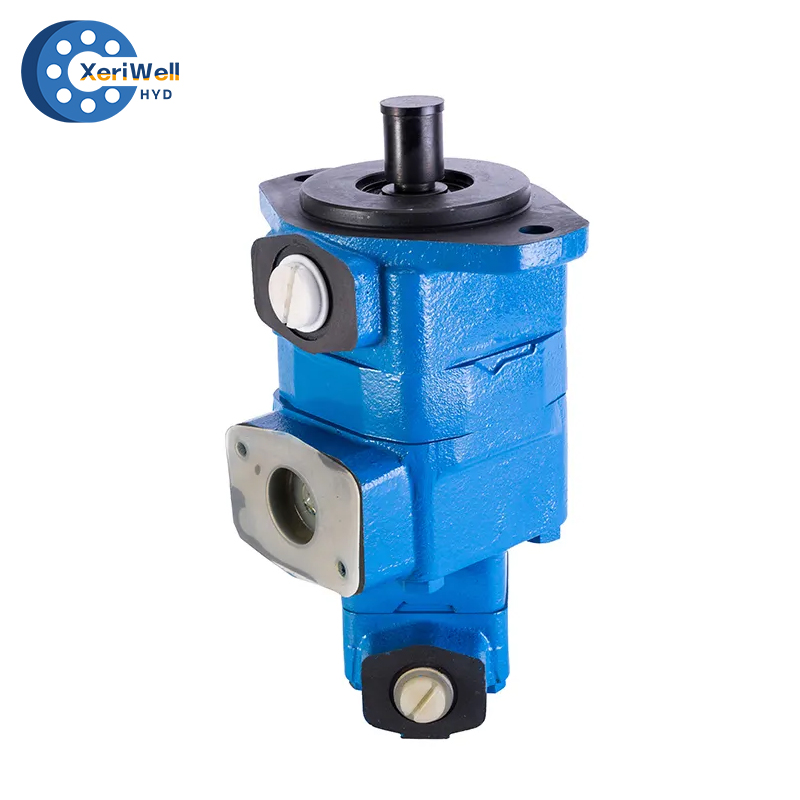

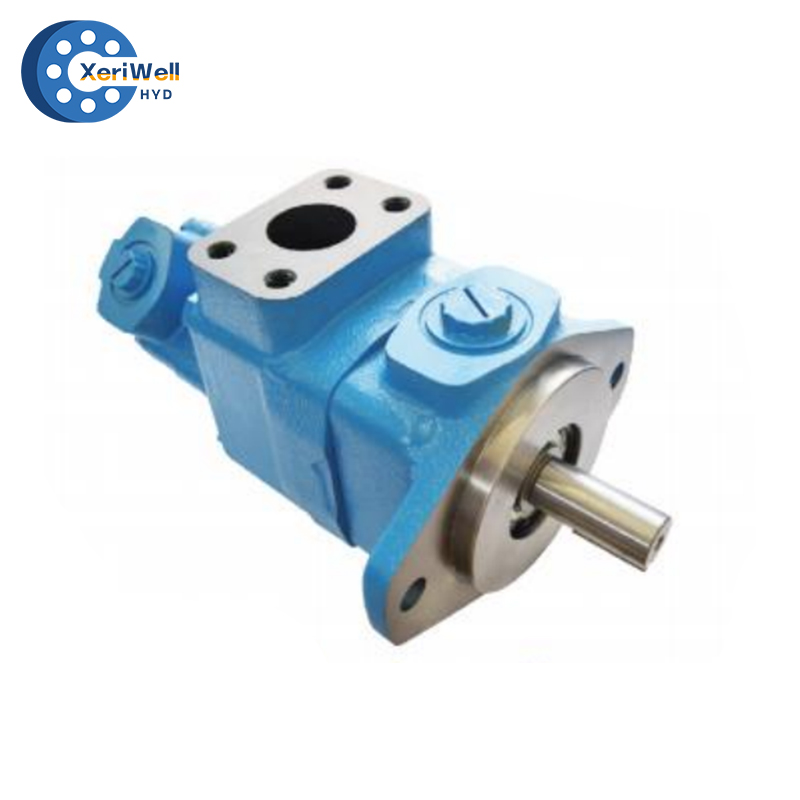

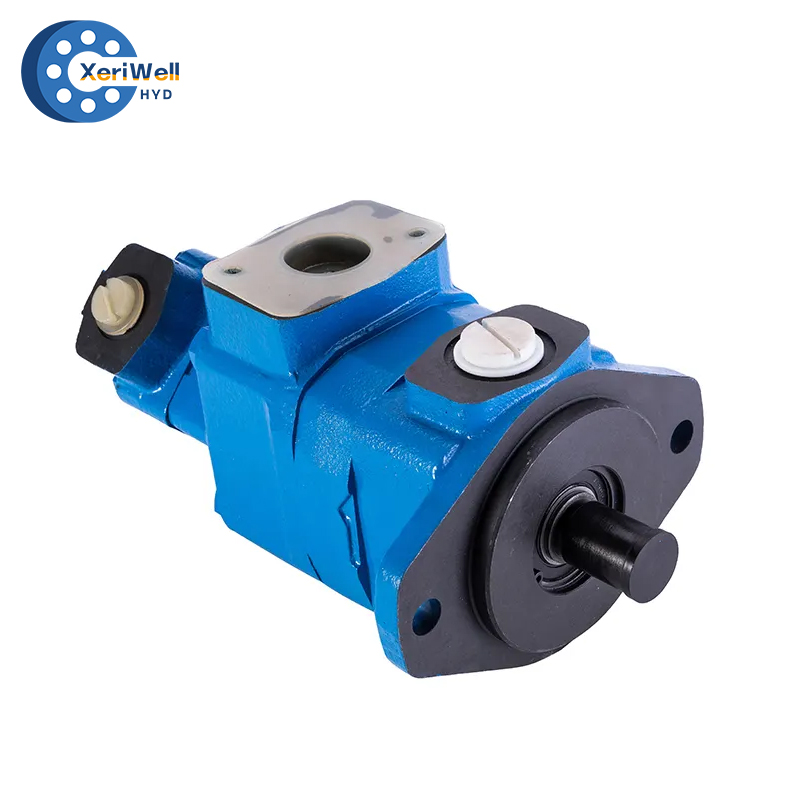

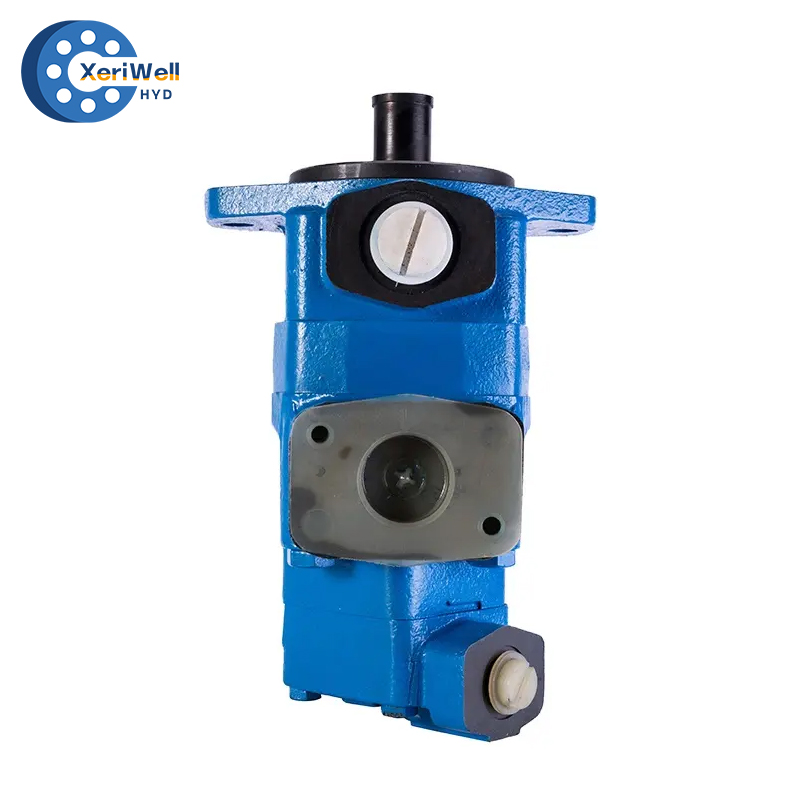

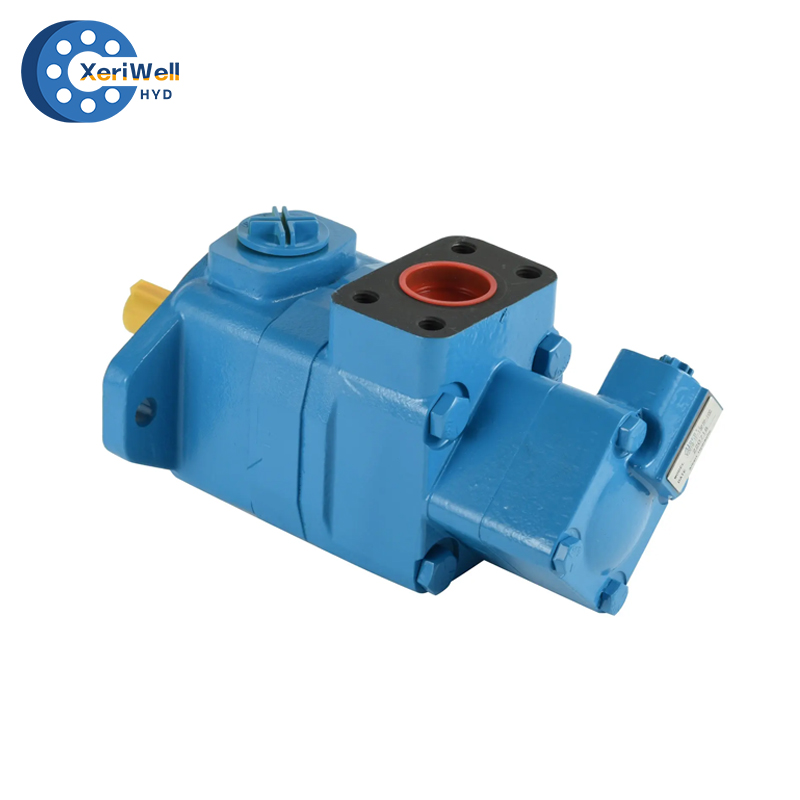

VICKERS V2010 V2020 DOUBLE Vane pump

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Type:	V2010 V2020
Availability:





Inquire Add to Basket

Model:
V2010 V2020
Brand:
Xeriwell or Others

VICKERS V2010 V2020 DOUBLE Vane pump Product Introduction

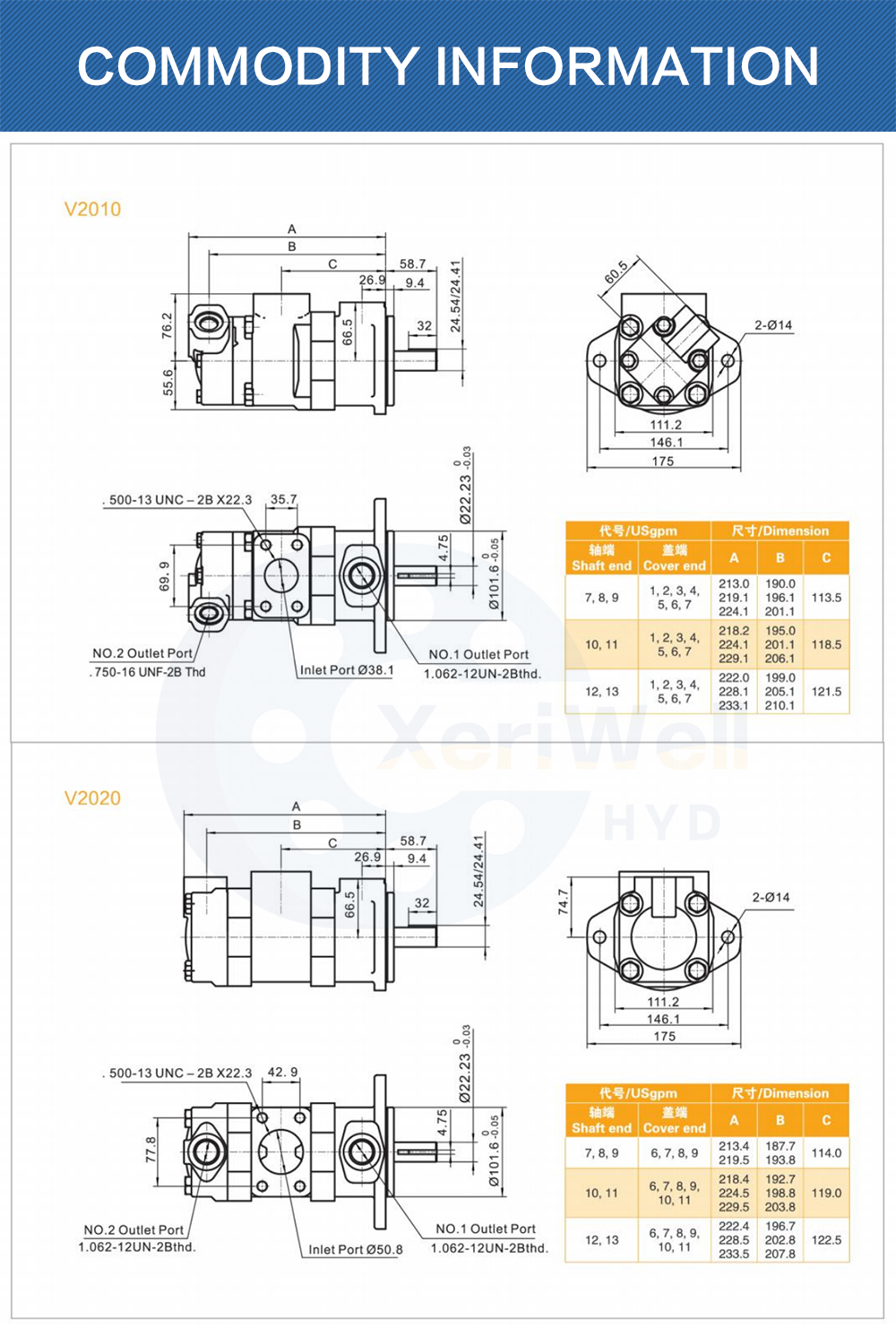

详情图

代号/USgpm		尺寸/Dimension
轴端 Shaft end	盖端 Cover end	A	B	C

7,8,9	1,2,3,4,5,6,7	213	190	113.5
		219.1	196.1
		224.1	201.1
10,11	1,2,3,4,5,6,7	218.2	195	118.5
		224.1	201.1
		229.1	206.1
12,13	1,2,3,4,5,6,7	222	199	121.5
		228.1	205.1
		233.1	210.1

代号/USgpm		尺寸/Dimension
轴端 Shaft end	盖端 Cover end	A	B	C

7,8,9	6,7,8,9	213.4	187.7	114
		219.5	193.8
10,11	6,7,8,9,10,11	218.4	192.7	119
		224.5	198.8
		229.5	203.8
12,13	6,7,8,9,10,11	222.4	196.7	122.5
		228.5	202.8
		233.5	207.8
