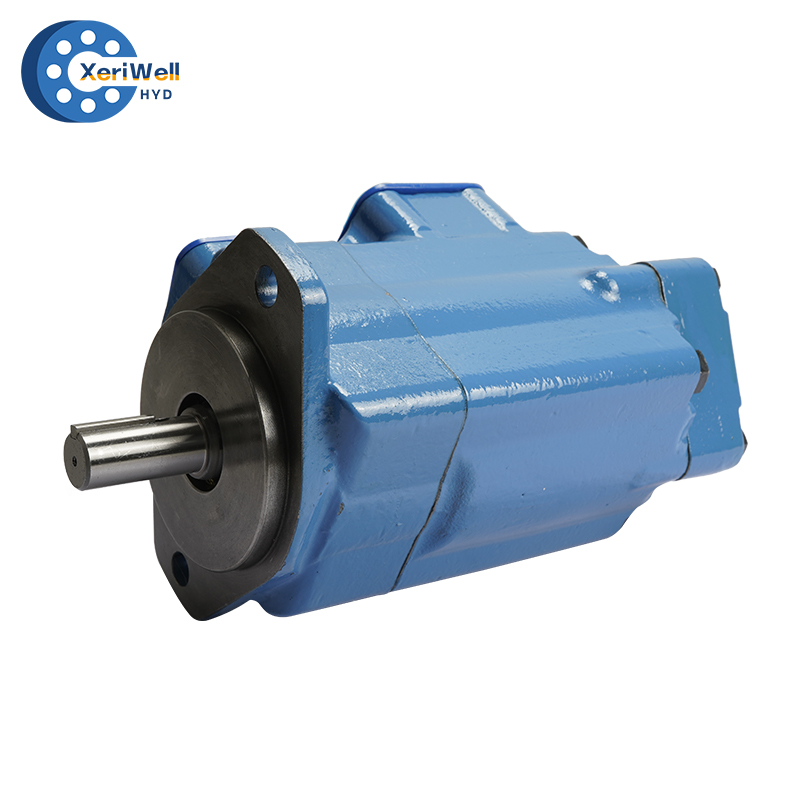

V series single pump
Xeriwell or Others
Designed for medium-pressure industrial applications, VICKERS V series pumps are known for their low noise, durability, and efficiency.
With an extensive range of displacements, V10 and V20 vane pumps are designed to work in a variety of low- to medium-pressure mobile and industrial applications.
1)Technology-Vane
2) Frame sizes: 20V, 25V, 35V, 45V, 50V
3) Through drive: 25VT, 35VT, 45VT
4) Displacement – 7 - 193cc (1.1 to 11.6 cu in)
5) Continuous pressure rating – Up to 207 bar (3,000 psi)
Model:
2520V 3520V 3525V 4520V 4525V 2520V 3520V 3525V 4520V 4525V 2520V 3520V 3525V 4520V 4525V

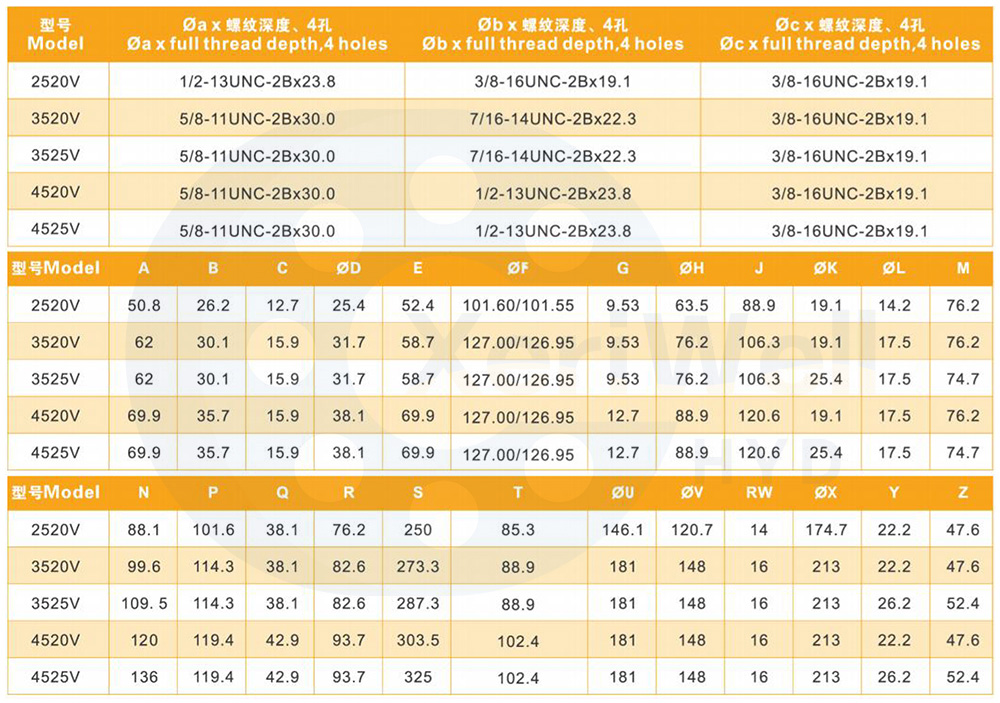

| 型号 Model | Øa x 螺纹深度、4孔 Øa x full thread depth,4 holes | Øb x 螺纹深度、4孔 Øb x full thread depth,4 holes | Øc x 螺纹深度、4孔 Øc x full thread depth,4 holes | ||||||
| 2520V | 1/2-13UNC-2Bx23.8 | 3/8-16UNC-2Bx19.1 | 3/8-16UNC-2Bx19.1 | ||||||
| 3520V | 5/8-11UNC-2Bx30.0 | 7/16-14UNC-2Bx22.3 | 3/8-16UNC-2Bx19.1 | ||||||
| 3525V | 5/8-11UNC-2Bx30.0 | 7/16-14UNC-2Bx22.3 | 3/8-16UNC-2Bx19.1 | ||||||
| 4520V | 5/8-11UNC-2Bx30.0 | 1/2-13UNC-2Bx23.8 | 3/8-16UNC-2Bx19.1 | ||||||
| 4525V | 5/8-11UNC-2Bx30.0 | 1/2-13UNC-2Bx23.8 | 3/8-16UNC-2Bx19.1 | ||||||
| 型号Model | A | B | C | ØD | E | ØF | G | ØH | J | ØK | ØL | M |
| 2520V | 50.8 | 26.2 | 12.7 | 25.4 | 52.4 | 101.60/101.55 | 9.53 | 63.5 | 88.9 | 19.1 | 14.2 | 76.2 |
| 3520V | 62 | 30.1 | 15.9 | 31.7 | 58.7 | 127.00/126.95 | 9.53 | 76.2 | 106.3 | 19.1 | 17.5 | 76.2 |
| 3525V | 62 | 30.1 | 15.9 | 31.7 | 58.7 | 127.00/126.95 | 9.53 | 76.2 | 106.3 | 25.4 | 17.5 | 74.7 |
| 4520V | 69.9 | 35.7 | 15.9 | 38.1 | 69.9 | 127.00/126.95 | 12.7 | 88.9 | 120.6 | 19.1 | 17.5 | 76.2 |
| 4525V | 69.9 | 35.7 | 15.9 | 38.1 | 69.9 | 127.00/126.95 | 12.7 | 88.9 | 120.6 | 25.4 | 17.5 | 74.7 |
| 型号Model | N | P | Q | R | S | T | ØU | ØV | RW | ØX | Y | Z |
| 2520V | 88.1 | 101.6 | 38.1 | 76.2 | 250 | 85.3 | 146.1 | 120.7 | 14 | 174.7 | 22.2 | 47.6 |
| 3520V | 99.6 | 114.3 | 38.1 | 82.6 | 273.3 | 88.9 | 181 | 148 | 16 | 213 | 22.2 | 47.6 |
| 3525V | 109. 5 | 114.3 | 38.1 | 82.6 | 287.3 | 88.9 | 181 | 148 | 16 | 213 | 26.2 | 52.4 |
| 4520V | 120 | 119.4 | 42.9 | 93.7 | 303.5 | 102.4 | 181 | 148 | 16 | 213 | 22.2 | 47.6 |
| 4525V | 136 | 119.4 | 42.9 | 93.7 | 325 | 102.4 | 181 | 148 | 16 | 213 | 26.2 | 52.4 |
