Xeriwell or Others

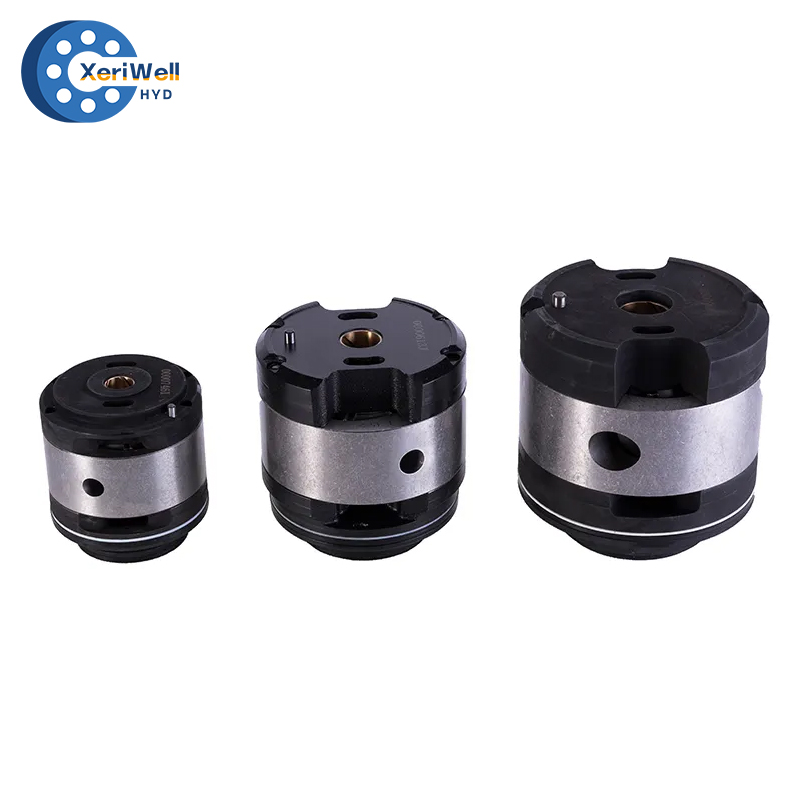

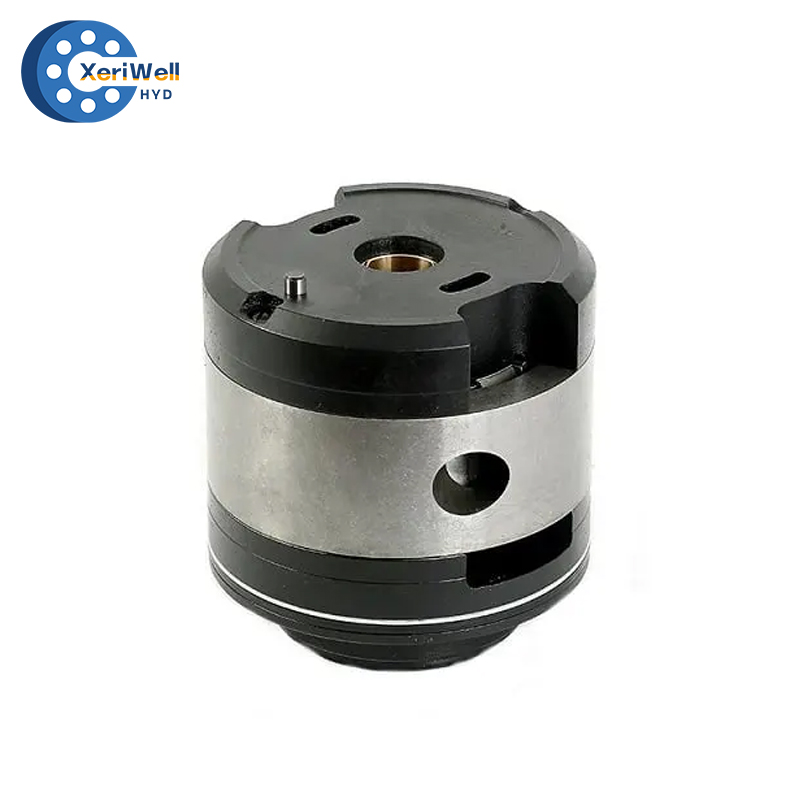

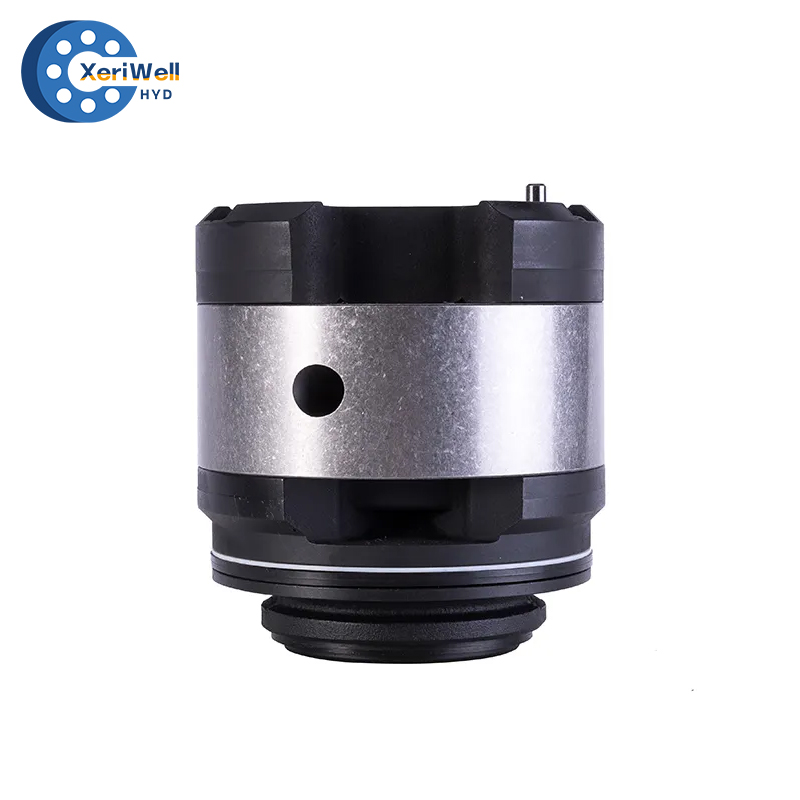

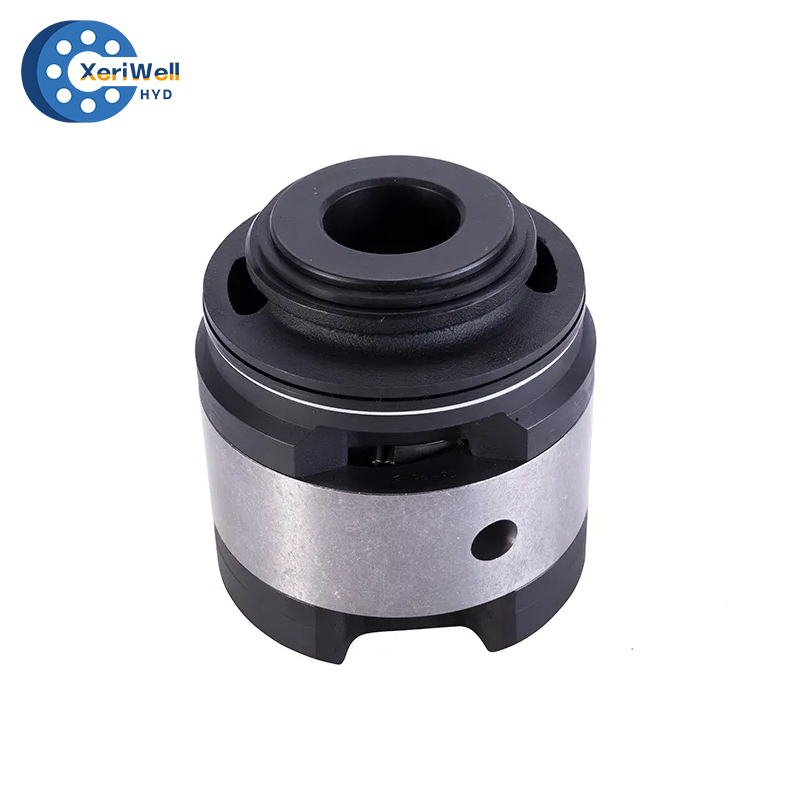

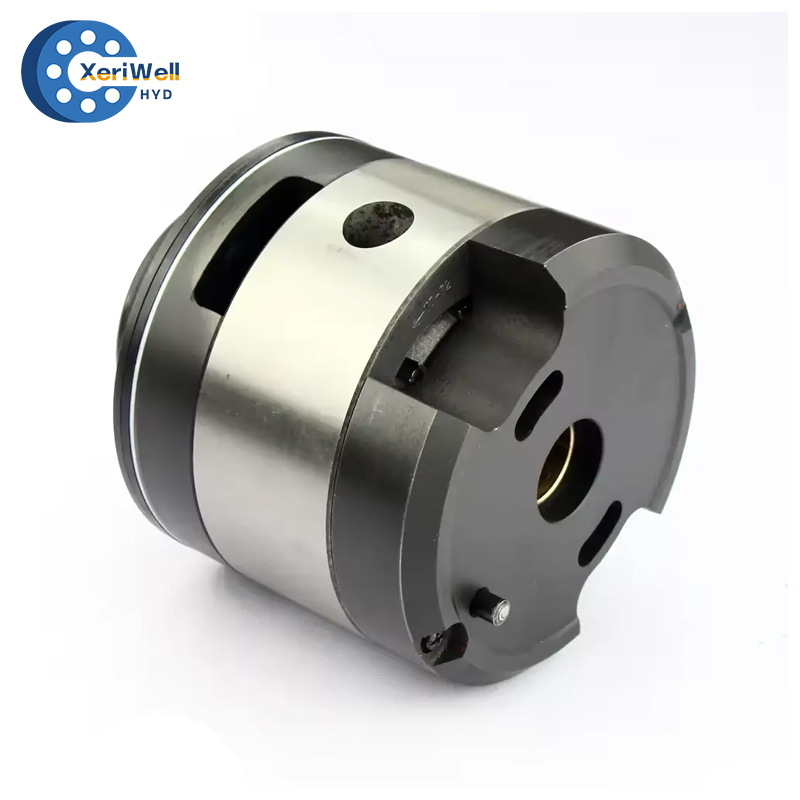

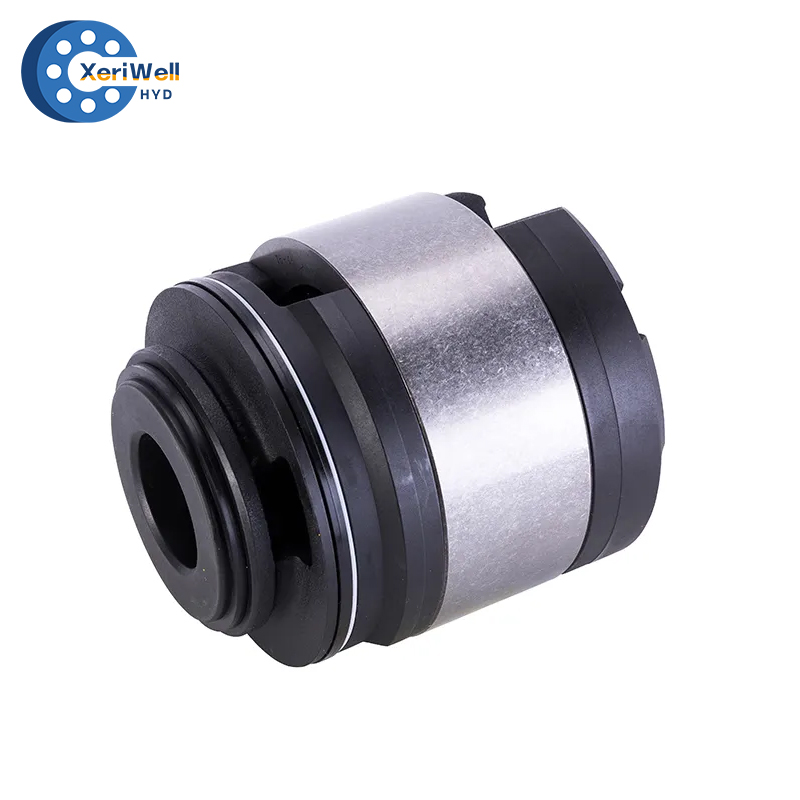

The Denison T6 and T7 Series cartridges are the core components of their respective vane pumps, designed to deliver high performance, reliability, and ease of maintenance. These cartridges are engineered with advanced technology to ensure superior hydraulic efficiency and low noise operation, making them ideal for demanding industrial and mobile applications.
Key Features:
1) High Efficiency: Provides excellent volumetric and mechanical efficiency, reducing energy consumption and heat generation in hydraulic systems.
2) Low Noise Design: Minimizes pressure ripple and noise, enhancing operator comfort and extending the life of hydraulic systems.
3) Durable Construction: Built with high-quality materials to withstand high pressures of up to 320 bar in T6 Series and 275 bar in T7 Series pumps.
4) Quick Maintenance: The cartridge kit design allows for easy replacement of internal components without removing the pump from its mounting, significantly reducing downtime.
5) Wide Range of Displacements: Available in multiple sizes and configurations, enabling precise selection to match specific flow and pressure requirements.
The Denison T6 and T7 Series cartridges are a reliable solution for maintaining and optimizing pump performance, ensuring efficient operation and long service life in a variety of hydraulic applications.

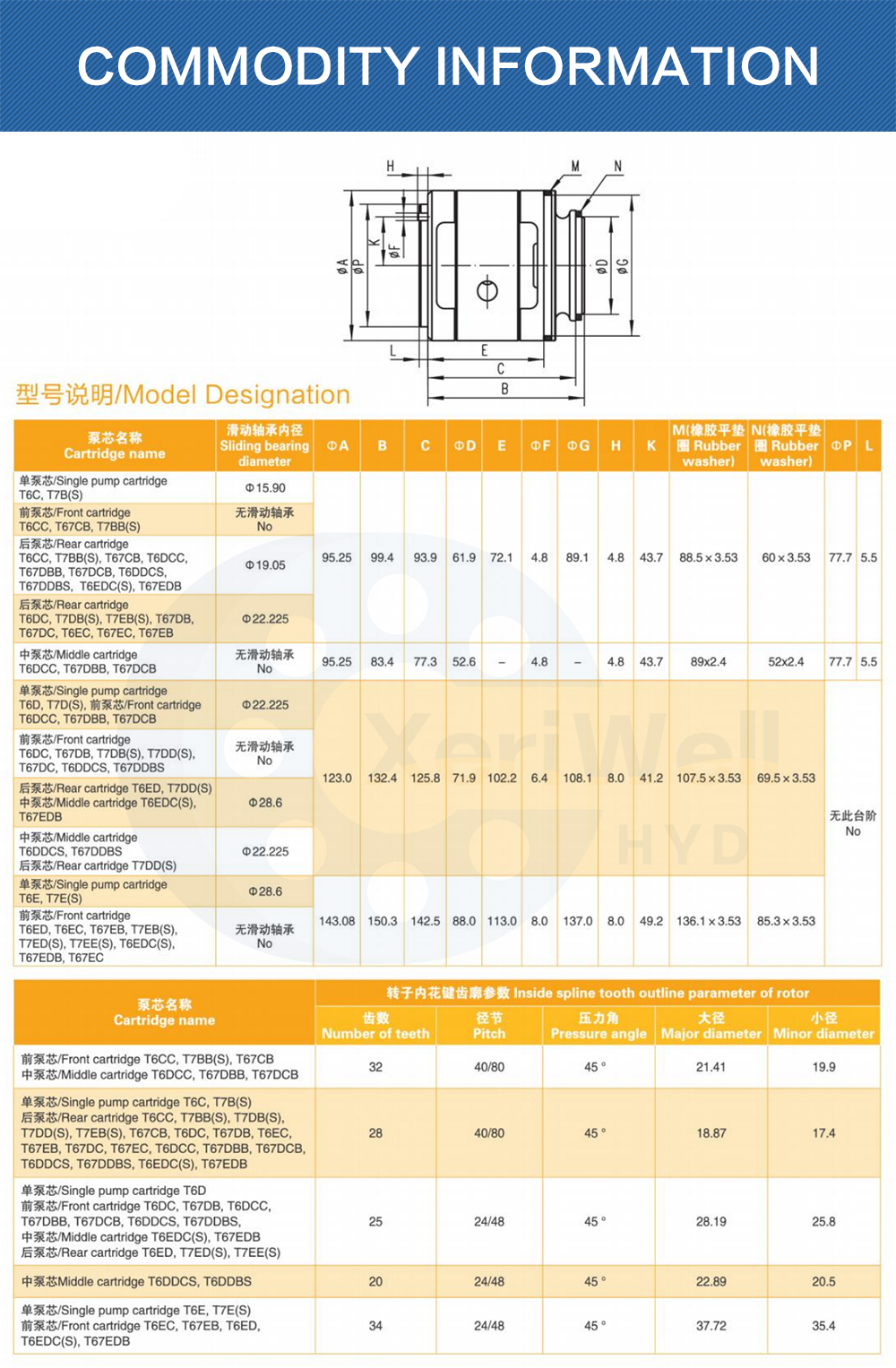

| 型号说明/Model Designation | ||||||||||||||
| 泵芯名称 Cartridge name | 滑动轴承内径 Sliding bearing diameter | ΦA | B | C | ΦD | E | ΦF | ΦG | H | K | M(橡胶平垫圈 Rubber washer) | N(橡胶平垫圈 Rubber washer) | ΦP | L |
| 单泵芯/Single pump cartridge T6C,T7B(S) | Φ15.90 | 95.25 | 99.4 | 93.9 | 61.9 | 72.1 | 4.8 | 89.1 | 4.8 | 43.7 | 88.5×3.53 | 60×3.53 | 77.7 | 5.5 |
| 前泵芯/Front cartridge T6CC,T67CB,T7BB(S) | 无滑动轴承 No | |||||||||||||
| 后泵芯/Rear cartridge T6CC,T7BB(S),T67CB,T6DCC,T67DBB,T67DCB,T6DDCS,T67DDBS,T6EDC(S),T67EDB | Φ19.05 | |||||||||||||
| 后泵芯/Rear cartridge T6DC,T7DB(S),T7EB(S),T67DB,T67DC,T6EC,T67EC,T67EB | Φ22.225 | |||||||||||||
| 中泵芯/Middle cartridge T6DCC,T67DBB,T67DCB | 无滑动轴承 No | 95.25 | 83.4 | 77.3 | 52.6 | — | 4.8 | — | 4.8 | 43.7 | 89x2.4 | 52x2.4 | 77.7 | 5.5 |
| 单泵芯/Single pump cartridge T6D,T7D(S),前泵芯/Front cartridge T6DCC,T67DBB,T67DCB | Φ22.225 | 123 | 132.4 | 125.8 | 71.9 | 102.2 | 6.4 | 108.1 | 8 | 41.2 | 107.5×3.53 | 69.5×3.53 | 无此台阶 No | |
| 前泵芯/Front cartridge T6DC,T67DB,T7DB(S),T7DD(S),T67DC,T6DDCS,T67DDBS | 无滑动轴承 No | |||||||||||||
| 后泵芯/Rear cartridge T6ED,T7DD(S) 中泵芯/Middle cartridge T6EDC(S),T67EDB | Φ28.6 | |||||||||||||
| 中泵芯/Middle cartridge T6DDCS,T67DDBS 后泵芯/Rear cartridge T7DD(S) | Φ22.225 | |||||||||||||
| 单泵芯/Single pump cartridge T6E,T7E(S) | Φ28.6 | 143.08 | 150.3 | 142.5 | 88 | 113 | 8 | 137 | 8 | 49.2 | 136.1×3.53 | 85.3×3.53 | ||
| 前泵芯/Front cartridge T6ED,T6EC,T67EB,T7EB(S),T7ED(S),T7EE(S),T6EDC(S),T67EDB,T67EC | 无滑动轴承 No | |||||||||||||
| 泵芯名称 Cartridge name | 转子内花键齿廓参数 Inside spline tooth outline parameter of rotor | ||||
| 齿数 Number of teeth | 径节 Pitch | 压力角 Pressure angle | 大径 Major diameter | 小径 Minor diameter | |
| 前泵芯/Front cartridge T6CC,T7BB(S),T67CB 中泵芯/Middle cartridge T6DCC,T67DBB,T67DCB | 32 | 40/80 | 45 ° | 21.41 | 19.9 |
| 单泵芯/Single pump cartridge T6C,T7B(S) 后泵芯/Rear cartridge T6CC,T7BB(S),T7DB(S),T7DD(S),T7EB(S),T67CB,T6DC,T67DB,T6EC,T67EB,T67DC,T67EC,T6DCC,T67DBB,T67DCB,T6DDCS,T67DDBS,T6EDC(S),T67EDB | 28 | 40/80 | 45 ° | 18.87 | 17.4 |
| 单泵芯/Single pump cartridge T6D 前泵芯/Front cartridge T6DC,T67DB,T6DCC,T67DBB,T67DCB,T6DDCS,T67DDBS,中泵芯/Middle cartridge T6EDC(S),T67EDB 后泵芯/Rear cartridge T6ED,T7ED(S),T7EE(S) | 25 | 24/48 | 45 ° | 28.19 | 25.8 |
| 中泵芯/Middle cartridge T6DDCS,T6DDBS | 20 | 24/48 | 45 ° | 22.89 | 20.5 |
| 单泵芯/Single pump cartridge T6E,T7E(S) 前泵芯/Front cartridge T6EC,T67EB,T6ED,T6EDC(S),T67EDB | 34 | 24/48 | 45 ° | 37.72 | 35.4 |
