| Quantity: | |
|---|---|
V10 1P7P 1C20
Xeriwell or Others
| Item: | Single Vane Pump | Series: | V10 |
|---|---|---|---|
| Displacement: | 22.8 Cm³/r | Maximum Flow Rate: | 16gpm |
| Maximum Operating Pressure: | 2000 Psi | Maximum RPM: | 2800 RPM |
| Highlight: | v10 hydraulic vane pump,1p7p hydraulic vane pump,1c20 vickers hydraulic vane pump | ||

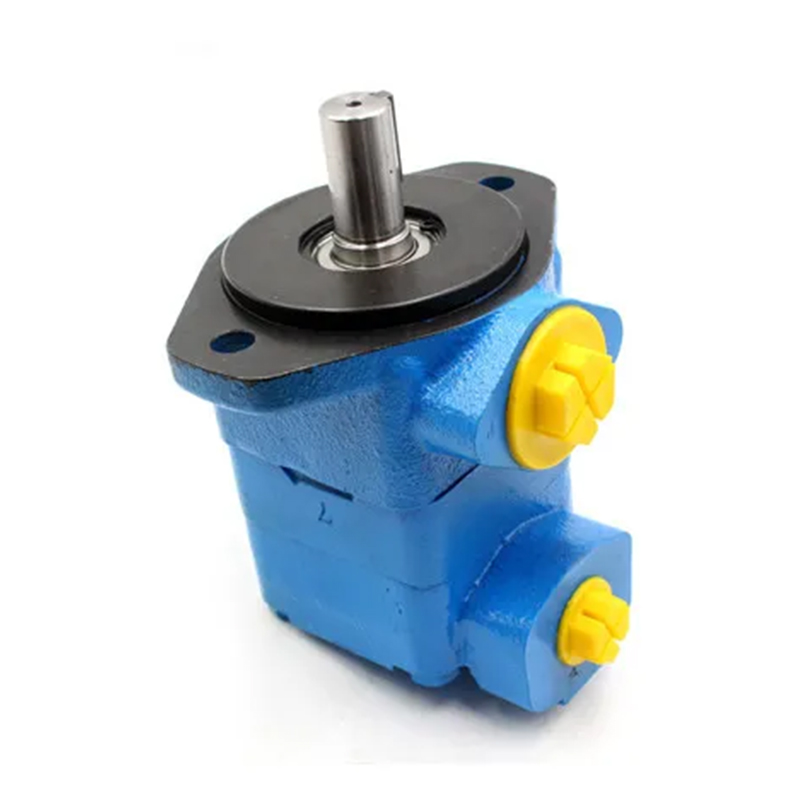

V10 1P7P 1C20 Vickers (Eaton) Hydraulic Vane Pump Aftermarket
MOQ: 1 unit
Location: China
Brand: Xeriwell
Model: V10 1P7P 1C20
Notes: Vickers (Eaton) Hydraulic Vane Pump Aftermarket
DESCRIPTION
V10 VANE PUMP
Brand new, hydraulic balanced vane pumps. Cast iron construction. Operating rotation can be field reversed. Outlet port can be field rotated any position.
Rotation CW
Pressure:
2000 PSI cont.
Speed:
600 RPM min.
2800 RPM max.
Flow:
16 GPM @ max. RPM
Mount 2 bolt SAE A
Shaft 3/4" dia. X 1-3/4" w/ 3/16" key
Inlet Port 1" NPT
Outlet Port 1/2" NPT
Size 5-1/4" X 5-1/4" X 4-1/4"
Shpg. 15 lbs.
SPECIFICATIONS
| Vane Pump Type | Single |
| Series | V10 |
| Displacement | 22.8 cm/r |
| Inlet Port Size | 1 in NPT |
| Outlet Port Size | 1/2 in NPT |
| Flow | 16 GPM @ max |
| Maximum Operating Pressure | 2000 psi |
| Rotation | CW |
| Speed | 600 RPM min. 2800 RPM max |
| Mount | 2 bolt SAE A |
| Shaft | 3/4" dia. X 1-3/4" w/ 3/16" key |
| Inlet Port | 1" NPT |
| Outlet Port | 1/2" NPT |
| Size | 5-1/4" X 5-1/4" X 4-1/4" |
| Weight | 15 lbs. |
COMMENTS
Sell as is. 12 months warranty. The conditions for removal and loading are the sole responsibility of the buyer.
Contact us, tell us your questions and applications, we'd like to serve you out.
