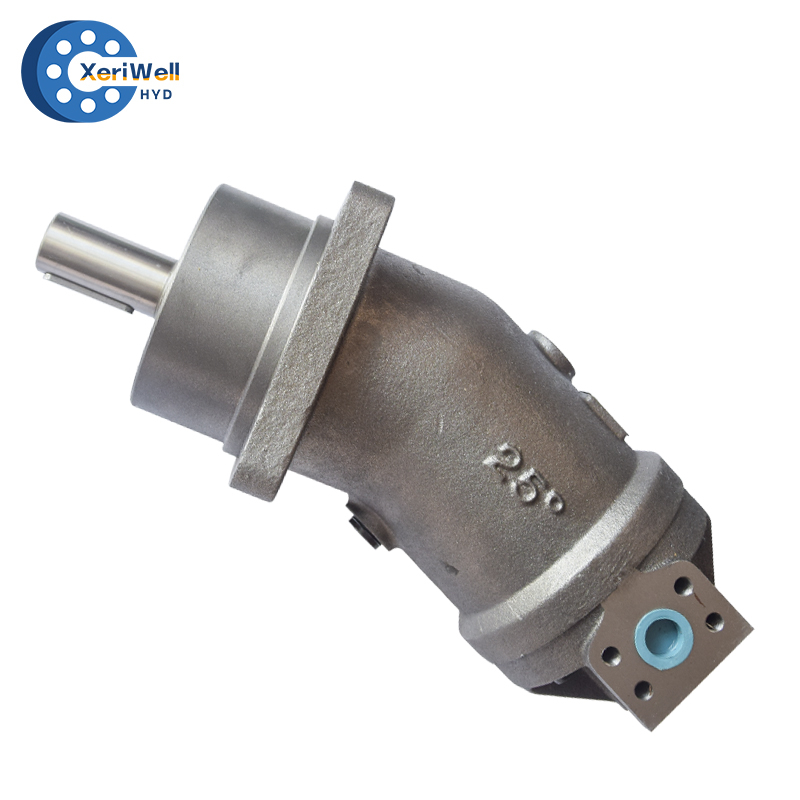

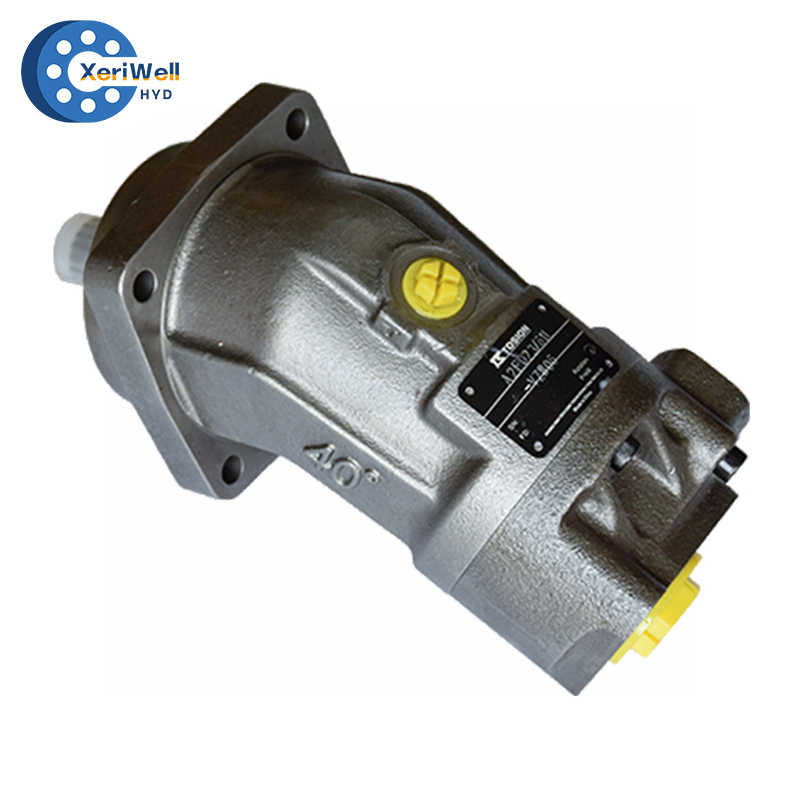

Uchida REXROTH A2F Hydraulic Motor

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Type:	A2F5 A2F10 A2F12 A2F23 A2F28 A2F55 A2F63 A2F80 A2F107 A2F125 A2F160 A2F200 A2F225 A2F250 A2F255 A2F350 A2F355 A2F500 A2F1000

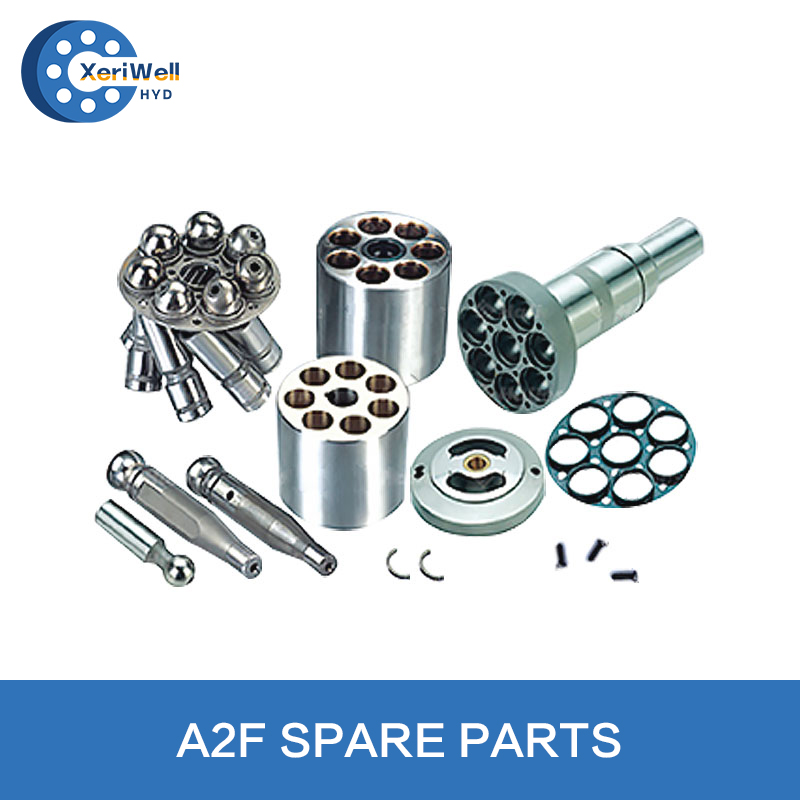

spare parts avaliable:	Cylinder Block Valve Plate Piston Shoe Retainer Plate Drive Shaft Center Pin Half-Ring Socket Bolt Charge Pump Valve Seal Kits Others
Availability:





Inquire Add to Basket

Model:
A2F
Brand:
xeriwell or rexroth

Product Description

Uchida REXROTH A2F Hydraulic Motor and spare parts

A2F 5/10/12/23/28/55/63/80/107/125/160/200/225/250/255/350/355/500/1000 Hydraulic Motor technical Data：

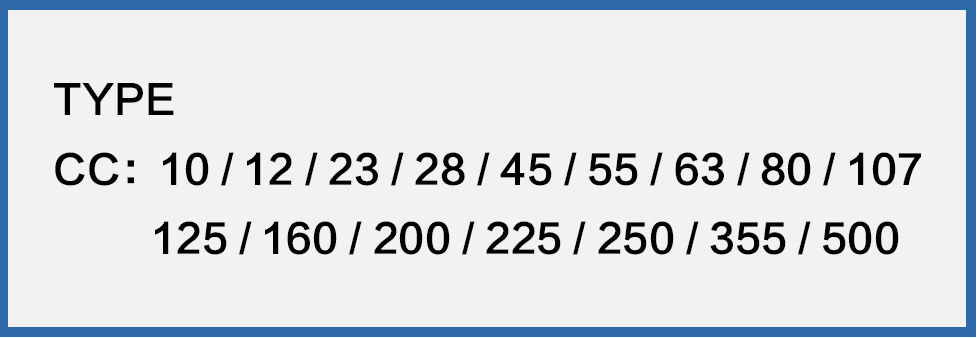

rexroth hydraulic pump pressure adjustment rexroth hydraulic pump pdf

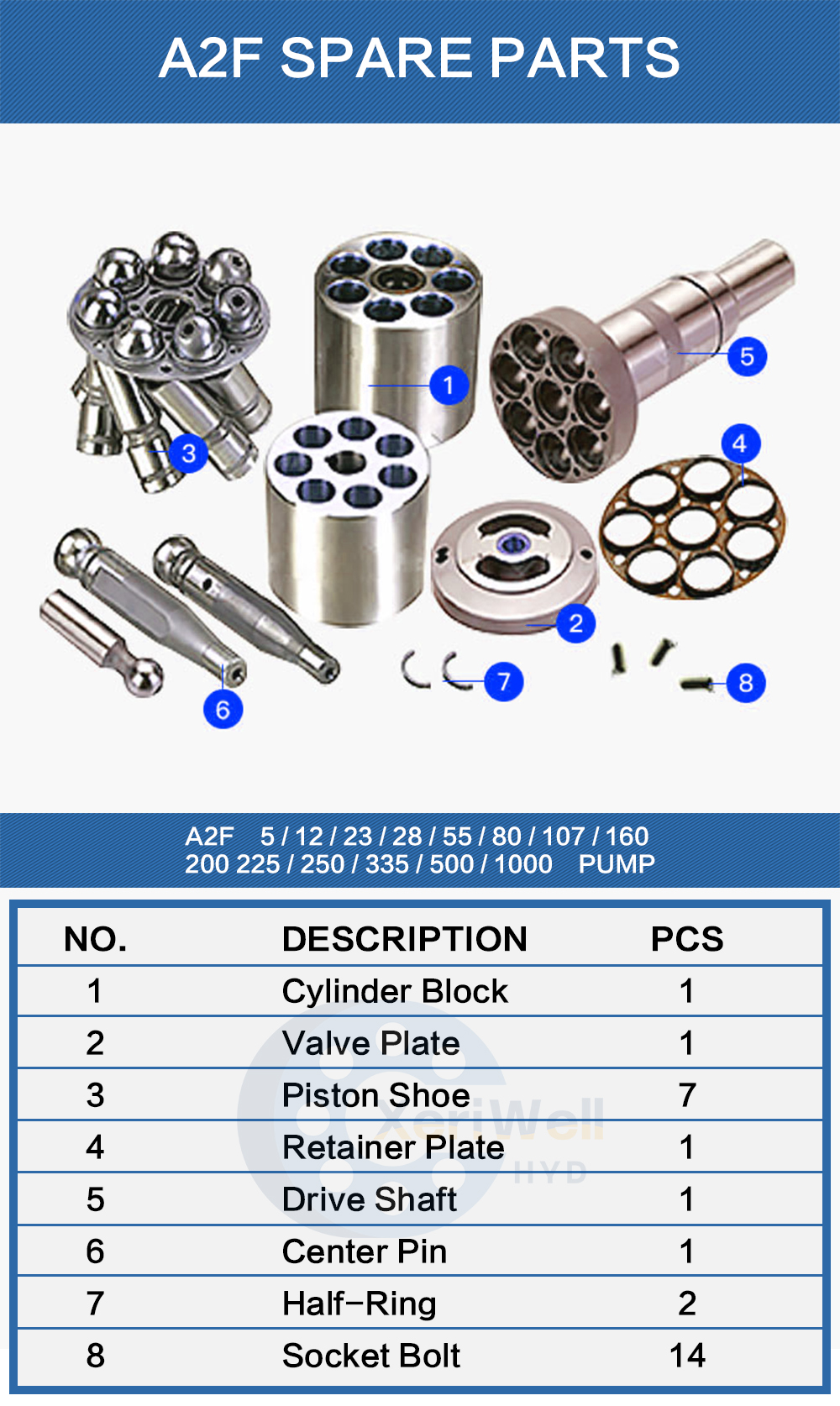

A2F 5/10/12/23/28/55/63/80/107/125/160/200/225/250/255/350/355/500/1000 Hydraulic Motor Spare parts list：

a2f pump

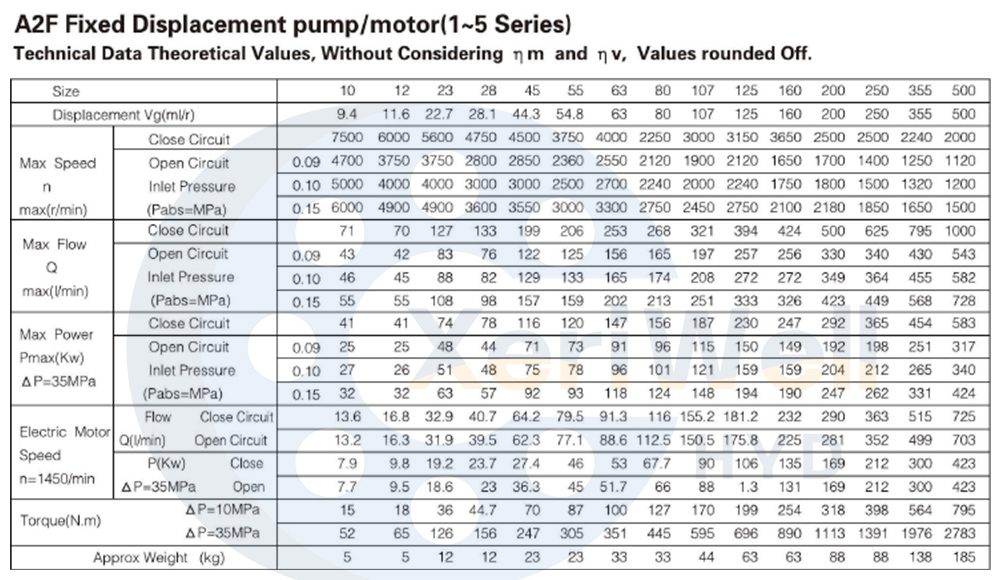

A2F Fixed Displacement pump/motor(1~5 Series) Technical Data Theoretical Values,Without Considering η m and η v,Values rounded Off.



Size			10	12	23	28	45	55	63	80	107	125	160	200	250	355	500
Displacement Vg(ml/r)			9.4	11.6	22.7	28.1	44.3	54.8	63	80	107	125	160	200	250	355	500
Max Speed n max(r/min)	Close Circuit		7500	6000	5600	4750	4500	3750	4000	2250	3000	3150	3650	2500	2500	2240	2000
	Open Circuit Inlet Pressure (Pabs=MPa)	0.09	4700	3750	3750	2800	2850	2360	2550	2120	1900	2120	1650	1700	1400	1250	1120
		0.1	5000	4000	4000	3000	3000	2500	2700	2240	2000	2240	1750	1800	1500	1320	1200
		0.15	6000	4900	4900	3600	3550	3000	3300	2750	2450	2750	2100	2180	1850	1650	1500
Max Flow Q max(l/min)	Close Circuit		71	70	127	133	199	206	253	268	321	394	424	500	625	795	1000
	Open Circuit Inlet Pressure (Pabs=MPa)	0.09	43	42	83	76	122	125	156	165	197	257	256	330	340	430	543
		0.1	46	45	88	82	129	133	165	174	208	272	272	349	364	455	582
		0.15	55	55	108	98	157	159	202	213	251	333	326	423	449	568	728
Max Power Pmax(Kw) ΔP=35MPa	Close Circuit		41	41	74	78	116	120	147	156	187	230	247	292	365	454	583
	Open Circuit Inlet Pressure (Pabs=MPa)	0.09	25	25	48	44	71	73	91	96	115	150	149	192	198	251	317
		0.1	27	26	51	48	75	78	96	101	121	159	159	204	212	265	340
		0.15	32	32	63	57	92	93	118	124	148	194	190	247	262	331	424
Electric Motor Speed n=1450/min	Flow Close Circuit Q(l/min) Open Circuit		13.6	16.8	32.9	40.7	64.2	79.5	91.3	116	155.2	181.2	232	290	363	515	725
	Flow Close Circuit Q(l/min) Open Circuit		13.2	16.3	31.9	39.5	62.3	77.1	88.6	112.5	150.5	175.8	225	281	352	499	703
	P(Kw) Close ΔP=35MPa Open		7.9	9.8	19.2	23.7	27.4	46	53	67.7	90	106	135	169	212	300	423
	P(Kw) Close ΔP=35MPa Open		7.7	9.5	18.6	23	36.3	45	51.7	66	88	1.3	131	169	212	300	423
Torque(N.m) ΔP=10MPa ΔP=35MPa			15	18	36	44.7	70	87	100	127	170	199	254	318	398	564	795
Torque(N.m) ΔP=10MPa ΔP=35MPa			52	65	126	156	247	305	351	445	595	696	890	1113	1391	1976	2783
Approx Weight (kg)			5	5	12	12	23	23	33	33	44	63	63	88	88	138	185
