| Quantity: | |
|---|---|
Group 1, Group 2, Group 3
Xeriwell or Others
| Item: | Hydraulic Gear Pump | Apply To: | Truck Mounted Drilling Equipment |
|---|---|---|---|
| Material: | Aluminum Body | Function: | Transfer Systems And Micro Filtering |
| Maximum Pressure: | 180Bar | Displacement: | 1cc - 89 Cc |
| Highlight: | 1cc Hydraulic Gear Pump,CE Hydraulic Gear Pump,180bar hydraulic gear pump | ||

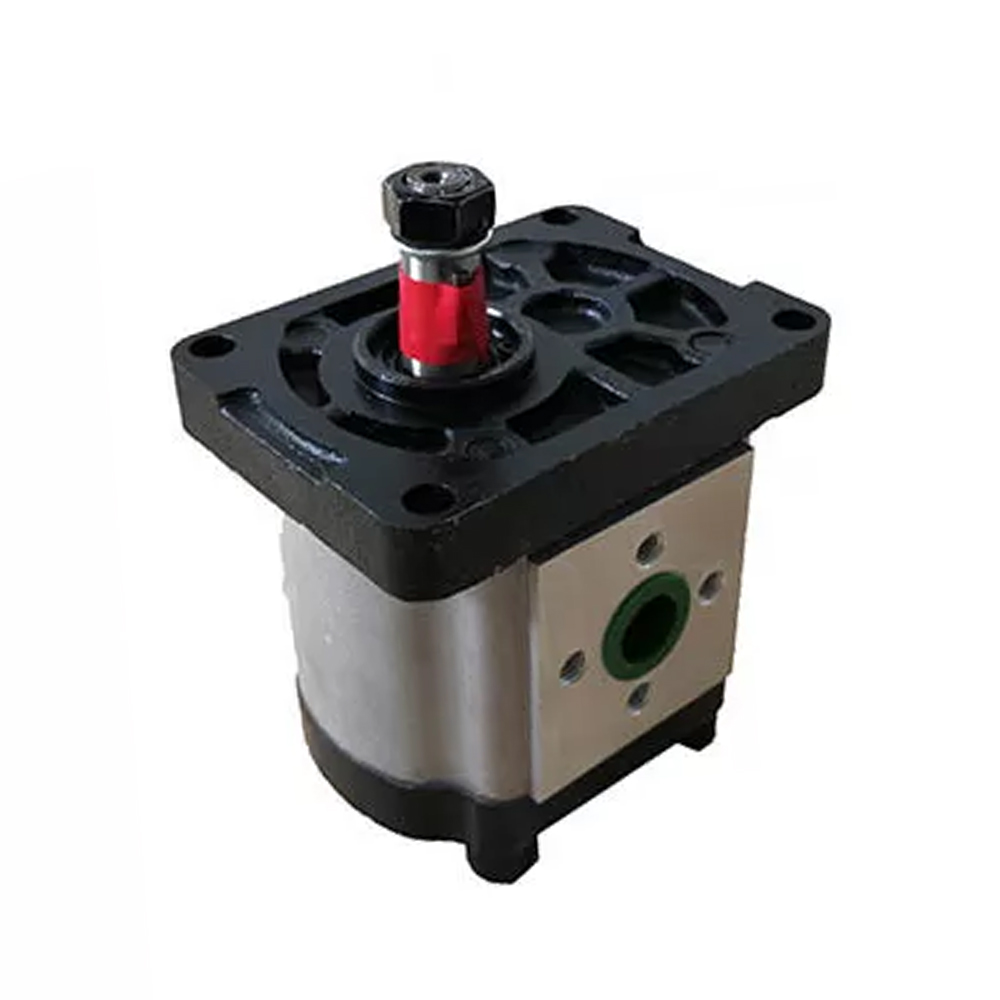

Hydraulic Pump, Gear Pumps, for Truck Mounted Drilling Equipment
DESCRIPTION:
External gear pump.
Conical shaft
Four-bolt flange.
APPLICATIONS:
Oleohydraulic Systems.
Power Units.
Transfer systems and micro filtering.
FEATURES
Positive displacement.
Aluminum body
Maximum pressure 180 Bar.
Clockwise. (You can change the direction of rotation).
Group 1 Axis - 1: 8 / Ø Max. 10 mm.
Group 2 Axis - 1: 8 / Ø Max. 17.5 mm.
Group 3 Axis - 1: 8 / Ø Max. 22 mm.
| Description | |||
| Model | Displacement | Oil port | |
| Inlet | Outlet | ||
| 0APF1 | 1 | 1/4″ | 1/4″ |
| 0PF1 | 0,5 | 1/4″ | 1/4″ |
| 1PF1.1 | 1,1 | 3/8” | 3/8” |
| 1PF2.1 | 2.1 | 3/8” | 3/8” |
| 1PF3.2 | 3.2 | 3/8” | 3/8” |
| 1PF4.0 | 4 | 3/8” | 3/8” |
| 1PF6.0 | 6 | 3/8” | 3/8” |
| 2PF6 | 6 | 1/2” | 1/2” |
| 2PF8 | 8 | 3/4” | 1/2” |
| 2PF12 | 12 | 3/4” | 1/2” |
| 2PF14 | 14 | 3/4” | 1/2” |
| 2PF16 | 16 | 3/4” | 1/2” |
| 2PF20 | 20 | 3/4” | 1/2” |
| 2PF27 | 27 | 3/4” | 1/2” |
| 3PF27 | 27 | 1” | 3/4” |
| 3PF34 | 34 | 1” | 3/4” |
| 3PF39 | 39 | 1” | 3/4” |
| 3PF43 | 43 | 1-1/4” | 1” |
| 3PF51 | 51 | 1-1/4” | 1” |
| 3PF60 | 60 | 1-1/4” | 1” |
| 3PF78 | 78 | 1-1/4” | 1” |
| 3PF89 | 89 | 1-1/4” | 1” |
A compact, highly efficient hydraulic pump is a key component of a hydraulic drive system. Xeriwell offers a wide variety of hydraulic pumps, gear pumps with unique performance characteristics which are designed for superior, efficient system performance.
Contact us today to discuss your questions or application needs with our team.
