| Quantity: | |
|---|---|
101S
Xeriwell or Others
| Features: | Steering Valve, Massey Ferguson Steering Valve Replaces | Product: | Power Steering Control Unit |
|---|---|---|---|
| Series: | 101S | Size: | 100 Cc/rev |
| Highlight: | power steering valve,hydraulic steering gear | ||

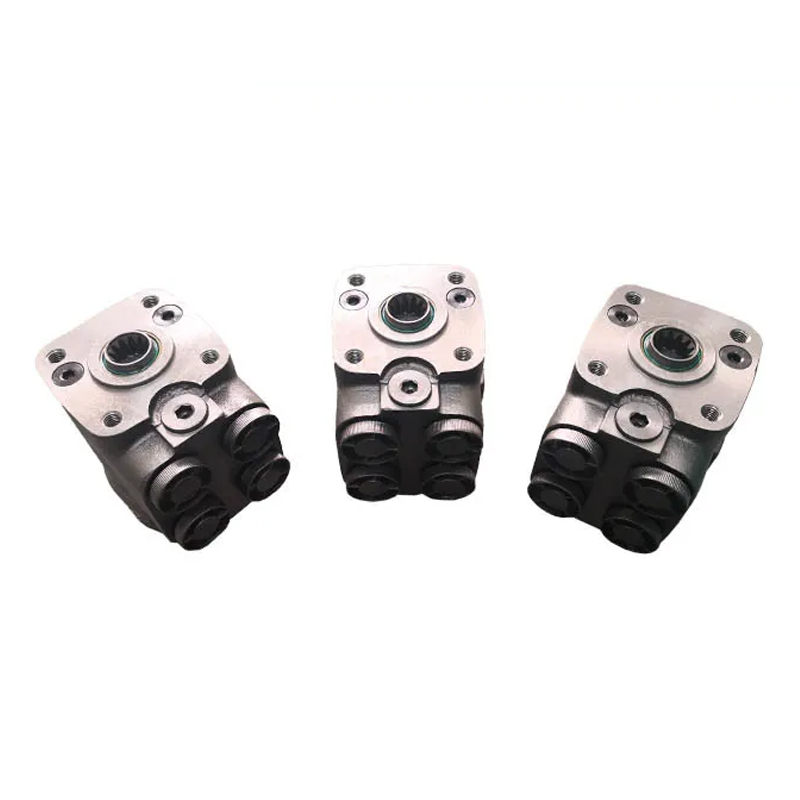

Tractor Steering Valve 150N1228, 150N2228, OSPC100ON, Massey Ferguson 1695444M91, 3821548M91 replacement
We provide replacement steering unit of It also replaces Massey Ferguson Part Number 1695444M91 and 3821548M91

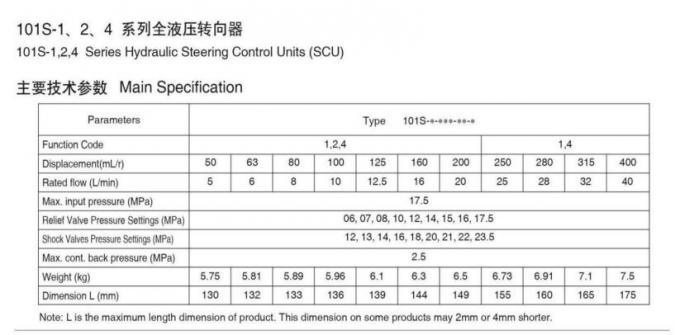

Technical data sheet:
| Parameters | Series 101S-*-***-**-* | ||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 16 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
Suit Models 240,253, 263, 360, 365, 261, 271, 375, 383, 390, 390T, 393, 398, 399, 4225, 4233, 4235, 4243, 4245, 4253, 4263, 4270
| Massey Ferguson | K207419/4WD 125cc-3/4” | 240 (200 Series)253 (200 Series)261 (200 Series)265 (200 Series)275 (200 Series)290 (200 Series)298 (200 Series)340 (300 Series)342 (300 Series)350 (300 Series)352 (300 Series)355 (300 Series)360 (300 Series)362 (300 Series)365 (300 Series)372 (300 Series)375 (300 Series)375E BRAZILIAN382 (300 Series)383 (300 Italian Series)390 (300 Series)390E BRAZILIAN390T393 (300 Italian Series)396 (300 Series)398 (300 Series)399 (300 Series)4215 (4200/4300 Series)4220 (4200/4300 Series)4225 (4200/4300 Series)4235 (4200/4300 Series)4260 (4200/4300 Series)4265 (4200/4300 Series)4270 (4200/4300 Series) |
| Massey Ferguson | 1695444M91, 3821548M91 | 240 (200 Series)253 (200 Series)261 (200 Series)265 (200 Series)275 (200 Series)290 (200 Series)298 (200 Series)340 (300 Series)342 (300 Series)350 (300 Series)352 (300 Series)355 (300 Series)360 (300 Series)362 (300 Series)365 (300 Series)372 (300 Series)375 (300 Series)375E BRAZILIAN382 (300 Series)383 (300 Italian Series)390 (300 Series)390E BRAZILIAN390T393 (300 Italian Series)396 (300 Series)398 (300 Series)399 (300 Series)4215 (4200/4300 Series)4220 (4200/4300 Series)4225 (4200/4300 Series)4235 (4200/4300 Series)4260 (4200/4300 Series)4265 (4200/4300 Series)4270 (4200/4300 Series) |
| FIAT | 82001471/4WD | M100 (M Series)M115 (M Series)M135 (M Series)M160 (M Series) |
| 82001471/4WD | 4100 Profi (Profi Series)4115 Profi (Profi Series)6115 Profi (Profi Series)6125 Profi (Profi Series)6135 Profi (Profi Series) | |
| David Brown | 1695445M91/4WD 125cc-3/4” | 1194 (94 Series)1210 (1200 Series)1212 (1200 Series)1294 (94 Series)1394 (94 Series)1494 (94 Series)1594 (94 Series)1694 (94 Series)880 (800 Series) |
| FIAT | (5140383) / 5143319/ 2WD | 100-90 (90 Series)110-90 (90 Series)115-90 (90 Series)130-90 (90 Series)140-90 (90 Series)160-90 (90 Series)180-90 (90 Series)55-90 (90 Series)60-90 (90 Series)70-90 (90 Series)80-90 (90 Series)85-90 (90 Series)90-90 (90 Series) |
| AGCO | 72224918 | |
| Massey Ferguson | 047370N1 | Massey Ferguson - 750 |
| Cod. 150N1098 / 422955912 | ||
| Cod. 150N1098 / 90612091 | ||
| Massey Ferguson | Cod. 150N1097 / 27A0800011 | Massey Ferguson - 296 |
| Massey Ferguson | Cod. 150N1097 / 8421955919 | Massey Ferguson - 5660 |
| Massey Ferguson | Cod. 150N1098 / 27A1400022 | |
| Cod. 150N1098 / 047153T1 | Massey Ferguson - 750 | |
| Massey Ferguson | Cod. 150N1098 / 27A1400001 | Massey Ferguson - 118 |
| Trator Ford | Cod. 150N2017 / 27A0900002 | Trator Ford |
| Massey Ferguson | Cod. 150N1098 / 024374T1 | Massey Ferguson |
| AL41291/AL55308 | 1550 (50 Series),1640 (40 Series),1750 (50 Series),1850 (50 Series) 1950 (50 Series),2040 (40 Series),2140 (40 Series)2250 (50 Series)2450 (50 Series)2650 (50 Series)2850 (50 Series)3040 (40 Series)3050 (50 Series)3140 (40 Series)3150 (50 Series)3340 (40 Series)3350 (50 Series) | |
| AL55296 | Serie 40: 3140 3640 3640S Serie 50: 3050 3350 3650 | |
| AL55954 / AL28268 / AL35832 | 1640, 2040, 2140, 3040, 3140, 3340 | |
| AL55956 / AL32758 / AL35834 | 1640, 2040, 2140, 3040, 3140, 3340 | |
| AL41604 | 2140, 2141, 2541 2941, 3141, 3641, 1641, 2251 2351, 2651, 2951, 3351, 3651 | |
| AL41631 | Serie 40: 1640 1840 1840F 2040 2040S Serie 41: 2141 2541 2941 3141 3641 Serie 50: 1550 1750 1850 1950 2250 2250F 2450 2450F 2650 2650F 2650N 2850 3050 3350 Serie 51: 2251 2351 2651 2951 3351 3651 Serie 55: 2755TS | |
| AL41291 | Serie 40: 1640 2040 2040S 2140 3040 3140 3340 Serie 41: 2141 2541 2941 3141 3641 Serie 50: 3050 3150 3350 3650 Serie 51: 2251 2351 2651 2951 3351 3651 | |
| AL41604 | Serie 40: 2140 Serie 41: 1641 2141 2541 2941 3141 3641 Serie 51: 2251 2351 2651 2951 3351 | |
| 82001471/4WD | MXM120 (MXM Series)MXM130 (MXM Series)MXM135 (MXM Series)MXM140 (MXM Series)MXM150 (MXM Series)MXM155 (MXM Series)MXM165 (MXM Series)MXM175 (MXM Series)MXM180 (MXM Series)MXM190 (MXM Series)MXU100 (MXU Series)MXU110 (MXU Series)MXU115 (MXU Series)MXU125 (MXU Series)MXU130 (MXU Series)MXU135 (MXU Series) | |
| FORD/ | 5143326/5164616 | TD55D,TD60D,TD65DTD70DTD75DTD80DTD85DTD90DTD95D |
| FORD/ | 81863600 | ford tractor 6640/TS90 |
| FORD/ | ||
| FORD/ | 82001471/4WD | 8160 (60 Series )8260 (60 Series )8360 (60 Series )8560 (60 Series )TL100 (TL Series)TL70 (TL Series)TL80 (TL Series)TL90 (TL Series)TM110 (TM Series)TM115 (TM Series)TM120 (TM Series)TM125 (TM Series)TM130 (TM Series)TM135 (TM Series)TM140 (TM Series)TM150 (TM Series)TM155 (TM Series)TM165 (TM Series)TM175 (TM Series)TM180 (TM Series)TM190 (TM Series)TS100 (TS Series)TS110 (TS Series)TS115 (TS Series)TS120ATS90 (TS Series) |
