BMK2-400
Xeriwell or Others
| Type: | Eaton Gerotor Hydraulic Motor Replace | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | BMK2-400 | Power: | Hydraulic Oil |
| Application: | Engneering, Sweeper, Fishery, Construction Equipment, Etc | Usage: | Hydraulic Equipment, Mining Machinery, Drilling Machine, Construction |
| More Type: | Wheel, Braker, Standard, Bearingless, Orbit Motor | Shaft: | Splined |
| Highlight: | omr hydraulic motor,bmp hydraulic motor | ||
Torqmotor hydraulic motor Eaton 104-3130-006 replacement standard 2 bolt 31.75mm 14 tooth, 0.875-14 UNF-2B SAE O-RING
Low speed high torque Eaton type hydraulic motor are available by us
Eaton J series (129-), H series (101-), S series (103-), W series (162-), T series (158-, 185-), 2000 series, 4000 series, 6000 series, 10k series type motors are available by us

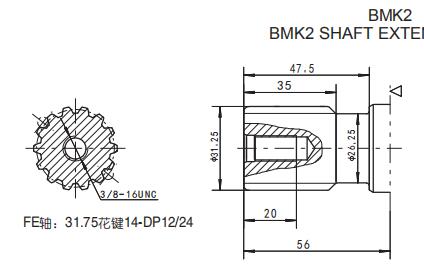

| 104-3130-006 | BMK2-400 | 393.8 cm3/r | STANDARD, 2 BOLT; 82.6. 13.59 106.4 SAE A | 31.75, 14 TOOTH, 12/24 DP 30 DEG. WITH .375-16 , 33.0 MIn FULL SPLINE LENGTH | .875-14 UNF-2B SAE O-RING .4375-20 UNF-2B SAE O-RING |
J (129-)
H (101-)
S (103-)
T (158-)
W (162-)
2000 (104-, 105-, 106-, 193-)
4000 (109-, 110-, 111-)
6000 (112-, 113-, 114-)
| Main Specifications: | |||||||||||
| Type | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Geometric displacement (cm3 /rev.) | 65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max. speed (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max. torque (N·m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max. flow (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure :Max. value of operating motor continuously. | |||||||||||
| * Intermittent pressure :Max. value of operating motor in 6 seconds per minute. | |||||||||||
| * Peak pressure:Max. value of operating motor in 0.6 second per minute. | |||||||||||
Xeriwell BMK2 = CHAR-LYNN 2000
BMK2 Series is a durable hydraulic motor with superior side load capacity, high pressure shaft seal and smooth low speed operation. Ideal for medium duty applications such as vehicle propulsion, augers, chain drives, winches and boom rotate. Intermittent pressures go to 4000 psi. Max dynamic side load capability is 3600 lb. at the key. This rugged Low Speed High Torque (LSHT) orbital motor features robust construction with continuous oil flow across splines for longer life, superior side load capacity, and smooth extra low speed operation. A high pressure shaft seal is standard. Its innovative design eliminates the need for a drain. Dependability is based on high quality design and manufacturing.
| Type: | Eaton Gerotor Hydraulic Motor Replace | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | BMK2-400 | Power: | Hydraulic Oil |
| Application: | Engneering, Sweeper, Fishery, Construction Equipment, Etc | Usage: | Hydraulic Equipment, Mining Machinery, Drilling Machine, Construction |
| More Type: | Wheel, Braker, Standard, Bearingless, Orbit Motor | Shaft: | Splined |
| Highlight: | omr hydraulic motor,bmp hydraulic motor | ||
Torqmotor hydraulic motor Eaton 104-3130-006 replacement standard 2 bolt 31.75mm 14 tooth, 0.875-14 UNF-2B SAE O-RING
Low speed high torque Eaton type hydraulic motor are available by us
Eaton J series (129-), H series (101-), S series (103-), W series (162-), T series (158-, 185-), 2000 series, 4000 series, 6000 series, 10k series type motors are available by us
| 104-3130-006 | BMK2-400 | 393.8 cm3/r | STANDARD, 2 BOLT; 82.6. 13.59 106.4 SAE A | 31.75, 14 TOOTH, 12/24 DP 30 DEG. WITH .375-16 , 33.0 MIn FULL SPLINE LENGTH | .875-14 UNF-2B SAE O-RING .4375-20 UNF-2B SAE O-RING |
J (129-)
H (101-)
S (103-)
T (158-)
W (162-)
2000 (104-, 105-, 106-, 193-)
4000 (109-, 110-, 111-)
6000 (112-, 113-, 114-)
| Main Specifications: | |||||||||||
| Type | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Geometric displacement (cm3 /rev.) | 65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max. speed (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max. torque (N·m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max. flow (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure :Max. value of operating motor continuously. | |||||||||||
| * Intermittent pressure :Max. value of operating motor in 6 seconds per minute. | |||||||||||
| * Peak pressure:Max. value of operating motor in 0.6 second per minute. | |||||||||||
Xeriwell BMK2 = CHAR-LYNN 2000
BMK2 Series is a durable hydraulic motor with superior side load capacity, high pressure shaft seal and smooth low speed operation. Ideal for medium duty applications such as vehicle propulsion, augers, chain drives, winches and boom rotate. Intermittent pressures go to 4000 psi. Max dynamic side load capability is 3600 lb. at the key. This rugged Low Speed High Torque (LSHT) orbital motor features robust construction with continuous oil flow across splines for longer life, superior side load capacity, and smooth extra low speed operation. A high pressure shaft seal is standard. Its innovative design eliminates the need for a drain. Dependability is based on high quality design and manufacturing.
