| Quantity: | |
|---|---|
Xeriwell or Others

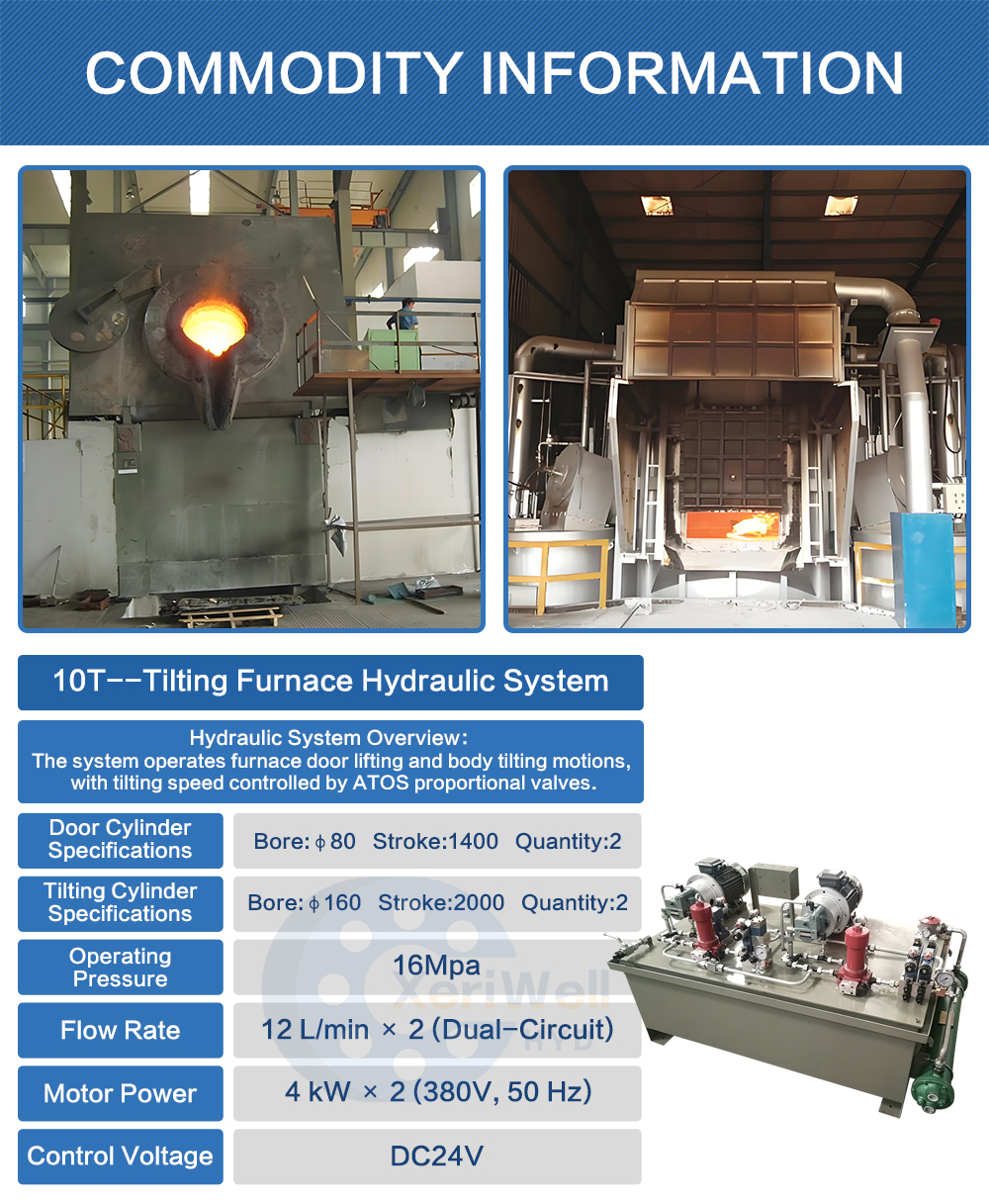

| 10T--Tilting Furnace Hydraulic System | |
| Hydraulic System Overview:The system operates furnace door lifting and body tilting motions,with tilting speed controlled by ATOS proportional valves. | |
Door Cylinder Specifications | Bore:φ80 Stroke:1400 Quantity:2 |
Tilting CylinderSpecifications | Bore:φ160 Stroke:2000 Quantity:2 |
Operating Pressure | 16Mpa |
Flow Rate | 12 L/min×2(Dual-Circuit) |
Motor Power | 4kW×2(380V,50 Hz) |
Control Voltage | DC24 |

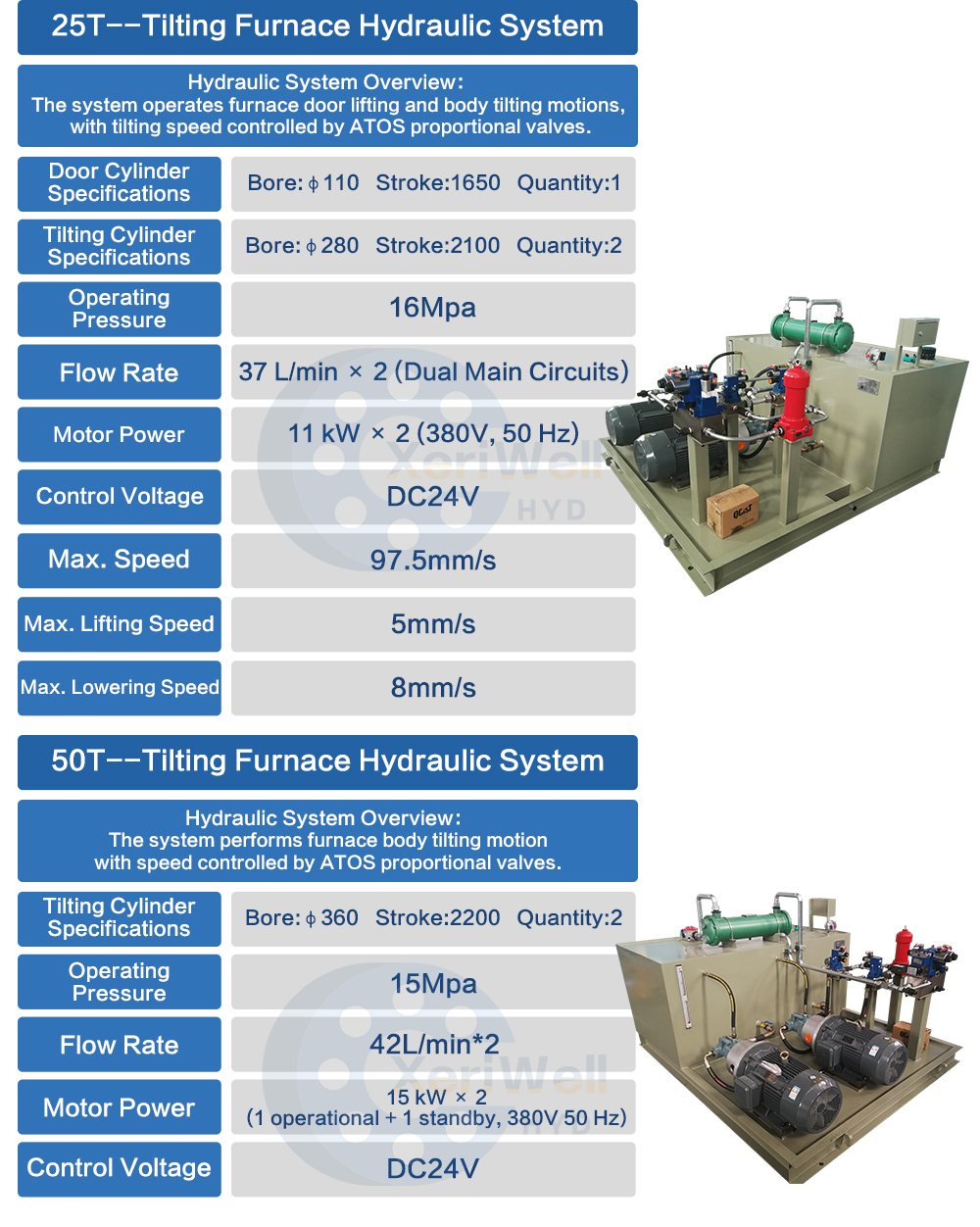

| 25T--Tilting Furnace Hydraulic System | |
| Hydraulic System Overview: The system operates furnace door lifting and body tilting motions,with tilting speed controlled by ATOS proportional valves. | |
| Door Cylinder Specifications | Bore:φ110 Stroke:1650 Quantity:1 |
| Tilting Cylinder Specifications | Bore:φ280 Stroke:2100 Quantity:2 |
| Operating Pressure | 16Mpa |
| Flow Rate | 37 L/min × 2 (Dual Main Circuits) |
| Motor Power | 11 kW × 2 (380V,50 Hz) |
| Control Voltage | DC24V |
| Max. Speed | 97.5mm/s |
| Max. Lifting Speed | 5mm/s |
| Max. Lowering Speed | 8mm/s |

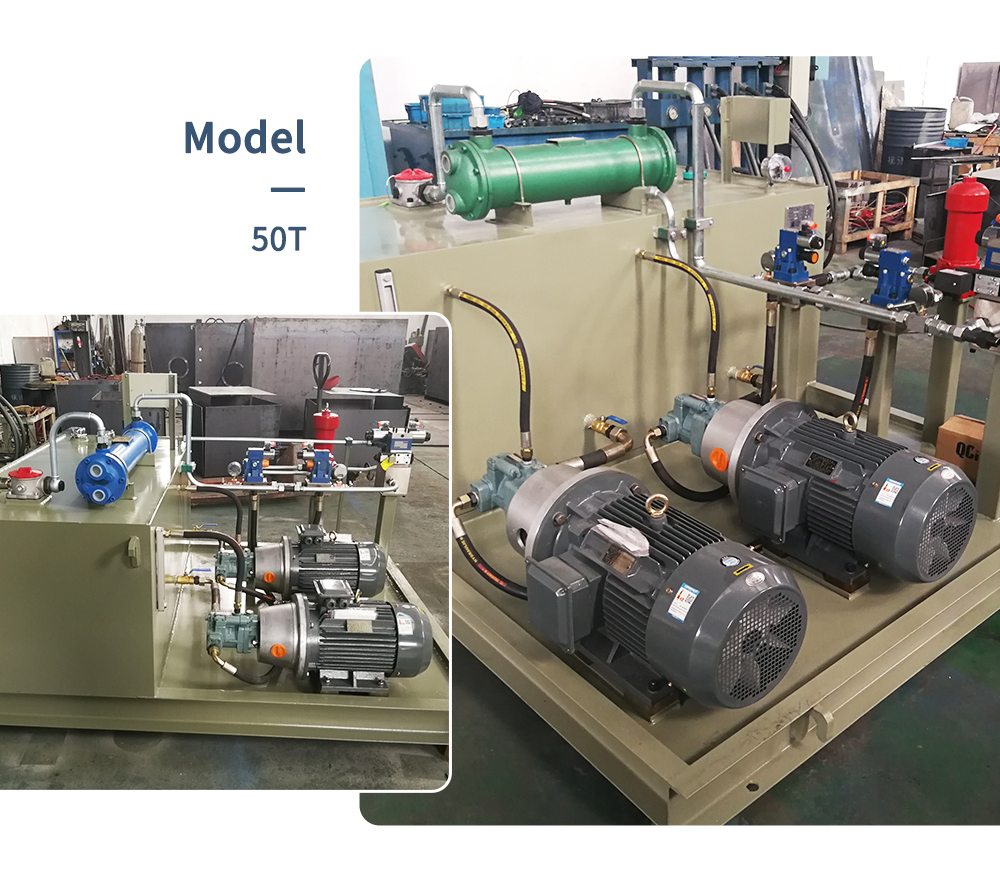

| 50T--Tilting Furnace Hydraulic System | |
| Hydraulic System Overview: The system performs furnace body tilting motion with speed controlled by ATOS proportional valves. | |
| Tilting Cylinder Specifications | Bore:φ360 Stroke:2200 Quantity:2 |
| Operating Pressure | 15Mpa |
| Flow Rate | 42L/min*2 |
| Motor Power | 15 kW × 2 (1 operational + 1 standby,380V 50 Hz) |
| Control Voltage | DC24V |
| 10T--Tilting Furnace Hydraulic System | |
| Hydraulic System Overview:The system operates furnace door lifting and body tilting motions,with tilting speed controlled by ATOS proportional valves. | |
Door Cylinder Specifications | Bore:φ80 Stroke:1400 Quantity:2 |
Tilting CylinderSpecifications | Bore:φ160 Stroke:2000 Quantity:2 |
Operating Pressure | 16Mpa |
Flow Rate | 12 L/min×2(Dual-Circuit) |
Motor Power | 4kW×2(380V,50 Hz) |
Control Voltage | DC24 |
| 25T--Tilting Furnace Hydraulic System | |
| Hydraulic System Overview: The system operates furnace door lifting and body tilting motions,with tilting speed controlled by ATOS proportional valves. | |
| Door Cylinder Specifications | Bore:φ110 Stroke:1650 Quantity:1 |
| Tilting Cylinder Specifications | Bore:φ280 Stroke:2100 Quantity:2 |
| Operating Pressure | 16Mpa |
| Flow Rate | 37 L/min × 2 (Dual Main Circuits) |
| Motor Power | 11 kW × 2 (380V,50 Hz) |
| Control Voltage | DC24V |
| Max. Speed | 97.5mm/s |
| Max. Lifting Speed | 5mm/s |
| Max. Lowering Speed | 8mm/s |
| 50T--Tilting Furnace Hydraulic System | |
| Hydraulic System Overview: The system performs furnace body tilting motion with speed controlled by ATOS proportional valves. | |
| Tilting Cylinder Specifications | Bore:φ360 Stroke:2200 Quantity:2 |
| Operating Pressure | 15Mpa |
| Flow Rate | 42L/min*2 |
| Motor Power | 15 kW × 2 (1 operational + 1 standby,380V 50 Hz) |
| Control Voltage | DC24V |
