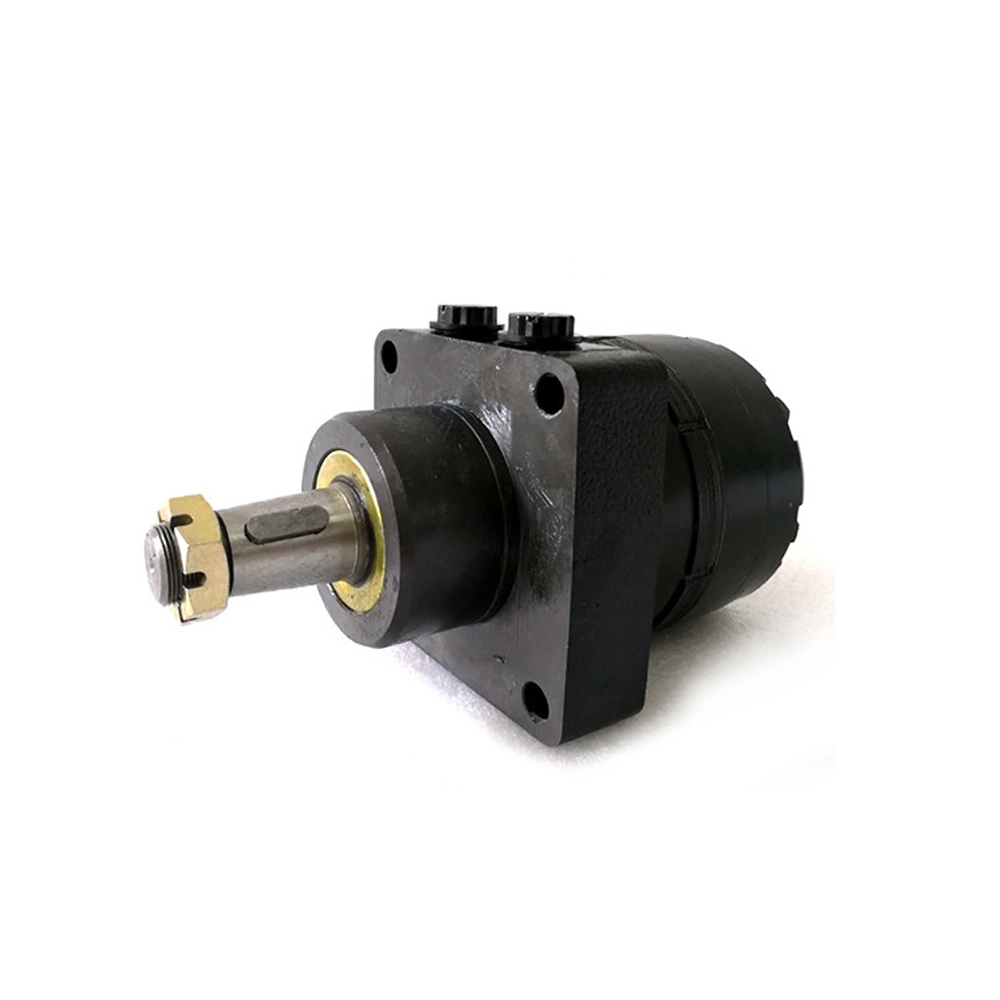

Tg0475 Tg Series Torqmotor Hydraulic Motor 1 1/4" Tapered Wheel Mount 477 Cm3/Rev

Pictures are for display only, please contact us to choose the right product for you.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • TG0475US080AAAA

  • Xeriwell or Others

Item: Torqmotor OEM #: TG0475US080AAAA
Manufacturer: Xeriwell
Displacement: 477 Ml/r
Mounting Flange: Wheel Flange Shaft Type: 1 1/4" Tapered
Highlight:

tg0475 torqmotor hydraulic motor

,

tg series orbit hydraulic motor

,

wheel mount torqmotor hydraulic motor


TG0475 TG Series Torqmotor, 1 1/4" Tapered, Wheel Mount, 477 cm3/rev

Quick review:

Drop in equivalent to Parker TG0475080AAAA hydraulic motor. Low speed, high torque. 28.18 cubic inch displacement. Wheel mount. 1-1/4" tapered shaft with woodruff key. 7/8"-14 SAE ports. 160 RPM maximum speed. 9602 inch lbs. of torque. 19.81 GPM maximum flow rate. 2538 PSI maximum pressure differential. Clockwise rotation.

Small Frame Low Speed, High Torque Motor
Manufacturer: Xeriwell

Details specifications

Series: TG
Shaft: 1 1/4" Tapered
Rotation: Standard
Displacement (cm3/rev): 0475
Mounting: Wheel, Standard
Geometric Displacement: 477 cm3/rev (29.1 in3/rev)
Maximum Speed: 237 rev/min
Maximum Oil Flow (continuous / intermittent): 76 lpm (20 gpm) / 114 lpm (30 gpm)
Max. Differential Pressure (continuous / intermittent): 138 bar (2000 PSID) / 207 bar (3000 PSID)
Maximum Supply Pressure: 300 bar (4350 PSIG)
Maximum Torque - Continuous / Intermittent: 887 Nm (7853 lb-in) / 1372 Nm (12145 lb-in)
Maximum Performance: 28 KW (38 HP)
Minimum Starting Torque - Continuous / Intermittent: 740 Nm (6549 lb-in) / 1120 Nm (9909 lb-in)
Maximum Side Load at Key: 16000 N (3597 lb)

More Parker type Torque motors:

TB, TC, TJ, TE, TF, TG, TK
