| Quantity: | |
|---|---|
TF0280MS030AAAA
Xeriwell or Others
| Item: | Torqmotor | OEM #: | TF0280MS030AAAA |
|---|---|---|---|
| Manufacturer: | Xeriwell | Displacement: | 280 Ml/r |
| Mounting Flange: | 4-hole | Shaft Type: | Key Shaft |
| Highlight: | tf series orbit hydraulic motor,lsht orbit hydraulic motor,334 rpm motor orbit hydraulic | ||
Quick review:

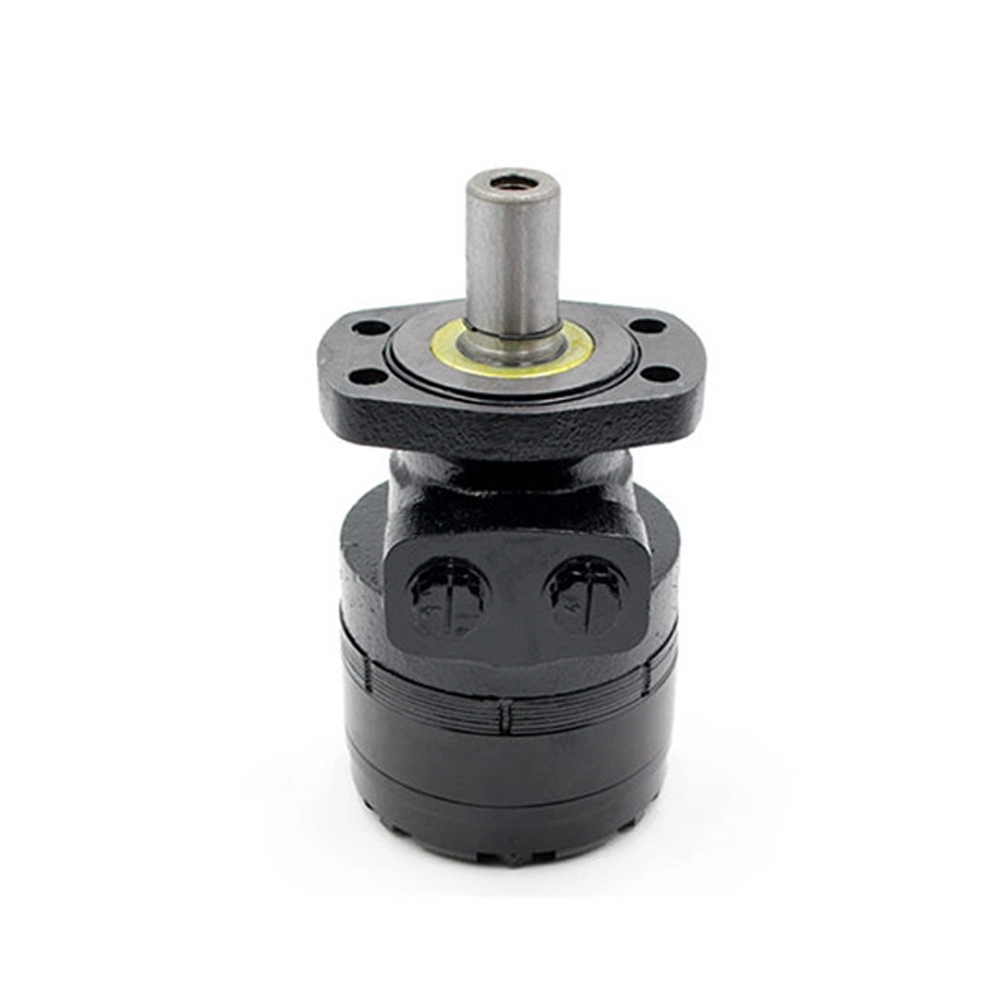

TF0280MS030AAAA Parker compatible low speed, high torque hydraulic motor. 19.20 cu. in. / rev displacement. Maximum pressure 1766 PSI continuous. Torque 4956 in-lb. continuous. Maximum speed 240 RPM continuous. Flow rate 34.0 GPM. 1 1/4" diameter shaft with keyway. 7/8-14 SAE ports. Magneto mounting flange. 1 year warranty
Sturdy construction throughout makes TF Series motors suitable for the most severe applications. All splines are constantly flushed with cool fluid for durability. Roller vanes and sealed commutation assure high volumetric efficiency, smooth low speed operation and extended life. Shaft seals can withstand full system pressure and are washed in cool fluid for long life.
Small Frame Low Speed, High Torque Motor
Manufacturer: Xeriwell
Details specifications
| Series: | TF |
| Shaft: | Key shaft |
| Rotation: | Clockwise rotation |
| Displacement (cm3/rev): | 19.20 cu. in. / rev |
| Mounting: | 4 Bolt |
| Maximum speed: | 240 RPM continuous |
More Parker type Torque motors:
TB, TC, TJ, TE, TF, TG, TK
