| Quantity: | |
|---|---|

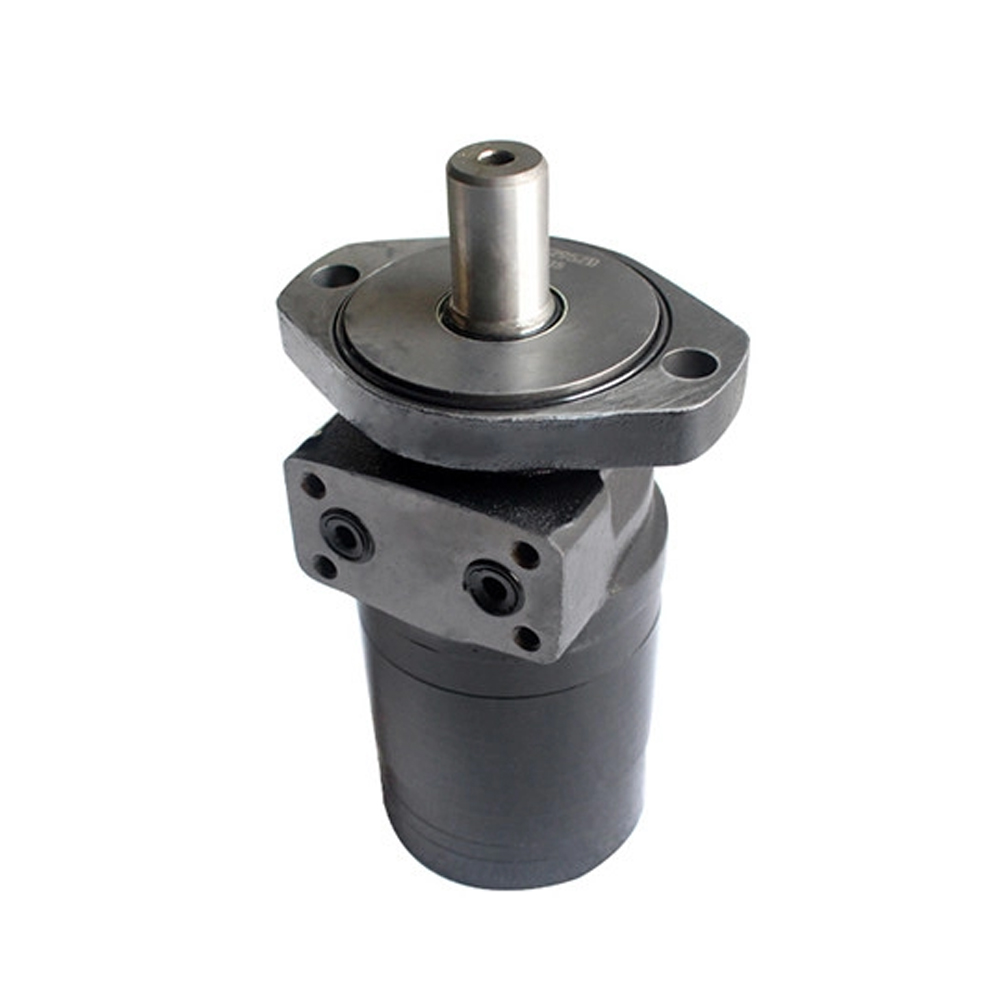

TE0195AS100AAAA
Xeriwell or Others
| Item: | Torqmotor | OEM #: | TE0195AS100AAAA |
|---|---|---|---|
| Manufacturer: | Xeriwell | Displacement: | 195 Ml/r |
| Mounting Flange: | 2-hole | Shaft Type: | 1" Keyed |
| Highlight: | te0195 orbit hydraulic motor,te series orbit hydraulic motor,te series torqmotor hydraulic motor | ||
Quick review:
Drop in equivalent to TE0195AS100AAAA Parker low speed, high torque hydraulic motor. 12.16 cu. in. / rev displacement. Maximum pressure 1914 PSI continuous, maximum pressure 2576 PSI intermittent. Torque 3168 in-lb. continuous, torque 3965 in-lb. intermittent. Maximum speed 300 RPM continuous. Flow rate 15.8 GPM. 1" diameter shaft with woodruff key. 7/8-14 SAE ports. 2 Bolt SAE mounting flange. 1 year warranty.
LSHT Torqmotors
Manufacturer: Xeriwell
This medium duty motor has higher pressure ratings than the TB motor, for applications requiring higher torque. Robust roller bearings withstand higher side loads and are suitable for chain and sprocket shaft connections. It uses high pressure shaft seals, robust roller bearings and high flow shaft seal cooling.
Details specifications
| Series: | TE |
| Shaft: | 1" Keyed |
| Rotation: | Standard |
| Displacement (cm3/rev): | 0195 |
| Mounting: | SAE "A" 2 Bolt |
| Ports: | 7/8-14 SAE |
| Geometric Displacement: | 195 cm3/rev (11.9 in3/rev) |
| Maximum Speed: | 292 rev/min |
| Maximum Oil Flow (continuous / intermittent): | 45 lpm (12 gpm) / 57 lpm (15 gpm) |
| Max. Differential Pressure (continuous / intermittent): | 140 bar (2030 PSID) / 190 bar (2750 PSID) |
| Maximum Supply Pressure: | 200 bar (2900 PSID) |
| Maximum Torque - Continuous / Intermittent: | 390 Nm (3452 lb in) / 528 Nm (4673 lb in) |
| Maximum Performance: | 17.4 KW (23.4 HP) |
| Minimum Starting Torque - Continuous / Intermittent: | 312 Nm (2762 lb in) / 411 Nm (3637 lb in) |
| Maximum Side Load at Key: | 6650 N (1500 lb) |
More Parker type Torque motors:
TB, TC, TJ, TE, TF, TG, TK
