TE0130
Xeriwell or Others
| Type: | High Torque Hydraulic Motor | Max Speed: | 724rpm-924rpm |
|---|---|---|---|
| Displacement: | 130cc | Warranty: | 12-18 Months |
| Application: | Sweepers,trenchers, Winch,roller Etc. | Torque: | 295N.M-5445N.M |
| Flow: | 75--95 L/MIN | Pressure: | 21mpa-315mpa |
| Highlight: | te0130 parker hydraulic motor,lsht nichols motors,130cc nichols motors | ||

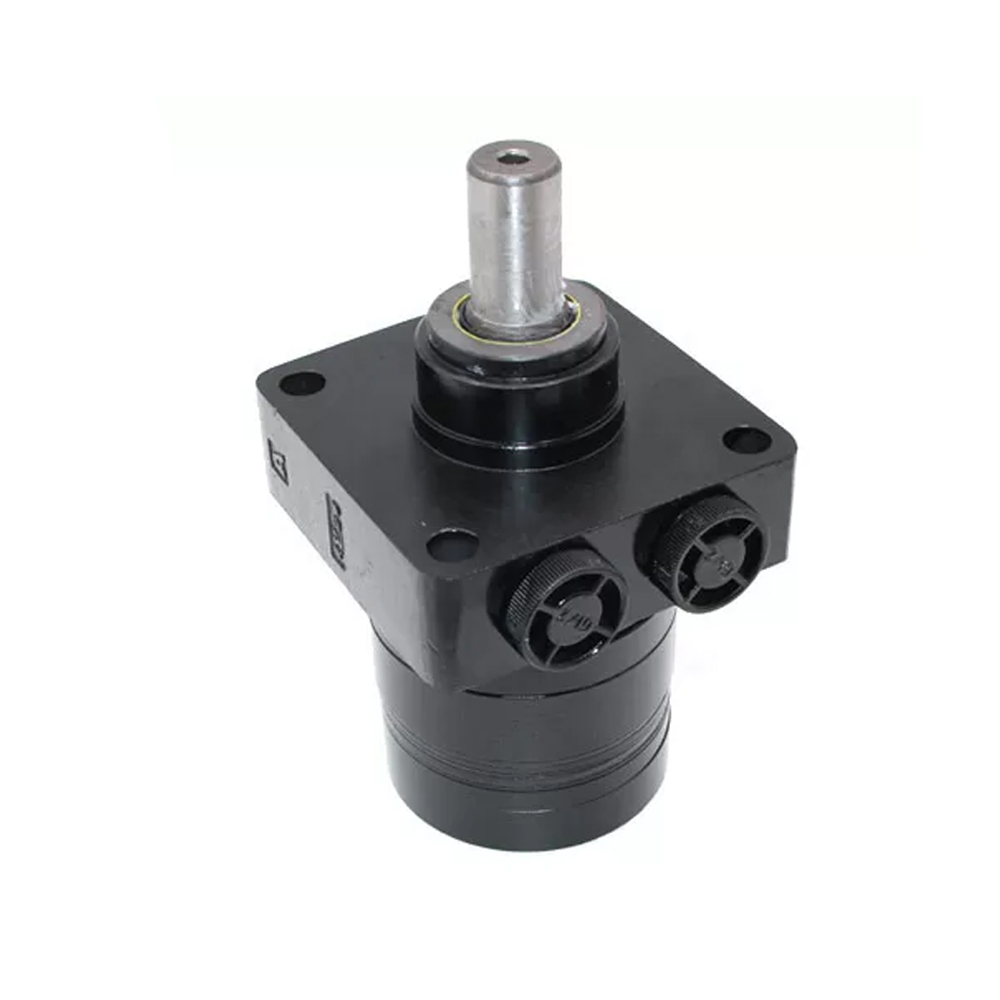

TE0130 Hydraulic motor Parker LSHT Torqmotors And Nichols Motors
TE0036
TE0050
TE0065
TE0080
TE0100
TE0130
TE0160
TE0195
TE0260
TE0295
TE0330
TE0365
TE0390
Hydraulic orbit motor
BME2 series motor adapt the advanced Geroler gear set designed with high speed distribution flow and high pressure, and have good stability in low speed , and can keep high volume efficiency. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
Applications:
• Mini Skid Steer Attachments
• Zero Turn Radius Mowers
• Golf Course Maintenance Equipment
• Sweepers
• Wood Chippers
• Conveyers
• Combine Harvesters
• Winches
• Augers
• Portable Irrigation Systems
• Post Hole Augers
• Specialty Harvesters Such as Potato, Tomato, Nut, Leafy Vegetable, Sugar, Cotton, Coffee and Grape
• Combine Header Drives
• Sprayers
• Scissor Lifts
• Snow Removal
• Salt and Sand Spreaders
• Oil and Gas Blender Trucks
• Bulk Feed Trucks
Main Specifications:
| Type | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 230 | 250 | 295 | 315 | 375 | ||
| Geometric displacement | 66.8 | 81.3 | 101.6 | 127 | 157.2 | 193.6 | 226 | 257 | 287.8 | 314.5 | 370 | |
| (cm3 /rev.) | ||||||||||||
| Max. speed (rpm) | cont. | 667 | 543 | 439 | 350 | 283 | 229 | 247 | 216 | 296 | 178 | 152 |
| int. | 842 | 689 | 553 | 441 | 355 | 289 | 328 | 287 | 254 | 235 | 199 | |
| Max. torque (N*m) | cont. | 126 | 157 | 191 | 245 | 307 | 382 | 378 | 381 | 393 | 448 | 439 |
| int. | 176 | 215 | 268 | 335 | 422 | 520 | 528 | 543 | 547 | 587 | 613 | |
| Max. output (kW) | cont. | 8.3 | 8.8 | 7.9 | 8.9 | 8.9 | 9 | 9.9 | 9.3 | 8.7 | 8 | 7.6 |
| int. | 13.9 | 14.4 | 13.5 | 14.1 | 15.6 | 15.7 | 17.9 | 16.5 | 15.6 | 14.3 | 14 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 11 | 10 | 10 | 9 |
| int. | 19 | 19 | 19 | 19 | 19 | 19 | 16.5 | 15.5 | 14.5 | 13.5 | 12.5 | |
| peak | 20 | 20 | 20 | 20 | 20 | 20 | 18 | 18 | 17 | 16 | 16 | |
| Max. flow (L/min) | cont. | 45 | 45 | 45 | 45 | 45 | 45 | 57 | 57 | 57 | 57 | 57 |
| int. | 57 | 57 | 57 | 57 | 57 | 57 | 75 | 75 | 75 | 75 | 75 | |
| 1, | model number | BME2-130-WD-AB |
| 2, | displacement | 130ml/r |
| 3, | flange | 4-bolt Wheel Mount |
| 4, | shaft | key shaft 25.4mm |
| 5, | oil port | 7/8-14 UNF |
| 6, | drain | --- |
| 7, | rotation | Standard |
| 8, | paint | Black |
| 9, | replace | Parker TE TG TF |
| Type: | High Torque Hydraulic Motor | Max Speed: | 724rpm-924rpm |
|---|---|---|---|
| Displacement: | 130cc | Warranty: | 12-18 Months |
| Application: | Sweepers,trenchers, Winch,roller Etc. | Torque: | 295N.M-5445N.M |
| Flow: | 75--95 L/MIN | Pressure: | 21mpa-315mpa |
| Highlight: | te0130 parker hydraulic motor,lsht nichols motors,130cc nichols motors | ||
