| Quantity: | |
|---|---|

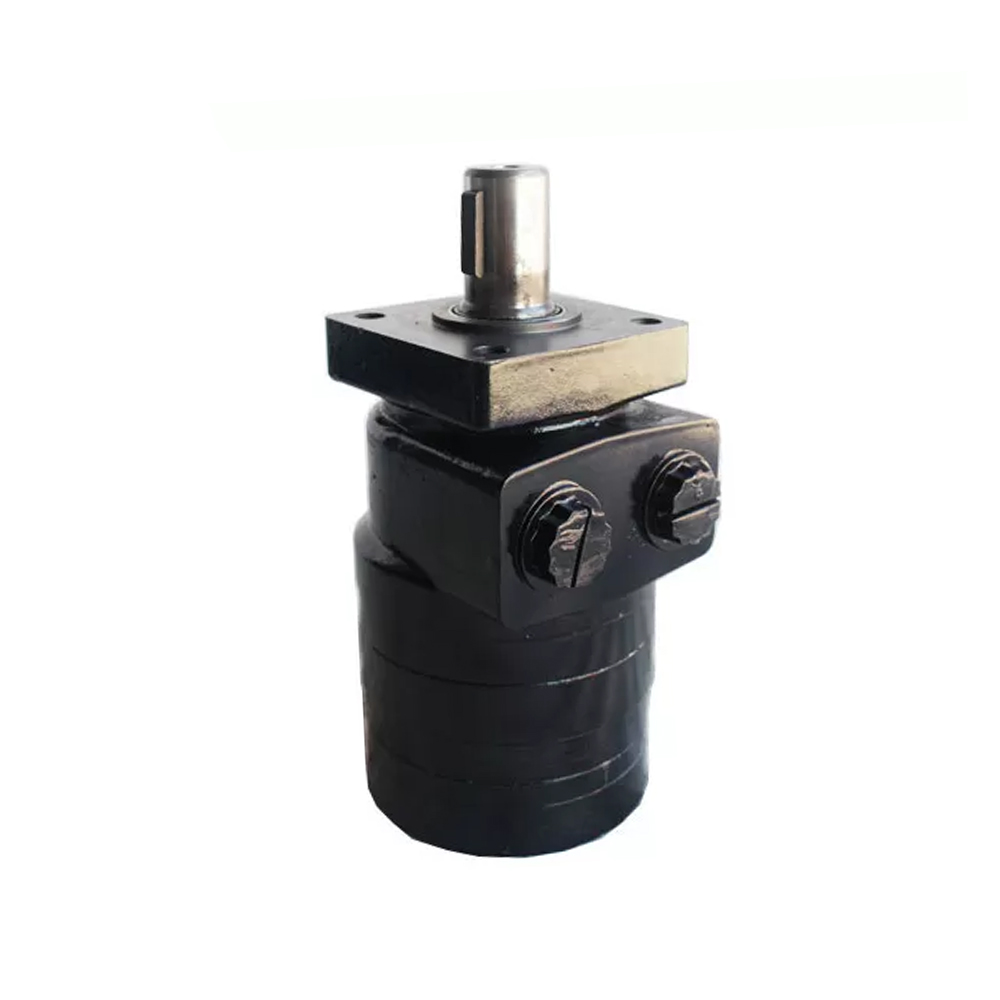

TE0100DW100AAAB
Xeriwell or Others
| Type: | High Torque Hydraulic Motor | Max Speed: | 724rpm-924rpm |
|---|---|---|---|
| Displacement: | 100cc | Warranty: | 12-18 Months |
| Application: | Sweepers,trenchers, Winch,roller Etc. | Torque: | 295N.M-5445N.M |
| Flow: | 75--95 L/MIN | Pressure: | 21mpa-315mpa |
| Highlight: | te0100dw100aaab parker torque motor,parker torque motor 98cc,hi speed parker torque motor | ||
Characteristic features:
Geroler gear set----Advanced manufacturing devices,using low pressure
of start-up, keep reliable operation and high efficiency.
Output shaft---- adapt in needle roller bearings, keep high axial and radial forces, no brake
Advanced design---- with high speed distribution flow,keep high volume efficiency and long life
High pressure, no drain ports
Main Specifications:
| Type | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 230 | 250 | 295 | 315 | 375 | ||
| Geometric displacement | 66.8 | 81.3 | 101.6 | 127 | 157.2 | 193.6 | 226 | 257 | 287.8 | 314.5 | 370 | |
| (cm3 /rev.) | ||||||||||||
| Max. speed (rpm) | cont. | 667 | 543 | 439 | 350 | 283 | 229 | 247 | 216 | 296 | 178 | 152 |
| int. | 842 | 689 | 553 | 441 | 355 | 289 | 328 | 287 | 254 | 235 | 199 | |
| Max. torque (N*m) | cont. | 126 | 157 | 191 | 245 | 307 | 382 | 378 | 381 | 393 | 448 | 439 |
| int. | 176 | 215 | 268 | 335 | 422 | 520 | 528 | 543 | 547 | 587 | 613 | |
| Max. output (kW) | cont. | 8.3 | 8.8 | 7.9 | 8.9 | 8.9 | 9 | 9.9 | 9.3 | 8.7 | 8 | 7.6 |
| int. | 13.9 | 14.4 | 13.5 | 14.1 | 15.6 | 15.7 | 17.9 | 16.5 | 15.6 | 14.3 | 14 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 11 | 10 | 10 | 9 |
| int. | 19 | 19 | 19 | 19 | 19 | 19 | 16.5 | 15.5 | 14.5 | 13.5 | 12.5 | |
| peak | 20 | 20 | 20 | 20 | 20 | 20 | 18 | 18 | 17 | 16 | 16 | |
| Max. flow (L/min) | cont. | 45 | 45 | 45 | 45 | 45 | 45 | 57 | 57 | 57 | 57 | 57 |
| int. | 57 | 57 | 57 | 57 | 57 | 57 | 75 | 75 | 75 | 75 | 75 | |
| 1, | model number | BME2-100-H4S-K |
| 2, | displacement | 100ml/r |
| 3, | flange | 4-bolt square Mount |
| 4, | shaft | key shaft 25.4mm |
| 5, | oil port | 7/8-14 UNF |
| 6, | drain | --- |
| 7, | rotation | Standard |
| 8, | paint | Black |
| 9, | replace | Parker TE TG TF |
