| Quantity: | |
|---|---|
TB0100FP100AAAB
Xeriwell or Others
| Item: | Orbit Hydraulic Motor | OEM #: | TB0100FP100AAAB |
|---|---|---|---|
| Shaft: | 1" Keyed | Rotation: | Standard |
| Maximum Speed: | 454 Rev/min | Max Flow: | 45 LPM |
| Highlight: | tb0100fp100aaab high torque low rpm motor,parker high torque low rpm motor,tb0100fp100aaab parker tb series motor | ||

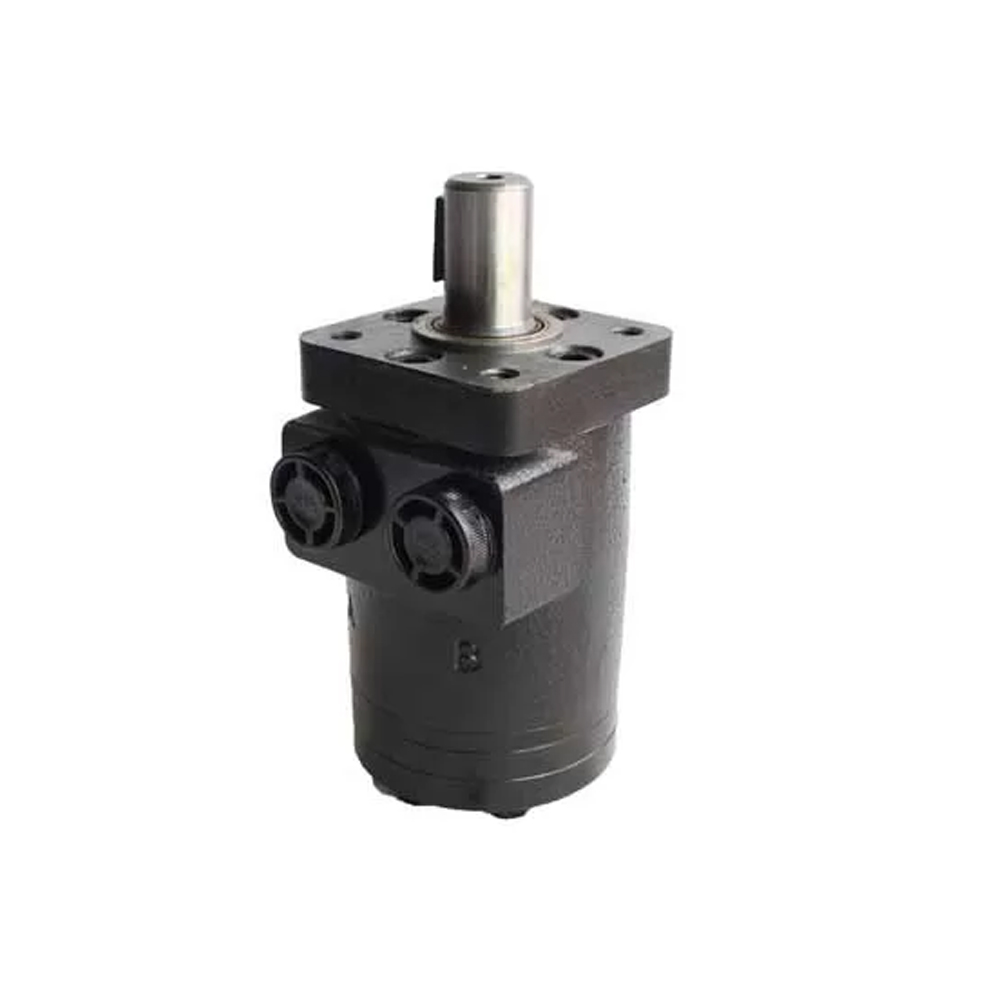

TB0100FP100AAAB Parker TB Series Small Frame Low Speed, High Torque Motor interchange
Quick Review:

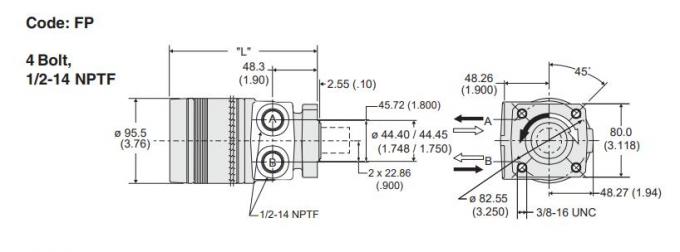

Drop in replacement for Parker TB0100FP100AAAB low speed, high torque hydraulic motor. 5.9 cu. in. / rev displacement. Maximum pressure 1840 PSI continuous, maximum pressure 2425 PSI intermittent. Torque 1425 in-lb. continuous, torque 1885 in-lb. intermittent. Maximum speed 590 RPM continuous. Flow rate 15.8 GPM. 1" diameter shaft with woodruff key. 1/2" NPT ports. 4 Bolt SAE mounting flange. 1 year warranty.
Series Details:
This light to medium duty motor incorporates all the features of heavy duty motors. Design features include a high pressure shaft seal so external drains are never required, roller vane technology for automatic wear compensation, and full flow internal cooling and flushing. This is a very economical motor for most light to medium duty applications.
Specifications
| Series: | TB |
| Rotation: | Standard |
| Mounting: | 4 Bolt |
| Maximum Speed: | 454 rev/min |
| Maximum Oil Flow: | 45 lpm |
| Max. Differential Pressure: | 125 bar |
| Maximum Torque: | 159 Nm |
| Item: | Orbit Hydraulic Motor | OEM #: | TB0100FP100AAAB |
|---|---|---|---|
| Shaft: | 1" Keyed | Rotation: | Standard |
| Maximum Speed: | 454 Rev/min | Max Flow: | 45 LPM |
| Highlight: | tb0100fp100aaab high torque low rpm motor,parker high torque low rpm motor,tb0100fp100aaab parker tb series motor | ||
TB0100FP100AAAB Parker TB Series Small Frame Low Speed, High Torque Motor interchange
Quick Review:
Drop in replacement for Parker TB0100FP100AAAB low speed, high torque hydraulic motor. 5.9 cu. in. / rev displacement. Maximum pressure 1840 PSI continuous, maximum pressure 2425 PSI intermittent. Torque 1425 in-lb. continuous, torque 1885 in-lb. intermittent. Maximum speed 590 RPM continuous. Flow rate 15.8 GPM. 1" diameter shaft with woodruff key. 1/2" NPT ports. 4 Bolt SAE mounting flange. 1 year warranty.
Series Details:
This light to medium duty motor incorporates all the features of heavy duty motors. Design features include a high pressure shaft seal so external drains are never required, roller vane technology for automatic wear compensation, and full flow internal cooling and flushing. This is a very economical motor for most light to medium duty applications.
Specifications
| Series: | TB |
| Rotation: | Standard |
| Mounting: | 4 Bolt |
| Maximum Speed: | 454 rev/min |
| Maximum Oil Flow: | 45 lpm |
| Max. Differential Pressure: | 125 bar |
| Maximum Torque: | 159 Nm |
