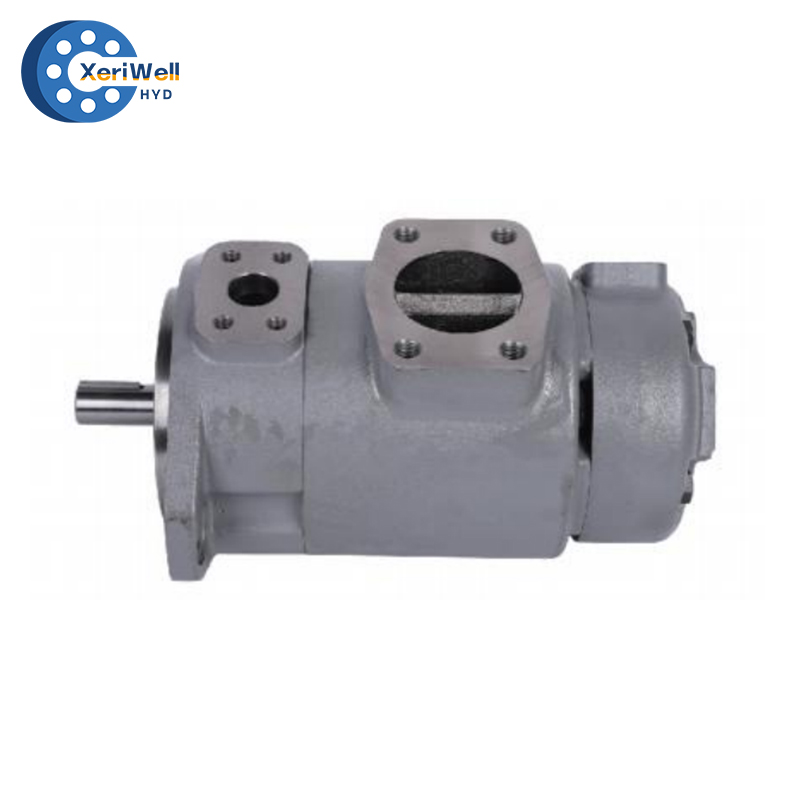

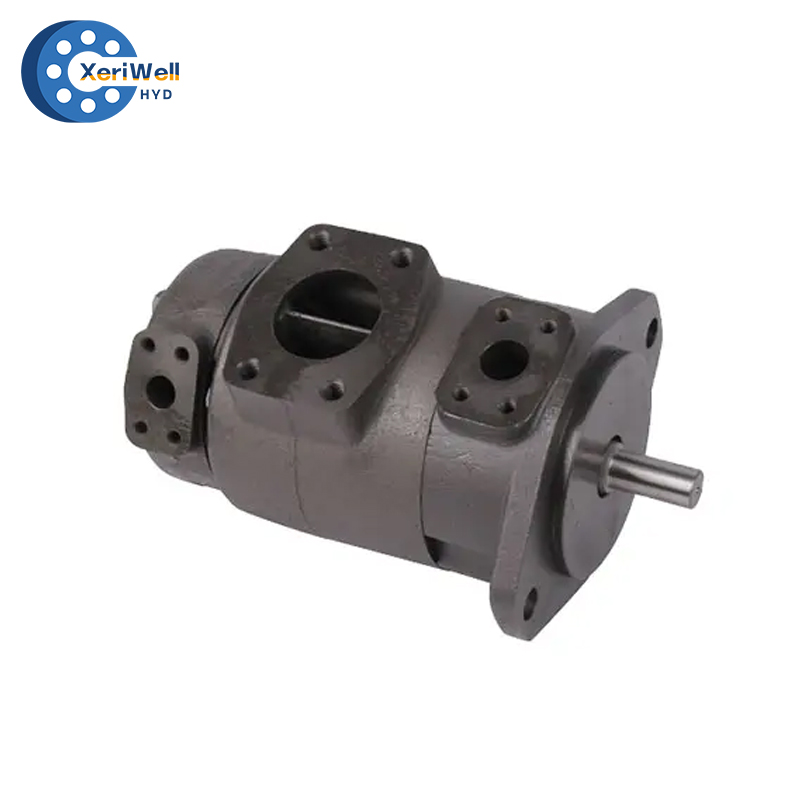

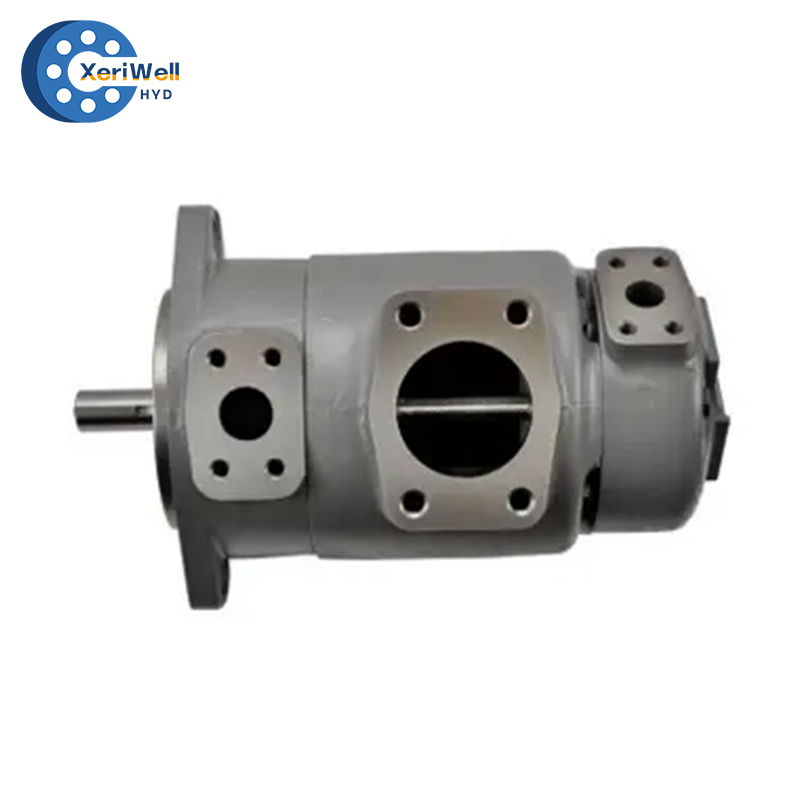

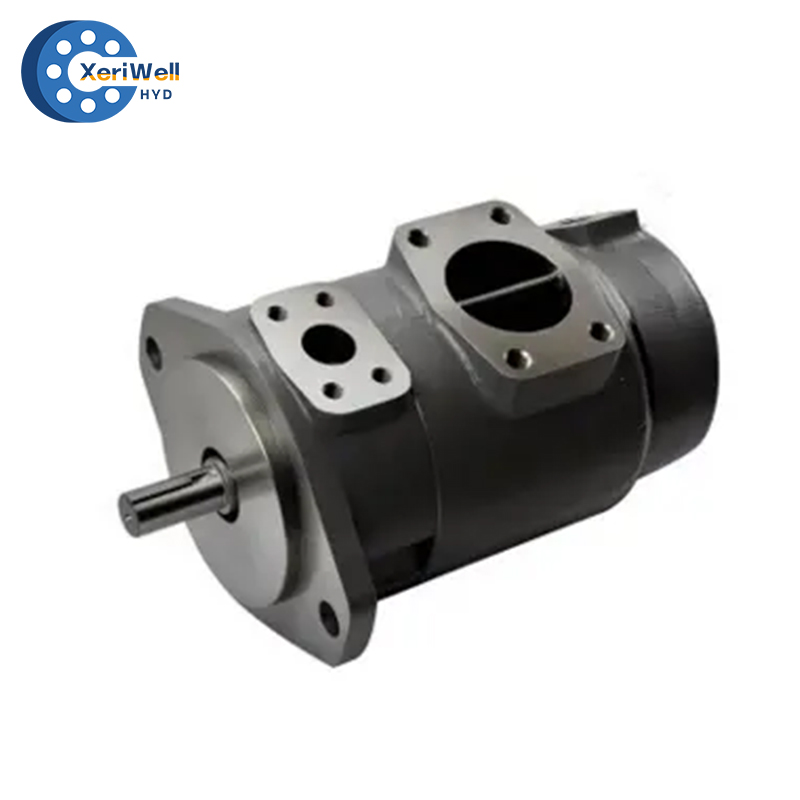

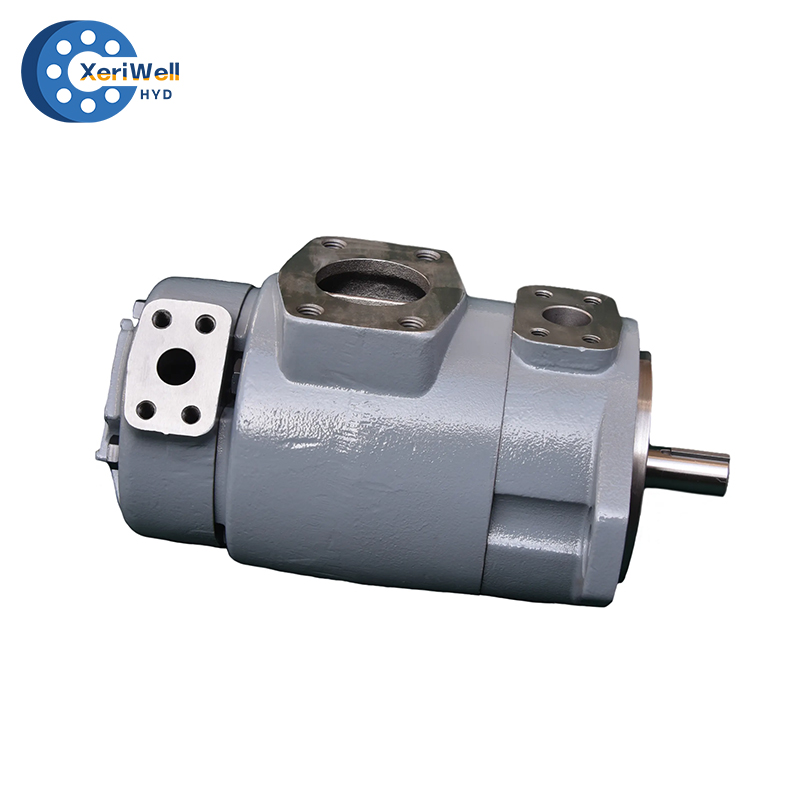

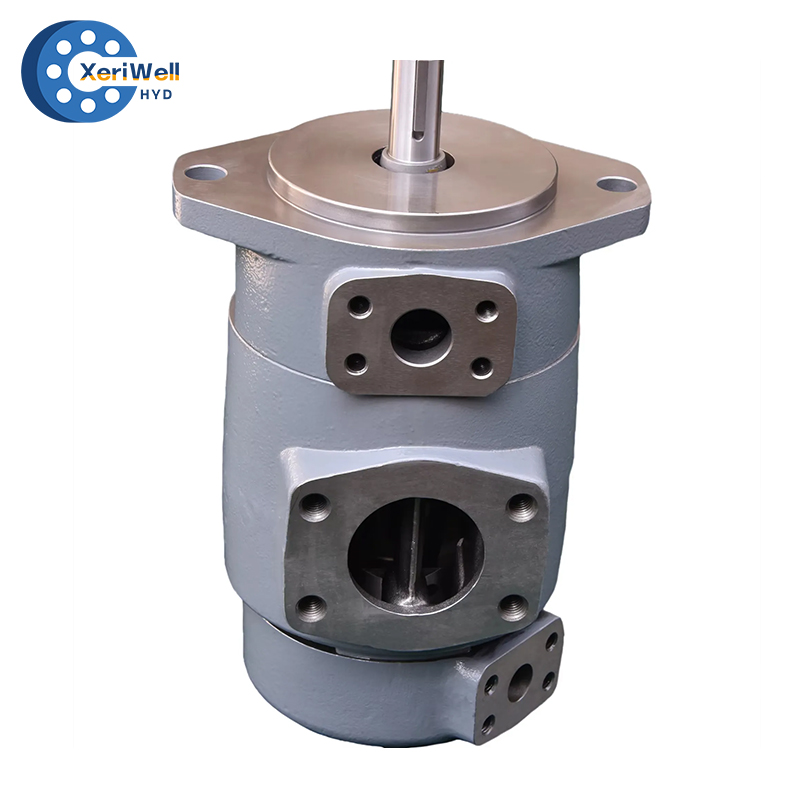

The Tokyo Keiki SQP Series double vane pump is a highly versatile and efficient hydraulic solution, designed for applications requiring dual hydraulic circuits. With low-noise performance and energy-saving features, it provides an ideal combination of reliability and flexibility for industrial and mobile systems.
1) Low Noise Operation
The SQP Series double pump is engineered for exceptionally quiet operation, significantly reducing noise levels even in high-demand environments. This makes it suitable for noise-sensitive applications where operator comfort and compliance are essential.
2) Energy Efficiency and Flexibility
The double pump configuration allows for a combination of different displacements in a single unit. This provides greater flexibility in circuit design compared to single high-displacement pumps, enabling tailored performance and enhanced energy efficiency.
3) Maintenance-Friendly Design
The pump features a cartridge kit structure, allowing quick and easy servicing without disassembling the entire unit. This reduces maintenance time, minimizes downtime, and ensures consistent performance over extended periods.
The Tokyo Keiki SQP Series double vane pump is a dependable choice for complex hydraulic systems, offering quiet operation, design flexibility, and ease of maintenance.
Type: SQP21, SQP31, SQP32, SQP41, SQP42, SQP43

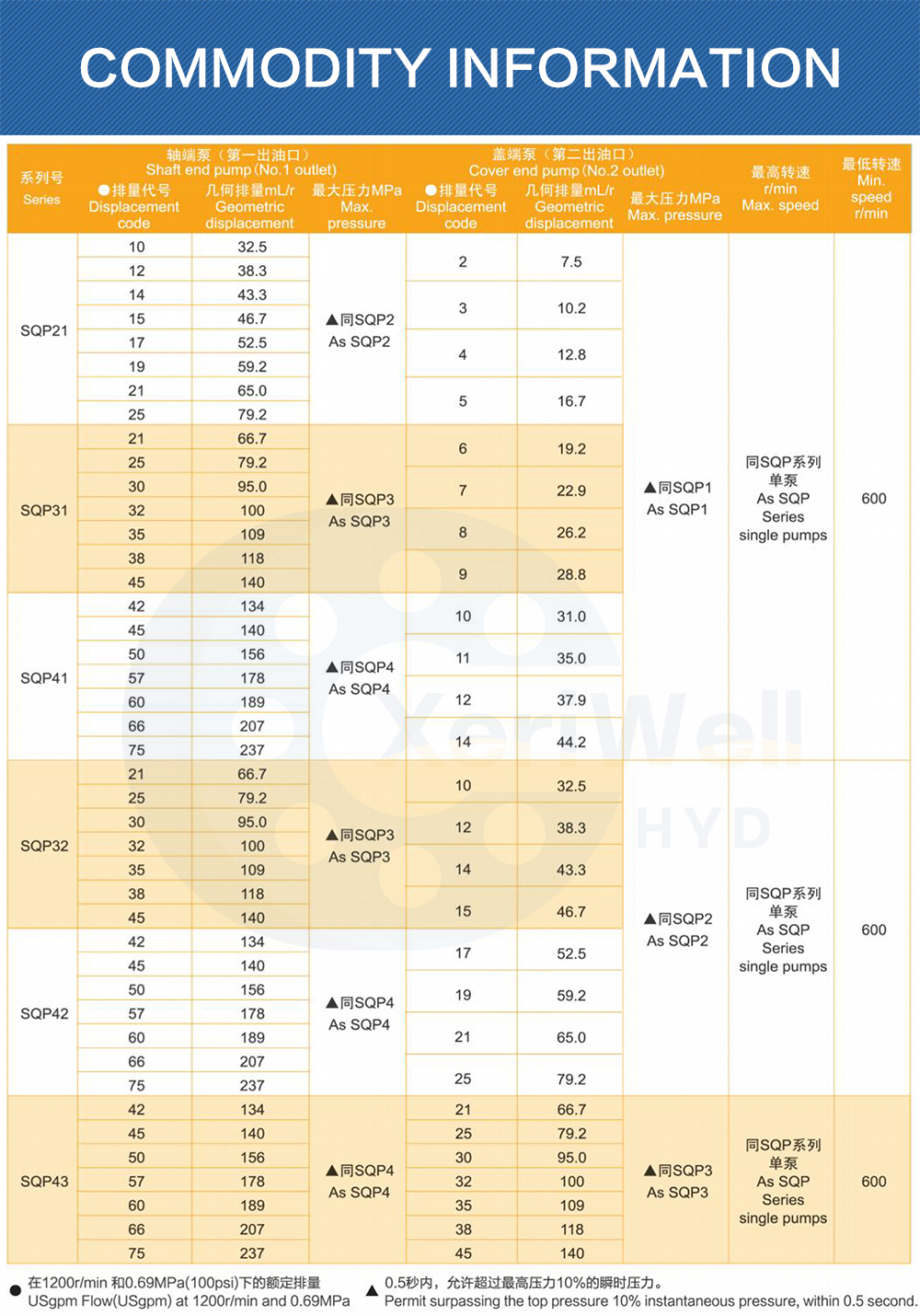

| 系列号 Series | 轴端泵（第一出油口） Shaft end pump (No.1 outlet) | 盖端泵（第二出油口） Cover end pump (No.2 outlet) | 最高转速 r/min Max. speed | 最低转速 Min. speed r/min | ||||
| ●排量代号 Displacement code | 几何排量mL/r Geometric displacement | 最大压力MPa Max. pressure | ●排量代号 Displacement code | 几何排量mL/r Geometric displacement | 最大压力MPa Max. pressure | |||
| SQP21 | 10 | 32.5 | ▲同SQP2 As SQP2 | 2 | 7.5 | ▲同SQP1 As SQP1 | 同SQP系列 单泵 As SQP Series single pumps | 600 |
| 12 | 38.3 | |||||||
| 14 | 43.3 | 3 | 10.2 | |||||
| 15 | 46.7 | |||||||
| 17 | 52.5 | 4 | 12.8 | |||||
| 19 | 59.2 | |||||||
| 21 | 65 | 5 | 16.7 | |||||
| 25 | 79.2 | |||||||
| SQP31 | 21 | 66.7 | ▲同SQP3 As SQP3 | 6 | 19.2 | |||
| 25 | 79.2 | |||||||
| 30 | 95 | 7 | 22.9 | |||||
| 32 | 100 | |||||||
| 35 | 109 | 8 | 26.2 | |||||
| 38 | 118 | |||||||
| 45 | 140 | 9 | 28.8 | |||||
| SQP41 | 42 | 134 | ▲同SQP4 As SQP4 | 10 | 31 | |||
| 45 | 140 | |||||||
| 50 | 156 | 11 | 35 | |||||
| 57 | 178 | |||||||
| 60 | 189 | 12 | 37.9 | |||||
| 66 | 207 | |||||||
| 75 | 237 | 14 | 44.2 | |||||
| SQP32 | 21 | 66.7 | ▲同SQP3 As SQP3 | 10 | 32.5 | ▲同SQP2 As SQP2 | 同SQP系列 单泵 As SQP Series single pumps | 600 |
| 25 | 79.2 | |||||||
| 30 | 95 | 12 | 38.3 | |||||
| 32 | 100 | |||||||
| 35 | 109 | 14 | 43.3 | |||||
| 38 | 118 | |||||||
| 45 | 140 | 15 | 46.7 | |||||
| SQP42 | 42 | 134 | ▲同SQP4 As SQP4 | 17 | 52.5 | |||
| 45 | 140 | |||||||
| 50 | 156 | 19 | 59.2 | |||||
| 57 | 178 | |||||||
| 60 | 189 | 21 | 65 | |||||
| 66 | 207 | |||||||
| 75 | 237 | 25 | 79.2 | |||||
| SQP43 | 42 | 134 | ▲同SQP4 As SQP4 | 21 | 66.7 | ▲同SQP3 As SQP3 | 同SQP系列 单泵 As SQP Series single pumps | 600 |
| 45 | 140 | 25 | 79.2 | |||||
| 50 | 156 | 30 | 95 | |||||
| 57 | 178 | 32 | 100 | |||||
| 60 | 189 | 35 | 109 | |||||
| 66 | 207 | 38 | 118 | |||||
| 75 | 237 | 45 | 140 | |||||
| ● 在1200r/min和0.69MPa(100psi)下的额定排量 USgpm Flow(USgpm) at 1200r/min and 0.69MPa ▲ 0.5秒内，允许超过最高压力10%的瞬时压力。 Permit surpassing the top pressure 10% instantaneous pressure,within 0.5 second. | ||||||||
