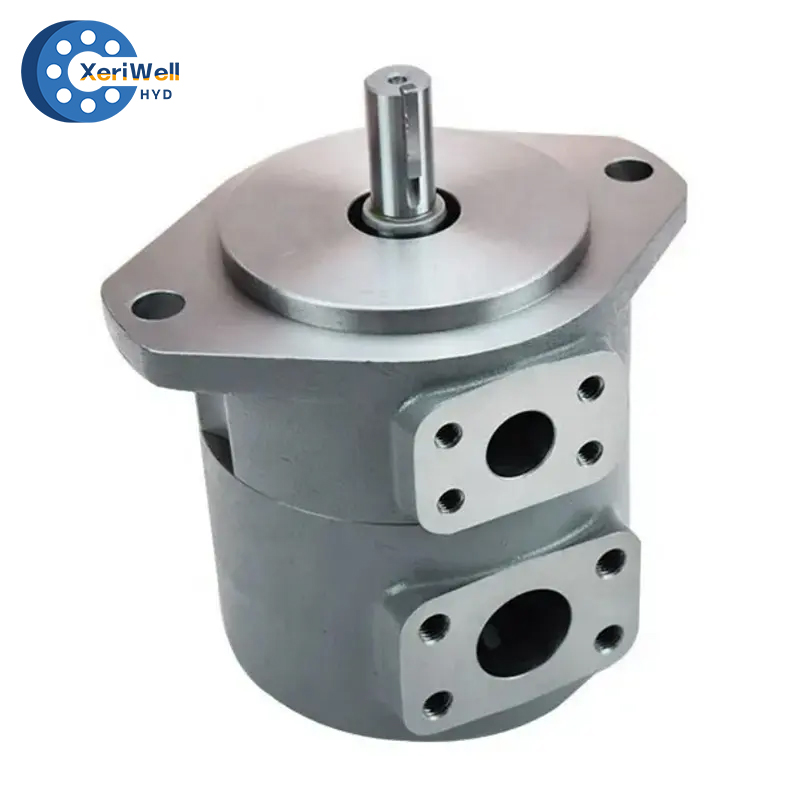

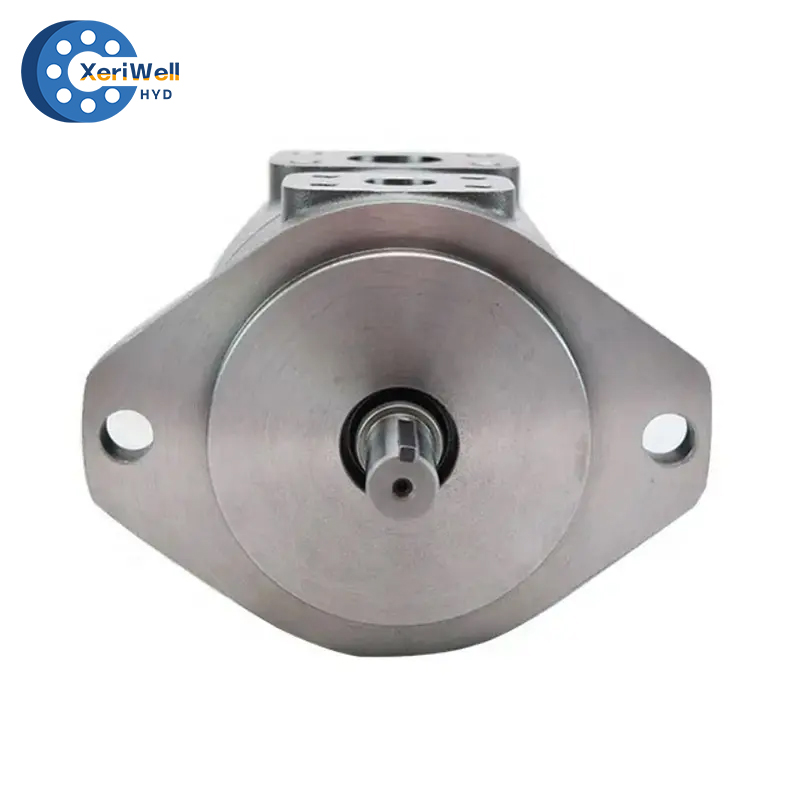

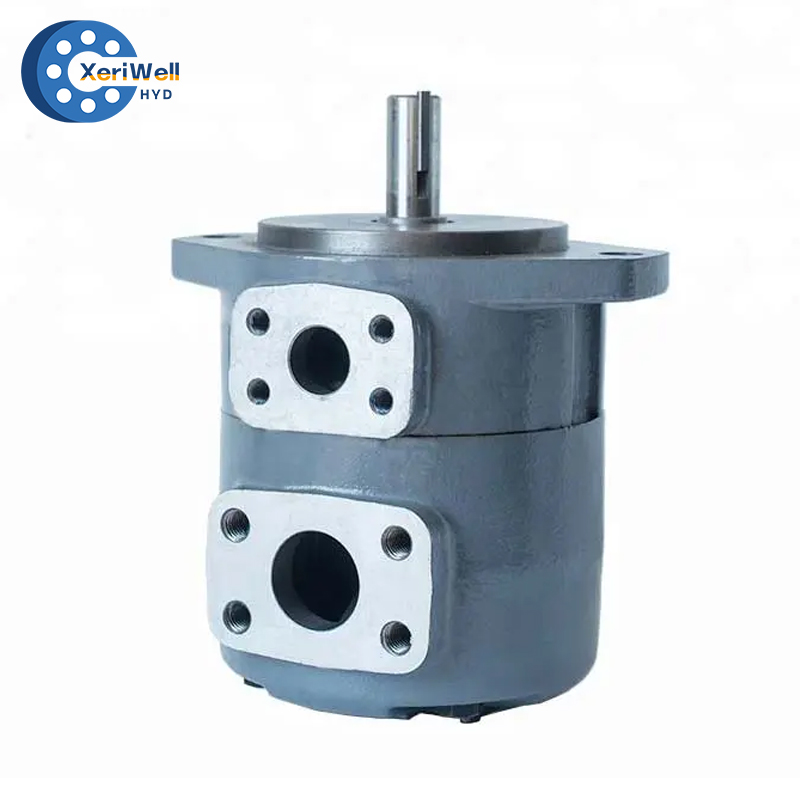

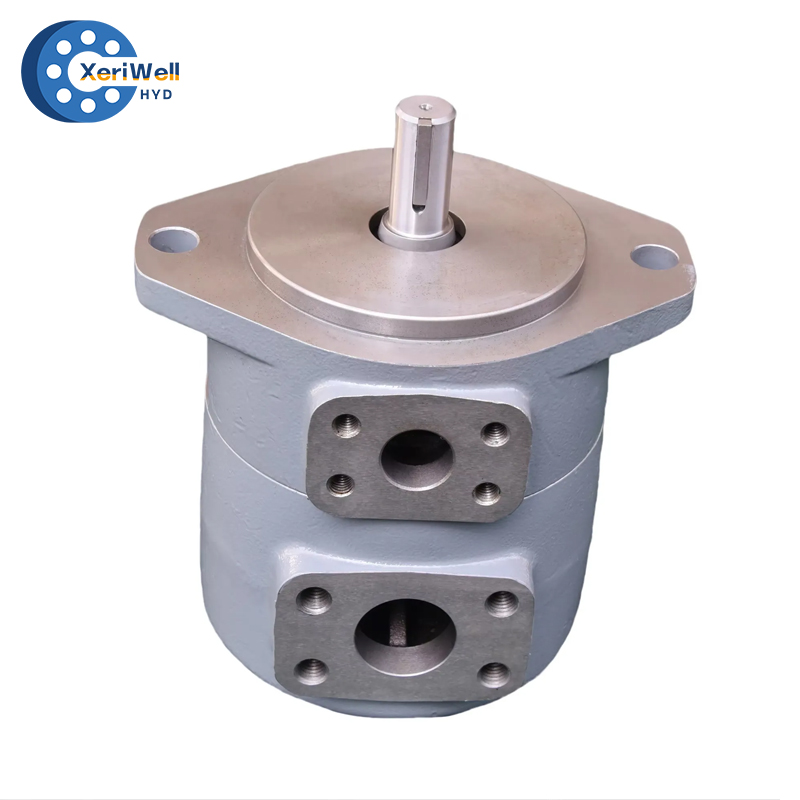

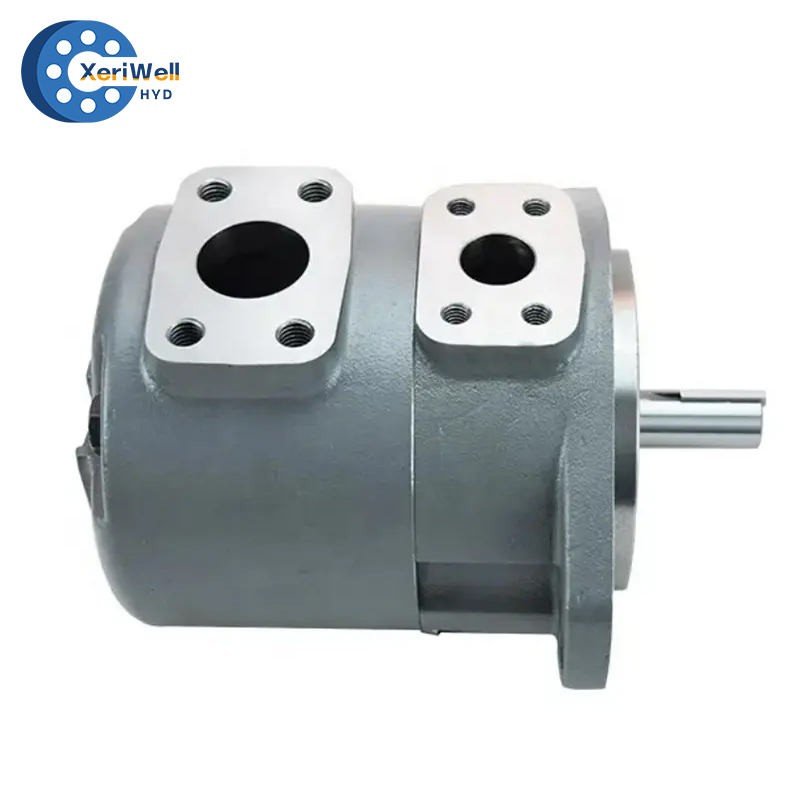

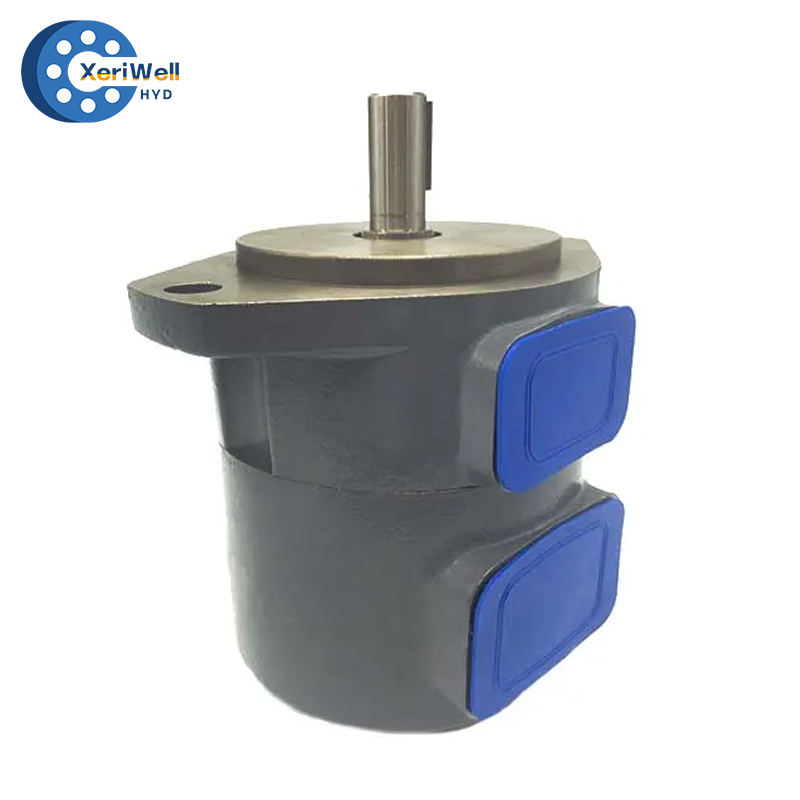

The Tokyo Keiki SQP Series single vane pump is a high-performance hydraulic pump designed to deliver quiet operation, energy efficiency, and ease of maintenance. With a broad range of displacement options and a focus on low-noise performance, the SQP Series single pump is ideal for industrial applications requiring reliable and efficient hydraulic power.
Key Features:
1) Low Noise Operation: Engineered for exceptionally quiet performance, the SQP single pump minimizes operational noise, creating a more comfortable work environment.
2) Energy Efficiency: Offers a wide range of discharge displacements, allowing precise selection for optimal circuit performance and energy savings.
3) Compact Design: The single pump configuration provides a space-saving solution while maintaining excellent hydraulic output.
4) Ease of Maintenance: Features a cartridge kit design for quick and simple servicing, reducing downtime and maintenance costs.
5) Application Versatility: Suitable for a variety of hydraulic systems, offering flexibility in circuit design and adaptability to diverse industrial needs.
The Tokyo Keiki SQP Series single vane pump combines efficiency, reliability, and user-friendly maintenance, making it a trusted choice for industries seeking high-quality hydraulic solutions with low-noise performance.
Type: SQP1, SQP2, SQP3, SQP4

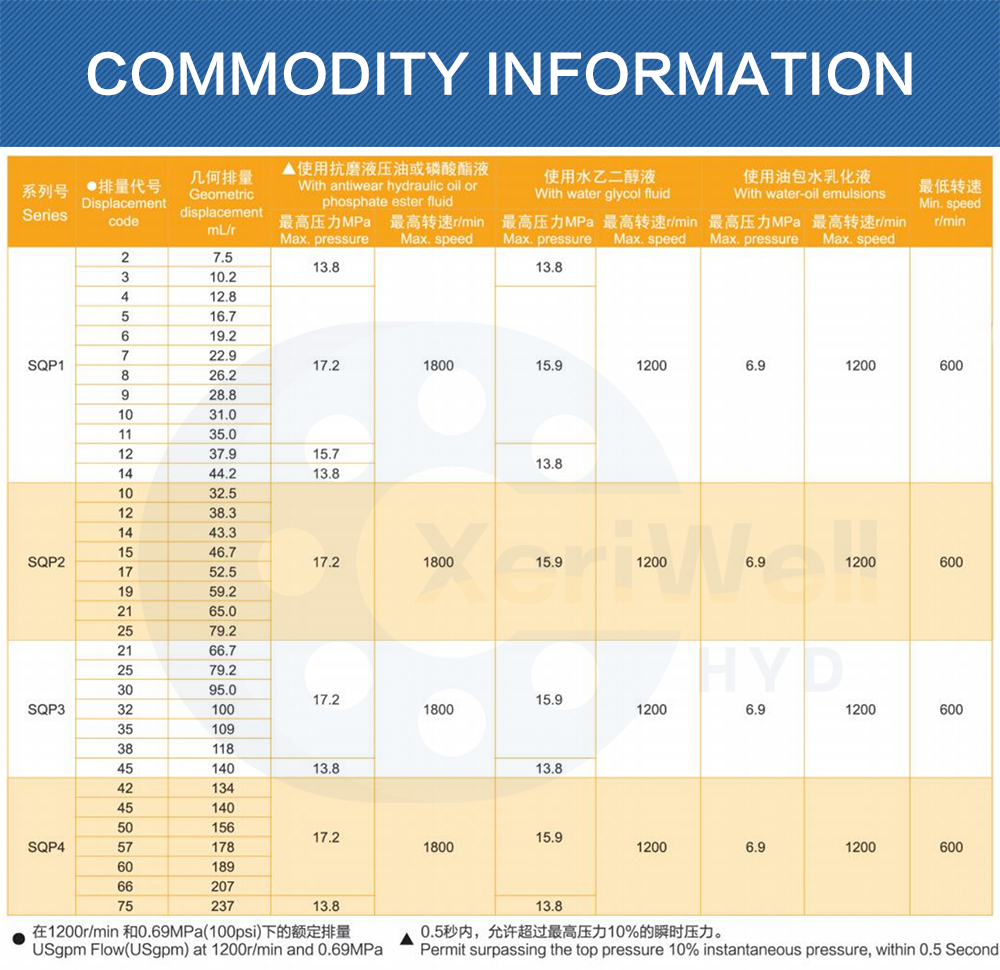

| 系列号 Series | ●排量代号 Displacement code | 几何排量 Geometric displacement mL/r | ▲使用抗磨液压油或磷酸酯液 With antiwear hydraulic oil or phosphate ester fluid | 使用水乙二醇液 With water glycol fluid | 使用油包水乳化液 With water-oil emulsions | 最低转速 Min. speed r/min | |||
| 最高压力MPa Max. pressure | 最高转速r/min Max. speed | 最高压力MPa Max. pressure | 最高转速r/min Max. speed | 最高压力MPa Max. pressure | 最高转速r/min Max. speed | ||||
| SQP1 | 2 | 7.5 | 13.8 | 1800 | 13.8 | 1200 | 6.9 | 1200 | 600 |
| 3 | 10.2 | ||||||||
| 4 | 12.8 | 17.2 | 15.9 | ||||||
| 5 | 16.7 | ||||||||
| 6 | 19.2 | ||||||||
| 7 | 22.9 | ||||||||
| 8 | 26.2 | ||||||||
| 9 | 28.8 | ||||||||
| 10 | 31 | ||||||||
| 11 | 35 | ||||||||
| 12 | 37.9 | 15.7 | 13.8 | ||||||
| 14 | 44.2 | 13.8 | |||||||
| SQP2 | 10 | 32.5 | 17.2 | 1800 | 15.9 | 1200 | 6.9 | 1200 | 600 |
| 12 | 38.3 | ||||||||
| 14 | 43.3 | ||||||||
| 15 | 46.7 | ||||||||
| 17 | 52.5 | ||||||||
| 19 | 59.2 | ||||||||
| 21 | 65 | ||||||||
| 25 | 79.2 | ||||||||
| SQP3 | 21 | 66.7 | 17.2 | 1800 | 15.9 | 1200 | 6.9 | 1200 | 600 |
| 25 | 79.2 | ||||||||
| 30 | 95 | ||||||||
| 32 | 100 | ||||||||
| 35 | 109 | ||||||||
| 38 | 118 | ||||||||
| 45 | 140 | 13.8 | 13.8 | ||||||
| SQP4 | 42 | 134 | 17.2 | 1800 | 15.9 | 1200 | 6.9 | 1200 | 600 |
| 45 | 140 | ||||||||
| 50 | 156 | ||||||||
| 57 | 178 | ||||||||
| 60 | 189 | ||||||||
| 66 | 207 | ||||||||
| 75 | 237 | 13.8 | 13.8 | ||||||
| ● 在1200r/min 和0.69MPa(100psi)下的额定排量 USgpm Flow(USgpm) at 1200r/min and 0.69MPa ▲ 0.5秒内，允许超过最高压力10%的瞬时压力。 Permit surpassing the top pressure 10% instantaneous pressure,within 0.5 Second | |||||||||
