BMER-2-475
Xeriwell or Others
| Type: | High Torque Low Speed Hydraulic Motor | Model Number: | BMER-2-475 |
|---|---|---|---|
| Displacement: | 475c | Replace: | Parker TG |
| Flange: | Wheel Mount | Pilot: | 82.55mm |
| Ports: | 7/8-14 O-ring | Shaft: | 31.75mm Tap |
| Key: | 7.96x7.96x25.4 | Max Speed: | 195 Rpm |
| Max Torque: | 1260 N.m | Rotation: | Standard |
| Highlight: | slow speed high torque motor,omt hydraulic motor | ||

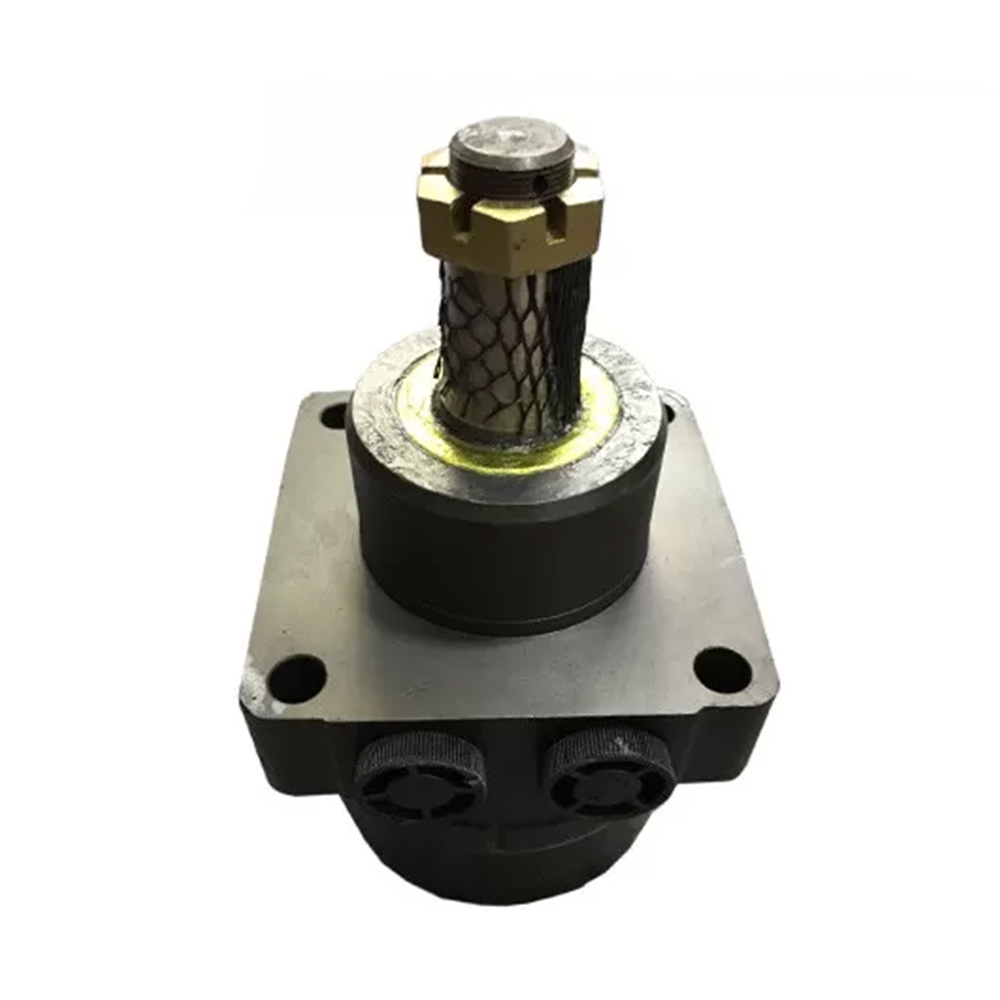

TG0475US080AAAA Parker Motor Hydraulic Alternative Low Speed High Torque
Quick details:
TG0475US080AAAA replacement
BMER-2-475-MS-T4-B
detail specs please contact us
The company strong at Hydraulic Motors produce and export.
Customers use our hydraulic motor to be alternative as PARKER, , WHITE, EATON, M+S, and many more.
Because our motor are very ECONOMICAL, and have obviouse advantage in terms of delivery time, price, service compare with other makes.
Main Specificaion：
| Type | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | |
| 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 | ||
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
| Eaton/ / White/ Parker |
| 101-1001 |
| 101-1004 |
| 101-1022 |
| 101-1031 |
| 103-1004 |
| 103-1027 |
| 103-1030 |
| 103-1032 |
| 104-1001 |
| 104-1002 |
| 104-1004 |
| 104-1027 |
| 104-1028 |
| 112-1068 |
| 119-1030 |
| 119-1031 |
| 119-1028 |
| 119-1029 |
| TE0065 |
| TE0100 |
| TE0165 |
| TE0195 |
| TG0475 |
| TG0530 |
Are you looking for Economical Low Speed High Torque Motors?
Perhaps you are looking for Parker / / Eaton / M+S replacement Low Speed High Torque Motors?
Or you are looking for other economical hydraulic spare part for Industrial equipments?
Contact Hanju and you will be pleasantly to find that they will surprise you.
