| Quantity: | |
|---|---|
TG0475UM460AAAA
Xeriwell or Others
| Item: | LSHT Motor | OEM #: | TG0475UM460AAAA |
|---|---|---|---|
| Manufacturer: | Xeriwell | Displacement: | 475 Ml/r |
| Mounting Flange: | Wheel Flange | Shaft Type: | 32mm Key Shaft |
| Highlight: | TG0475UM460AAAA lsht hydraulic motor,lsht hydraulic motor 475cm3,parker lsht motors 475cm3 | ||

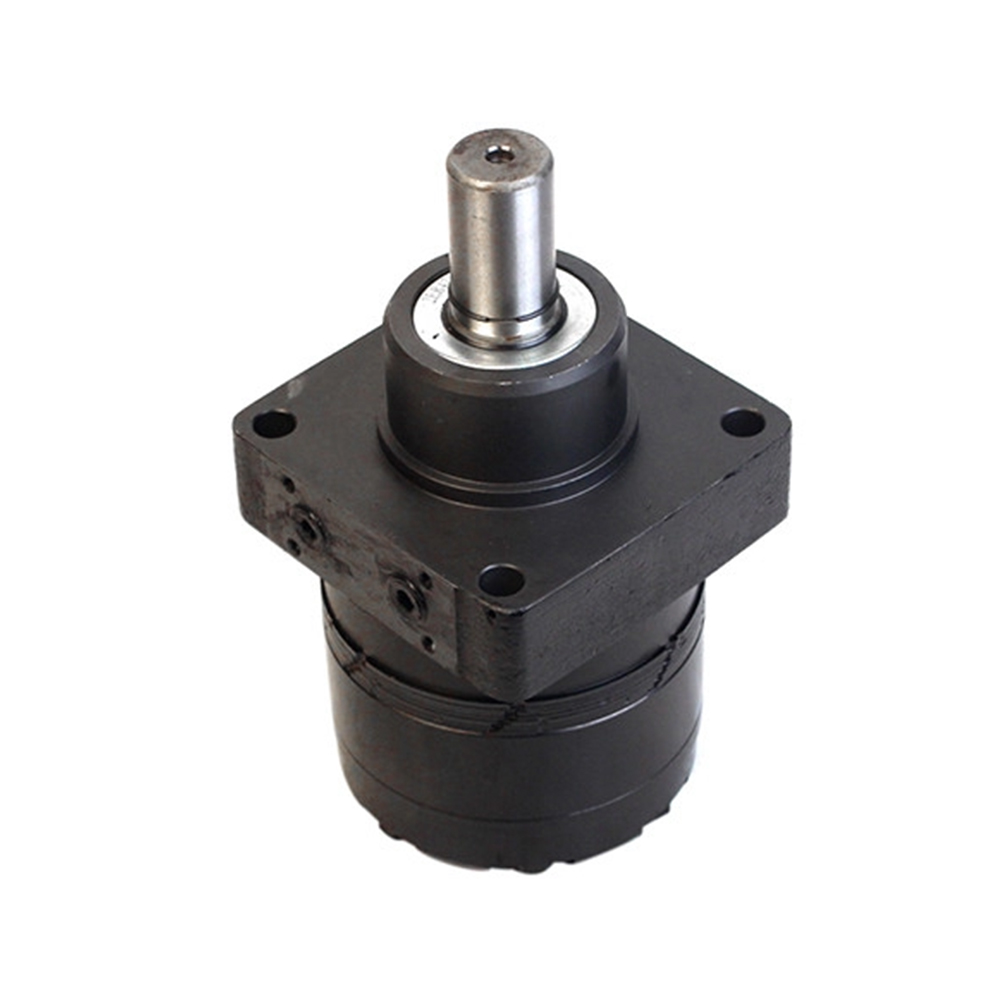

TG0475UM460AAAA, TG Series, 475cm³ Displacement, 32mm key shaft
Quick review:
This is Parker compatible motor with same form, fit and function
Apply to lown mower and tractor mowers
Here is main specifications:
| Series: | TG |
| Shaft: | 32mm key shaft |
| Rotation: | CCW |
| Displacement (cm3/rev): | 0475 |
| Mounting: | Wheel, Standard |
| Geometric Displacement: | 475cm3/rev (29.1 in3/rev) |
| Maximum Speed: | 237 rev/min |
| Maximum Oil Flow (continuous / intermittent): | 76 lpm (20 gpm) / 114 lpm (30 gpm) |
| Max. Differential Pressure (continuous / intermittent): | 138 bar (2000 PSID) / 207 bar (3000 PSID) |
| Maximum Supply Pressure: | 300 bar (4350 PSIG) |
| Maximum Torque - Continuous / Intermittent: | 887 Nm (7853 lb-in) / 1372Nm (12145 lb-in) |
| Maximum Performance: | 28 KW (38HP) |
| Minimum Starting Torque - Continuous / Intermittent: | 740 Nm (6549 lb-in) / 1120 Nm (9909 lb-in) |
More TG series wheel motors we have, key shaft, spline shaft and taper shaft
More PARKER Low speed high torque compatible motors availalbe like :
TB
TC
TJ
TE
TF
TG
TK
