| Quantity: | |
|---|---|
TG0300
Xeriwell or Others
| Features: | Compatible With Parker Tg | Type: | Torqmotor |
|---|---|---|---|
| Manufacturer: | Xeriwell | Model: | TG0300 |
| Displacement: | 300 Ml/r | Flow Rate: | 80 Lpm Cont. |
| Highlight: | Vehicle Traction Drives Gerotor Hydraulic Motor,TG0300 Gerotor Hydraulic Motor,Vehicle Traction Drives Parker Gerotor Motor | ||

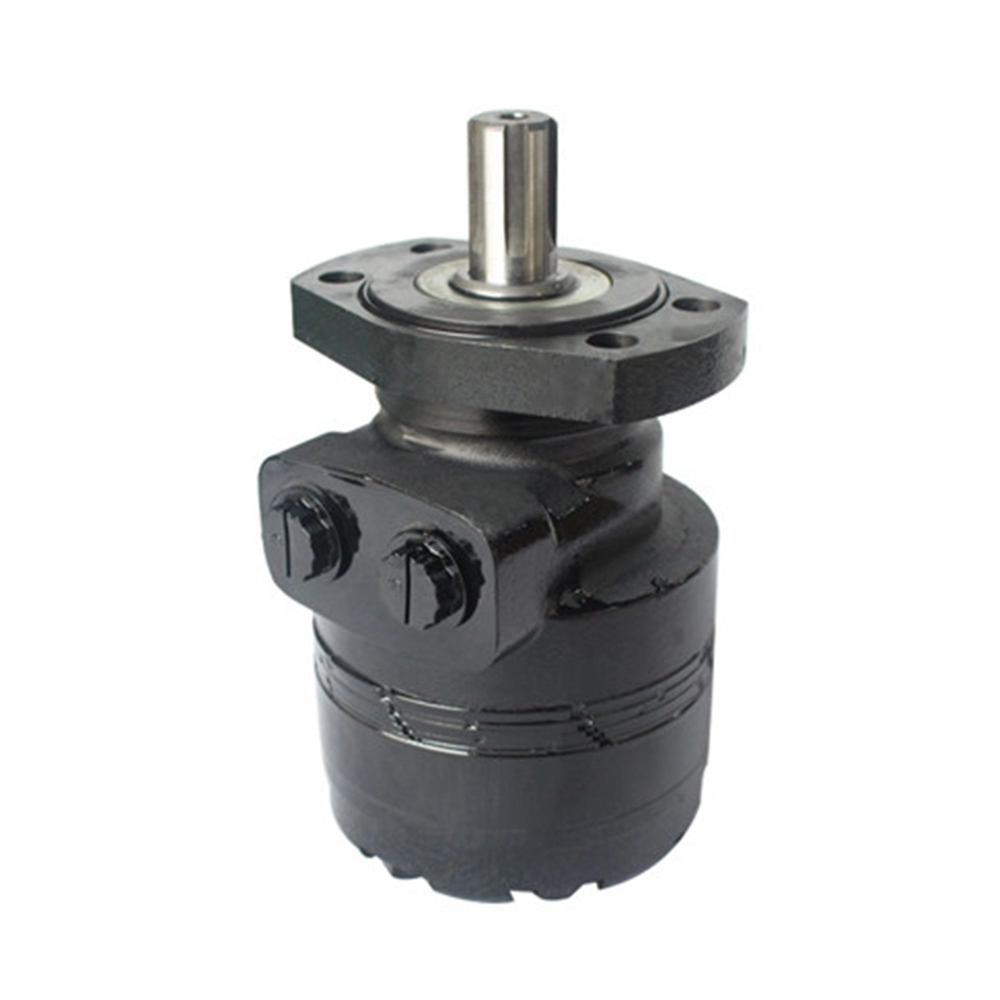

Parker TG Series Motor - TG0300, SAE "A" 4-hole Magneto Mount for Vehicle traction drives
This is a Parker TG series replacement motor, 100% compatible with TG0300 in fort, fit and function.
Suitable for customers who want to reduce costs while retaining the performance of Parker motors
Here are the technical informations:
| Parker Model No. | TG0300 |
| Xeriwell Model No. | BMER-2-300-MSX-SW-R |
| Flange & Port | 4-Ø13.5 Magneto Mount,Pilot Ø82.55×2.8, Ports 7/8-14 O-ring |
| Shaft | Shaft Ø25.4 ,splined key SAE 6B |
| Rotation | Counter clockwise |
| Max. speed (rpm) | 250 315 |
| Max. torque (N•m) | 810 930 1120 |
| Max. output (kW) | 18.0 21.0 |
| Max. flow (L/min) | 80 95 |
Some of our customers use this for Vehicle traction drives, also some customers use this on Aerial Work Platforms as boom rotate function, Winches, Conveyors, Grapples and others.
Please see pictures for details.
| Features: | Compatible With Parker Tg | Type: | Torqmotor |
|---|---|---|---|
| Manufacturer: | Xeriwell | Model: | TG0300 |
| Displacement: | 300 Ml/r | Flow Rate: | 80 Lpm Cont. |
| Highlight: | Vehicle Traction Drives Gerotor Hydraulic Motor,TG0300 Gerotor Hydraulic Motor,Vehicle Traction Drives Parker Gerotor Motor | ||
Parker TG Series Motor - TG0300, SAE "A" 4-hole Magneto Mount for Vehicle traction drives
This is a Parker TG series replacement motor, 100% compatible with TG0300 in fort, fit and function.
Suitable for customers who want to reduce costs while retaining the performance of Parker motors
Here are the technical informations:
| Parker Model No. | TG0300 |
| Xeriwell Model No. | BMER-2-300-MSX-SW-R |
| Flange & Port | 4-Ø13.5 Magneto Mount,Pilot Ø82.55×2.8, Ports 7/8-14 O-ring |
| Shaft | Shaft Ø25.4 ,splined key SAE 6B |
| Rotation | Counter clockwise |
| Max. speed (rpm) | 250 315 |
| Max. torque (N•m) | 810 930 1120 |
| Max. output (kW) | 18.0 21.0 |
| Max. flow (L/min) | 80 95 |
Some of our customers use this for Vehicle traction drives, also some customers use this on Aerial Work Platforms as boom rotate function, Winches, Conveyors, Grapples and others.
Please see pictures for details.
