BMER-2-240
Xeriwell or Others
| Product: | Low Speed, High Torque (LSHT) Motor | Model No.: | BMER-2-240-WH-B |
|---|---|---|---|
| Displacement: | 240cc | Flange: | 4 Bolt Wheel Mount |
| Shaft: | STRIGHT KEY SHAFT | Port: | Manifold Ports |
| Rotation: | Standard | Color: | Black |
| Highlight: | TG0240HK460 gerotor motor,Marine Equipments gerotor motor,Marine Equipments char lynn gerotor motor | ||

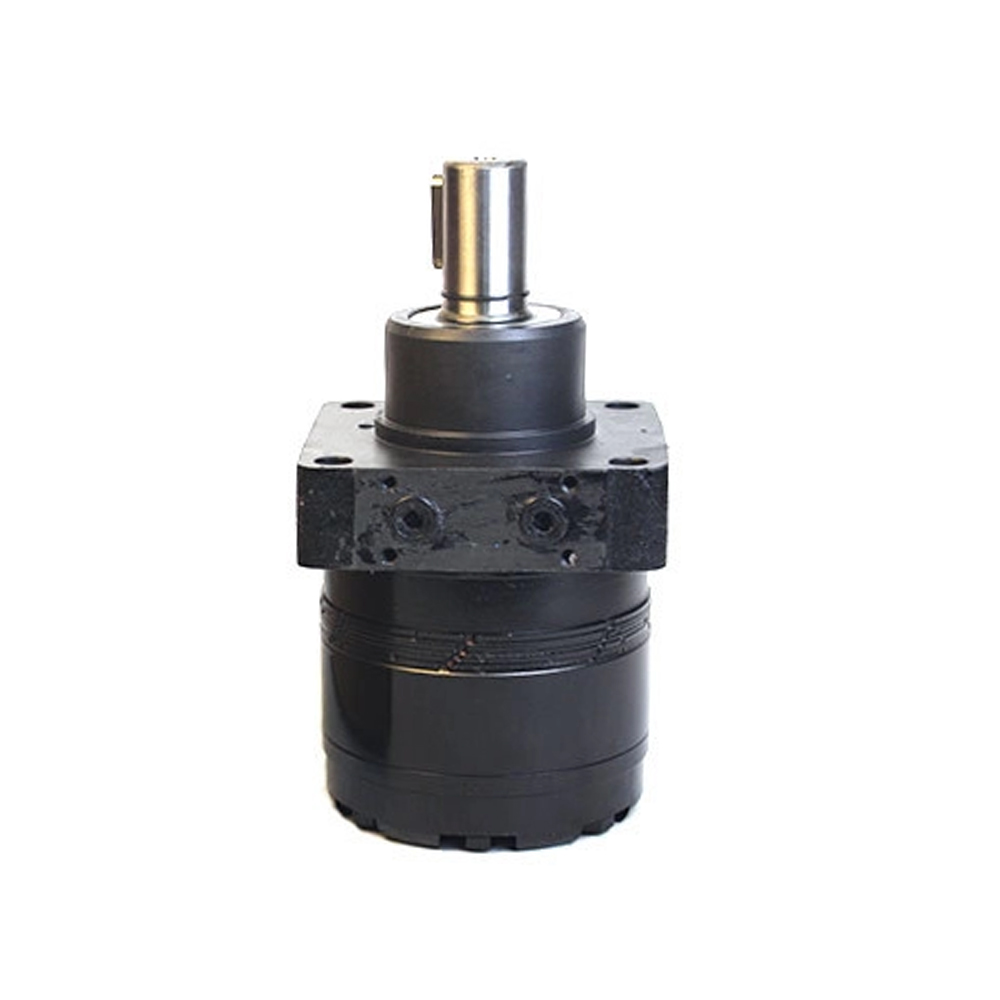

TG0240HK460 gerotor motor,4 bolt wheel mount,manifold port threads for marine equipments
Quick review:
| Product | Low Speed, High Torque (LSHT) Motor |
| Model No. | BMER-2-240-WH-B-R |
| Displacement | 240CC |
| Flange | 4 bolts wheel shaft, 147.6mm |
| Shaft | 32mm,key shaft |
| Port | manifold M6X12 |
| Rotation | Standard |
| Color | Black |
| Brand | Xeriwell |
Specification:
| Type | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | |
| 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 | ||
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
As Orbital Motor Manufacturers, Xeriwell Technology Company and our factories are committed to building international brands, for the quality requirements of Orbital Motor, we have not the slightest slack, with high-quality products and price advantages, we have reached different degrees of cooperative relations with dealers in Southeast Asia, the Middle East, South America, North America, Northern Europe, Africa, India and other countries and regions. Overall, working with Xeriwell must be a good decision.
