TG0785
Xeriwell or Others
| Features: | Compatible With Parker Tg | Type: | Torqmotor |
|---|---|---|---|
| Manufacturer: | Xeriwell | Model: | TG0785 |
| Displacement: | 785 Ml/r | Flow Rate: | 75 Lpm Cont. |
| Highlight: | Conveyors Gerotor Hydraulic Motor,TG Series Parker Gerotor Motor,Conveyors Parker Gerotor Motor | ||
Parker TG Series Motor -TG0785ES44AAAB, 1-1/4"-14T Spline, 785cc / 47.89in⊃3;, for Conveyors
This is a Parker TG series replacement motor, 100% compatible with TG0300 in fort, fit and function.
Suitable for customers who want to reduce costs while retaining the performance of Parker motors
Reseller: If you’re a importer, distributor, OEM, you may qualify for reseller discount.
Here are the technical informations:
| Parker Model No. | TG0785ES440AAAB |
| Xeriwell Model No. | BMER-2-750-FD-FD1 |
| Displacement | 785cc / 47.89in⊃3; |
| Flange | SAE "A" 6-hole Magneto Mount |
| Port | 7/8"-14 ORB Porting |
| Shaft | 1-1/4"-14T Spline |
| Rotation | Counter clockwise |
| Max. speed (rpm) | 100 120 |
| Max. torque (N•m) | 1050 1180 1370 |
| Max. output (kW) | 8.0 10.0 |
| Max. flow (L/min) | 75 90 |
Some of our customers use this for Conveyors, also some customers use this on Aerial Work Platforms as boom rotate function, Winches, Grapples and others.

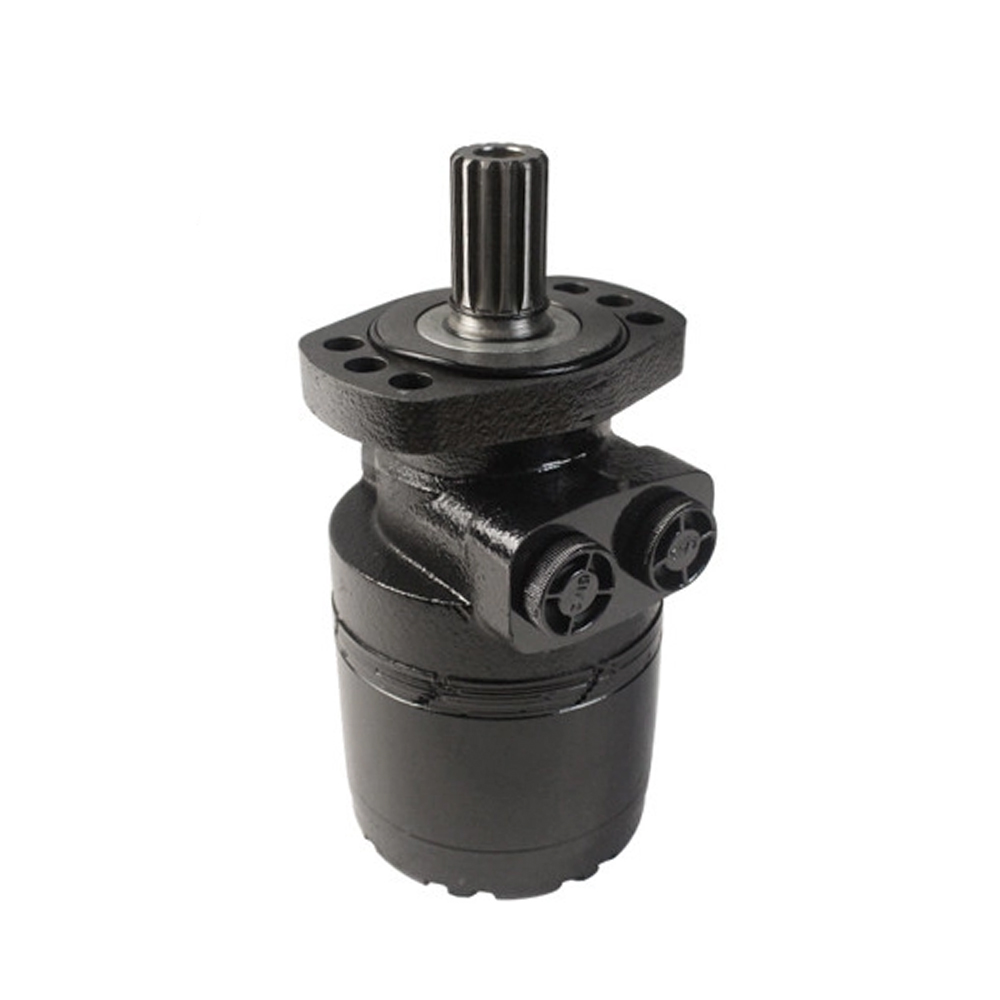

Please see pictures for details.
