BMER-2-300-MSX-SW-R
Xeriwell or Others
| Features: | Compatible With Parker TG | Type: | Gerotor Hydraulic Motor |
|---|---|---|---|
| Manufacturer: | Xeriwell | Model: | BMER-2-300-MSX-SW-R |
| Displacement: | 300 Ml/r | Rotation: | Counterclockwise |
| Highlight: | counterclockwise parker hydraulic motor,tg parker hydraulic motor,counterclockwise parker tg motor | ||

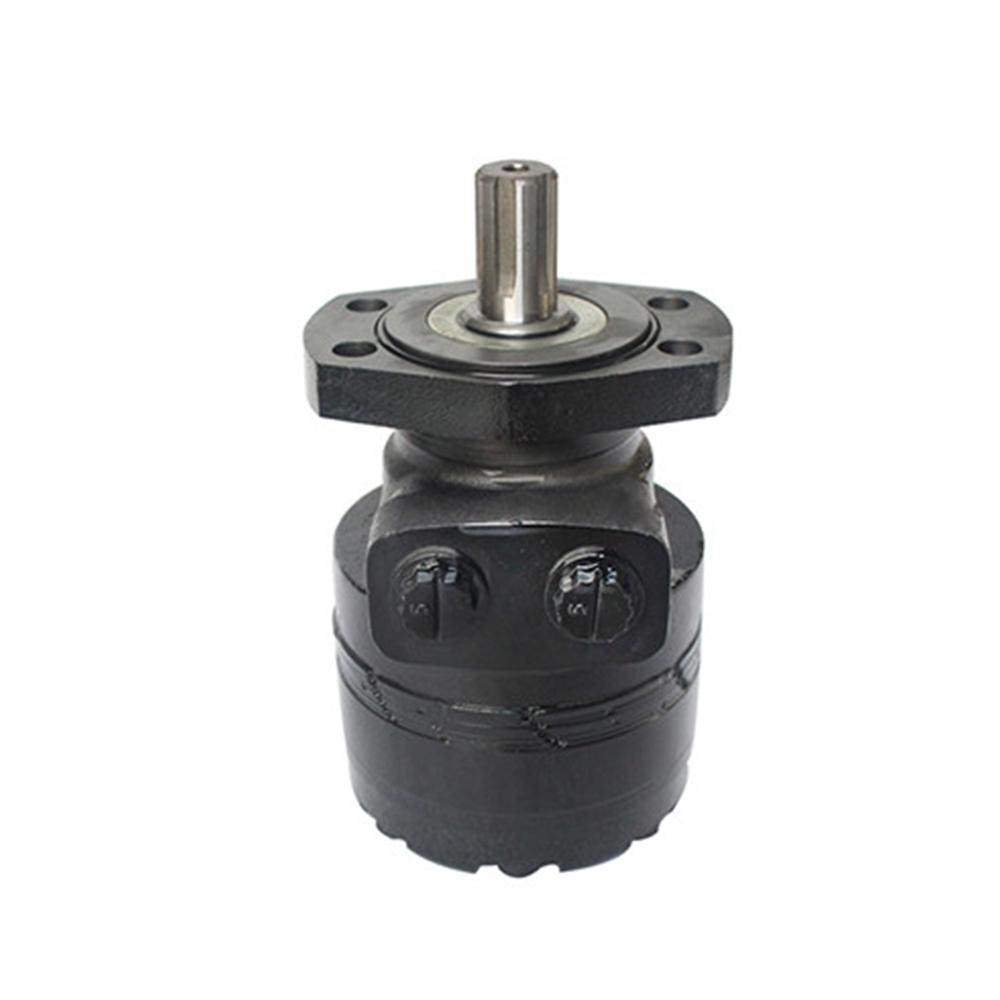

Parker Motors, TG replacement, 4-Ø13.5 Magneto Mount, Ports 7/8-14 O-ring, Counterclockwise
This is a Parker TG aftermarket motor. it's not made by Parker, it's made by Xeriwell from China, which is our specialty.
Spec:
| Type | BMER | |
| 300 | ||
| Geometric displacement (cm3 /rev.) | 296 | |
| Max. speed (rpm) | cont. | 250 |
| int. | 315 | |
| Max. torque (N•m) | cont. | 810 |
| int. | 930 | |
| Max. output (kW) | cont. | 1120 |
| int. | 18 | |
| peak | 21 | |
| Max. pressure drop (MPa) | cont. | 20.5 |
| int. | 24 | |
| peak | 27.6 | |
| Max. flow (L/min) | cont. | 80 |
| int. | 95 | |
Quick review : BMER-2-300-MSX-SW-R

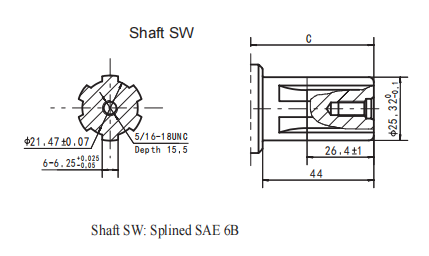

Output Shaft : Shaft Ø25.4 ,splined key SAE 6B
Rotation Direction : Reverse Timed
If you are looking for a Parker similar or identical motor, contact us immediately, send your request and we will work for you.
