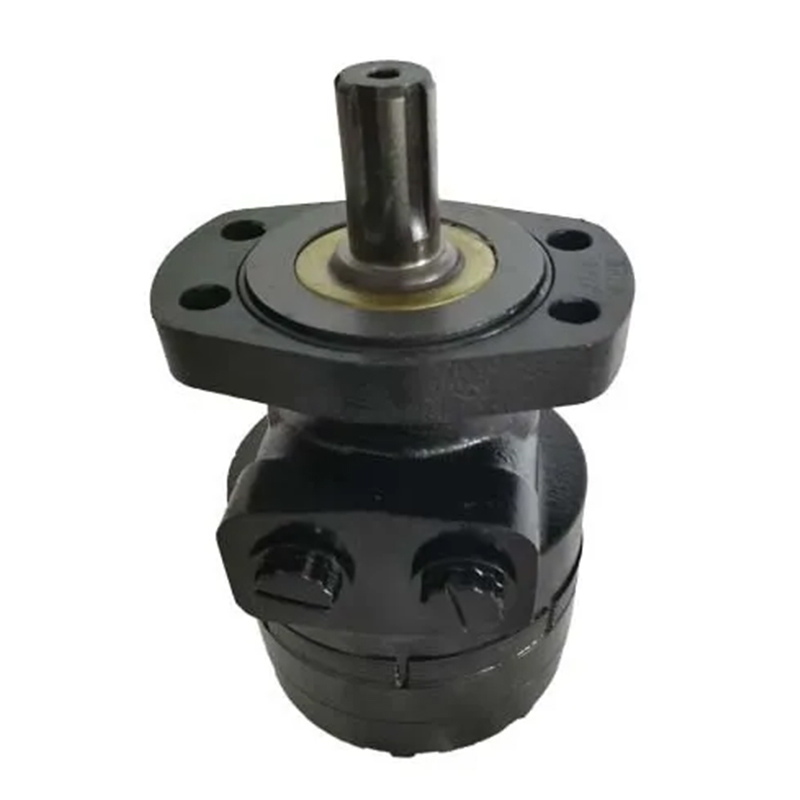

TG/RE Series Black Hydraulic Gear Motor with 35mm Shaft | Ideal for Wood Chippers

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Availability:





Inquire Add to Basket

Model:
TG
Brand:
Xeriwell or Others

Product Description

Products Name:	Low Speed High Torque Hydraulic Orbital Motor	Shaft:	35mm
Quality:	Grade AAA, Similar To Parker	Color:	Black
Max Torque:	800-1200N/m	Application:	Agriculture And Constuction Machine, Concrete Pumps, Fishing Machines
Highlight:	high torque gear motor , high speed gear motor

Hydraulic Gear Motor TG , RE Series Replace Fishing Boats Winch Hydraulic Parts

Introduction:

The TG hydraulic orbital motor boasts outstanding durability and excellent side load resistance. Equipped with a high-pressure shaft seal, it delivers steady performance even at low speeds, making it well-suited for medium-duty applications including vehicle propulsion, augers, chain drives, winches and boom rotation.

The TF series comes with a 1.25-inch standard shaft. It withstands intermittent working pressure up to 4,000 psi and outputs a maximum torque of 8,100 lb-in.

This heavy-duty low-speed high-torque (LSHT) orbital motor adopts a sturdy build. Continuous oil lubrication over splines extends its service life, while it retains superior side load capacity and ultra-smooth operation at extra-low speeds. A high-pressure shaft seal is fitted as standard. Its innovative structure removes the requirement for a drain line. Rigorous design and precision manufacturing ensure reliable long-term performance.

Features/Benefits:

• Flange mounts carry up to 4,000 lb. side load
• Wheel mounts carry up to 6,000 lb. side load
• Robust construction for longer life
• Continuous oil flow across internal splines for longer life
• Superior side load capacity
• Smooth, extra low speed operation
• High pressure shaft seal is standard
• Innovative design eliminates the need for a drain
• Dependability based on high quality design and manufacturing
• Designed and manufactured in Greeneville, TN USA

Specification:

Type		TG200	TG250	TG315	TG400	TG500
Displacement (cc/rev)		203.2	255.9	316.5	406.4	489.2
Max torque (n.m)	cont	510	621	740	850	830
Max torque (n.m)	int	439	348	282	220	184
Max pressure (mpa)	cont	17.5	17.5	17.5	15.5	12.5
Max pressure (mpa)	int	20	20	20	19	16
Max speed rate (rpm)	cont	366	290	236	183	155
Max speed rate (rpm)	int	439	348	282	220	184
Max flow (L/min)	cont	75	75	75	75	75
Max flow (L/min)	int	90	90	90	90	90
Weight(kg)		10.5	11	11.5	12.3	13.0

Applications:
• Trenchers
• Skid Steer Attachments
• Zero Turn Radius Mowers
• Golf Course Maintenance Equipment
• Sweepers
• Wood Chippers
• Conveyers
• Combine Harvesters
• Winches
• Augers
• Portable Irrigation Systems
• Post Hole Augers
• Specialty Harvesters Such as Potato, Tomato, Nut, Leafy Vegetable, Sugar, Cotton, Coffee and Grape
• Combine Header Drives
• Sprayers
• Scissor Lifts
• Snow Removal
• Salt and Sand Spreaders
• Oil and Gas Blender Trucks
• Mini- and Walk-Behind Skid Steers
• Tool Carriers
